1. Introducció
The Baseus EnerFill FC51 Bipow2 Pro is a high-capacity portable power bank designed to charge your electronic devices on the go. Featuring a 20000mAh battery, a digital display, and an integrated USB-C cable, it offers convenience and fast charging capabilities for up to three devices simultaneously.

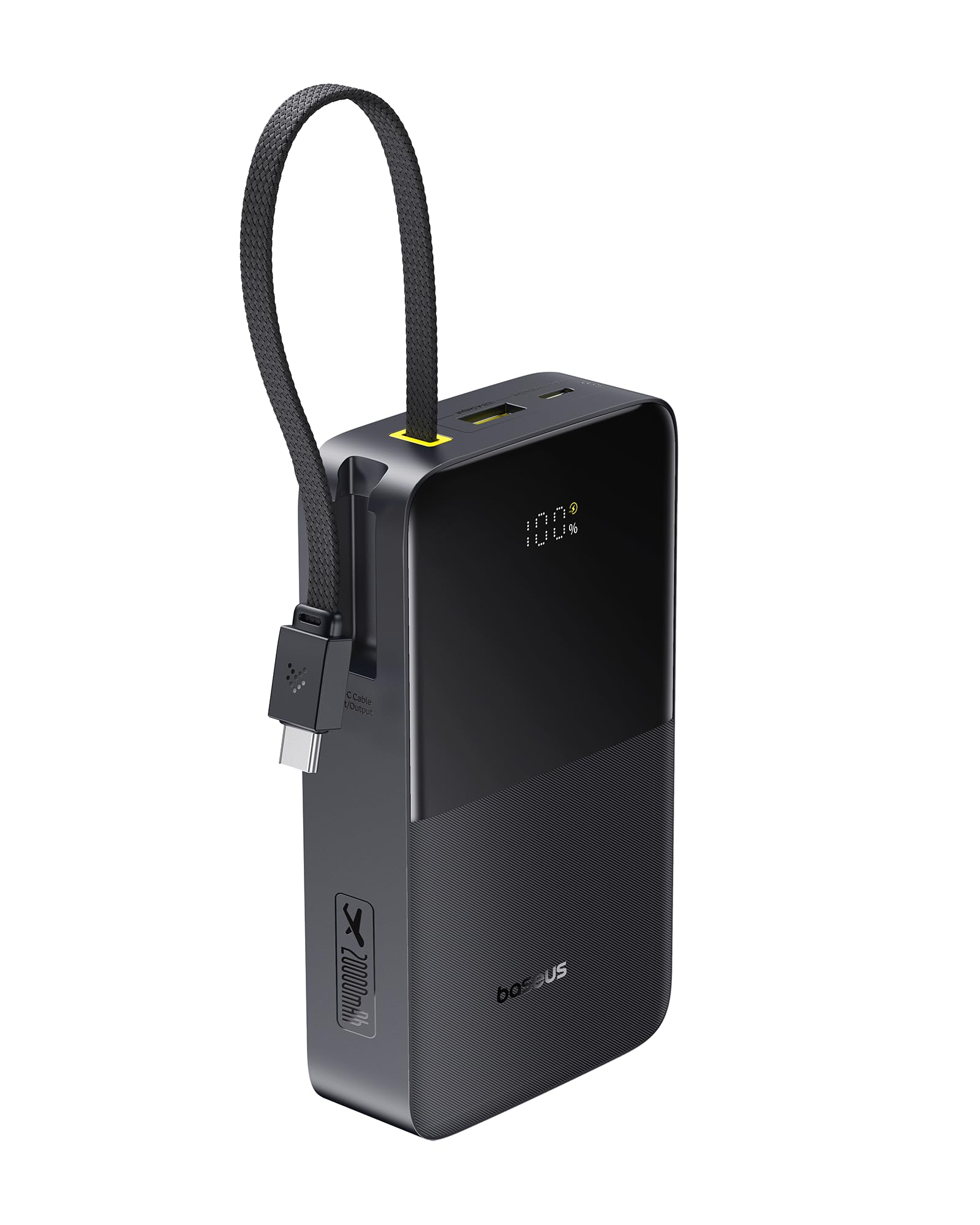

Image 1: Baseus EnerFill FC51 Bipow2 Pro Power Bank. This image shows the power bank from an angled perspective, highlighting its digital display, integrated USB-C cable, and textured finish.
2. Característiques del producte
- Alta capacitat: 20000mAh (73Wh) lithium-ion battery, suitable for air travel.
- Cable USB-C integrat: Built-in USB-C cable for both charging the power bank and charging devices, eliminating the need for extra cables.
- Pantalla digital: Clear digital screen indicates the remaining battery percentage.
- Sortida de càrrega ràpida: Supports up to 22.5W wired fast charging.
- Càrrega de diversos dispositius: Capable of charging up to three devices simultaneously via USB-A, USB-C port, and the integrated USB-C cable.
- Compacte i portàtil: Weighs approximately 356g with dimensions of 12.2 x 6.9 x 3.2 cm (4.80 x 2.72 x 1.26 inches).
- Disseny durador: Features a braided integrated cable tested for over 10,000 bends and abrasion resistance.
Image 2: Portable Power with Built-in Cable. This image illustrates the power bank's integrated USB-C cable, showing its length (22 cm / 8.66 inches) and the device's compact dimensions.
Image 3: Durable Braided Cable. This image highlights the robust, braided design of the integrated USB-C cable, emphasizing its durability with a '10,000+ Bends Tested' graphic.
3. Configuració
3.1 Càrrega inicial del banc d'energia extern
- For first use, fully charge the power bank.
- Connect the integrated USB-C cable to a compatible USB-C power adapter (not included) or use a separate USB-C to USB-C cable with the power bank's USB-C port.
- The digital display will show the charging progress. Once it reaches 100%, the power bank is fully charged.
3.2 Comprovació del nivell de la bateria
The digital display on the power bank shows the current battery percentage. Briefly press the power button (if available) to activate the display and check the charge level.
4. Instruccions de funcionament
4.1 Càrrega dels vostres dispositius
El banc d'energia ofereix múltiples opcions de sortida:
- Ús del cable USB-C integrat: Connect the integrated USB-C cable directly to your USB-C compatible device.
- Ús del port de sortida USB-A: Connect your device's USB-A charging cable to the USB-A port on the power bank.
- Ús del port de sortida USB-C: Connect your device's USB-C charging cable to the dedicated USB-C port on the power bank.
The power bank will automatically begin charging your device. The digital display will show the power bank's remaining charge.
Image 4: Max. 22.5W Wired Charging. This image shows the power bank connected to a smartphone via its integrated cable, indicating a maximum output of 22.5W.
Image 5: Charge Up to 3 Devices. This image demonstrates the power bank simultaneously charging a smartphone, a smartwatch, and a portable fan using its various output ports and integrated cable.
4.2 Càrrega simultània
You can charge up to three devices at once using the USB-A port, the USB-C port, and the integrated USB-C cable. The total output for simultaneous charging is 5V⎓2.4A.
5. Manteniment
5.1 Neteja
Wipe the power bank with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the surface or internal components.
5.2 Emmagatzematge
- Guardeu el banc d'energia en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- For long-term storage, it is recommended to keep the power bank charged to approximately 50-75% to preserve battery health. Recharge it every 3-6 months if not in use.
5.3 Durada de la bateria
To maximize the lifespan of the power bank's battery:
- Eviteu descarregar completament la bateria amb freqüència.
- Eviteu exposar el dispositiu a altes temperatures.
- Use appropriate chargers and cables.
6. Solució De Problemes
6.1 El banc d'energia no es carrega
- Assegureu-vos que el cable de càrrega i l'adaptador estiguin connectats correctament.
- Verify that the power adapter is functional and providing power.
- Prova un cable o adaptador de càrrega diferent.
6.2 Dispositius que no es carreguen
- Comproveu si el banc d'energia té prou càrrega.
- Ensure the device's charging cable is properly connected to both the power bank and the device.
- Try a different charging port on the power bank or a different cable.
- Confirma que el dispositiu és compatible amb les especificacions de sortida del banc d'energia.
6.3 Càrrega lenta
- Assegureu-vos que el dispositiu admeti la càrrega ràpida i que feu servir un cable compatible.
- Carregar diversos dispositius simultàniament pot reduir la velocitat de càrrega de dispositius individuals.
- Environmental factors (e.g., high temperature) can affect charging efficiency.
7. Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | PPBD2PP-2022 |
| Capacitat de la bateria | 20000 mAh (73 Wh) |
| Composició de les cèl·lules de la bateria | Ió de liti |
| Entrada USB-C | 5V⎓3A; 9V⎓2A; 12V⎓1.5A (Max 18W) |
| Sortida USB-A | 5V⎓2.4A; 9V⎓2A; 12V⎓1.5A; 10V⎓2.25A(SCP) |
| Integrated USB-C Cable Output | 5V⎓2.4A; 9V⎓2.22A; 12V⎓1.5A; 10V⎓2.25A(SCP) |
| Sortida simultània | 5V⎓2.4A |
| Potència total de sortida | Màxim 22.5W |
| Nombre de Ports | 3 (1x USB-A, 1x USB-C, 1x Integrated USB-C Cable) |
| Dimensions (L x A x A) | 12.2 x 6.9 x 3.2 cm (4.80 x 2.72 x 1.26 polzades) |
| Pes | 356 grams |
| Color | Negre còsmic |
| Certificació de proves externes | Anatel02914-25-14894 |
Note: Performance data is based on Baseus laboratory results. Actual performance may vary depending on device, usage, and environmental conditions.
Image 6: 20,000mAh Capacity. This image visually represents the power bank's 20,000mAh capacity, showing estimated charges for an iPhone 16 Pro (3 charges) and Samsung Galaxy S25 (2 charges).
8. Informació de seguretat
- No desmunteu, modifiqueu ni repareu el dispositiu.
- Do not expose the power bank to fire, water, or extreme temperatures.
- Eviteu deixar caure o sotmetre el dispositiu a forts impactes.
- Mantenir fora de l'abast dels nens.
- Feu servir només cables i adaptadors de càrrega certificats.
- If the power bank swells, leaks, or shows any abnormal behavior, discontinue use immediately and contact customer support.
9. Garantia i Suport
Per obtenir informació sobre la garantia i l'assistència al client, consulteu la documentació inclosa amb la compra o visiteu el lloc web oficial de Baseus. weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
