1. Introducció
Thank you for choosing the IBKINXX Automatic Horizontal Sliding Chicken Coop Door. This product is designed to provide a secure and convenient solution for managing your poultry, offering predator protection and automated access. This manual provides essential information for the proper installation, operation, and maintenance of your new coop door.
Please read this manual thoroughly before installation and use to ensure optimal performance and safety.
2. Característiques del producte
- Horizontal Sliding Design: This innovative dual-door system opens horizontally, eliminating the need for overhead clearance. It is ideal for coops with limited vertical space, allowing chickens and ducks faster and safer access.
- Funcionament automatitzat: The door features an automatic light sensor mode, opening at dawn and closing at dusk, saving daily manual effort.
- Múltiples opcions de control: In addition to the automatic mode, the door can be operated manually via a button or remotely using the included remote control, providing flexibility for various situations.

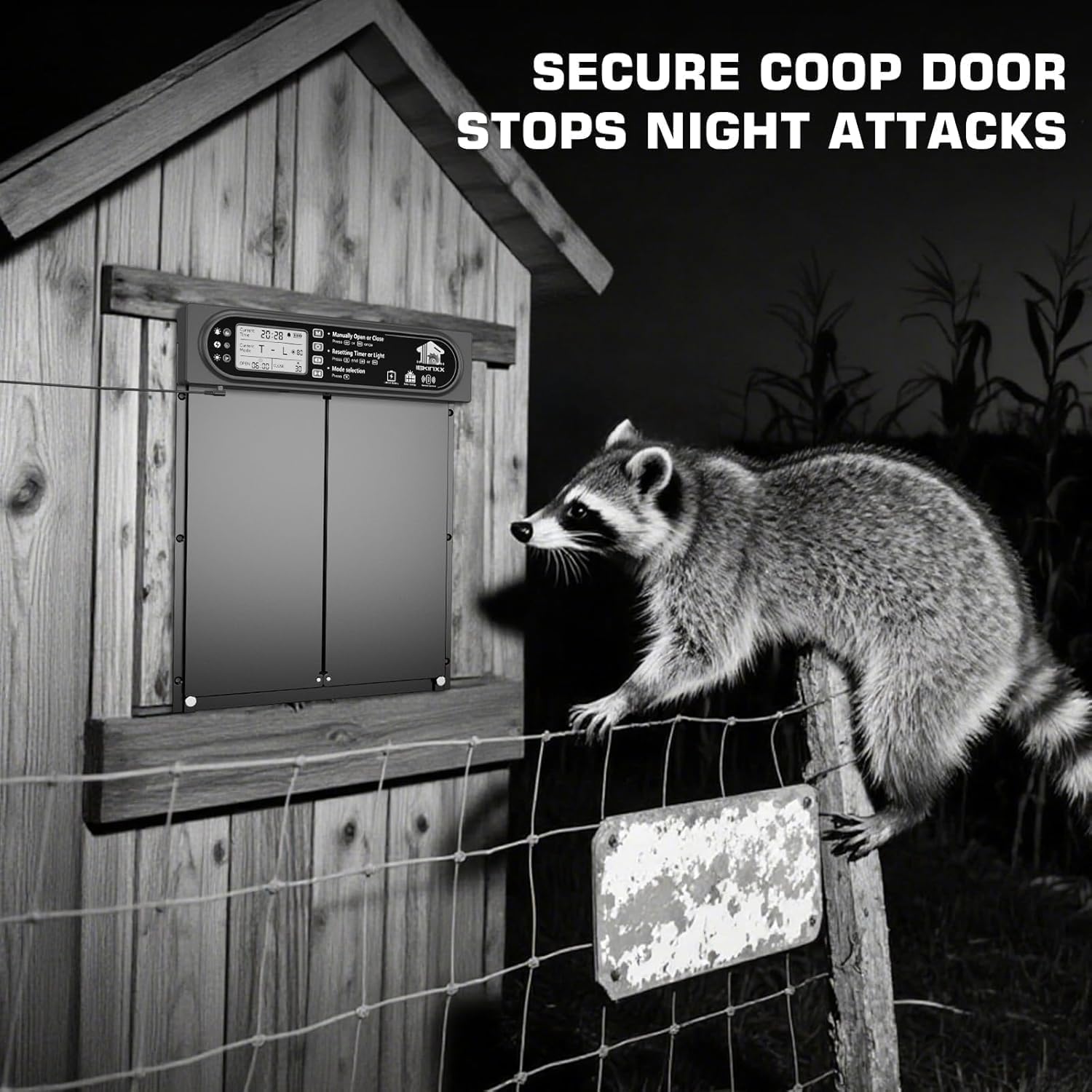

- Protecció contra depredadors: Constructed with durable, predator-resistant materials and a secure locking mechanism, the door protects your flock from raccoons, foxes, and other nocturnal threats.
- Solar Powered with USB Backup: The door is primarily powered by a solar panel, which charges an internal battery during the day. For cloudy days or winter, a reliable USB backup charging option is provided, ensuring year-round continuous operation.
- Weatherproof and Insulated: Unlike traditional coop doors with ventilation holes, this door features fully sealed panels to prevent water leakage during rain or snow, maintaining a warm and comfortable environment inside the coop.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- 1 x Automatic Chicken Coop Door
- 1 x Panell solar
- 1 x Mini tornavís
- 6 x cargols de muntatge
- 1 x Manual d'usuari (aquest document)
- 1 x cable USB
4. Informació de seguretat
- Always ensure the door path is clear of obstructions before operation.
- Mantingueu les mans i la roba solta allunyades de les peces mòbils durant el funcionament.
- Do not attempt to force the door open or closed manually when it is in automatic mode.
- Ensure the solar panel is securely mounted and positioned for maximum sunlight exposure.
- Use only the provided USB cable for backup charging.
- This product is designed for outdoor use with poultry. Do not use for other purposes or with other animals.
5. Configuració i instal·lació
The IBKINXX Automatic Chicken Coop Door is designed for easy installation with pre-drilled holes, requiring no complex tools or wiring.
- Tria la ubicació: Select a flat, vertical surface on your chicken coop for mounting the door. Ensure there is enough space for the horizontal sliding mechanism to operate freely.
- Marca i perfora: Use the door unit as a template to mark the positions for the mounting screws. Drill pilot holes if necessary.
- Mount the Door: Securely attach the chicken coop door to the marked location using the provided mounting screws. Ensure it is level and firmly attached.
- Instal·lació del panell solar: Mount the solar panel in a location that receives direct sunlight for most of the day. Connect the solar panel cable to the designated port on the door unit.
- Càrrec inicial: Before first use, observe the display screen to confirm the battery has sufficient charge. If the battery icon on the top right of the screen is flashing, the battery is low. Fully charge the unit using the USB cable if needed, or allow the solar panel to charge it for several hours in direct sunlight.
Image: Solar panel installation on a chicken coop. The solar panel should be placed in an area with maximum sun exposure to ensure efficient charging of the door's internal battery.
Image: The automatic chicken coop door installed on a wooden coop. A chicken is seen entering the coop through the horizontally opened door, demonstrating the product in use with its solar panel visible above.
6. Instruccions de funcionament
The IBKINXX Automatic Chicken Coop Door offers several operating modes for your convenience.
6.1. Selecció de mode
Short press the 'M' key on the control panel to switch between different operating modes. The display will show the current mode settings.
Image: A diagram illustrating the various automatic modes available for the coop door. These include combinations of Timer and Light Sensor settings for both opening and closing operations.
- T-T (Timer-Timer): The door opens and closes based on set times.
- L-T (Light Sensor-Timer): The door opens based on light levels (dawn) and closes at a set time.
- T-L (Timer-Light Sensor): The door opens at a set time and closes based on light levels (dusk).
- L-L (Light Sensor-Light Sensor): The door opens and closes based on ambient light levels (dawn and dusk).
6.2. Automatic Light Sensor Operation
In Light Sensor modes (L-T, T-L, L-L), the door will automatically open at dawn and close at dusk based on the detected light levels. This hands-free operation saves time and ensures your flock is secured at night and released during the day.

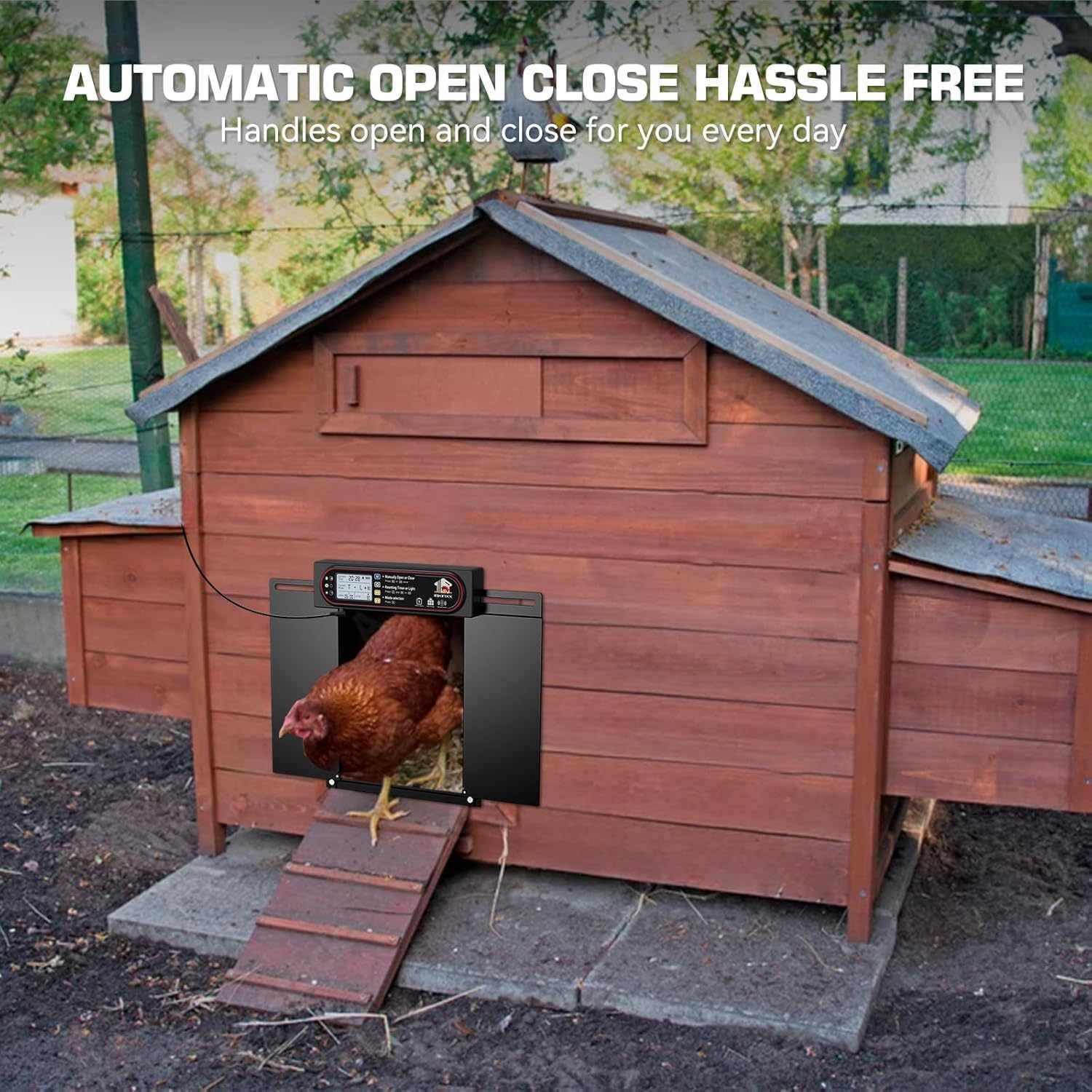

Image: A chicken exiting the coop through the automatic door, demonstrating the convenience of its automatic open/close function, which handles daily operations without manual intervention.
6.3. Control manual
You can manually open or close the door at any time using the dedicated button on the control panel or the remote control. This provides immediate control for specific situations, such as adverse weather or special flock needs.
6.4. Control remot
The included remote control allows you to operate the door from a distance, offering convenience and flexibility. Refer to the remote control's specific instructions for pairing and usage.
7. Manteniment
- Neteja: Periodically clean the door panels and tracks to ensure smooth operation. Use a soft, damp tela. Eviteu els netejadors abrasius.
- Panell solar: Keep the solar panel clean and free of dirt, dust, or snow to maximize charging efficiency.
- Comprovació de la bateria: Regularly check the battery level on the display. If the battery consistently runs low, ensure the solar panel is receiving adequate sunlight or use the USB backup charging option.
- Inspecció: Inspect the door and its components for any signs of wear or damage. Address any issues promptly to maintain optimal performance and security.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Door not opening/closing automatically. | Low battery; incorrect mode setting; light sensor obstructed. | Check battery level and charge if necessary. Verify the operating mode. Ensure the light sensor is clean and unobstructed. |
| Door not responding to remote control. | Remote battery low; remote not paired; signal interference. | Replace remote battery. Re-pair the remote control according to instructions. Reduce distance or clear line of sight. |
| Door movement is sluggish or stuck. | Obstruction in tracks; dirt buildup; low battery. | Inspect tracks for debris and clean thoroughly. Check battery level and charge if needed. |
| Battery icon flashing. | Bateria baixa. | Charge the battery using the solar panel (ensure direct sunlight) or the provided USB cable. |
9. Especificacions
- Marca: IBKINXX
- Model: SKM-185
- Dimensions (L x A x A): 46 x 279 x 356 mm (approximately 1.8 x 11 x 14 inches)
- Material: Plàstic, metall
- Color: Negre
- Font d'alimentació: Solar with USB backup
- Opcions de control: Automatic Light Sensor, Manual Button, Remote Control
- Característiques: Weatherproof, Predator Resistant, Horizontal Sliding
- Apte per a: Chickens, Ducks, Poultry
10. Garantia i Suport
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official IBKINXX weblloc web. Conserveu el rebut de compra com a comprovant de compra.
