1. Introducció
This manual provides essential information for the safe and proper operation, setup, and maintenance of your Roco 7500128 H0 E-Lok E.444.031 model electric locomotive. Please read these instructions carefully before using the model to ensure optimal performance and longevity.

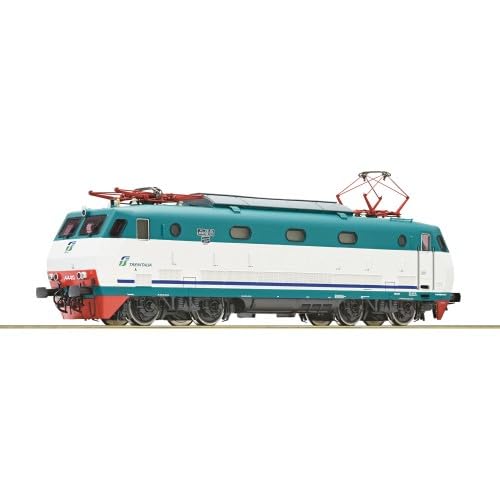

Figura 1: The Roco 7500128 H0 E-Lok E.444.031 model electric locomotive. This image displays the detailed exterior of the locomotive, highlighting its design and features.
2. Instruccions de seguretat
- Supervisió d'adults: This model is not a toy and is intended for collectors and model enthusiasts. Adult supervision is recommended for younger users.
- Seguretat elèctrica: Ensure all electrical connections are made correctly and securely. Use only power supplies compatible with H0 scale model railways. Disconnect power before performing any maintenance or adjustments.
- Peces petites: The model contains small parts that could pose a choking hazard. Keep out of reach of small children.
- Manipulació: Handle the locomotive with care to avoid damaging delicate components such as pantographs, railings, and other attached details.
- Medi ambient: Operate the model in a clean, dry environment, away from excessive dust, moisture, and direct sunlight.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats en desembalar-los. El paquet ha de contenir:
- 1x Roco 7500128 H0 E-Lok E.444.031 Electric Locomotive
- Manual d'instruccions (aquest document)
- (Optional) Additional detail parts (if included by manufacturer)
4. Configuració
4.1 Preparació de la pista
Ensure your H0 scale track is clean and properly laid. The minimum recommended radius for this locomotive is 358 mm to ensure smooth operation and prevent derailments.
4.2 Col·locació de la locomotora a la via
- Carefully remove the locomotive from its packaging, holding it by the body.
- Place the locomotive on the track, ensuring all wheels are correctly seated on the rails.
- Connect your H0 compatible power supply to the track.
4.3 Acoblament
The locomotive is equipped with a NEM 362 coupling pocket with KK kinematics. This allows for easy attachment of compatible rolling stock. Gently push the coupling of the rolling stock into the locomotive's coupling pocket until it clicks into place.
5. Instruccions de funcionament
5.1 Encès
Once the locomotive is on the track and the power supply is connected, turn on the power to your model railway system.
5.2 Direction and Speed Control
Use your model railway controller to adjust the speed and direction of the locomotive. The locomotive features a 5-pole motor for smooth operation.
5.3 Funcions d'il·luminació
The E-Lok E.444.031 is equipped with LED headlights. It features 3 headlights and 2 taillights, which change automatically depending on the direction of travel.
5.4 Digital Operation (DCC Ready)
This locomotive is equipped with an electrical interface for traction vehicles (NEM 652 with plug-in device), making it ready for digital operation (DCC) with a suitable decoder (sold separately). Refer to your decoder's manual for installation and programming instructions.
6. Manteniment
6.1 Neteja
- Cos: Gently wipe the locomotive body with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
- Wheels and Pickups: Regularly clean the wheels and electrical pickups to ensure good electrical contact with the track. Use a specialized track cleaning fluid or isopropyl alcohol on a cotton swab.
- Pista: Keep your track clean from dust and debris for optimal performance.
6.2 Lubricació
Periodically lubricate the moving parts of the drive mechanism (gears, axles) with a small amount of specialized model railway lubricant. Refer to the manufacturer's recommendations for specific lubrication points. Avoid over-lubrication.
6.3 Traction Tires
The locomotive has one axle with traction tires. These tires may wear out over time and require replacement. Use only genuine Roco replacement parts.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Locomotive does not move. | No power to track; dirty track/wheels; locomotive not seated correctly. | Check power supply and connections; clean track and wheels; ensure locomotive is properly on rails. |
| Els llums parpellegen o són tènues. | Poor electrical contact; dirty track/wheels. | Clean track and wheels thoroughly. |
| Locomotive runs erratically. | Dirty track/wheels; track uneven; motor issues. | Clean track and wheels; check track alignment; if problem persists, contact Roco support. |
| Derailment. | Track radius too tight; track uneven; wheels not properly gauged. | Ensure minimum radius of 358 mm; check track for levelness; inspect wheel gauge. |
8. Especificacions
- Model: Roco 7500128 H0 E-Lok E.444.031
- Companyia Ferroviària: FS (Ferrovie dello Stato Italiane)
- Època: V-VI
- Ample de via: H0
- Length over Buffers: 195 mm
- Radi mínim: 358 mm
- Motor: 5-pole motor with flywheel
- Driven Axles: 4
- Axles with Traction Tires: 1
- Il·luminació: LED headlights (3 front, 2 rear, direction-dependent)
- Acoblament: NEM 362 coupling pocket with KK kinematics
- Interfície elèctrica: NEM 652 with plug-in device (DCC ready)
- Construcció: Metal rods, modernized E.444R version
9. Garantia i Suport
For warranty information and technical support, please refer to the official Roco website or contact your authorized Roco dealer. Keep your proof of purchase for warranty claims.
Roco Official Weblloc: www.roco.cc
