VirtuFit Rower Variation User Manual

1. Introducció

Thank you for choosing the VirtuFit Rower Variation. This rowing machine is designed to provide an effective full-body workout, improving your physical condition, burning calories, and strengthening core muscles. This manual contains important information regarding the safe assembly, operation, and maintenance of your rower. Please read it thoroughly before first use and keep it for future reference.

2. Instruccions de seguretat

Per garantir un funcionament segur i evitar lesions, seguiu les següents pautes de seguretat:

• Consulta un metge abans de començar qualsevol nou programa d'exercicis.
• Sempre escalfeu-vos abans de fer exercici i refresqueu-vos després.
• Ensure the rower is placed on a stable, level surface with adequate clearance around it.
• Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
• Inspect the rower for loose or damaged parts before each use. Do not use if any components are compromised.
• Porteu calçat i roba esportiva adequats.
• No supereu el pes màxim de l'usuari de 150 kg (330 lliures).
• Deixa de fer exercici immediatament si et sents dèbil, marejat o tens dolor.

3. Contingut del paquet

Upon unpacking, please verify that all components are present and undamaged. The package typically includes:

• VirtuFit Rower Variation main frame
• Seat and rail assembly
• Foot pedals with straps
• Manillar
• Monitor LCD
• Assembly tools and hardware kit
• Manual d'usuari

4. Muntatge i muntatge

The VirtuFit Rower Variation is designed for easy assembly and convenient storage. Follow these steps to set up your rower:

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge i col·loqueu-les sobre una superfície neta i plana.
2. Connecteu els estabilitzadors: Secure the front and rear stabilizers to the main frame using the provided bolts and tools.

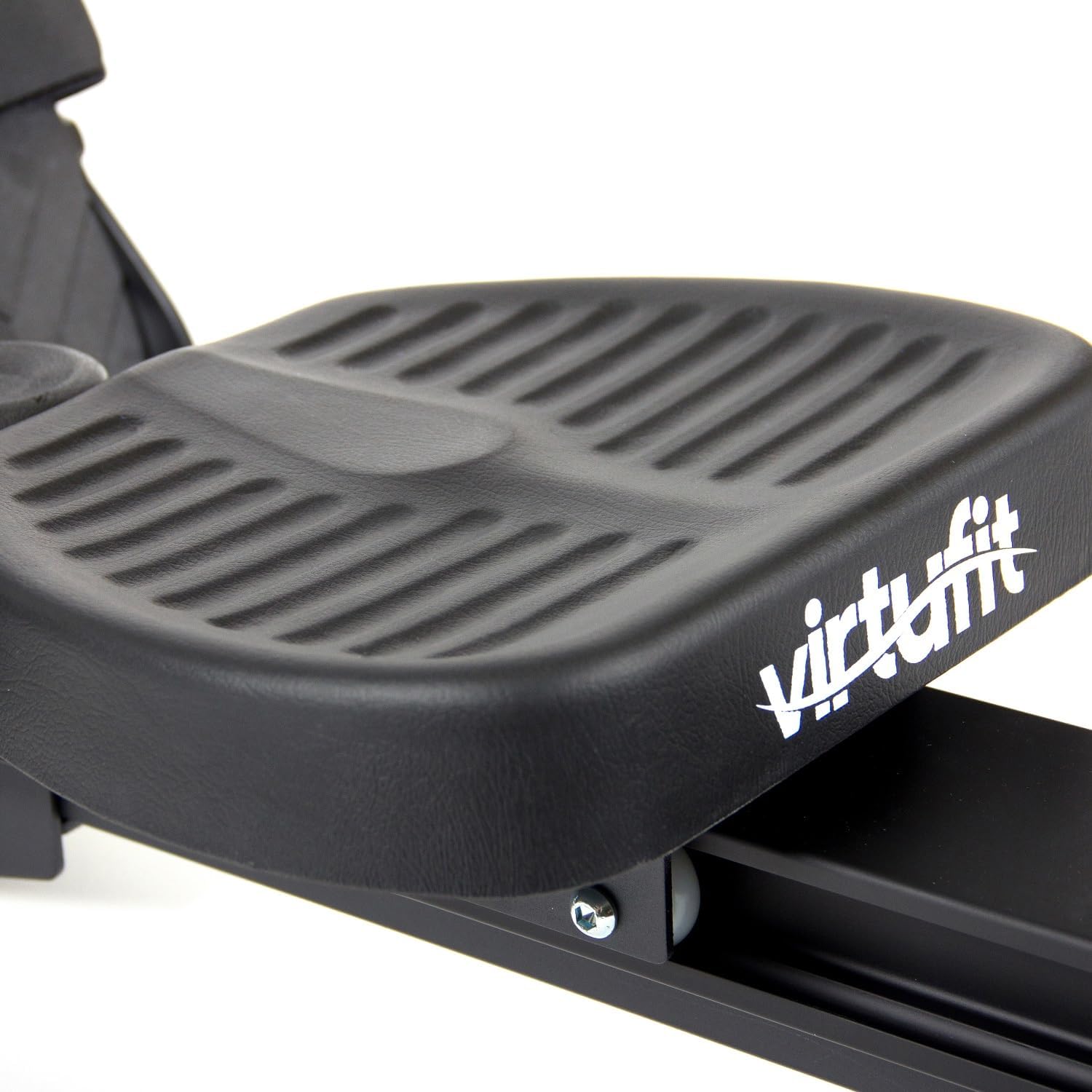

3. Assemble Seat Rail: Connect the seat rail to the main frame. Ensure the seat slides smoothly along the rail.
4. Instal·lar pedals: Attach the foot pedals to the designated points on the rower. Adjust the foot straps to fit your shoe size.
5. Connecta el monitor: Attach the LCD monitor to its bracket and connect any necessary sensor cables.
6. Comprovació final: Before use, double-check all bolts and connections to ensure they are tight and secure.

5. Instruccions de funcionament

The VirtuFit Rower Variation offers a smooth and effective workout. Follow these instructions for proper use:

5.1 Primers passos

1. Adjust Foot Straps: Place your feet on the pedals and secure them firmly with the adjustable straps.
2. Ajustar la resistència: The rower features 8 levels of magnetic resistance. Turn the resistance knob, usually located near the front of the machine, to your desired intensity. Higher numbers indicate greater resistance.
3. Posició del seient: Sit on the seat, ensuring your back is straight and your core is engaged.

5.2 Tècnica de rem

Proper rowing technique is crucial for an effective workout and injury prevention:

• La captura: Start with knees bent, shins vertical, and arms extended forward, gripping the handlebar.
• La unitat: Push off with your legs, then lean back slightly from your hips, and finally pull the handlebar towards your abdomen.
• L'acabat: Your legs should be extended, body leaning back slightly, and the handlebar near your lower ribs.
• La recuperació: Extend your arms forward, then lean forward from your hips, and finally bend your knees to slide the seat back to the starting position.

5.3 Ús del monitor LCD

The integrated LCD monitor displays key workout data to help you track your progress:

• Hora: Durada del teu entrenament.
• Recompte: Number of strokes performed.
• Distància: Distància estimada recorreguda.
• Calories: Calories cremades estimades.
• Escaneig: Passa automàticament per totes les funcions de la pantalla.

Refer to the monitor's specific instructions for detailed navigation and reset functions.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your VirtuFit Rower Variation:

• Neteja: Netegeu el remer amb anunciamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
• Neteja de carrils: Netegeu periòdicament el riel del seient per garantir un moviment suau del seient.
• Comproveu les connexions: Regularly check all bolts, nuts, and moving parts for tightness and wear. Tighten as necessary.
• Lubricació: The magnetic resistance system typically requires no lubrication. Consult the manufacturer if you notice any unusual friction.
• Emmagatzematge: When not in use, the rower can be folded for compact storage. Store in a dry, cool place away from direct sunlight.

7. Solució De Problemes

If you encounter any issues with your rower, refer to the following common problems and solutions:

If you cannot resolve the issue using the table above, please contact VirtuFit customer support.

8. Especificacions

9. Garantia i Suport

9.1 Informació de la garantia

The VirtuFit Rower Variation comes with a 2 any de garantia. This warranty covers manufacturing defects and material faults under normal use conditions. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper assembly, misuse, neglect, or unauthorized modifications.

9.2 Atenció al client

For any questions, technical assistance, or warranty claims, please contact VirtuFit customer support. You can typically find contact information on the VirtuFit official website or through your retailer. When contacting support, please have your model number (VIFROWSP) and proof of purchase ready.
