Asixxsix Electric Bike Controller and SW900 LCD Display Kit User Manual

1. Introducció

This manual provides essential information for the installation, operation, and maintenance of your Asixxsix Electric Bike Controller and SW900 LCD Display Kit. This kit is designed to enhance the performance and user experience of electric bikes and scooters by providing precise motor control and clear data display. Please read this manual thoroughly before use to ensure proper function and safety.

2. Informació de seguretat

• Always disconnect the battery before performing any installation, maintenance, or repair work on the electric bike system.
• Assegureu-vos que totes les connexions estiguin ben fixades i degudament aïllades per evitar curtcircuits i riscos elèctrics.
• Do not attempt to open or modify the controller or display unit. Unauthorized modifications can void the warranty and pose safety risks.
• Keep the controller and display away from extreme temperatures, direct sunlight, and corrosive substances.
• If you are unsure about any installation step, consult a qualified technician.

3. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

• 1 x Controlador de bicicleta elèctrica
• 1 x SW900 LCD Display Panel Meter
• 2 x Instruction Manuals (for Controller and Display)

4. Producte acabatview

The Asixxsix Electric Bike Controller and SW900 LCD Display Kit provides robust control and clear information for your electric bike or scooter.

4.1 Característiques clau

• Three Mode Controller: A sine wave 3-mode controller compatible with both Hall and non-Hall brushless motors, featuring a self-learning function for optimal performance.
• Àmplia aplicabilitat: Suitable for 36V 1000W, 36V 1500W, 48V 1000W, 48V 1500W, 52V 1000W, and 52V 1500W brushless motors.
• Habitatge durador: The controller features a thickened aluminum alloy housing, ensuring sturdiness, longevity, and efficient heat dissipation.
• Pantalla LCD retroiluminada: The SW900 LCD display clearly shows status and data, with a backlight for visibility in dim environments.
• Disseny impermeable: The display panel is waterproof and sweatproof, offering safe use with a simple and concise interface for easy reading.

4.2 Components del producte

Figura 1: The Asixxsix Electric Bike Controller and SW900 LCD Display Kit, showing both main components.

Figura 2: The SW900 LCD Display mounted on bicycle handlebars, showing its ergonomic placement.

Figura 3: The Asixxsix Electric Bike Controller, highlighting its various wiring connections for different components.

Figura 4: Dimensions of the Asixxsix Electric Bike Controller, showing its length, width, and height.

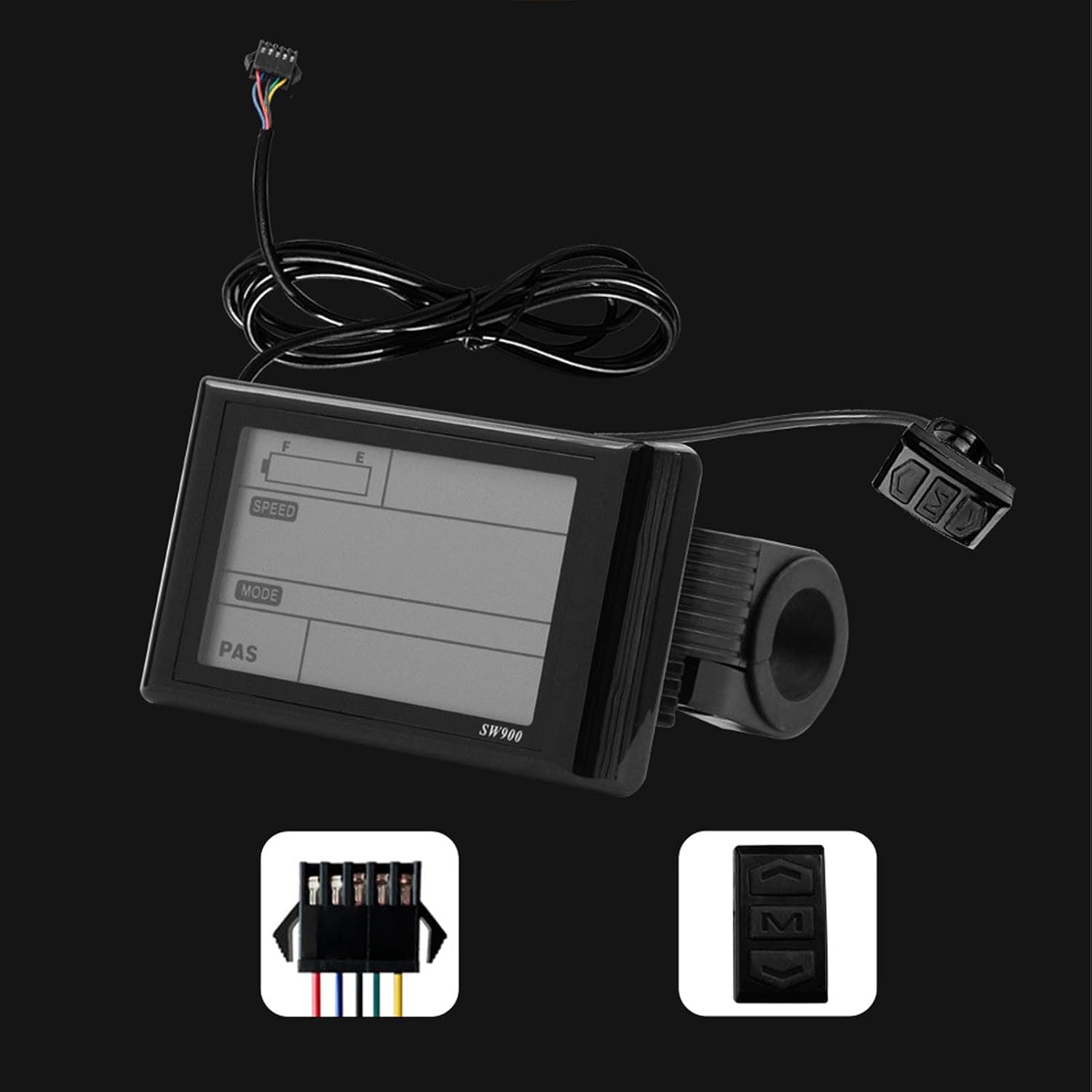

Figura 5: Un primer pla view of the SW900 LCD Display, showing the digital readouts for speed, odometer, and error codes.

5. Configuració i instal·lació

The installation of the controller and display kit involves connecting various components of your electric bike system. It is recommended to follow the detailed instructions provided in the separate instruction manuals included in the package for specific wiring diagrams and connection procedures.

5.1 Passos generals d'instal·lació

1. Muntar el controlador: Securely mount the controller in a protected area on your electric bike, ensuring good ventilation for heat dissipation.
2. Muntar la pantalla: Attach the SW900 LCD display to your handlebars in a position that is easily visible and accessible.
3. Connecteu els cables del motor: Connect the motor phase wires (usually thick green, yellow, blue) and Hall sensor wires (if applicable) from the controller to your brushless motor.
4. Connect Battery Wires: Connect the main power wires (red for positive, black for negative) from the controller to your electric bike battery.
5. Connect Display and Other Components: Connect the display cable to the controller. Also, connect other accessories such as throttle, brake levers, and PAS (Pedal Assist System) sensor to their respective ports on the controller.
6. Funció d'autoaprenentatge: If your controller has a self-learning function, follow the specific instructions in the controller manual to initiate it. This optimizes the controller's performance with your motor.
7. Assegureu totes les connexions: Comproveu totes les connexions per assegurar-vos que estiguin ajustades i aïllades correctament.

6. Instruccions de funcionament

The SW900 LCD display provides an intuitive interface for controlling your electric bike and monitoring its status.

6.1 Encès/Apagat

• To power on the system, press and hold the power button on the display for a few seconds.
• Per apagar l'aparell, premeu i manteniu premut el botó d'engegada de nou fins que la pantalla s'apagui.

6.2 Funcions de visualització

The display shows various parameters:

• Velocitat: Current riding speed (Km/h or Mph).
• ODO (Comptaquilòmetres): Distància total recorreguda.
• VIATGE: Distància recorreguda durant el trajecte actual.
• Nivell de bateria: Indicació de la càrrega restant de la bateria.
• Nivell PAS: Current pedal assist level (e.g., ECO, STD, PWR).
• Codis d'error: Displays specific codes if a system fault is detected.

6.3 Ajustar la configuració

Refer to the SW900 LCD Display manual for detailed instructions on how to access and adjust settings such as:

• Speed unit (Km/h / Mph)
• Diàmetre de la roda
• Bateria voltage
• Brillantor de la llum de fons
• Nivells PAS

7. Manteniment

Regular maintenance ensures the longevity and optimal performance of your controller and display kit.

• Neteja: Wipe the display and controller with a soft, damp tela. Eviteu utilitzar productes químics aggressivs o netejadors abrasius.
• Comprovacions de connexió: Periodically inspect all wiring connections for looseness, corrosion, or damage. Tighten any loose connections.
• Protecció del medi ambient: While the display is waterproof, avoid prolonged exposure to heavy rain or submersion. Protect the controller from moisture and physical impact.
• Actualitzacions de programari: Comproveu el del fabricant website for any available firmware updates for the controller or display.

8. Solució De Problemes

Si teniu problemes, consulteu els passos habituals següents per a la resolució de problemes:

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

9. Especificacions

Key technical specifications for the Asixxsix Electric Bike Controller and SW900 LCD Display Kit:

10. Garantia i Suport

For warranty information and technical support, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. Keep your proof of purchase for warranty claims.
