Aoxun 12' x 16' Cedar Wood Gazebo Instruction Manual

Introducció

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Aoxun 12' x 16' Cedar Wood Gazebo. Please read this manual thoroughly before beginning assembly and retain it for future reference.

Informació de seguretat

• Assegureu-vos que totes les peces estiguin presents i sense danys abans del muntatge.
• El muntatge requereix almenys dos adults.
• Utilitzeu l'equip de seguretat adequat, inclosos guants i protecció ocular.
• No munteu amb vents forts o condicions meteorològiques adverses.
• Securely anchor the gazebo to a stable, level surface (concrete, deck, or flat ground) using the provided anchoring base.
• Do not exceed the maximum load capacity of the ceiling hook (55 lbs / 25 kg).
• Regularly inspect the gazebo for loose fasteners or damaged components.
• Clear snow accumulation from the roof to prevent structural damage. The gazebo is designed to hold up to 15 inches of snow.
• This gazebo is designed to withstand winds up to Level-12 (73-83 mph). In extreme weather conditions, additional precautions may be necessary.

Contingut del paquet

Your Aoxun 12' x 16' Cedar Wood Gazebo is delivered in multiple packages. Verify all components against the parts list provided in the separate assembly guide.

Els components clau inclouen:

• FSC-certified cedar wood frame components (posts, beams)
• Double galvanized steel roof panels
• Rust-proof stainless steel hardware
• Galvanized steel brackets
• Reinforced built-in ceiling hook
• Anchoring base components

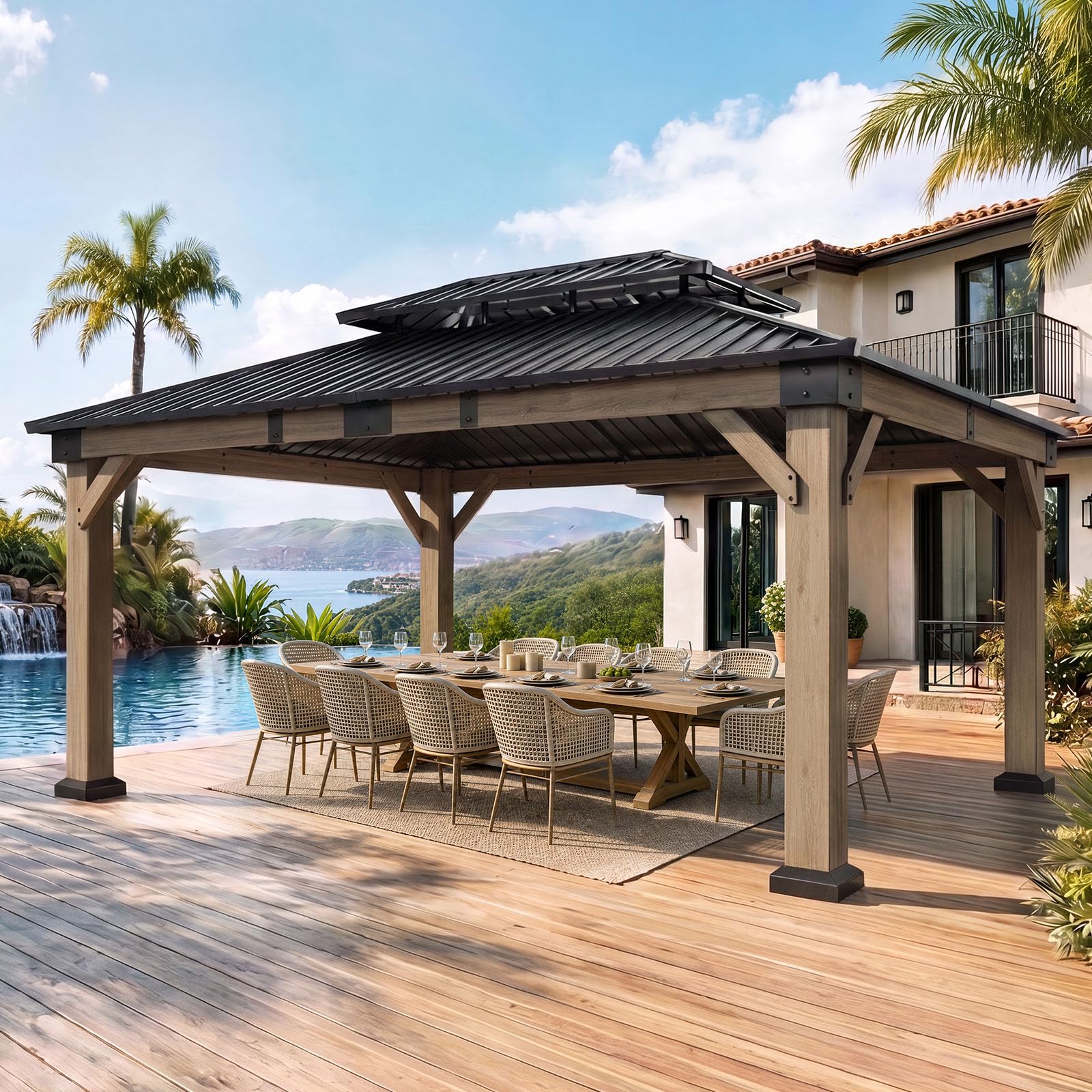

Image: The Aoxun 12' x 16' Cedar Wood Gazebo, fully assembled, positioned next to a swimming pool during twilight. This image illustrates the complete product.

Muntatge i muntatge

The assembly process requires careful attention to detail and the assistance of at least two adults. Refer to the separate detailed assembly instructions included in your package for step-by-step guidance.

Eines necessàries

• Escala
• Trepant
• Clau anglesa
• Cinta mètrica
• Nivell
• Maça de goma (opcional, per a cops suaus)

Passos clau del muntatge

1. Preparació del lloc: Trieu una superfície plana i estable per a la instal·lació. Assegureu-vos que hi hagi prou espai lliure al voltant de la glorieta.
2. Muntatge del marc: Begin by assembling the cedar wood posts and connecting them with the double-layer cross beams. Ensure all connections are secure using the provided stainless steel hardware and galvanized steel brackets.

   Imatge: Un primer pla view highlighting the dual-layer stacked beam design and solid triangular structure of the gazebo's cedar wood frame, demonstrating enhanced stability.
3. Instal·lació del panell de teulada: Carefully install the galvanized steel roof panels onto the frame. The dual-layer streamlined roof design enhances airflow and facilitates rain/snow runoff.

   Imatge: Una imatge detallada view of the double galvanized steel roof, illustrating the ventilation gaps that allow for enhanced internal airflow.

4. Ancoratge: Once the main structure is complete, secure the gazebo to the ground using the anchoring base components. This is crucial for stability and weather resistance.

   Image: A composite image detailing the slope drainage design of the roof, the reinforced ceiling hooks, and the secure anchoring base for the gazebo posts.

Consell de muntatge

For visual guidance, refer to the official assembly videos provided by Aoxun.

Instruccions de funcionament

Ús

• The gazebo provides a shaded area for relaxation, gatherings, and outdoor activities.
• The double roof design allows for enhanced air circulation, keeping the interior cool.
• The roof blocks approximately 90% of UV rays, offering sun protection.

Ganxo de sostre

The reinforced built-in ceiling hook has a maximum load capacity of 55 lbs (25 kg). It is suitable for hanging outdoor lights, fans, or decorative items. Ensure items do not exceed this weight limit.

Image: The interior of the gazebo, showcasing a ceiling fan and string lights suspended from the sturdy ceiling hooks, demonstrating customization options.

Resistència a la intempèrie

Your gazebo is designed for superior weather resistance:

• Càrrega de neu: Can withstand up to 15 inches of snow. Regular snow removal is recommended in heavy snowfall areas.
• Resistència al vent: Can withstand Level-12 strong winds (73-83 mph).
• Rain Runoff: The sloped roof design ensures fast rain runoff, keeping the interior dry.

Image: A visual representation of the gazebo's performance in different weather conditions, including snow, rain, and wind, highlighting its all-weather durability.

Manteniment

• Neteja: Clean the cedar wood frame with a mild soap solution and water. Rinse thoroughly. Clean the galvanized steel roof panels with water and a soft brush or cloth. Avoid abrasive cleaners.
• Inspecció: Periodically check all bolts, screws, and connections to ensure they are tight and secure. Tighten any loose fasteners.
• Cura de la fusta: Cedar wood is naturally resistant to rot and insects. However, applying a wood sealant or stain annually can help preserve its appearance and extend its lifespan.
• Retirada de neu: In areas with heavy snowfall, gently remove accumulated snow from the roof to prevent excessive weight and potential damage.
• Prevenció de l'òxid: While the steel components are galvanized and rust-resistant, inspect for any signs of rust, especially in coastal or high-humidity environments. Address any rust spots promptly with appropriate rust-inhibiting paint.

Resolució de problemes

Problemes comuns i solucions

• Estructura tambaleant:
  • Ensure all bolts and screws are securely tightened.
  • Verify the gazebo is installed on a level surface.
  • Check that the anchoring base is firmly secured to the ground.
• Water Leakage from Roof:
  • Inspect roof panels for proper overlap and sealing.
  • Ensure all roof panel fasteners are tight.
  • Check for any damage to the roof panels.
• Dificultat durant el muntatge:
  • Torneu a llegir atentament les instruccions de muntatge.
  • Ensure you have all necessary tools.
  • Confirm all parts are correctly identified and oriented.
  • Contacteu amb l'assistència al client per obtenir assistència.

Especificacions

Informació de la garantia

Aoxun products are manufactured to high-quality standards. For specific warranty details regarding your 12' x 16' Cedar Wood Gazebo, please refer to the warranty card included in your product packaging or contact Aoxun customer support.

Atenció al client

If you encounter any problems during assembly or use, or if you have questions about your Aoxun 12' x 16' Cedar Wood Gazebo, please contact Aoxun customer support.

• Assistència en línia: Visit the Aoxun Store on Amazon: Aoxun Store
• Suport per correu electrònic: Refer to your product packaging or the separate assembly guide for specific email contact information.
• Customer support typically responds within 24 hours.
