OTTOCAST ScreenFlow 11.4" Wireless Apple CarPlay & Android Auto Screen User Manual

1. Introducció

Thank you for choosing the OTTOCAST ScreenFlow 11.4" Wireless Apple CarPlay & Android Auto Screen. This device is designed to enhance your driving experience by providing seamless integration of your smartphone's features, navigation, entertainment, and a reliable backup camera system. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance and safety.

2. Informació de seguretat

• Seguretat de conducció: Prioritzeu sempre la conducció segura. No feu servir el dispositiu de manera que us distregui de la carretera.
• Instal·lació: Ensure the device is securely mounted and all cables are properly routed to avoid obstructing your view or vehicle controls. If unsure, seek professional installation.
• Font d'alimentació: Use only the provided car charger and cables. Incorrect power sources can damage the device or vehicle.
• Temperatura: Eviteu exposar el dispositiu a temperatures extremes, a la llum solar directa durant períodes prolongats o a una humitat elevada.
• Neteja: Utilitzeu un drap suau i sec per netejar. No utilitzeu netejadors abrasius ni dissolvents.
• Desmuntatge: Do not attempt to disassemble or repair the device yourself. This will void the warranty and may cause damage.

3. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• OTTOCAST ScreenFlow 11.4" Carplay Screen
• 3M Adhesive Mounting Bracket
• Carregador de cotxe
• Cable AUX
• Backup Camera with 19.69 ft (6m) Cable

4. Producte acabatview

The OTTOCAST ScreenFlow is an advanced automotive smart display designed for universal compatibility and ease of use. It features a high-definition touchscreen and robust connectivity options.

4.1 Característiques clau

• Visualització: 11.4" 1920x720 HD IPS Touchscreen with 60fps ultra-smooth refresh rate.
• Connectivitat: Wireless Apple CarPlay & Android Auto, Dual-Band WiFi (2.4G+5G), Dual Bluetooth (BT4.2+BT5.0).
• Sistema operatiu: Curated Android OS with pre-installed apps like Netflix, YouTube, Disney+, Prime Video. (Note: Additional apps available via built-in app store only.)
• Multitasca: Split-Screen Mode for running two applications simultaneously.
• Càmera de seguretat: Bundled 1080P Night-Vision Backup Camera (IP67 waterproof) with dynamic parking guidelines.
• Comoditat: 2-Second Instant Wake, Voice Control, Lifetime Free OTA Updates.
• Maquinari: 4-Core Processor, 2GB RAM, 32GB ROM.

4.2 Components del dispositiu

Figura 4.1: Davant view of the OTTOCAST ScreenFlow display, illustrating its Android OS capabilities with pre-installed video applications such as Prime Video, YouTube, Disney+, Spotify, and Netflix. The image also highlights internal specifications including a 4-Core processor, 2GB RAM, 32GB ROM, and OTA upgrade support.

Figura 4.2: The 11.4-inch massive screen of the OTTOCAST ScreenFlow, demonstrating its large display size and instant boot feature. Key display specifications such as 11.4 inches, 60fps refresh rate, 2-second instant boot, 550 cd/m² brightness, and 1920x720 HD resolution are highlighted.

5. Configuració i instal·lació

The OTTOCAST ScreenFlow is designed for quick and tool-free installation, typically taking only 3 minutes.

5.1 Muntatge de la pantalla

1. Tria la ubicació: Select a suitable flat surface on your dashboard or windshield that does not obstruct your view o interferir amb els airbags.
2. Superfície neta: Ensure the chosen surface is clean and dry for optimal adhesion of the 3M adhesive bracket.
3. Fixeu el suport: Peel the protective film from the 3M adhesive bracket and firmly press it onto the desired location. Hold for 30 seconds to ensure a strong bond.
4. Muntar la pantalla: Securely attach the ScreenFlow display unit to the mounted bracket. The design allows for easy detachment for security when parked.

5.2 Connexió d'alimentació

1. Insert the provided car charger into your vehicle's 12V power outlet (cigarette lighter socket).
2. Connect the other end of the car charger cable to the power input port on the ScreenFlow unit.
3. The screen will automatically power on when the vehicle ignition is started, thanks to its 2-second instant wake technology.

5.3 Instal·lació de la càmera de marxa enrere

The included 1080P backup camera provides enhanced safety when reversing.

1. Muntar la càmera: Install the backup camera at the rear of your vehicle, typically above the license plate. Ensure it has a clear view. The IP67 rating ensures water resistance.
2. Cable de ruta: Carefully route the 19.69 ft (6m) camera cable from the rear of the vehicle to the ScreenFlow unit, ensuring it is tucked away and not exposed to damage.
3. Connect Camera: Plug the camera cable into the designated camera input port on the ScreenFlow unit.
4. Power Camera: Connect the camera's power wire to your vehicle's reverse light circuit. This will automatically activate the camera display on the ScreenFlow when you shift into reverse.

6. Instruccions de funcionament

Apple CarPlay i Android Auto sense fil 6.1

Connect your smartphone wirelessly for navigation, music, calls, and more.

1. Maridatge inicial: On the ScreenFlow, navigate to the CarPlay or Android Auto icon. Follow the on-screen instructions to pair your iPhone or Android phone via Bluetooth.
2. Reconnexió automàtica: After the initial pairing, your phone will automatically reconnect to the ScreenFlow every time you start your car.
3. Funcionalitat: Once connected, you can access compatible apps, make hands-free calls, send messages, and use voice assistants directly from the ScreenFlow display.

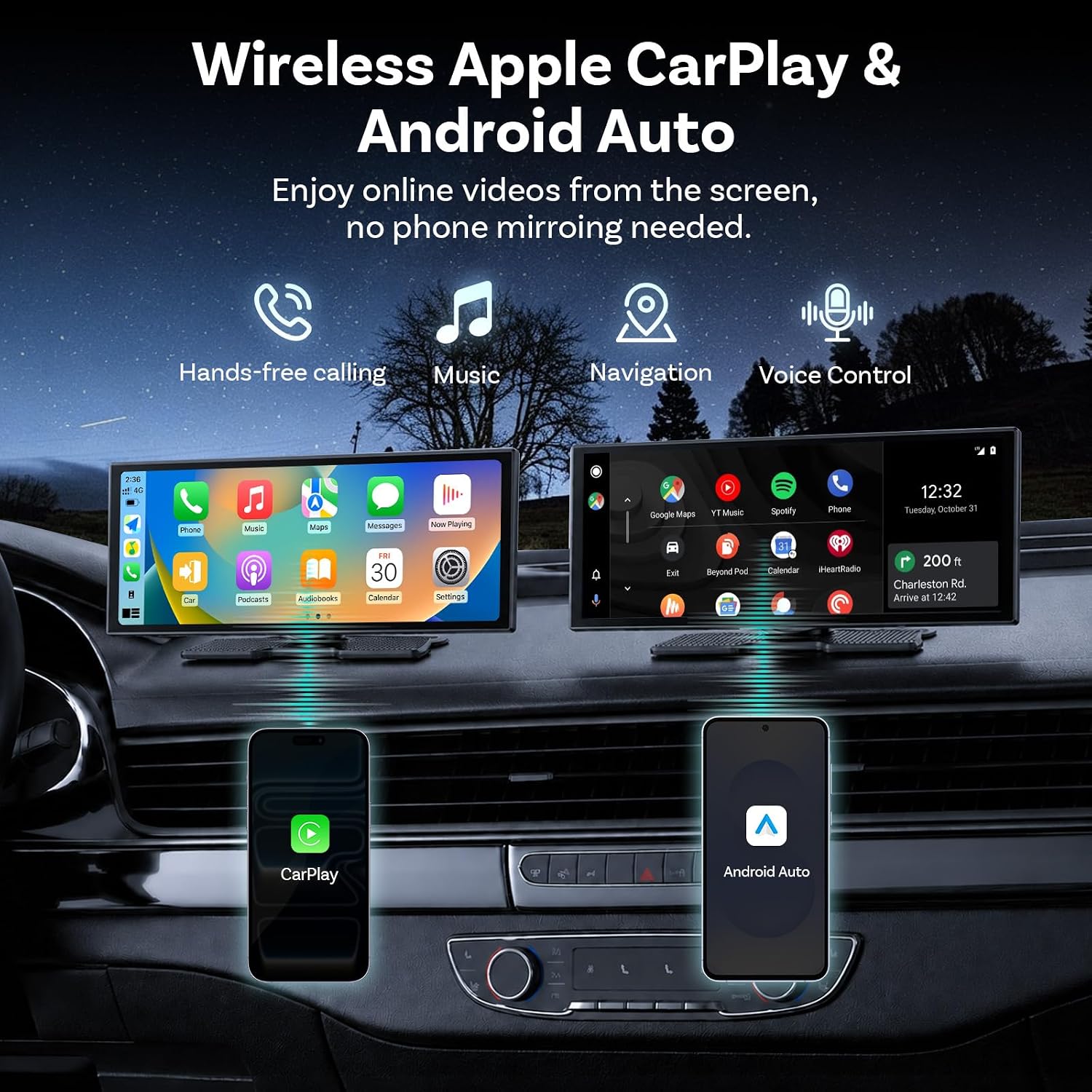

Figura 6.1: The OTTOCAST ScreenFlow demonstrating wireless Apple CarPlay and Android Auto functionality, with icons for hands-free calling, music, navigation, and voice control. Both interfaces are shown on the screen, connected to respective smartphones.

6.2 Split-Screen Multitasking

The Split-Screen Mode allows you to run two applications simultaneously on the 11.4-inch display.

1. Activate Split-Screen: While an app is open, look for a split-screen icon (often two rectangles side-by-side) or long-press the recent apps button.
2. Selecciona una segona aplicació: Choose another compatible app from the list to occupy the second half of the screen.
3. Ús: Per example, the driver can use Google Maps for navigation on one side, while a passenger streams YouTube or Spotify on the other.

Figura 6.2: The OTTOCAST ScreenFlow in flexible split-screen mode, perfectly adapted for multitasking. The image shows a navigation map on the left side of the screen and a video playing on the right, illustrating how the driver can navigate while a passenger enjoys videos simultaneously.

6.3 Streaming Pre-installed Apps

The ScreenFlow comes with pre-installed streaming applications.

1. Connecta't a Hotspot: To use streaming apps like Netflix, YouTube, Disney+, or Prime Video, connect the ScreenFlow to your phone's mobile hotspot via Wi-Fi.
2. Inicia l'aplicació: Select the desired streaming app from the main menu.
3. Gaudeix del contingut: Stream videos directly on the big screen without needing phone mirroring.

6.4 Dual-Band WiFi & Dual Bluetooth

The device features advanced connectivity for seamless operation.

• Bluetooth dual: Allows wireless CarPlay/Android Auto to run while your car's original sound system remains connected, ensuring full audio through your factory speakers without compromise.
• WiFi de doble banda: Provides stable and fast internet connectivity for HD video streaming without buffering, especially when connected to a mobile hotspot.

Figura 6.3: Illustration of Dual WiFi & Dual Bluetooth capabilities. The ScreenFlow displays navigation and video content, while accompanying phone screens show active Bluetooth connections (e.g., to OTTOCAST and headphones) and Wi-Fi network lists, emphasizing simultaneous streaming and navigation without audio conflict.

6.5 Control de veu

Utilize voice commands for safe and convenient operation while driving.

1. Activa l'Assistent de veu: Depending on your connected phone, say "Hey Siri" or "Hi Google" to activate the voice assistant.
2. Issue Commands: You can use voice commands for tasks such as making calls ("Call Mom"), playing music ("Play Music"), or navigating ("Navigate home").

Figura 6.4: The OTTOCAST ScreenFlow demonstrating voice control for safe driving. The screen shows a calling interface and a backup camera view, amb examples of voice commands such as "Hey Siri, Call Mom," "Hi Google, Message to Linda," "Hey Siri, Play Music," and "Hi Google, Navigate home."

7. Funcionament de la càmera de marxa enrere

The included 1080P HD backup camera activates automatically when you shift your vehicle into reverse.

• Visualització automàtica: When reverse gear is engaged, the ScreenFlow will automatically switch to the camera view, providing a clear, wide-angle image of the area behind your vehicle.
• Dynamic Parking Guidelines: The display features dynamic parking guidelines that adjust with your steering wheel, assisting you in parking maneuvers.
• Visió nocturna: The camera is equipped with night vision capabilities, ensuring clear visibility even in low-light conditions.
• Flip de la imatge: The camera supports vertical and horizontal image flip options, allowing for correct orientation regardless of mounting position.

Figura 7.1: The 1080P HD Backup Camera in action, allowing confident parking day or night. The image shows the reverse camera view on the ScreenFlow with dynamic reference lines, highlighting features such as high definition, waterproof design, and image flipping capabilities.

8. Manteniment

• Neteja de pantalla: Netegeu suaument la pantalla amb un drap suau i sense borrissol. Per a taques difícils, netegeu lleugeramentampNetegeu el drap amb aigua o un netejador de pantalles. Eviteu productes químics agressius.
• Neteja general: Keep the device free from dust and debris. Use a soft brush or compressed air to clean vents and ports.
• Gestió de cables: Periodically check all cables for wear or damage. Ensure they are securely connected and not pinched.
• Actualitzacions de programari: The device supports Lifetime Free OTA (Over-The-Air) updates. Ensure your device is connected to Wi-Fi periodically to receive the latest firmware, which improves performance and adds features.

9. Solució De Problemes

If you encounter issues with your OTTOCAST ScreenFlow, please refer to the following common solutions:

If these solutions do not resolve your issue, please contact OTTOCAST customer support for further assistance.

10. Especificacions

11. Garantia i Suport

• Garantia: The OTTOCAST ScreenFlow comes with a 1-year manufacturer's warranty from the date of purchase, covering defects in materials and workmanship.
• Actualitzacions de programari: Enjoy lifetime free Over-The-Air (OTA) updates, ensuring your device continuously receives performance improvements, bug fixes, and new features.
• Atenció al client: For any setup guidance, troubleshooting, or other inquiries, professional tech support is available and responds within 24 hours. Please refer to the contact information provided with your product or visit the official OTTOCAST weblloc per obtenir detalls de suport.
