Hoover H-CARE 300 Washing Machine User Manual

1. Introducció

Thank you for choosing the Hoover H-CARE 300 Washing Machine. This appliance is designed to provide efficient and effective laundry care. To ensure safe and optimal performance, please read this manual carefully before installation and use. Keep this manual for future reference.

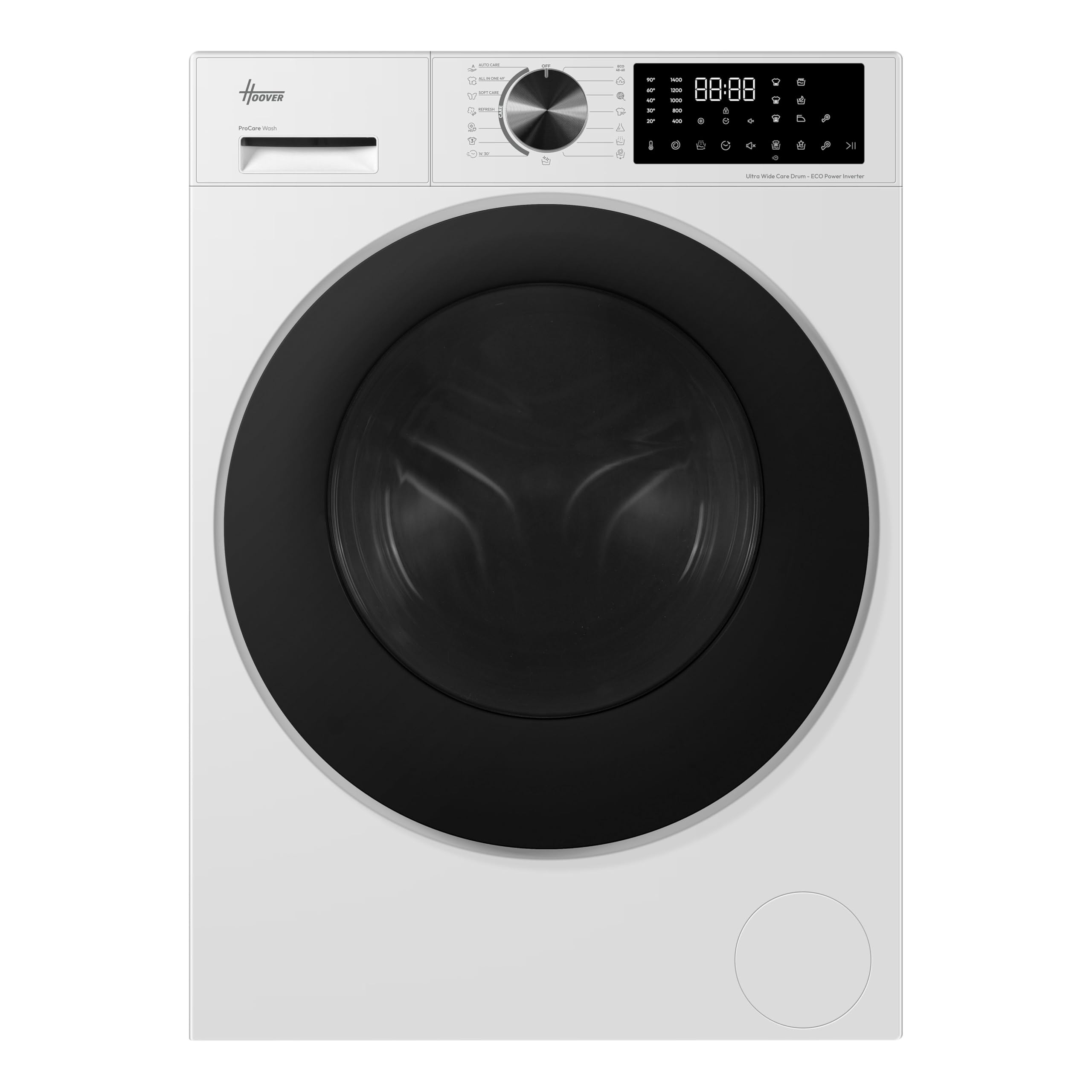

Figura 1.1: Frontal view of the Hoover H-CARE 300 Washing Machine.

2. Informació de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica o lesions a les persones.

• Assegureu-vos que l'aparell estigui ben connectat a terra.
• No permeteu que els nens juguin sobre o dins de l'aparell.
• No feu servir l'aparell si està danyat o funciona malament.
• Desendolleu l'aparell abans de realitzar qualsevol manteniment o neteja.
• No renteu articles que s'hagin netejat, rentat, remullat o tacat amb substàncies combustibles o explosives.

3. Configuració i instal·lació

3.1 Desembalatge

Carefully remove all packaging materials. Check for any damage during transit. The package includes the power cable, fill hose, and drain hose.

3.2 Col·locació

Place the washing machine on a firm, level floor. Ensure there is adequate space around the appliance for ventilation and maintenance. This is a free-standing unit.

• Dimensions (Profunditat x Amplada x Alçada): 55.8P x 59.5l x 85h cm

Figura 3.1: Example placement of the washing machine in a bathroom setting.

3.3 Connexions

1. Subministrament d'aigua: Connect the fill hose to a cold water tap and to the appliance's water inlet. Ensure connections are tight to prevent leaks.
2. Drenatge: Securely attach the drain hose to a suitable drain pipe or sink. Ensure the hose is not kinked or blocked.
3. Connexió elèctrica: Plug the power cable into a grounded 230 Volt electrical outlet. Do not use extension cords.

3.4 Anivellació

Ajusteu les potes de l'aparell per assegurar-vos que estigui perfectament anivellat. Una màquina anivellada redueix la vibració i el soroll durant el funcionament.

4. Instruccions de funcionament

4.1 Tauler de control

The washing machine features a touch control panel and touchscreen interface for easy program selection and setting adjustments.

Figure 4.1: The touch control panel and display.

4.2 Càrrega de la roba

Open the front-loading door and load laundry into the drum. Do not overload the machine; the maximum capacity is 10 kg. The Ultra Wide XL CareDrum is designed to protect fabrics and improve washing results.

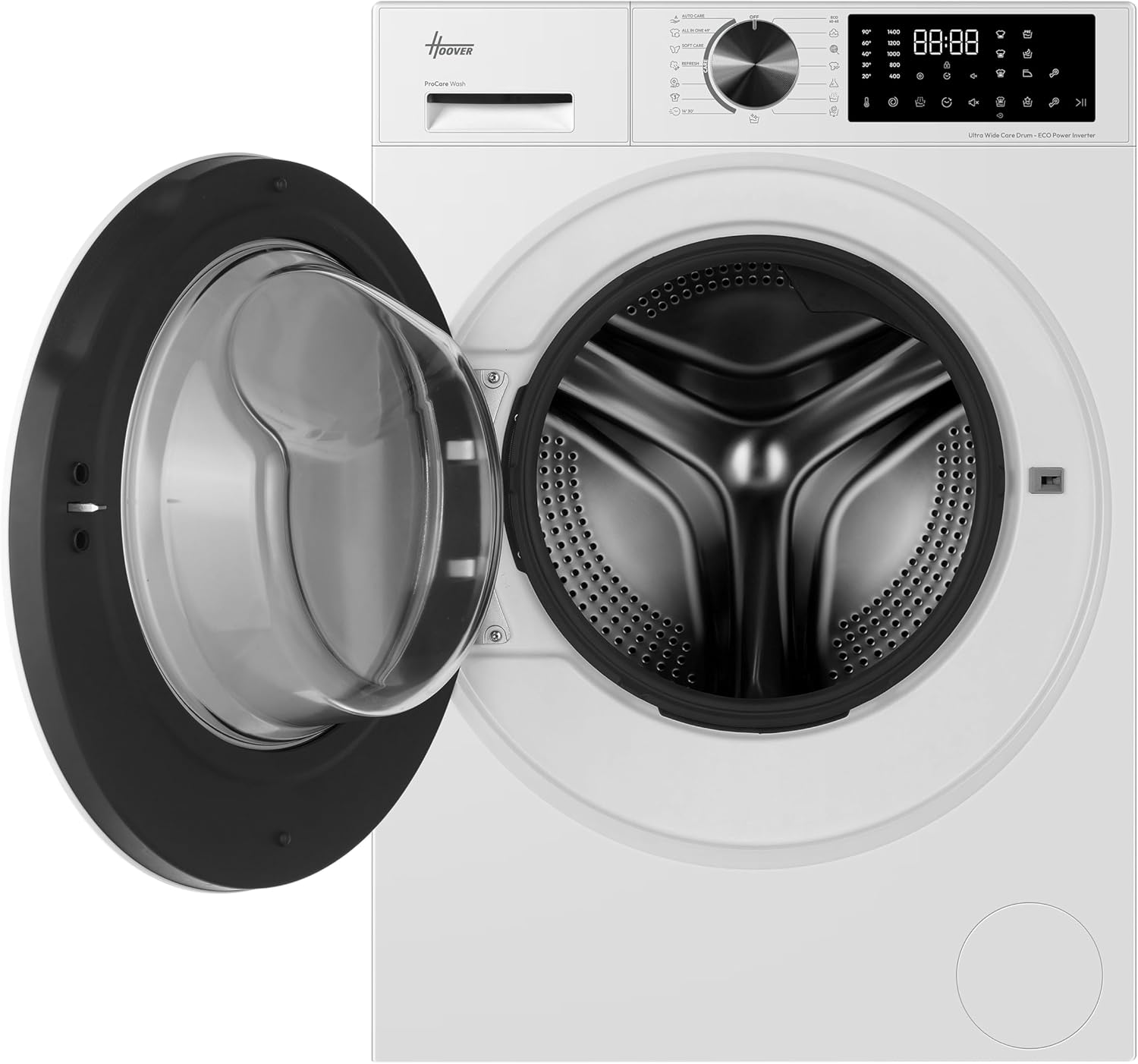

Figure 4.2: The washing machine drum with the door open.

4.3 Dispensador de detergent

Pull out the detergent dispenser drawer. Add appropriate amounts of detergent and fabric softener to the designated compartments. The ProCare Wash technology uses a water injection method for rapid and uniform detergent distribution.

Figure 4.3: The detergent dispenser drawer.

4.4 Selecció d'un programa

Turn the program selector knob or use the touchscreen to choose one of the 16 standard washing programs. Specialized Care cycles include:

• Cura de l'automòbil: Automatically detects load and sets optimal washing parameters.
• Allergy Care Pro: Combines steam action and intensive 60°C rinse for deep sanitization.
• All in One 49': A quick program for mixed loads.
• Rapid 14/30 minutes: Fast wash cycles for lightly soiled items.

Available cycle options include Spin, Cotton, Eco, Drum Clean, and Rinse.

4.5 Inici d'un cicle

Press the Start/Pause button to begin the selected washing program. The display will show the remaining time.

4.6 Fi de cicle

Once the cycle is complete, the machine will signal. Open the door and remove your laundry promptly.

5. Manteniment

Un manteniment regular garanteix la longevitat i l'eficiència de la teva rentadora.

5.1 Neteja del tambor

Utilize the dedicated 60°C drum cleaning cycle periodically to maintain hygiene and prevent odors.

5.2 Neteja del dispensador de detergent

Remove the detergent dispenser drawer and rinse it under running water to remove any residue. Clean the housing of the dispenser with a brush.

5.3 Neteja de la junta de la porta

The Clean Shield™ antimicrobial treatment helps protect the door seal from mold. Wipe the door seal regularly with a damp cloth to remove lint and residue.

5.4 Cleaning the Porthole Glass

The Smart Spray system with double water injection helps clean the porthole glass. For manual cleaning, wipe the glass with a soft, damp cloth after each wash.

5.5 Neteja del filtre

Consult the full manual for instructions on how to access and clean the drain pump filter, typically located at the bottom front of the machine. This should be done regularly to prevent blockages.

6. Solució De Problemes

Si teniu problemes amb la rentadora, consulteu els següents problemes i solucions habituals:

• La màquina no arrenca: Ensure the power cable is plugged in, the door is closed properly, and the Start/Pause button has been pressed. Check the circuit breaker.
• Vibració o soroll excessiu: Verify the machine is level and that all transit bolts have been removed during installation. Ensure the load is balanced. The AI CareDrive system helps manage vibrations for quiet operation (72 dB during spin).
• L'aigua no s'escorre: Check the drain hose for kinks or blockages. Clean the drain pump filter.
• Detergent residue in dispenser: Ensure the dispenser is clean and not blocked. Use the correct amount and type of detergent.
• Resultats de rentat insatisfactoris: Check load size, detergent dosage, and program selection. Ensure water supply is adequate.

For more detailed troubleshooting, please refer to the complete user manual or contact customer support.

7. Especificacions

8. Informació de la garantia

This Hoover H-CARE 300 Washing Machine comes with a product warranty of 2 anys from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal household use. For full terms and conditions, refer to the warranty card included with your appliance or contact Hoover customer service.

9. Suport

For technical assistance, spare parts, or further information regarding your Hoover H-CARE 300 Washing Machine, please contact Hoover customer support. Contact details can typically be found on the Hoover official weblloc web o a la documentació que s'inclou amb l'aparell.
