1. Introducció
Thank you for choosing the Parrot Uncle 122cm Ceiling Fan with Dimmable LED Light. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read all instructions carefully before assembly and use, and retain this manual for future reference.
Informació de seguretat:
- Assegureu-vos que la font d'alimentació estigui desconnectada abans de la instal·lació o el manteniment.
- La instal·lació l'ha de fer un electricista qualificat.
- Mount the fan to a ceiling structure capable of supporting its weight.
- Keep hands and objects clear of the fan blades during operation.
2. Què hi ha a la caixa
Desembaleu amb cura tots els components i assegureu-vos que heu rebut els articles següents:
- Unitat de ventilador de sostre
- Llum LED integrada
- Control remot
- Solid Wood Blades (3 pieces)
- Mounting Material (screws, brackets, etc.)

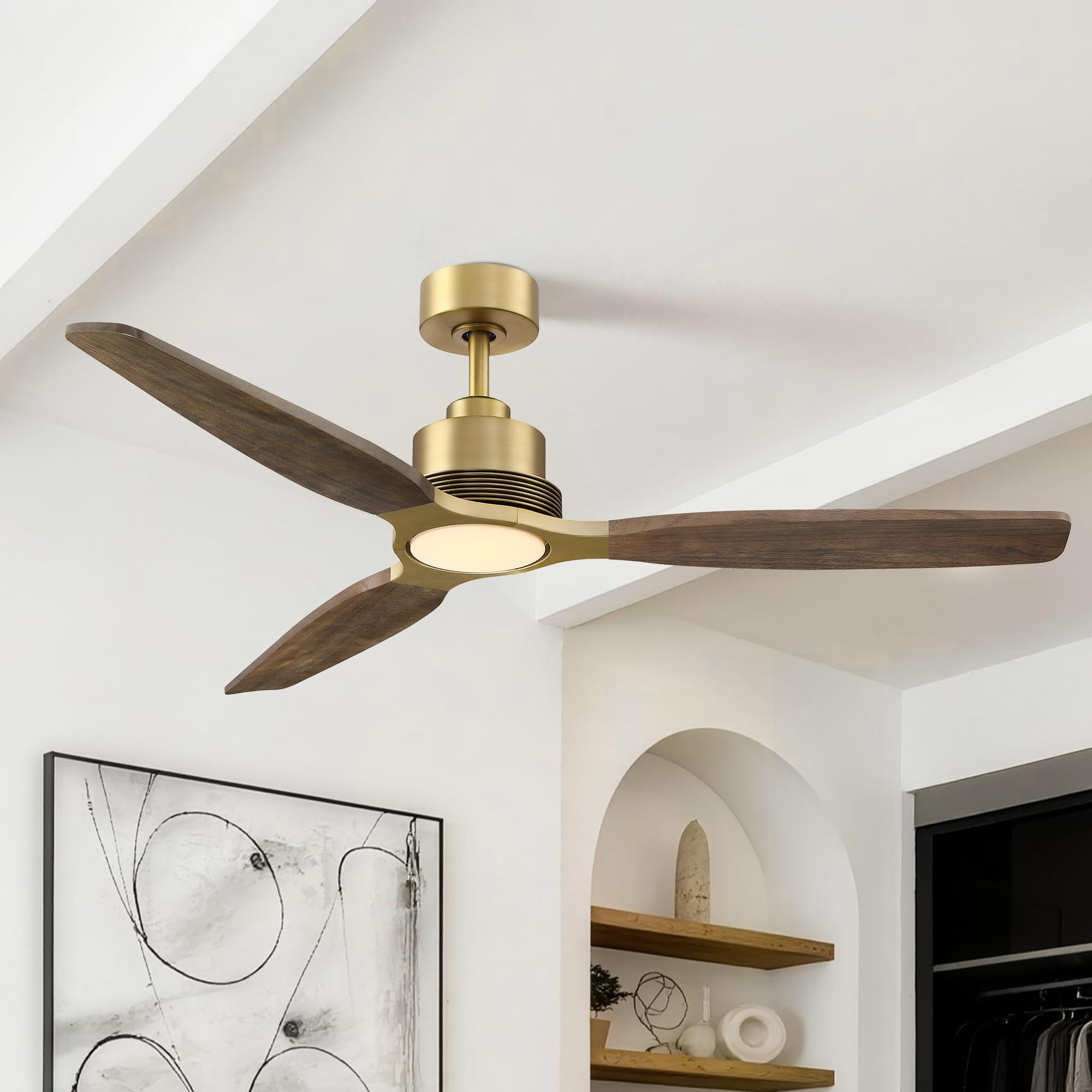

Imatge: Més deview of the Parrot Uncle 122cm Ceiling Fan with Light.
3. Configuració i instal·lació
Most components of this ceiling fan come pre-assembled for easier installation. However, professional installation by a certified electrician is highly recommended to ensure safety and proper functioning.
3.1 Dimensions
Before installation, verify the fan dimensions to ensure it fits your intended space.

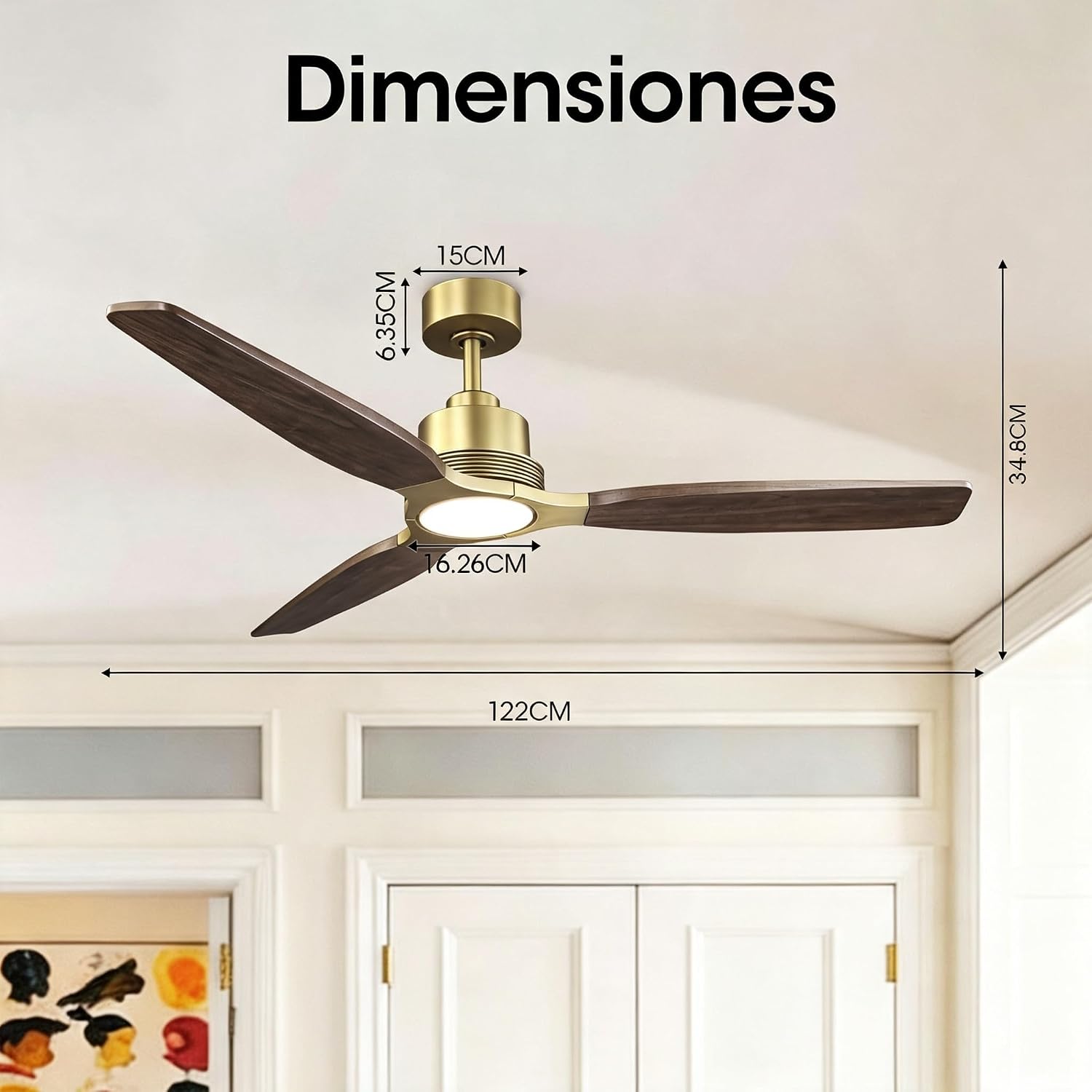

Image: Detailed dimensions of the 122cm ceiling fan, showing a width of 122cm and a height of 33.3cm from ceiling to bottom of light.
3.2 Muntatge
Mount the fan securely to a ceiling joist or a suitable electrical junction box rated for ceiling fan support. Follow the detailed instructions provided in the separate installation guide included with your product for wiring and assembly steps.
4. Instruccions de funcionament
Your Parrot Uncle ceiling fan is controlled via the included remote control, offering various functions for optimal comfort.
4.1 Funcions de control remot
The remote control allows you to manage all fan and light settings. Ensure batteries are correctly inserted.
Image: Diagram of the remote control, indicating buttons for power, fan speed adjustment, light on/off, light color temperature (CCT) adjustment, brightness increase/decrease, and timer settings.
- Interruptor d'encesa/apagada: Encén o apaga el ventilador i la llum.
- Ajust de velocitat del ventilador: Passa ciclicament per 6 ajustos de velocitat.
- Light On/Off & CCT Adjustment: Controls the light and changes color temperature.
- Control de brillantor: Increases or decreases light intensity.
- Configuració del temporitzador: Configura el ventilador perquè s'apagui automàticament després d'1, 2, 4 o 8 hores.
- Interruptor endavant/enrere: Changes the direction of blade rotation for summer or winter mode.
4.2 Configuració de la velocitat del ventilador
The fan offers 6 adjustable speed levels, from a gentle breeze to a powerful airflow, to suit your comfort needs.
Image: Visual representation of the 6-level fan speed adjustment, categorizing speeds 1-2 as soft wind, 3-4 as natural wind, and 5-6 as fresh wind.
4.3 Dimmable LED Light with 3 Color Temperatures
The integrated LED light features adjustable brightness from 1% to 100% and three color temperature modes: Warm Light (3000K), Neutral Light (4000K), and Cool White Light (6000K). Use the remote to cycle through these options and adjust brightness.
Image: Illustration showing the fan light at 3000K (warm), 4000K (neutral), and 6000K (cool white), along with a dimmer scale from 10% to 100% intensity.
4.4 Reversible Winter-Summer Function
The fan includes a reversible motor function to optimize air circulation year-round. In summer, blades rotate counter-clockwise to create a cooling downdraft. In winter, they rotate clockwise at a low speed to circulate warm air trapped near the ceiling.
Image: Depiction of the fan's reversible function, showing downward airflow for summer cooling and upward airflow for winter heat circulation. To change direction, turn off the fan, then turn it back on and press the direction button on the remote.
4.5 Funció de temporitzador
Set the fan to automatically turn off after 1, 2, 4, or 8 hours using the timer button on the remote control. This feature is ideal for nighttime use, ensuring quiet operation and energy saving.
Image: A baby sleeping peacefully in a crib, illustrating the fan's quiet operation (35dB) and timer settings (1H, 2H, 4H, 8H).
5. Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim del teu ventilador de sostre.
- Neteja: Per netejar el ventilador, netegeu-lo amb un drap suau iamp drap. No utilitzeu netejadors abrasius ni dissolvents, ja que poden danyar l'acabat.
- Inspecció de la fulla: Periodically check the fan blades for any signs of damage or looseness. Ensure all screws are tightened.
- Font de llum: The LED light is integrated and generally does not require replacement. If issues arise, contact customer support.
- Seguretat: Always disconnect power to the fan before performing any cleaning or maintenance.
Imatge: Primer pla view highlighting the high-quality materials, including solid wood blades and an iron casing, which contribute to the fan's durability.
6. Solució De Problemes
If you encounter any issues with your ceiling fan, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | Sense subministrament d'alimentació; Cablejat solt; Pila del comandament a distància descarregada. | Comproveu l'interruptor; Verifiqueu les connexions del cablejat; Substituïu les piles del comandament a distància. |
| La llum no funciona | No power to light; Faulty connection. | Check wiring to light; Ensure light is switched on via remote. |
| El ventilador trontolla | Loose blades; Improper mounting; Unbalanced blades. | Tighten all blade screws; Ensure mounting bracket is secure; Use balancing kit if necessary. |
| El comandament a distància no funciona | Piles gastades; comandament a distància no emparellat. | Replace batteries; Refer to pairing instructions in the full manual. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | F6017S48GD-EU |
| Dimensions (L x A x A) | 122 x 122 x 33.3 cm |
| Pes | 5 kg |
| Material | Solid Wood (Blades), Metal, ABS Plastic |
| Tipus de motor | DC Silent Motor |
| Consum d'energia | 35 watts |
| Voltage | 220 volts (CA) |
| Tipus de llum | LED integrat |
| Temperatura de color | 3000K (Warm), 4000K (Neutral), 6000K (Cool White) |
| Velocitats del ventilador | 6 velocitats |
| Característiques especials | Dimmable LED, Reversible Winter-Summer Function, Timer (1/2/4/8H), Remote Control |
| Certificacions | CE, RoHS |
| Mida recomanada de l'habitació | 20-30 m² (approx.) |
8. Garantia i Suport
Your Parrot Uncle ceiling fan is covered by a warranty for spare parts availability in the EU for 2 years from the date of purchase. Please retain your proof of purchase for warranty claims.
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Parrot Uncle customer support through the retailer where you purchased the product or visit the official Parrot Uncle weblloc per obtenir informació de contacte.
We are committed to providing excellent service and support for your product.
