1. Introducció
Thank you for choosing the LIQUIPEL Powertek Power Bank. This compact and portable power bank is designed to provide reliable and fast charging for your smartphone, tablet, and other electronic devices. With its 10,000 mAh capacity and dual USB outputs, it ensures your devices stay powered on the go.
Característiques principals:
- Compact and portable design, weighing approximately 0.39 pounds.
- Capacitat de 10,000 mAh per a la càrrega de diversos dispositius.
- Fast Charging Dual USB Outputs.
- Micro USB and USB Type C Inputs for versatile recharging.
- Built-in battery life display.
Image 1.1: The LIQUIPEL Powertek Power Bank, showcasing its compact form factor and the included Micro USB charging cable.
2. Configuració
2.1 Càrrega inicial del banc d'energia extern
Before first use, fully charge your LIQUIPEL Powertek Power Bank. Connect the included USB Type-C charging cable or a Micro USB cable to the corresponding input port on the power bank. Connect the other end of the cable to a USB wall adapter (not included) or a computer's USB port. The LED indicators on the power bank will illuminate to show the charging progress. All four LEDs will be solid when fully charged.
2.2 Connexió dels dispositius
The power bank features dual USB outputs. Use your device's charging cable and connect it to one of the USB output ports on the power bank. Then, connect the other end of the cable to your smartphone, tablet, or other compatible electronic device. The power bank will automatically begin charging your device.
Imatge 2.1: Una imatge detallada view of the power bank's side, highlighting the dual USB-A output ports, and the USB-C and Micro USB input ports.
2.3 Producte acabatview Vídeo
Vídeo 2.1: Aquest vídeo ofereix una visió generalview of the LIQUIPEL Powertek Power Bank, demonstrating its compact size, multiport compatibility, charging capabilities, battery life display, and integrated safeguard technologies.
3. Operating the Power Bank
3.1 Càrrega dels vostres dispositius
Once your device is connected to the power bank via a USB cable, the power bank will automatically detect the device and begin charging. The LED indicators will show the remaining battery level of the power bank.
3.2 Comprovació del nivell de la bateria
To check the remaining battery level of the power bank, briefly press the power button located on the side. The LED indicators will light up, with each light representing approximately 25% of the battery capacity. Four solid lights indicate a full charge.
Image 3.1: A user connecting a smartphone to the LIQUIPEL Powertek Power Bank, illustrating the ease of use for charging on the go.
4. Manteniment
To ensure the longevity and optimal performance of your LIQUIPEL Powertek Power Bank, please follow these maintenance guidelines:
- Guardeu el banc d'energia en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Eviteu deixar caure o sotmetre el banc d'energia a forts impactes.
- No exposeu el banc d'energia a aigua o altres líquids.
- Netegeu l'exterior amb un drap suau i sec. No utilitzeu productes químics agressius ni materials abrasius.
- For long-term storage, charge the power bank to about 50% capacity every three months to preserve battery health.
5. Solució De Problemes
5.1 El banc d'energia no es carrega
- Ensure the charging cable is securely connected to both the power bank's input port and the power source.
- Verify that the wall adapter or USB port is functioning correctly. Try a different adapter or port.
- Check if the charging cable is damaged. Try using a different cable.
5.2 El dispositiu no es carrega des del banc d'alimentació
- Ensure the power bank has sufficient charge. Check the LED indicators.
- Verify that your device's charging cable is securely connected to both the power bank's output port and your device.
- Try using a different USB output port on the power bank.
- Prova amb un cable o dispositiu de càrrega diferent per descartar problemes amb el cable o el dispositiu.
5.3 Càrrega lenta
- Assegureu-vos que feu servir un cable de càrrega d'alta qualitat.
- Some devices may draw more power than others. Ensure the power bank's output meets your device's requirements for fast charging.
- Factors ambientals com les temperatures extremes poden afectar la velocitat de càrrega.
The LIQUIPEL Powertek Power Bank incorporates safeguard technologies including overcharge protection, over-discharge protection, temperature protection, and short circuit protection to ensure safe operation.
6. Especificacions
| Característica | Detall |
|---|---|
| Marca | LIQUIPEL |
| Número de model | 802564 |
| Capacitat de la bateria | 10000 milionsamp Hores (mAh) |
| Tipus de connector | USB Type C, Micro USB (Inputs) |
| Ports de sortida | Dual USB (Type-A) |
| Voltage | 5 Volts |
| Pes de l'article | 0.39 lliures |
| Dimensions del paquet | 7.44 x 4.29 x 1.06 polzades |
| Característiques especials | Fast Charging, Indicator, Portable Charger |

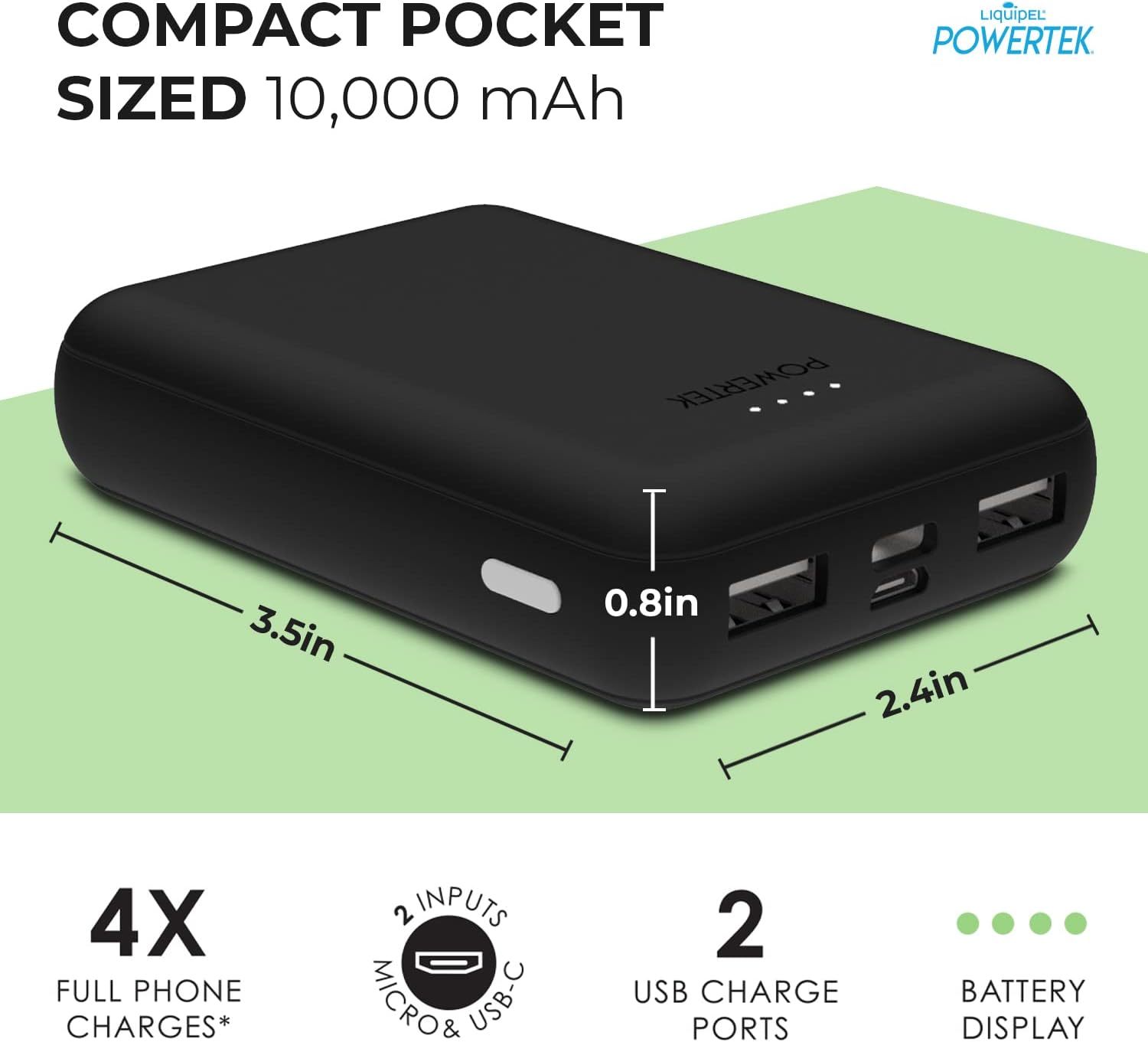

Image 6.1: Visual representation of the compact dimensions of the LIQUIPEL Powertek Power Bank.
Image 6.2: A comparison table highlighting the advantages of the Powertek Compact Battery Bank over standard and value battery chargers.
7. Garantia i Suport
For warranty information and customer support, please refer to the packaging or contact LIQUIPEL customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
