Introducció
Welcome to the user manual for your new Fiamma Compass 2 dB TC Professional Coffee Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your espresso machine. Please read this manual thoroughly before operating the machine and keep it for future reference.

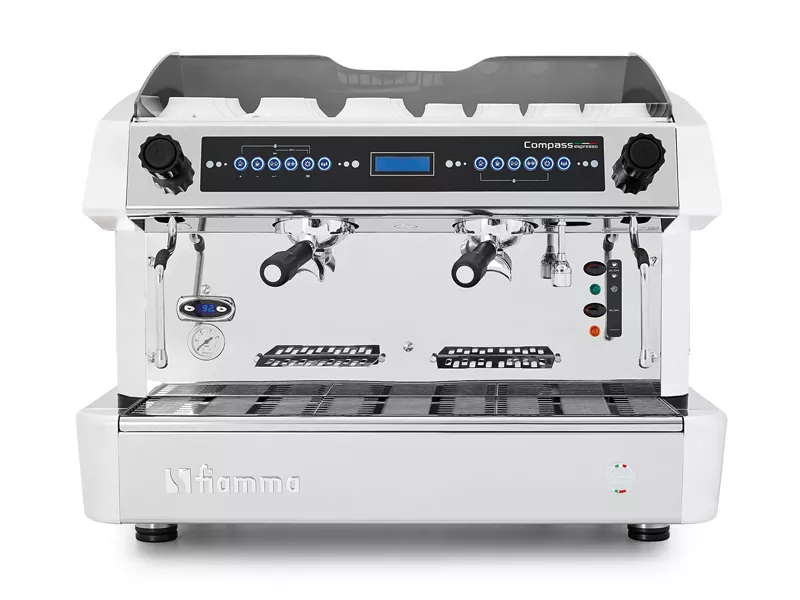

Figure 1: Fiamma Compass 2 dB TC Professional Coffee Machine
Instruccions de configuració
Careful setup ensures optimal performance and longevity of your coffee machine. Follow these steps for initial installation:
- Unboxing: Carefully remove the machine from its packaging. Retain all packaging materials for potential future transport or service. Inspect the machine for any signs of damage.
- Col·locació: Place the machine on a stable, level, and heat-resistant surface. Ensure adequate ventilation around the machine. Avoid placing it near heat sources or in direct sunlight.
- Connexió d'aigua: Connect the machine to a potable water supply using the provided water inlet hose. It is highly recommended to use a water filter or softener to prevent scale buildup and ensure optimal coffee quality. Ensure all connections are secure and leak-free.
- Drenatge: Connect the machine's drain hose to an appropriate waste water drain. Ensure the hose has a continuous downward slope to prevent blockages.
- Connexió d'alimentació: Ensure the machine's power requirements match your electrical supply. Plug the power cord into a grounded electrical outlet. Do not use extension cords or adapters.
- Initial Fill and Rinse: Before first use, fill the boiler with water and perform an initial rinse cycle. Refer to the operating section for details on powering on and filling the boiler. This flushes out any manufacturing residues.
Instruccions de funcionament
This section outlines the basic steps for operating your Fiamma Compass 2 dB TC coffee machine to prepare espresso and steam milk.
Engegada i preescalfament
- Ensure the machine is properly connected to water and power.
- Turn on the main power switch, usually located on the front or side panel. The machine will begin to fill its boiler automatically.
- Allow the machine to pre-heat. The digital display will show the boiler temperature or pressure. Wait until the machine reaches its operating temperature (typically indicated by a stable pressure gauge reading or a specific display message). This usually takes 15-30 minutes.
Elaboració d'espresso
- Prepareu el portafiltre: Grind fresh coffee beans and dose the appropriate amount into the portafilter basket. Tamp the coffee evenly with firm pressure.
- Inseriu el portafiltre: Inseriu el portafiltre de manera segura al capçal del grup.
- Col·locar tasses: Position your espresso cups under the portafilter spouts.
- Select Brew Cycle: Use the control panel buttons to select the desired espresso shot volume (e.g., single, double, manual). The machine will automatically dispense the programmed amount of water.
- Monitor Extraction: Observe the espresso extraction. It should flow as a steady, dark stream, gradually lightening in color.
- Treure el portafiltre: Once brewing is complete, carefully remove the portafilter, discard the spent coffee grounds, and rinse the portafilter.
Llet al vapor
- Prepare Milk Pitcher: Fill a cold stainless steel milk pitcher with fresh, cold milk.
- Vareta de vapor de purga: Briefly open the steam valve to purge any condensed water from the steam wand. Close the valve.
- Llet al vapor: Immerse the tip of the steam wand just below the surface of the milk. Open the steam valve fully. Create a whirlpool motion to incorporate air and heat the milk.
- Temperatura del monitor: Continue steaming until the milk reaches the desired temperature (typically 140-150°F / 60-65°C).
- Neteja la vareta de vapor: Immediatament després de la vaporització, netegeu la vareta de vapor amb un aiguaamp cloth and briefly purge it again to clear any milk residue.
Manteniment
Regular maintenance is crucial for the performance, hygiene, and lifespan of your Fiamma Compass 2 dB TC coffee machine.
- Neteja diària:
- Backflush each group head with a blind filter and espresso machine cleaner.
- Wipe down steam wands immediately after use.
- Clean portafilters and filter baskets.
- Buidar i netejar la safata de degoteig.
- Netegeu l'exterior de la màquina amb un anunciamp tela.
- Neteja setmanal:
- Soak portafilters and filter baskets in espresso machine cleaner solution.
- Clean the shower screens and group head gaskets.
- Descalcificació:
The frequency of descaling depends on your water hardness and usage. Use a commercial descaling solution specifically designed for espresso machines. Follow the descaler manufacturer's instructions carefully. Regular descaling prevents mineral buildup that can damage the machine and affect coffee taste.
- Servei professional:
It is recommended to have your machine professionally serviced annually to ensure all components are functioning correctly and to replace worn parts like group head gaskets and shower screens.
Resolució de problemes
This section provides solutions to common issues you might encounter with your coffee machine. For problems not listed here, please contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no s'encén. | No power supply; main switch off; tripped circuit breaker. | Check power cord connection; ensure main switch is on; reset circuit breaker. |
| No surt aigua del capçal del grup. | Water supply off; clogged water filter; pump issue. | Check water supply valve; replace or clean water filter; contact service. |
| Vapor feble o inexistent. | Boiler not at temperature; clogged steam wand; low water level in boiler. | Allow machine to heat fully; clean steam wand tip; check boiler water level (if applicable). |
| Espresso extracts too fast/slow. | Grind size incorrect; tamping pressure inconsistent; dose incorrect. | Adjust grind finer/coarser; ensure consistent tamping; adjust coffee dose. |
Especificacions
Below are the general specifications for the Fiamma Compass 2 dB TC Professional Coffee Machine. Specific details may vary slightly.
| Característica | Detall |
|---|---|
| Marca | FIAMMA |
| Model | Compass 2 dB TC |
| Tipus | Màquina de cafè exprés professional |
| Color | Blanc |
| Group Heads | 2 |
| Tipus de control | Volumetric (Programmable) |
| Steam Wands | Sí |
| Dispensador d'aigua calenta | Sí |
Consells per a l'usuari
Tot i que no hi ha cap usuari específicviews or Q&A content were provided for this product, here are some general tips for professional coffee machine users:
- Qualitat de l'aigua: Always use filtered or softened water to protect your machine from scale buildup and ensure the best coffee taste.
- Fresh Beans: Use freshly roasted and freshly ground coffee beans for superior flavor and crema.
- Consistent Tamping: Apply consistent pressure when tamping to achieve even extraction.
- Regular Purging: Purge steam wands before and after use to remove condensed water and milk residue.
- Preescalfar les tasses: Serve espresso in pre-heated cups to maintain temperature and enhance the drinking experience.
Garantia i Suport
Per obtenir informació sobre la garantia, consulteu la documentació proporcionada en el moment de la compra o poseu-vos en contacte amb el vostre distribuïdor. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
For technical support, service, or spare parts, please contact the authorized Fiamma service center or your product supplier. Provide your machine's model number and serial number when contacting support to expedite assistance.
The AFTER_SALE_SERVICE_BLOCK indicates a "Return&refund policy" is available. Please consult the seller's platform for details on returns and refunds.
