Baseus 65W GaN 5 Pro Ultra-Slim Fast Charger User Manual

1. Introducció

This manual provides essential information for the safe and efficient use of your Baseus 65W GaN 5 Pro Ultra-Slim Fast Charger. This advanced charger utilizes Fifth-Gen GaN technology to deliver high-speed charging for a wide range of devices, including laptops, smartphones, tablets, and game consoles. Its compact, ultra-slim design and global voltage compatibility make it an ideal travel companion.

Image: The Baseus 65W GaN 5 Pro Ultra-Slim Fast Charger, highlighting its slim profile and 65W GaN5 technology.

2. Característiques del producte

• Fifth-Gen GaN Technology: Offers powerful performance, faster response, and lower energy consumption, enabling dual-port simultaneous fast charging.
• Càrrega ràpida de doble port: Features BPS2.0 charging technology for dynamic power allocation, allowing simultaneous fast charging of a laptop and a phone.
• Disseny ultra prim: Approximately 20mm thinner than previous generations, with a 1.6mm micro-curvature for easier plugging and unplugging.
• Compacte i portàtil: Designed to fit into narrow spaces and easily carried for travel.

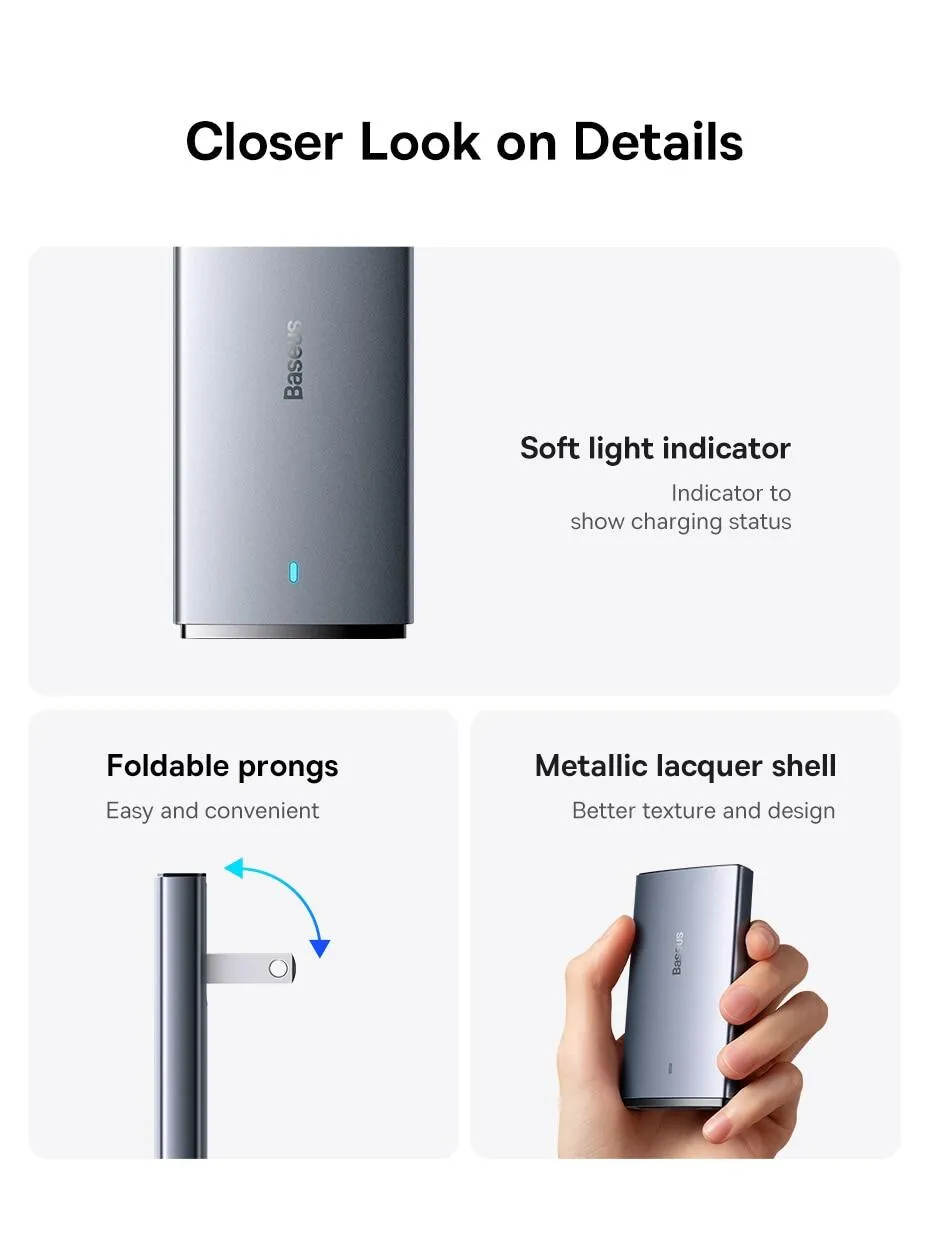

• Dents plegables: Per comoditat i portabilitat.
• Metallic Lacquer Shell: Provides a premium texture and design.
• Soft Light Indicator: Mostra l'estat de càrrega.
• Vol. Amplitage Rang: AC 100-240V, 50/60Hz, ensuring compatibility for global travel.
• Refrigeració avançada: Baseus Cooling Technology (BCT) ensures safer fast charging without overheating.
• Àmplia compatibilitat: Supports various devices from Apple, Samsung, Huawei, Xiaomi, Lenovo, Dell, and game consoles like Nintendo Switch.
• Adaptadors inclosos: For the "CN with EU UK Plug" variant, EU and UK standard adapters are included for universal use.

Image: The charger's ultra-slim profile (0.66 inches) making it a perfect match for laptops.

Image: Detail of the charger's 1.6mm micro-curvature for user-friendly plugging and unplugging.

Image: Diagram illustrating the Fifth-Gen GaN (Gallium Nitride) technology for faster and more efficient charging.

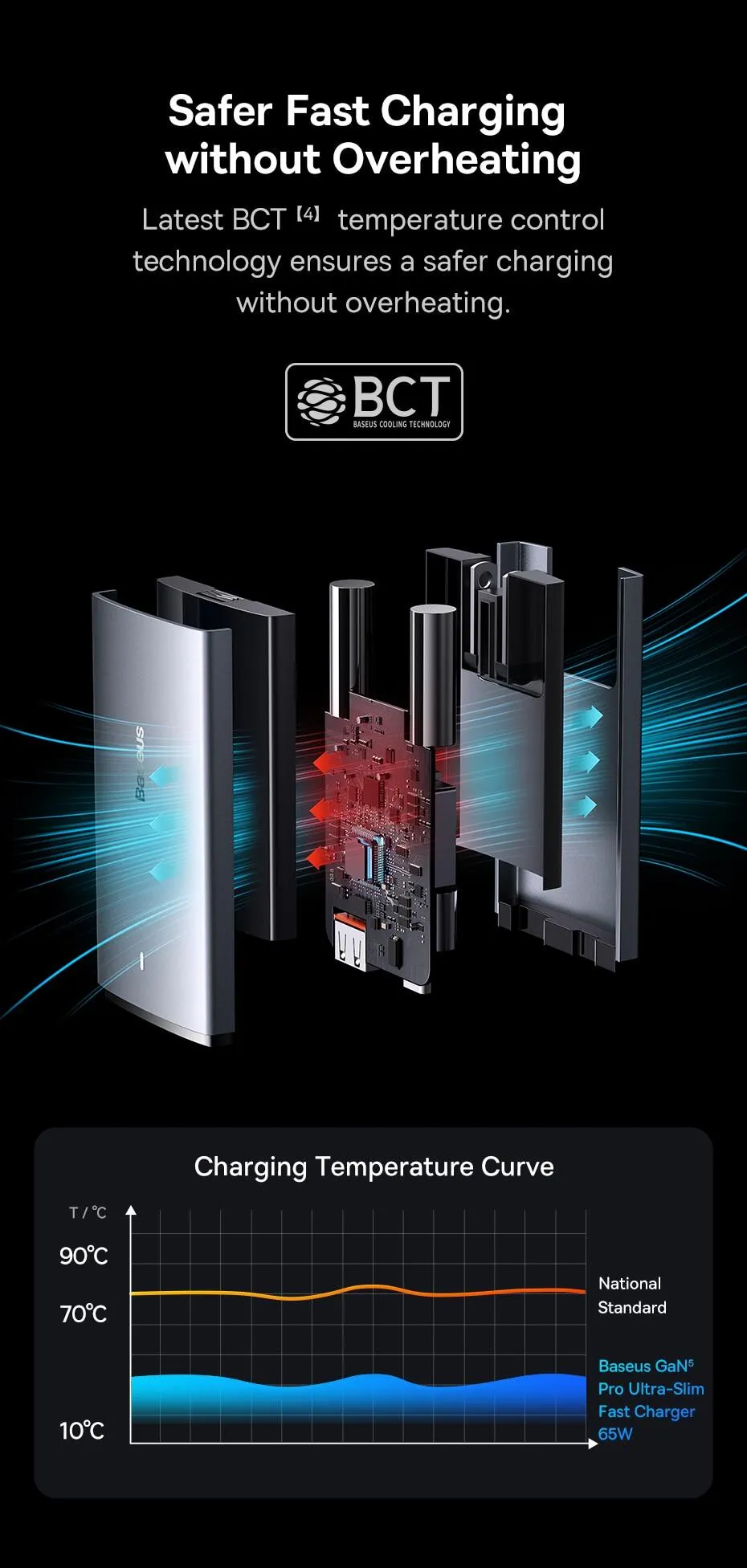

Image: Diagram showing Baseus Cooling Technology (BCT) for heat dissipation and a graph comparing charging temperature with national standards.

Image: The charger shown with interchangeable US, EU, and UK plug adapters, indicating its global travel readiness.

3. Configuració

3.1. Desembalatge i components

Carefully remove the charger and any included accessories from the packaging. Depending on your specific model, this may include a Type-C to Type-C charging cable and regional plug adapters (EU, UK).

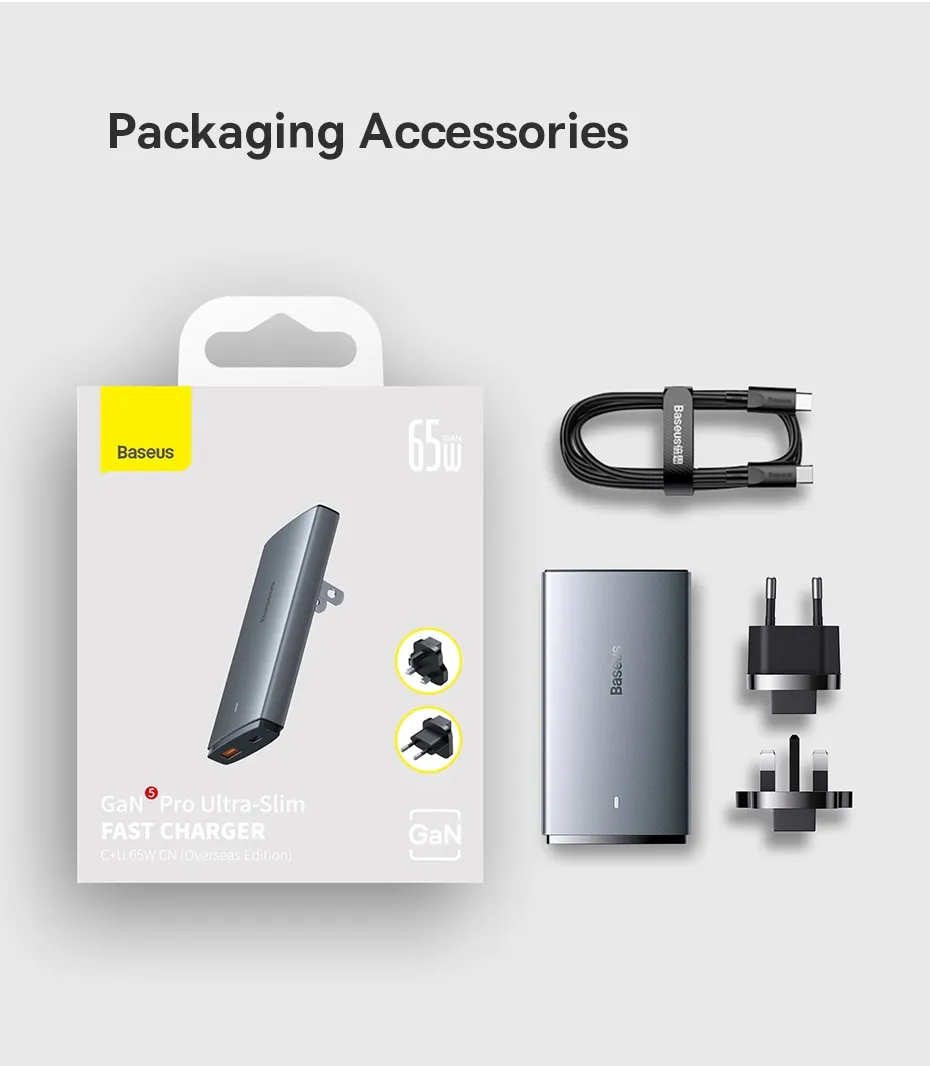

Image: Contents of the packaging, showing the charger, a Type-C cable, and EU/UK plug adapters.

3.2. Attaching the Plug Adapter (if applicable)

If your charger model requires an adapter for your region (e.g., EU or UK), slide the appropriate adapter onto the charger's prongs until it clicks securely into place. For the CN Plug version, the prongs are integrated.

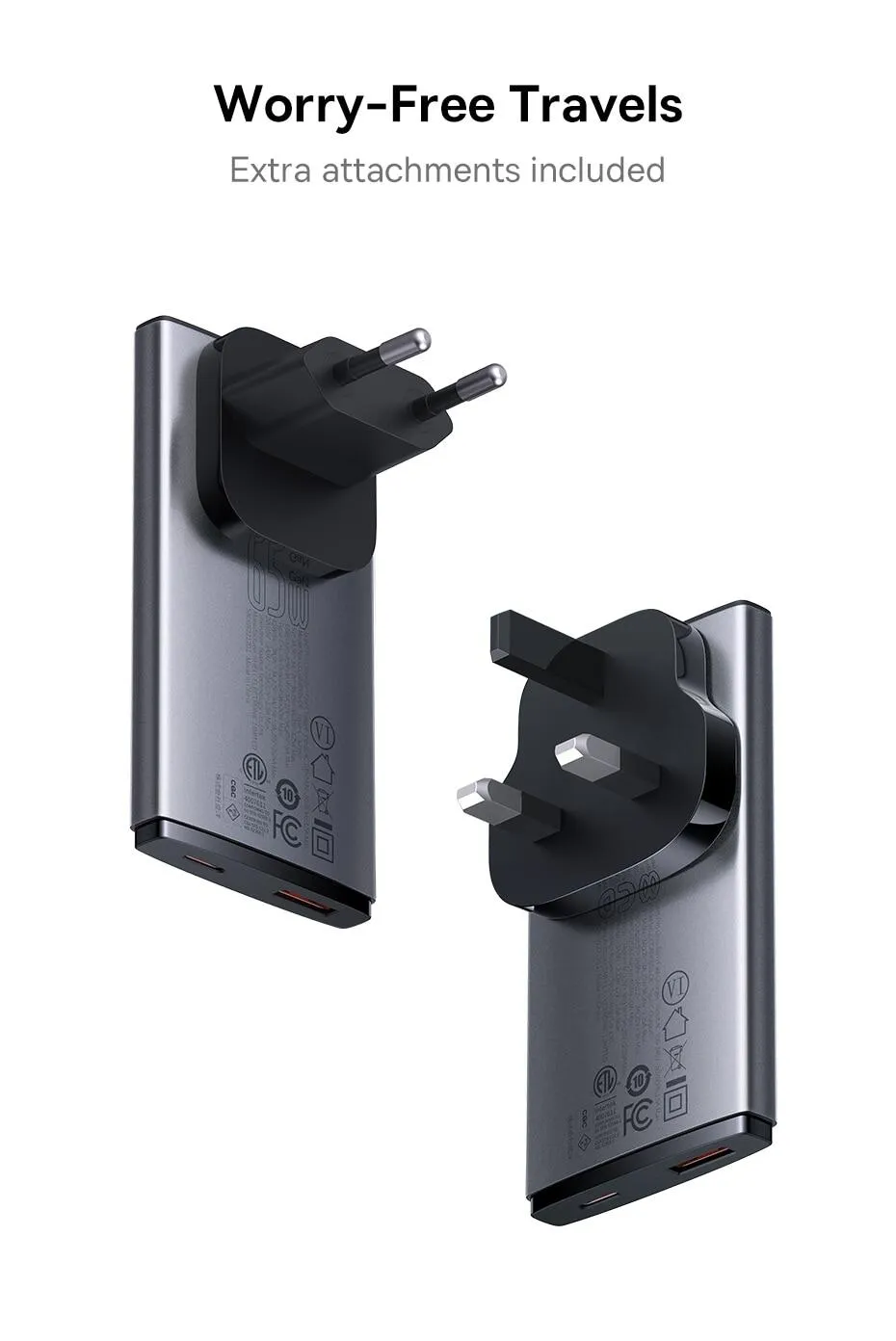

Image: The charger shown with separate EU and UK plug adapters, ready for attachment.

3.3. Connexió a l'alimentació

Plug the charger into a standard wall outlet (AC 100-240V). The soft light indicator on the charger will illuminate, indicating it is ready for use.

4. Instruccions de funcionament

4.1. Dispositius de connexió

• For Type-C devices: Connect one end of a compatible Type-C charging cable (e.g., the included Baseus 100W Type-C to Type-C cable) to the Type-C port on the charger and the other end to your device.
• For USB-A devices: Connect one end of a compatible USB-A charging cable to the USB-A port on the charger and the other end to your device.

4.2. Càrrega simultània

The charger supports simultaneous fast charging for two devices. When both ports are in use, the power output will be dynamically allocated (e.g., 45W for Type-C and 20W for USB-A, totaling 65W Max).

Image: The charger simultaneously charging a MacBook Pro 14" (45W Max) and an iPhone 14 (20W Max).

4.3. Estat de càrrega

The soft light indicator on the charger will remain lit during charging.

4.4. Optimal Performance and Space Utilization

For best fast charging results, use high-quality, compatible charging cables that support the required wattage for your devices. The charger's slim design allows it to fit into narrow gaps, ensuring a secure and space-saving connection.

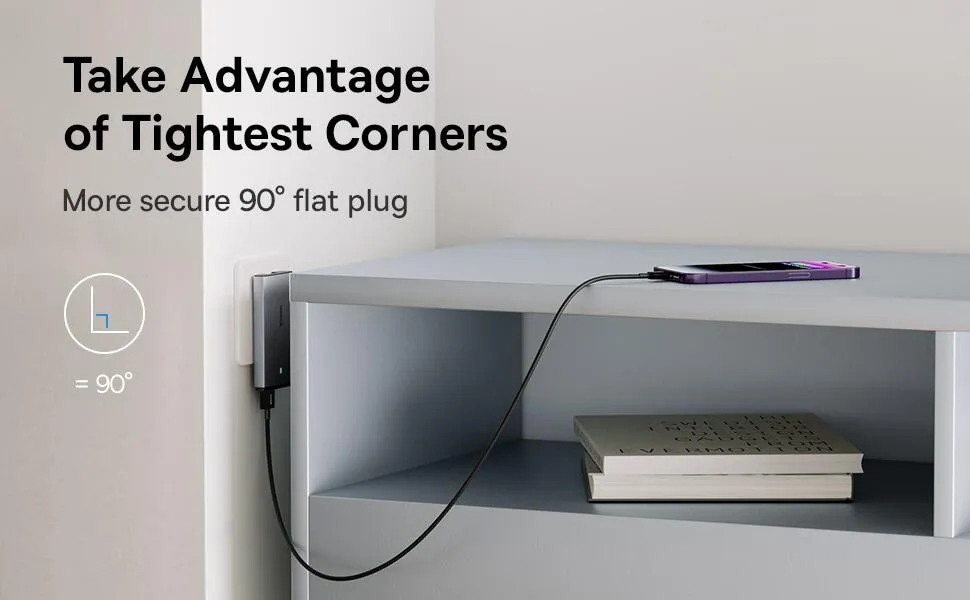

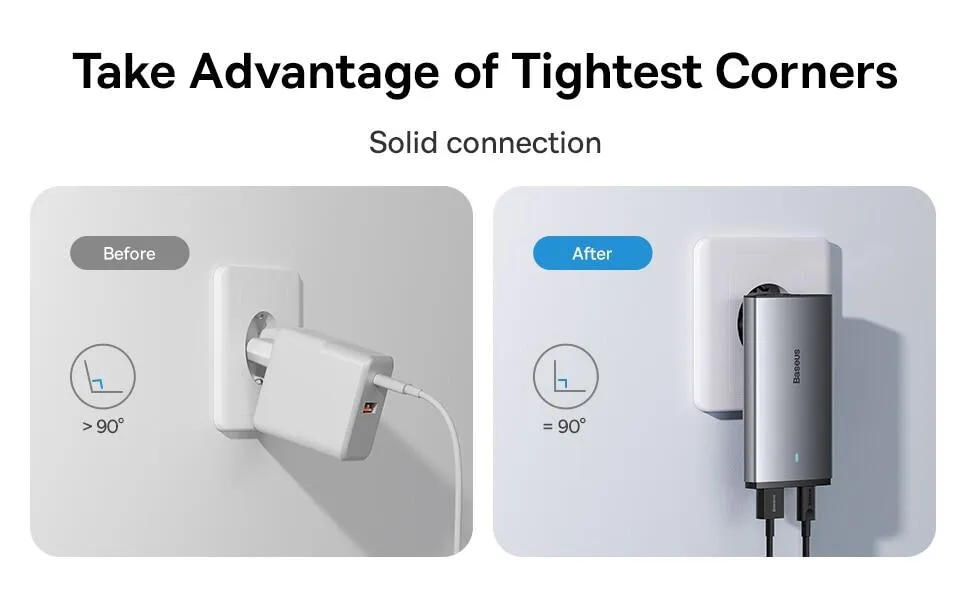

Image: The charger correctly plugged into a narrow space behind furniture, demonstrating its slim design.

Image: A traditional, bulkier charger incorrectly plugged into a narrow space, highlighting the advantage of the Baseus charger's design.

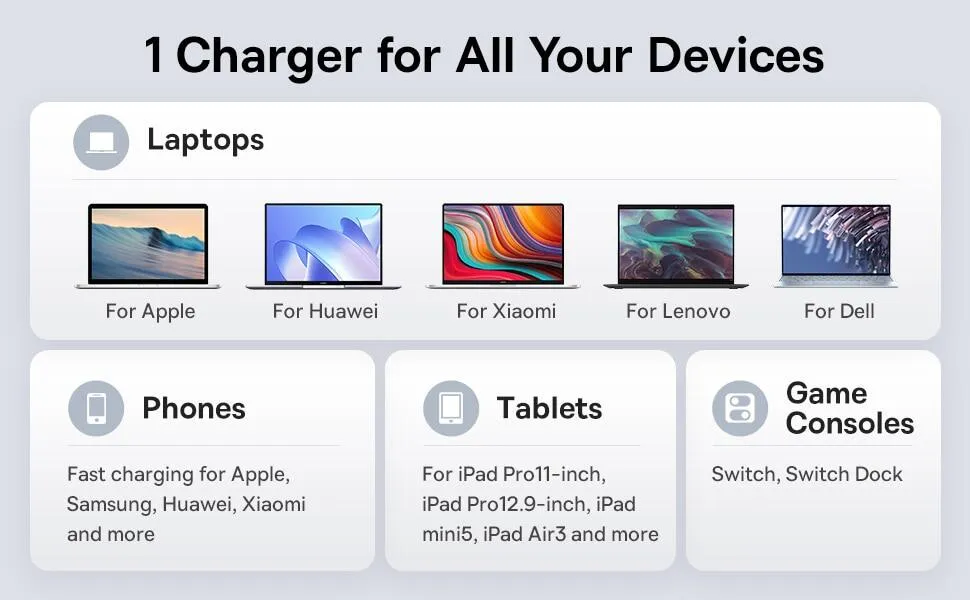

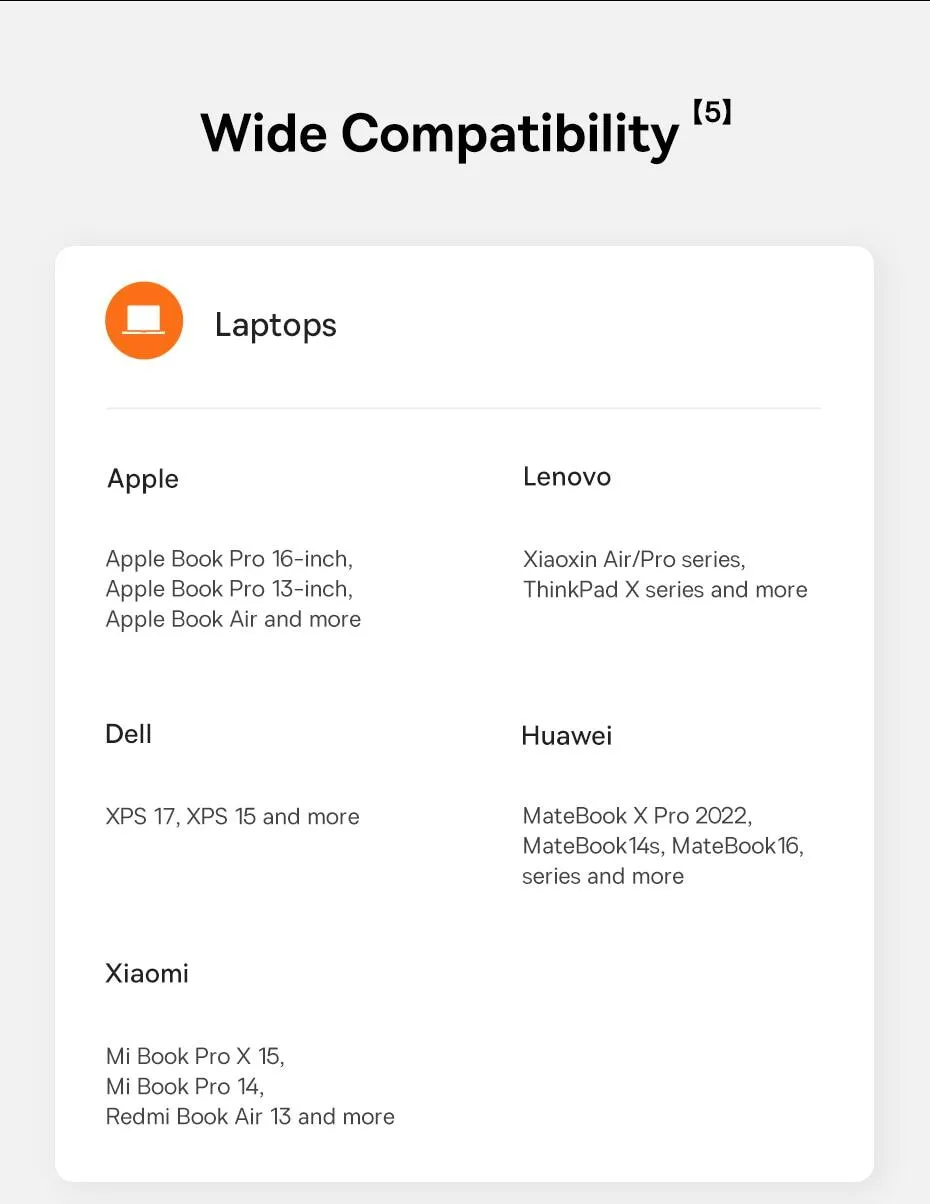

4.5. Wide Compatibility Overview

The Baseus 65W GaN 5 Pro charger is compatible with a broad range of devices:

Portàtils

Apple Book Pro 16-inch, Apple Book Pro 13-inch, Apple Book Air and more

Xiaoxin Air/Pro series, ThinkPad X series and more

XPS 17, XPS 15 and more

MateBook X Pro 2022, MateBook14s, MateBook16, series and more

Mi Book Pro X 15, Mi Book Pro 14, Redmi Book Air 13 and more

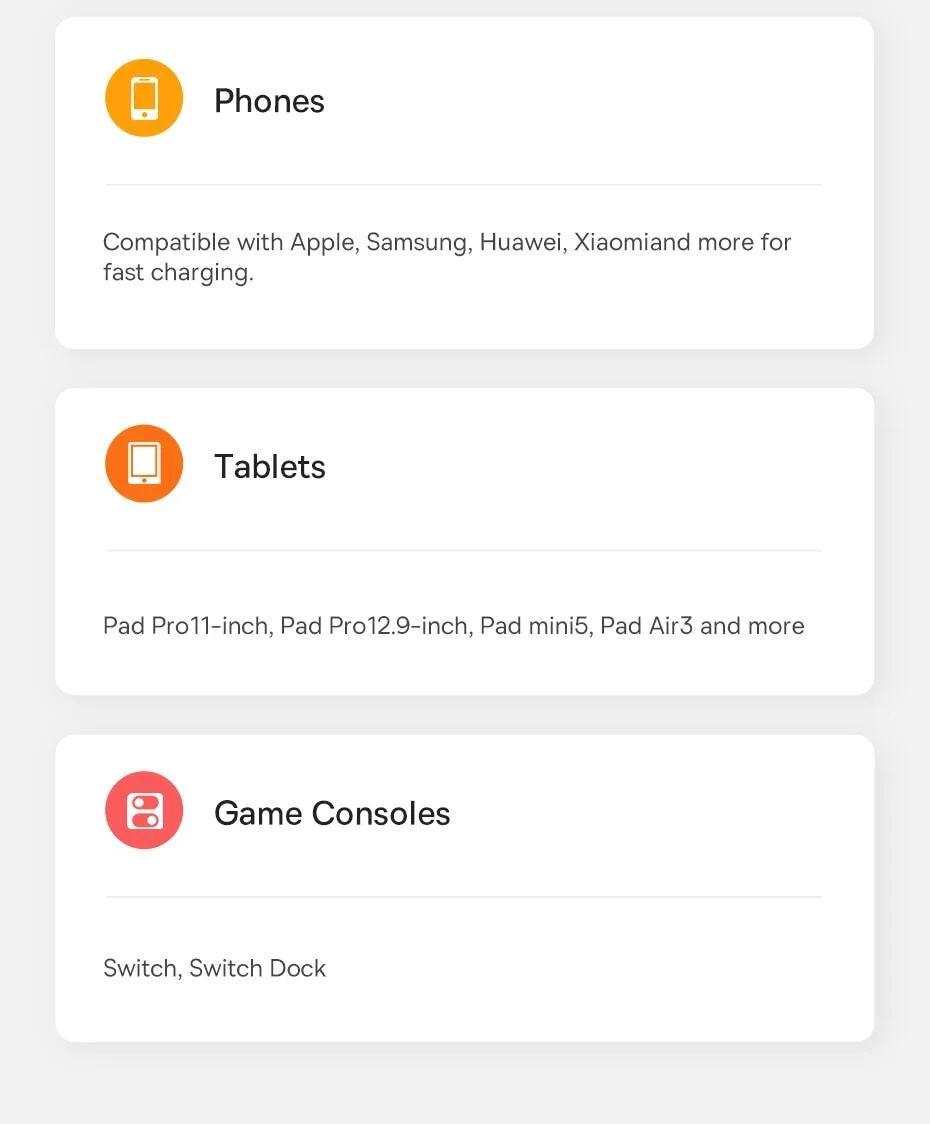

Telèfons

Compatible with Apple, Samsung, Huawei, Xiaomi and more for fast charging.

Tauletes

Pad Pro 11-inch, Pad Pro 12.9-inch, Pad mini 5, Pad Air 3 and more

Consoles de jocs

Canvia, Canvia Dock

5. Manteniment

• Neteja: Disconnect the charger from the power outlet and all devices before cleaning. Use a soft, dry cloth to wipe the surface of the charger. Do not use liquid cleaners or aerosols.
• Emmagatzematge: Guardeu el carregador en un lloc fresc i sec, lluny de la llum solar directa i de temperatures extremes.
• Seguretat:
  • No exposeu el carregador a l'aigua, la humitat o la humitat elevada.
  • Eviteu deixar caure el carregador ni sotmetre'l a impactes forts.
  • Do not attempt to disassemble, modify, or repair the charger yourself. Contact qualified service personnel if needed.
  • Assegureu-vos d'una ventilació adequada al voltant del carregador durant l'ús.

6. Solució De Problemes

• El dispositiu no es carrega:
  • Check if the charger is securely plugged into the wall outlet.
  • Verifiqueu que el cable de càrrega estigui connectat correctament tant al carregador com al dispositiu.
  • Prova d'utilitzar un cable de càrrega diferent per descartar un cable defectuós.
  • Test the charger with a different device or try plugging another device into the same wall outlet to ensure the outlet is functional.
• Càrrega lenta:
  • Ensure your device and cable support fast charging protocols (PD 3.0, QC 4.0).
  • If charging two devices simultaneously, the power output is split. Disconnect one device to see if the charging speed for the other improves.
  • Check if the cable is damaged or not rated for high wattage.
• Sobreescalfament:
  • While the charger features BCT for temperature control, excessive heat can occur in extreme conditions. Ensure the charger is in a well-ventilated area and not covered. If overheating persists, discontinue use and contact support.

7. Especificacions

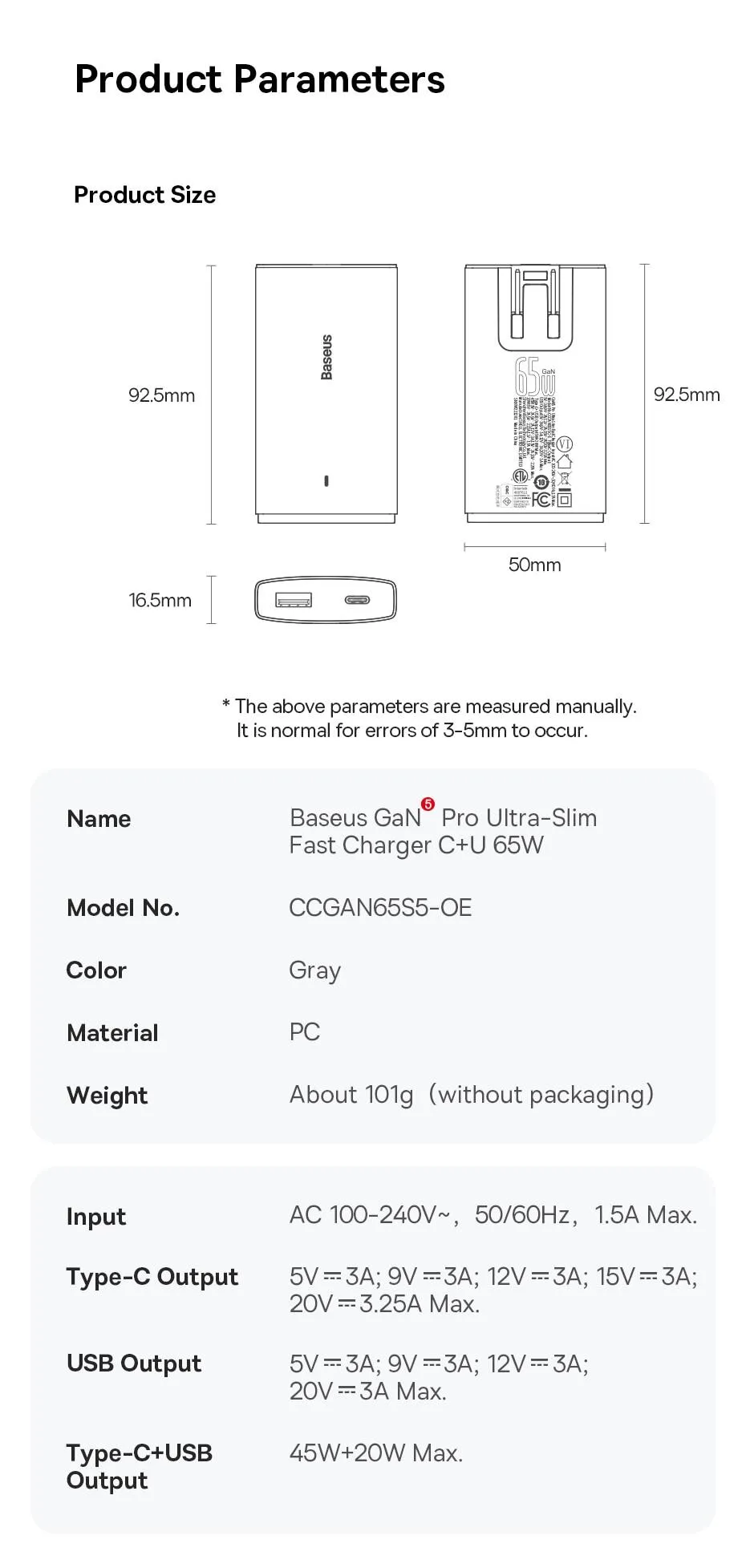

Image: Diagram showing the physical dimensions of the charger (92.5mm x 50mm x 16.5mm).

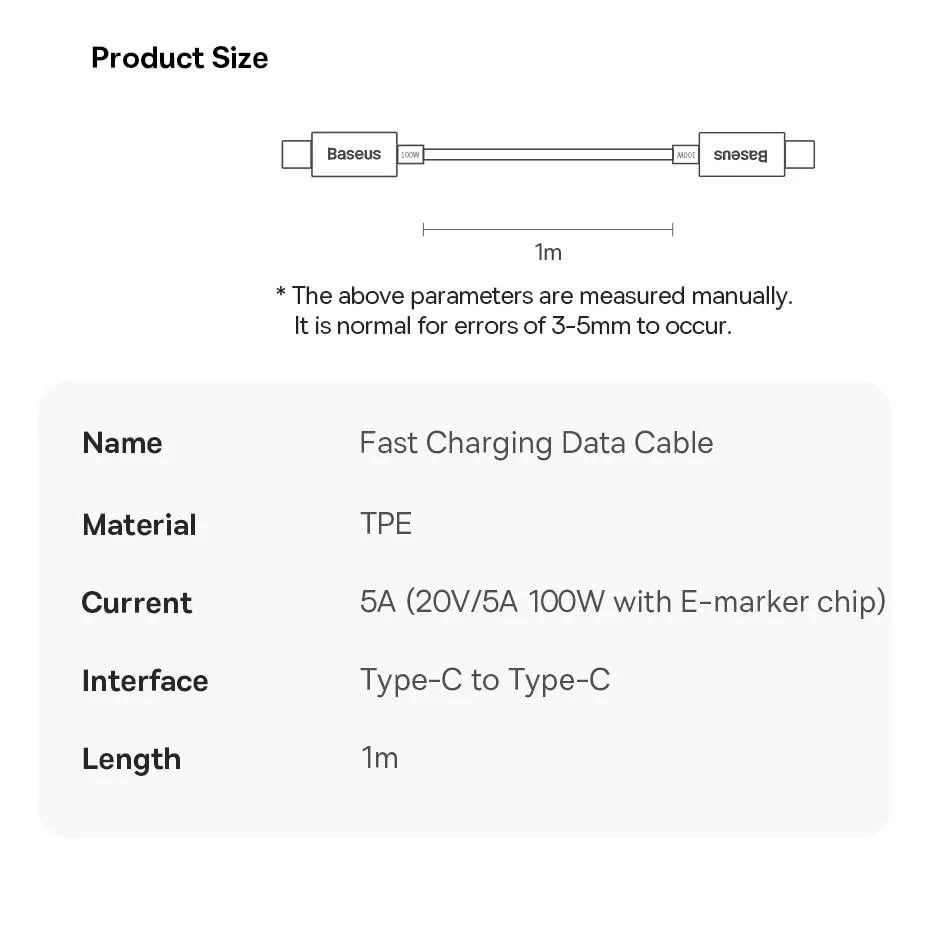

Image: Diagram showing the dimensions and specifications of the included 1m Type-C to Type-C fast charging data cable.

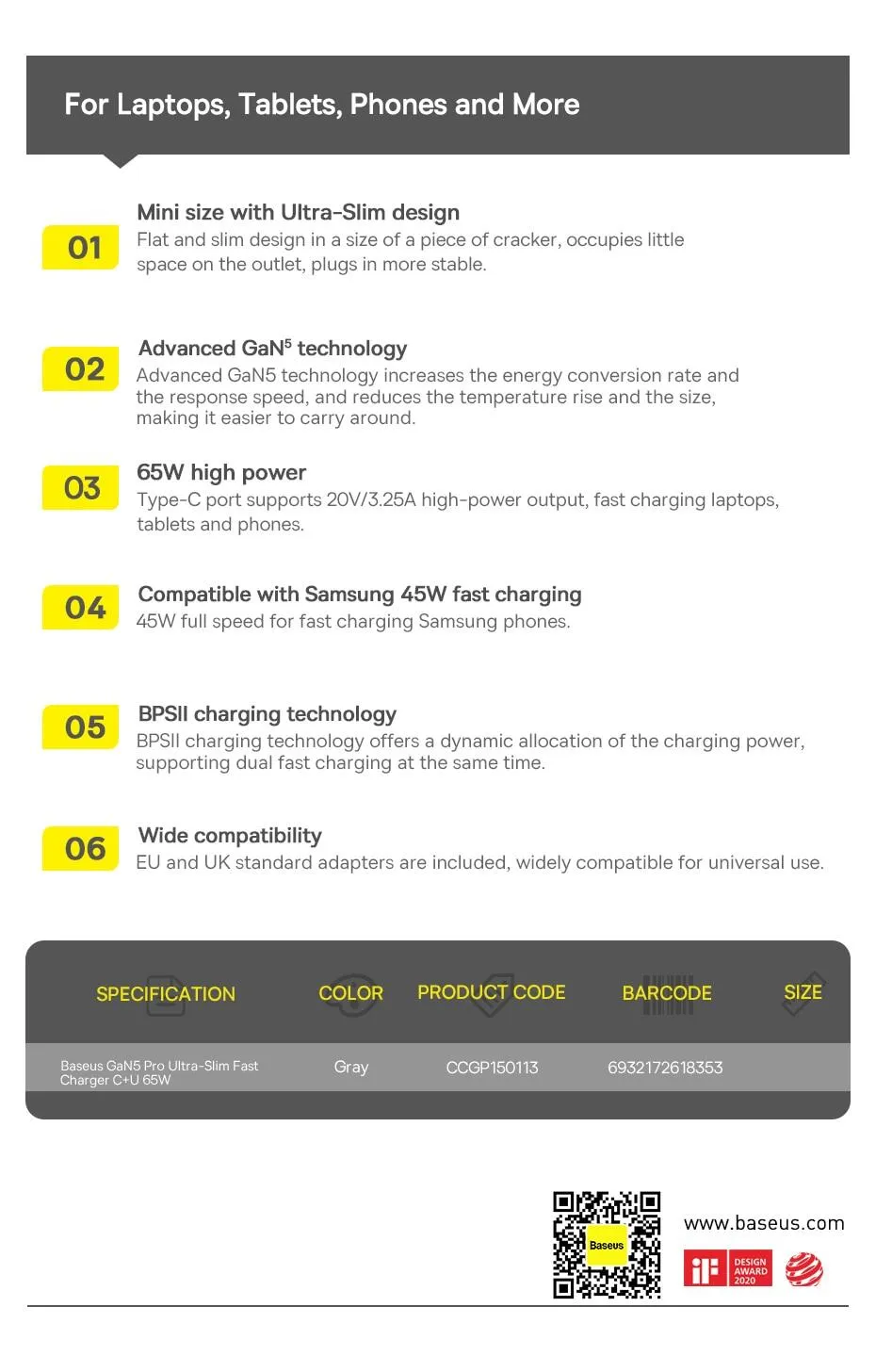

Image: Summary of key features including mini size, advanced GaN technology, 65W high power, Samsung 45W fast charging compatibility, BPSII charging technology, and wide compatibility.

8. Consells d'usuari

• Maximitzar l'espai: The ultra-slim design allows the charger to fit into tight spots behind furniture or in crowded power strips, making it very practical for home and travel.
• Utilitzeu cables de qualitat: To achieve the advertised fast charging speeds, especially for laptops, ensure you use high-quality USB-C to USB-C cables that support 65W (or 100W for the included cable) Power Delivery.
• Viatja intel·ligentment: If you have the "CN with EU UK Plug" version, remember to utilize the included EU and UK adapters for seamless international travel.
• Comprovar la compatibilitat: While widely compatible, always verify your device's charging requirements to ensure optimal performance and safety.

9. Garantia i Suport

This Baseus product is manufactured under strict quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or contact Baseus customer support directly.

For technical assistance or inquiries, please visit the official Baseus website or contact their authorized service centers. The product carries various safety certifications including CE, FC, RoHS, Qi, SRRC, CCC, ETL, UL, PSE, and EMC, ensuring its compliance with international safety standards.
