1. Introducció
Thank you for choosing the SucceBuy Automatic Egg Incubator. This manual provides essential information for the safe and efficient operation of your incubator. This device is designed to create optimal conditions for hatching various types of poultry eggs, featuring automatic temperature and humidity control, egg turning, and an integrated egg candler. Please read this manual thoroughly before initial use and keep it for future reference.
2. Instruccions de seguretat
Per garantir un funcionament segur i evitar danys a la unitat o lesions, observeu les següents precaucions de seguretat:
- Always place the incubator on a stable, level surface.
- Assegureu-vos que la font d'alimentació coincideixi amb les especificacions que apareixen al dispositiu.
- Do not immerse the incubator or its electrical components in water or other liquids.
- Keep the incubator away from direct sunlight, drafts, and extreme temperature fluctuations.
- Supervise children when the incubator is in use.
- Desendolleu la unitat de la presa de corrent abans de netejar-la o realitzar qualsevol manteniment.
- Do not attempt to modify or repair the incubator yourself. Contact customer support for assistance.
3. Components del producte
The SucceBuy Automatic Egg Incubator typically includes the following main components:
- Main Incubator Unit (with transparent lid)
- Egg Tray / Turning Mechanism
- Control Panel with Digital Display (Temperature, Humidity, Settings/Candling, Up/Down buttons)
- Water Refill Bottles (for automatic water replenishment)
- Polystyrene Foam (for insulation in cooler environments)
- Adaptador d'alimentació
4. Instruccions de configuració
- **Unpacking**: Carefully remove all components from the packaging. Inspect for any damage.
- **Placement**: Place the incubator on a flat, stable surface in a room with a consistent ambient temperature, away from direct sunlight or drafts.

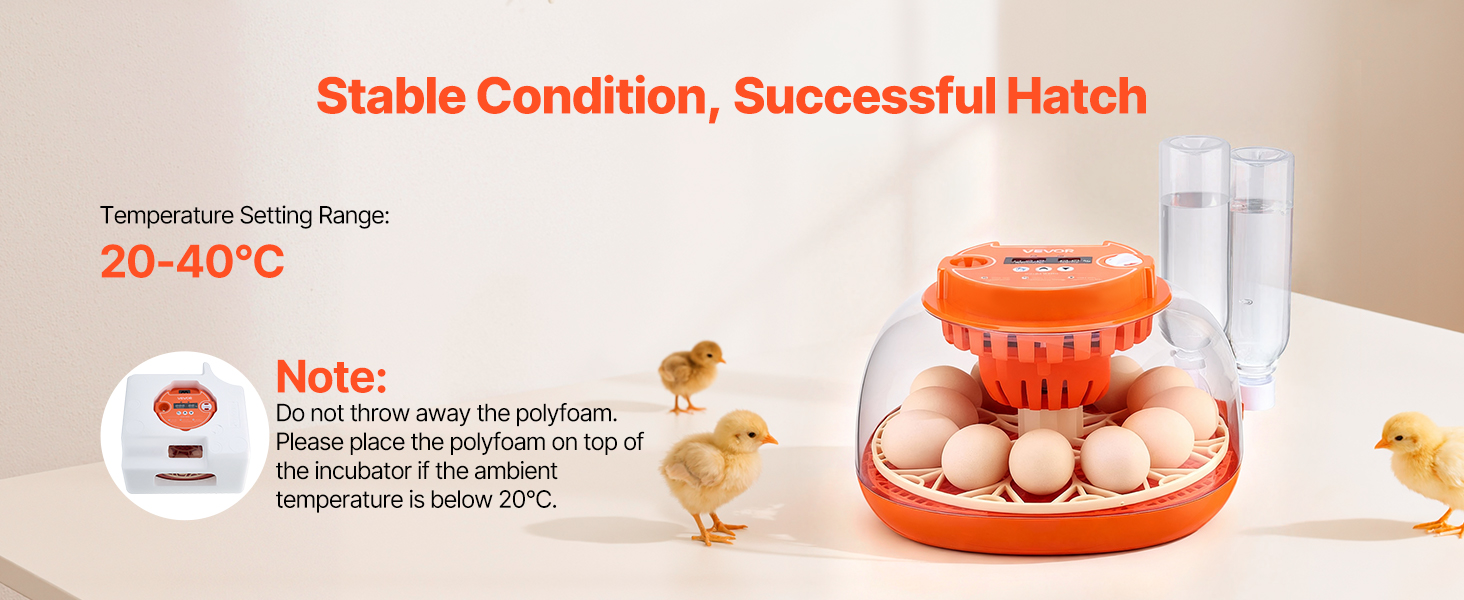

- **Insulation (Optional)**: If the ambient room temperature is below 20°C (68°F), place the provided polystyrene foam on top of the incubator for better heat retention.
- **Water Refill System Assembly**:
- Fill the water bottles with clean, warm water (30-45°C).
- Attach the water bottles to the designated ports (Port A for incubation, Ports A and B for hatching) on the incubator base.
- **Egg Tray Installation**: Ensure the egg turning mechanism and egg tray are correctly assembled and seated in the incubator base.
- **Power Connection**: Connect the power adapter to the incubator and then plug it into a suitable power outlet. The digital display should light up.
- **Pre-heating**: Allow the incubator to run for at least 2-3 hours (preferably 24 hours) to stabilize the internal temperature and humidity before placing eggs.
5. Instruccions de funcionament
5.1. Egg Selection
Choose fresh, fertilized eggs, generally within 10 days after laying. Do not refrigerate or wash the eggs before incubation.

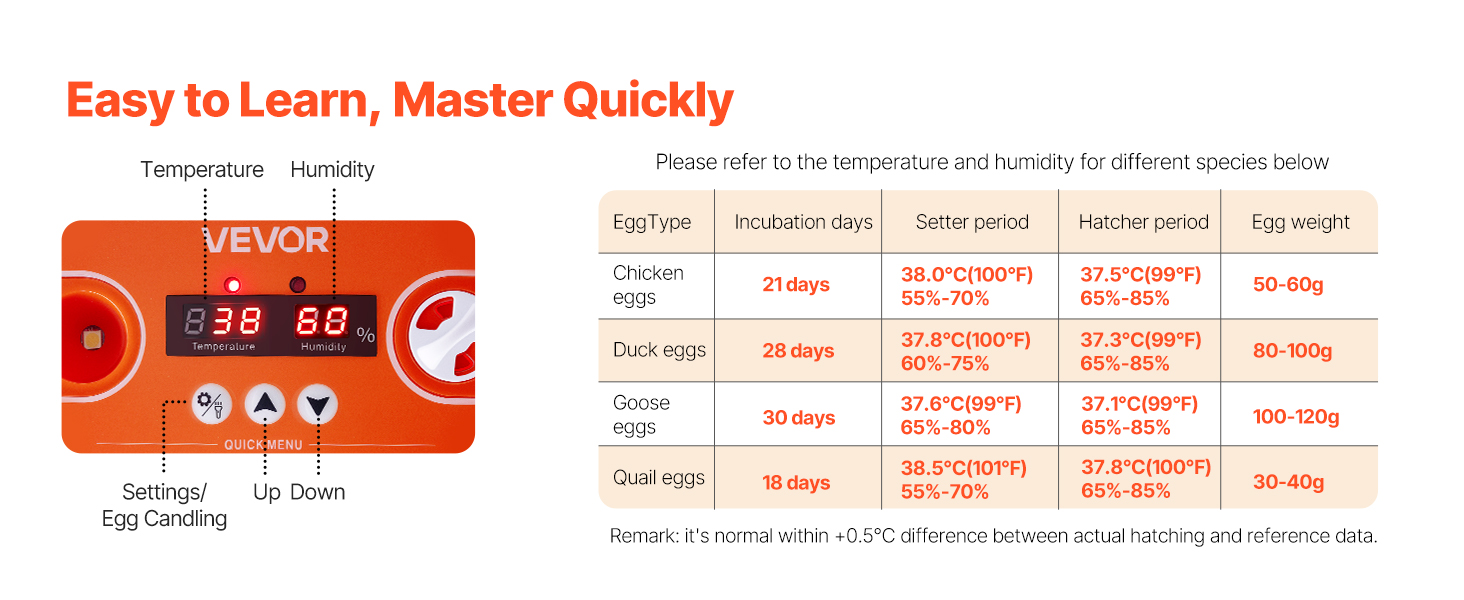

5.2. Temperature and Humidity Control
The incubator features a digital display for real-time temperature and humidity readings. The temperature setting range is 20-40°C.
Refer to the table below for recommended temperature and humidity settings for various egg types:
| Tipus d'ou | Dies d'incubació | Setter Period (Temp/Humidity) | Hatcher Period (Temp/Humidity) | Egg Weight |
|---|---|---|---|---|
| Ous de gallina | 21 dies | 38.0°C (100°F) / 55%-70% | 37.5°C (99°F) / 65%-85% | 50-60 g |
| Ous d'ànec | 28 dies | 37.8°C (100°F) / 60%-75% | 37.3°C (99°F) / 65%-85% | 80-100 g |
| Ous d'oca | 30 dies | 37.6°C (99°F) / 65%-80% | 37.1°C (99°F) / 65%-85% | 100-120 g |
| Ous de guatlla | 18 dies | 38.5°C (101°F) / 55%-70% | 37.8°C (100°F) / 65%-85% | 30-40 g |
*Remark: It's normal within +0.5°C difference between actual hatching and reference data.

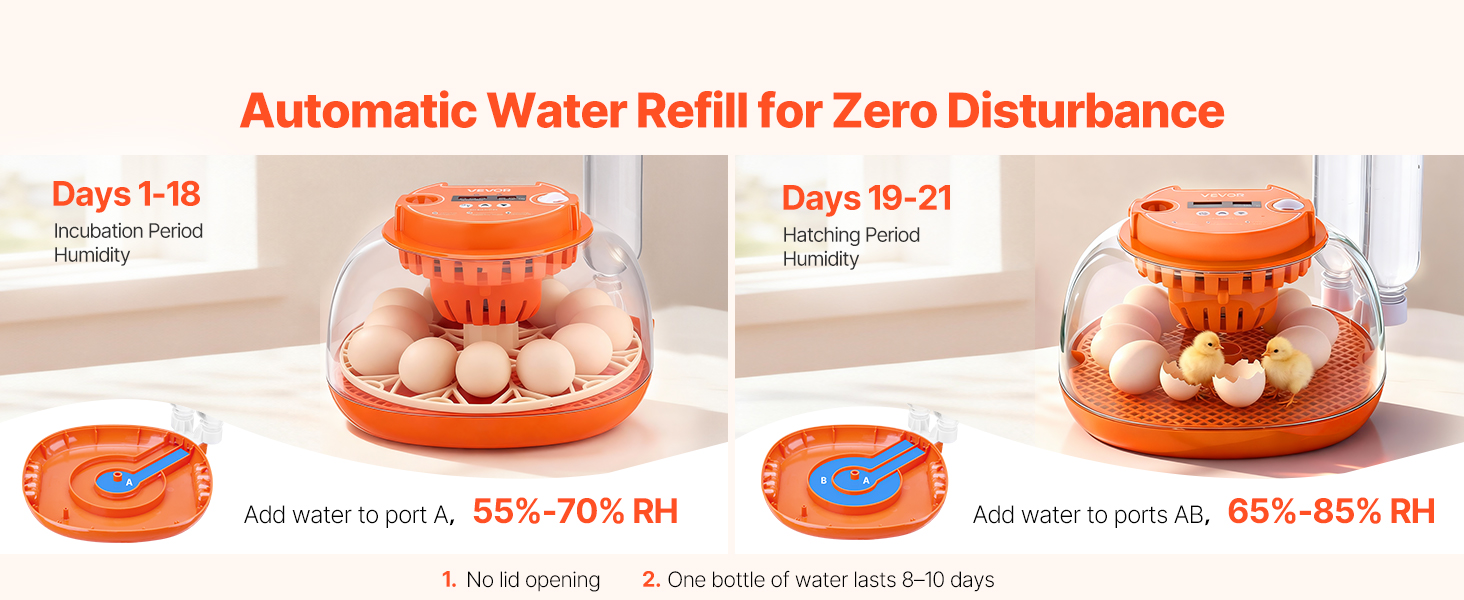

5.3. Automatic Water Refill
The incubator features an AB dual-zone auto refill system to maintain humidity without opening the lid.
- **Incubation Period (Days 1-18)**: Add water to Port A to maintain 55%-70% RH.
- **Hatching Period (Days 19-21)**: Add water to Ports A and B to maintain 65%-85% RH.
One bottle of water typically lasts 8-10 days, minimizing manual refills.

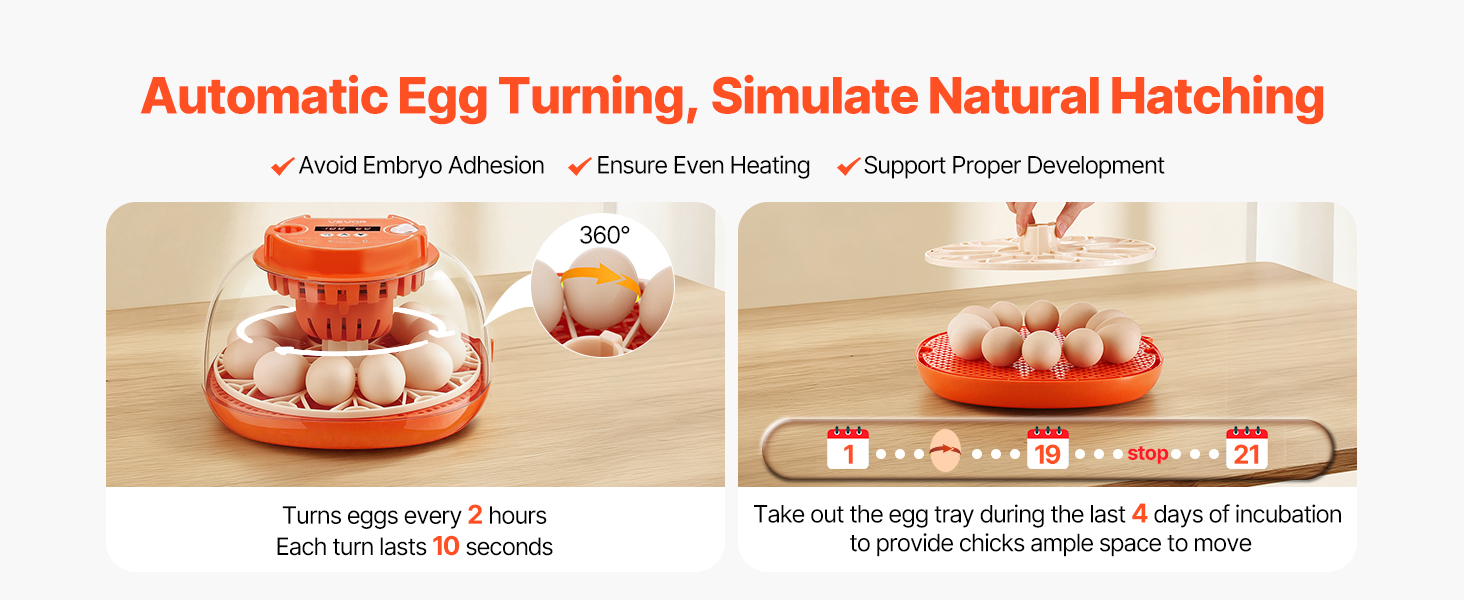

5.4. Automatic Egg Turning
The incubator automatically turns eggs every 2 hours for 10 seconds. This mimics a mother hen's natural behavior, preventing embryo adhesion and ensuring even heating for proper development.
- **During Incubation**: Eggs are turned automatically.
- **Last 4 Days of Incubation (Hatching Period)**: Remove the egg tray to provide chicks ample space to move and hatch. The automatic turning should be stopped.
5.5. Egg Candling
The incubator includes a 10W Lux high-brightness egg candler for easy inspection of embryo development.
- To use the candler, press the designated "Settings/Egg Candling" button on the control panel.
- Dim the room lighting for better observation.
- Carefully hold an egg over the candler light.
- **Signs an egg is no longer viable**: Small cracks, moving air bubbles, unfertilized eggs (clear), or a dead embryo (dark, no movement).
- Complete candling quickly to avoid excessive temperature drop for the eggs.
6. Manteniment i Neteja
Regular cleaning and maintenance will ensure the longevity and hygiene of your incubator.
- **Disconnect Power**: Always unplug the incubator from the power outlet before cleaning.
- **Cleaning the Lid**: The top lid can be easily wiped with a damp tela.
- **Cleaning Base and Parts**: The base and assembly parts (egg tray, turning mechanism) are washable. Use mild soap and water. Ensure all parts are completely dry before reassembling and plugging in the unit.
- **Disinfection**: After each hatch, it is recommended to disinfect the incubator to prevent the spread of bacteria. Use a mild disinfectant solution suitable for poultry equipment.
7. Solució De Problemes
Aquests són alguns problemes comuns i les seves solucions:

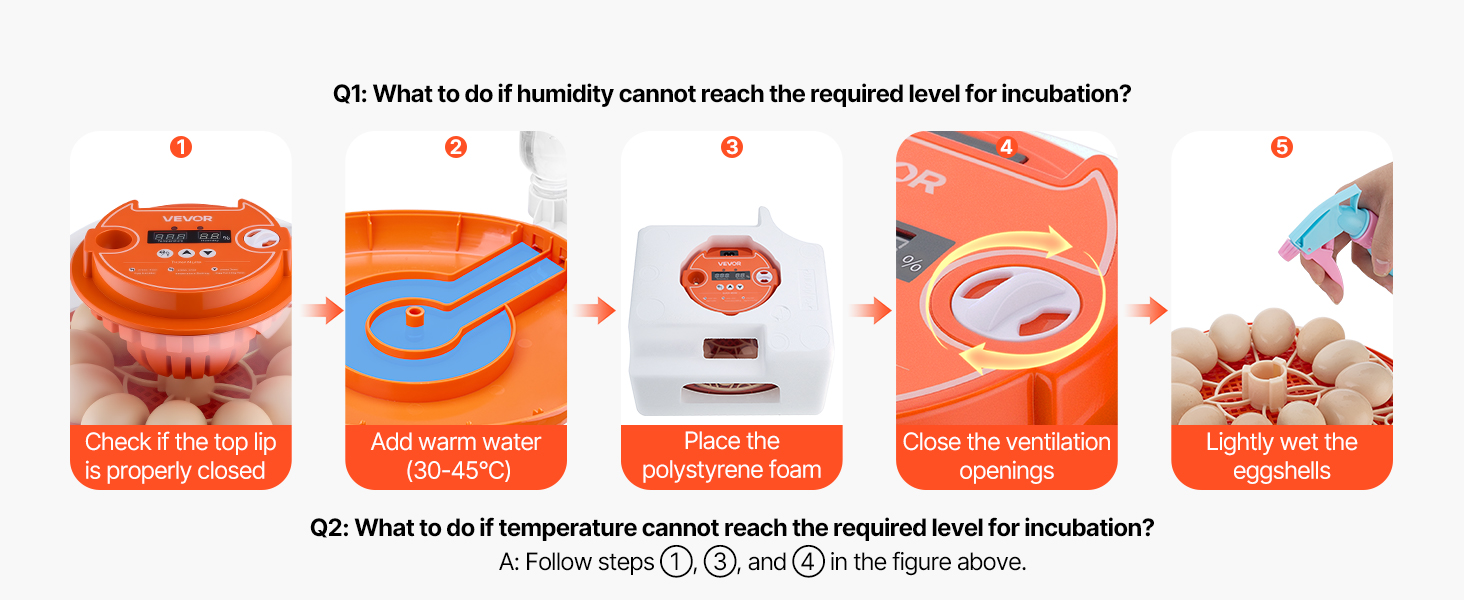

- Q1: What to do if humidity cannot reach the required level for incubation?
- Check if the top lid is properly closed.
- Add warm water (30-45°C) to the appropriate ports (Port A for incubation, Ports A and B for hatching).
- Place the polystyrene foam on top of the incubator if the ambient temperature is low.
- Close the ventilation openings slightly to retain humidity.
- Lightly wet the eggshells with a spray bottle (ensure water is clean and warm).
- Q2: What to do if temperature cannot reach the required level for incubation?
Follow steps 1, 3, and 4 from the humidity troubleshooting (Q1) to help maintain temperature. Ensure the incubator is not in a cold or drafty environment.
- Q3: What are the precautions for egg candling?
- Dim the room lighting for easy observation.
- Avoid excessive vibration or rotation during candling, as this may cause stress and death of embryos.
- Complete the candling operation as quickly as possible, as the room temperature is lower than the incubator temperature.
8. Especificacions
The SucceBuy Automatic Egg Incubator is available in several capacities. Key specifications are as follows:
| Característica | Descripció |
|---|---|
| Marca | SucceBuy |
| Tipus | Farm animals (Egg Incubator) |
| Materials principals | ABS & PET |
| Interval de configuració de temperatura | 20-40 °C (68-104 °F) |
| Egg Candler Brightness | > 100,000 lux |
| Egg Turning | Automatic 360° rotation every 2 hours for 10 seconds |
| Control d'humitat | Dual-zone auto water refill (Ports A/B) |
| Circulació d'aire | 360° Airflow Circulation |
| Configuració | Fàcil de configurar |
| Neteja | Easy to Clean (washable base and parts) |
8.1. Model-Specific Capacities and Dimensions
The capacities listed below are for standard chicken eggs. The incubator is also compatible with other egg types, with varying capacities:
- Up to 12 Duck Eggs
- Up to 24 Quail Eggs
- Up to 24 Parrot Eggs
- Up to 24 Pigeon Eggs
| Número de model | Capacity (Chicken Eggs) | Pes del producte | Dimensions del producte (L x A x A) |
|---|---|---|---|
| M12H | 12 | 2.8 lliures / 1.27 kg | 11.81 x 11.61 x 8.46 polzades / 300 x 295 x 215 mm |
| DLM-24 | 24 | 4.1 lliures / 1.86 kg | 17.13 x 11.02 x 8.47 polzades / 435 x 280 x 215 mm |
| 36 | 36 | 8.05 lliures / 3.65 kg | 18.9 x 16.54 x 5.12 polzades / 480 x 420 x 130 mm |
| 48H | 48 | 8.49 lliures / 3.85 kg | 16.93 x 16.93 x 7.48 polzades / 430 x 430 x 190 mm |
9. Consells d'usuari
- For optimal results, ensure the room where the incubator is placed has a stable temperature and minimal drafts.
- Always use fresh, fertile eggs for the best hatching rates.
- Monitor temperature and humidity regularly, especially during the first few days, to ensure stability.
- When adding water, use distilled or demineralized water to prevent mineral buildup in the humidity channels.
- Avoid opening the incubator lid unnecessarily, as this can cause temperature and humidity fluctuations that are detrimental to embryo development.
- During the hatching period, resist the urge to assist chicks in hatching. Let nature take its course.
10. Garantia i Suport
For any questions, technical support, or warranty claims, please contact SucceBuy customer service. Keep your purchase receipt as proof of purchase.
