Melnor 3060 Digital Water Timer Plus Instruction Manual

Introducció

The Melnor 3060 Digital Water Timer Plus is designed to automate your watering schedule, providing convenience and efficient water management for your lawn or garden. This timer allows you to set precise watering times and durations, ensuring your plants receive the right amount of water without constant manual intervention. It features an easy-to-read LCD menu for programming and supports multiple independent watering cycles.

This manual provides detailed instructions for setting up, operating, and maintaining your Melnor 3060 Digital Water Timer Plus. Please read it thoroughly before use to ensure optimal performance and longevity of your device.

Característiques clau

• Automated Watering: Set and forget, program to automatically start and shut off.
• Programació fàcil: Features an intuitive LCD menu for straightforward setup.
• Compatibilitat versàtil: Works effectively with low-pressure drip systems and soaker hoses.
• Horari flexible: Program up to 6 independently programmable cycles, allowing watering while away or at night.
• Funcionament manual: Includes an on/off function to use like a standard faucet.
• Additional Outlet: Equipped with a second manual outlet for convenient watering.

Informació de seguretat

ADVERTIMENT: Aquest producte us pot exposar a substàncies químiques, com ara l'estirè, que l'estat de Califòrnia sap que causa càncer. Per a més informació, aneu a www.P65Warnings.ca.gov.

For outdoor use only. Do not use this timer indoors or for purposes other than watering.

Configuració

1. Instal·leu les bateries

The Melnor 3060 Digital Water Timer Plus requires two (2) AA batteries (not included) for operation. Ensure batteries are inserted with correct polarity.

1. Localitza el compartiment de les piles a la part posterior del temporitzador.
2. Obriu la tapa del compartiment de la bateria.
3. Insert two fresh AA alkaline batteries, matching the (+) and (-) terminals correctly.
4. Securely close the battery compartment cover to prevent water intrusion.

2. Attach to Faucet

Connect the timer to a standard outdoor hose faucet.

1. Assegureu-vos que l'aixeta estigui tancada.
2. Thread the timer's inlet connector onto the faucet. Hand-tighten only to prevent damage.
3. Attach your garden hose or watering system to the timer's outlet.
4. Slowly turn on the faucet completely. The timer is designed to operate with full water pressure.

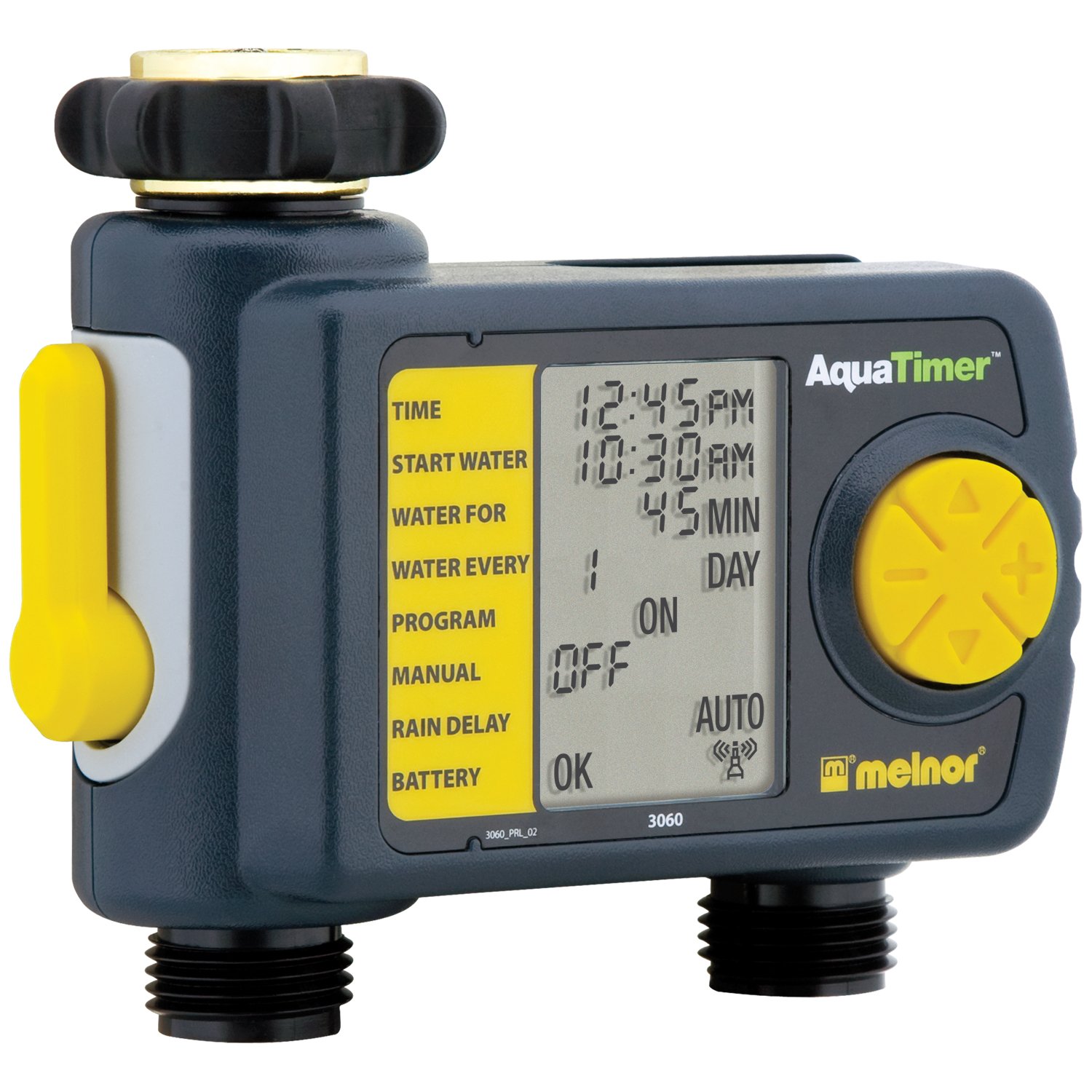

Image: The Melnor 3060 Digital Water Timer Plus, showing its connection points for a faucet and a garden hose.

Instruccions de funcionament

The Melnor 3060 features an LCD display and several buttons for programming. Refer to the on-screen prompts for guidance.

1. Set Current Time

1. Premeu el botó CONFIGURA EL RELOJ botó.
2. Utilitza el + i - botons per ajustar l'hora i els minuts.
3. Premeu OK or CONFIGURA EL RELOJ de nou per confirmar.

2. Program Watering Schedule

The timer allows for up to six independent watering cycles per day. You can also choose from five preset programs.

1. Premeu el botó PROGRAMA botó per entrar al mode de programació.
2. Utilitza el + i - buttons to select a program number (1-6) or a preset option.
3. Premeu OK per confirmar la vostra selecció.
4. Follow the on-screen prompts to set the:
   • Hora d'inici: When watering begins.
   • Durada: How long watering will last.
   • Freqüència: How often watering occurs (e.g., every day, every other day, specific days of the week).
5. Repeat for additional watering cycles as needed.
6. Once all programs are set, ensure the timer is in AUTO mode for automatic operation.

3. Reg manual

Per regar manualment sense afectar la programació:

1. Premeu el botó ON/OFF botó.
2. The water will begin to flow.
3. Per aturar el reg manual, premeu el botó ON/OFF button again. The timer will return to its programmed schedule.

4. Using the Second Manual Outlet

The timer includes a second, un-timed manual outlet. This outlet functions like a standard faucet and is not controlled by the timer's programming. Simply attach a hose and open the valve on the timer to use it.

Manteniment

• Substitució de la bateria: Replace batteries annually or when the low battery indicator appears on the LCD. Always use fresh AA alkaline batteries.
• Hivernització: To prevent damage from freezing, remove the timer from the faucet before the first frost. Store it indoors in a dry, protected area.
• Neteja: Periodically check the inlet screen for debris and clean if necessary to maintain proper water flow.

Resolució de problemes

Especificacions

• Número de model: 3060 (also referred to as 3100 in some documentation)
• Font d'alimentació: 2 piles alcalines AA (no incloses)
• Dimensions del producte: 4.5 x 5.2 x 4.5 polzades
• Pes de l'article: 12.8 unces
• Fabricant: Melnor
• Cicles de reg: Up to 6 independently programmable cycles
• Programes preestablerts: 5

Informació de la garantia

The Melnor 3060 Digital Water Timer Plus comes with a Garantia limitada de dos anys. This warranty covers defects in materials and workmanship under normal use. For specific terms and conditions, or to make a warranty claim, please refer to the warranty card included with your product or contact Melnor customer service.

Atenció al client

If you have any questions, require assistance with setup or programming, or encounter any issues not covered in this manual, please contact Melnor Customer Service. Contact information can typically be found on the product packaging or on the official Melnor weblloc.
