Arrow Fastener 60830 1/2-Inch Wide Crown Staples Instruction Manual

1. Introducció

This manual provides essential information for the proper use and care of Arrow Fastener 60830 1/2-inch wide crown staples. These staples are designed for heavy-duty stapling applications across various projects, including insulation installation, housewrap and roofing underlayment fastening, upholstery, fine furniture work, window treatments, and general crafts.

The Arrow 60830 staples are part of the T50 staple platform, known for its holding power and precise manufacturing.

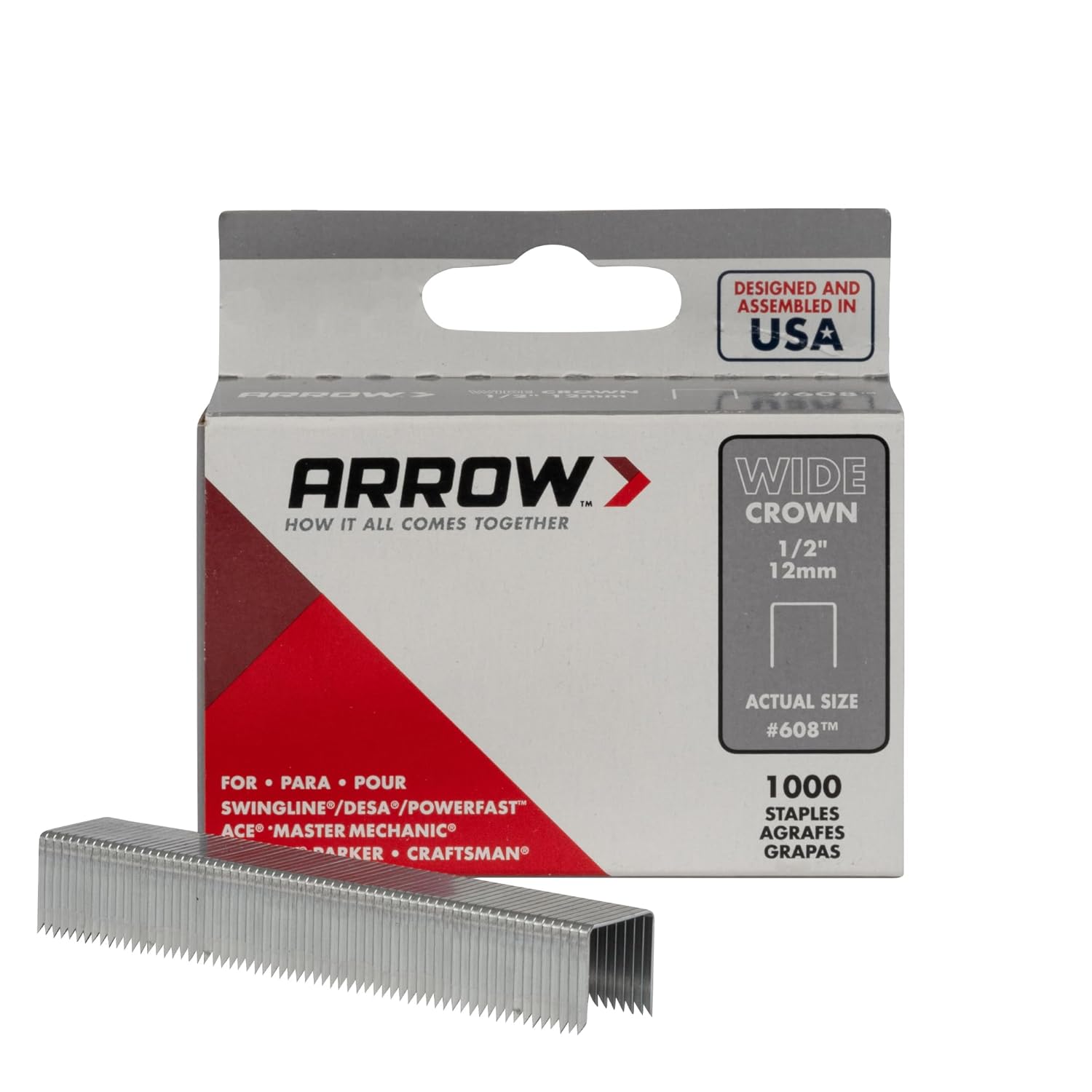

Image 1.1: A box of Arrow 60830 Wide Crown Staples, showing the packaging and a single strip of staples.

2. Compatibilitat

Arrow 60830 1/2-inch wide crown staples are compatible with a range of stapling tools. It is crucial to verify your tool's specifications to ensure it supports staples with a 1/2-inch crown width and 1/2-inch leg length.

Compatible Stapler Models:

• Swingline/Desa: 800, 800X, 900, 1000, 10060, 31600, 31800, 34201, 34302
• Master Mechanic: 174839, 345025, 136150, TRE-50MM, TRE-300MM
• Sears Craftsman: 68477, 68418, 6843, 3846, 68642, 68423, 68471, 68481
• Stanley-Parker: TR70, TR75, TR80, TRE100, TRE50, TRE200
• Ace Hardware: 22084, 22087, 27175
• Black & Decker: 9700, 9

These staples are designed for use with various manual, electric, and pneumatic staple guns, as well as hammer tackers.

Image 2.1: A hand demonstrating the use of a staple gun, compatible with T50 staples, on a piece of fabric.

3. Setup (Loading Staples)

To load the Arrow 60830 staples into your compatible stapling tool, follow the specific instructions provided with your stapler. General steps typically include:

1. Garantir la seguretat: Always point the stapler away from yourself and others. Disconnect power for electric/pneumatic tools.
2. Revista Oberta: Locate and open the staple magazine or loading mechanism on your stapler. This often involves pressing a release button or pulling a latch.
3. Inseriu grapes: Place a strip of Arrow 60830 staples into the magazine with the crown (flat top) facing upwards and the points facing towards the stapler's nose. Ensure the strip slides smoothly.
4. Tanca la revista: Securely close the staple magazine until it latches into place.
5. Prova de foc: Before use on your project, test fire the stapler on a scrap piece of material to ensure proper staple feeding and penetration.

Imatge 3.1: Un primer pla view of a single strip of Arrow 60830 staples, highlighting their design.

4. Instruccions de funcionament

Once the staples are loaded, operate your stapling tool according to its manufacturer's guidelines. The Arrow 60830 staples are designed for effective fastening in various materials.

1. Posicionament: Place the nose of the stapler firmly against the material where the staple is to be driven.
2. Accionament: Activate the stapler's trigger or handle mechanism. The precision points of the staples are designed to drive deep into materials such as wood, fabric, and carpet, ensuring a firm and lasting hold.
3. Verificació: After each staple, visually inspect the fastening to ensure it is properly seated and holding the materials together as intended.

5. Manteniment

Arrow 60830 staples themselves require minimal maintenance. However, proper storage is essential to maintain their quality and performance.

• Emmagatzematge: Store staples in their original packaging in a dry environment to prevent rust and corrosion. Avoid exposing them to excessive moisture or extreme temperatures.
• Manipulació: Handle staple strips carefully to avoid breaking them, which can lead to feeding issues in your stapler.

6. Solució De Problemes

While Arrow 60830 staples are manufactured for reliability, issues can occasionally arise. Here are common problems and potential solutions:

Problemes comuns:

• Stapler Jamming:
  • Causa: Often caused by broken staple strips, incorrect staple size, or debris in the stapler's magazine.
  • Solució: Carefully open the stapler's magazine and remove any broken staple pieces or debris. Ensure you are using intact staple strips of the correct size (1/2-inch leg length, 1/2-inch crown width). Refer to your stapler's manual for jam clearing procedures.
• Staples Not Driving Fully:
  • Causa: Insufficient pressure applied to the stapler, incorrect stapler setting, or stapling into overly hard material.
  • Solució: Apply firm, consistent pressure to the stapler when firing. If your stapler has adjustable power settings, ensure it is set appropriately for the material. Consider if the material is too dense for manual stapling.
• Staples Bending or Malforming:
  • Causa: Similar to staples not driving fully, or potentially a worn stapler mechanism.
  • Solució: Ensure proper stapler operation and material suitability. If the issue persists across different staple batches and materials, your stapler may require maintenance or replacement.

7. Especificacions

8. Informació de la garantia

Specific warranty details for Arrow Fastener 60830 staples are not provided in the available product data. For information regarding product guarantees or returns, please refer to the retailer's return policy or contact Arrow Fastener directly.

9. Suport i informació de contacte

For further assistance, product inquiries, or technical support regarding Arrow Fastener products, please visit the official Arrow Fastener weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.

• Oficial Weblloc: www.arrowfastener.com
• Fabricant: Arrow Fastener Company, LLC
• Adreça: 271 Mayhill Street, Saddle Brook, New Jersey 07663 USA

També podeu visitar el Arrow Fastener Store on Amazon per a productes i informació addicionals.
