1. Instruccions de seguretat importants
Quan utilitzeu aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat per reduir el risc d'incendi, descàrrega elèctrica i/o lesions a les persones, incloses les següents:
- Read all instructions before operating the rotisserie.
- No toqueu superfícies calentes. Utilitzeu nanses o poms.
- Per protegir-se de les descàrregues elèctriques, no submergiu el cable, els endolls o l'aparell en aigua o altres líquids.
- És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
- Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
- No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
- L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
- No utilitzar a l'aire lliure.
- No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
- No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
- Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
- Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
- No utilitzeu l'aparell per a un altre ús que el previst.
2. Components del producte
The George Foreman GR82B George Jr. Rotisserie includes several components designed for versatile cooking:
- Rotisserie Unit: The main appliance housing the heating elements and rotation mechanism.
- Rotisserie Spits: Two 9-1/4 inch spits for holding whole poultry or roasts.
- Round Basket: A cylindrical mesh basket for roasting vegetables or 'dry-frying' potatoes.
- Cistella plana: An 8-1/4 by 7-1/2 by 2-1/2 inch adjustable basket for grilling fish, steaks, or larger vegetables.
- Broquetes: Six skewers for preparing kebabs or ribs.
- Safata de degoteig: A pullout tray located at the bottom to collect fats and juices.
- Lift-up Cover with Window: Provides visibility during cooking and easy access to the interior.
Image: The George Foreman GR82B George Jr. Rotisserie unit with its clear lift-up cover, showing the round cooking basket inside.
Image: Included accessories: the round basket, flat basket, and skewers, ready for different cooking applications.
3. Configuració
- Desembalar: Traieu amb cura tots els components de l'embalatge. Conserveu l'embalatge per a futurs emmagatzematges o transports.
- Neteja inicial: Before first use, wash the drip tray, baskets, spits, and skewers in warm, soapy water. Rinse thoroughly and dry completely. Wipe the interior and exterior of the rotisserie unit with a damp tela. No submergiu la unitat principal a l'aigua.
- Col·locació: Place the rotisserie on a stable, flat, heat-resistant surface. Ensure there is adequate clearance (at least 6 inches) on all sides and above the unit for proper ventilation and to prevent heat damage to surrounding surfaces or cabinets.
- Connexió d'alimentació: Ensure the rotisserie is unplugged before assembling any parts. Once assembled, plug the power cord into a standard electrical outlet.

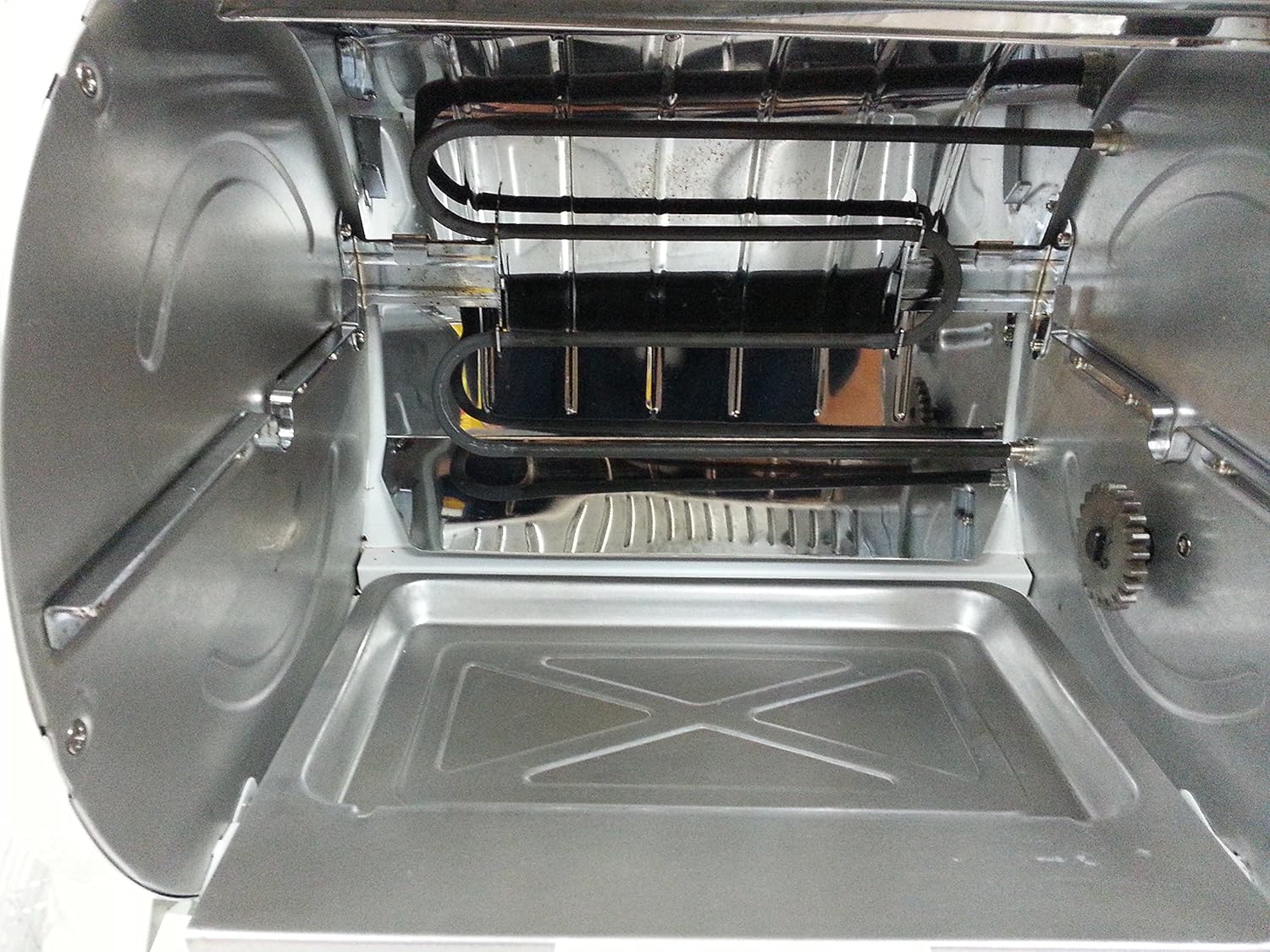

Image: The interior of the rotisserie, highlighting the heating elements and the removable drip tray for easy cleaning.
4. Instruccions de funcionament
The George Foreman GR82B Rotisserie offers various cooking methods. Always refer to the included cooking time chart for specific food items.
Funcionament general:
- Prepare your food item according to recipe or desired method.
- Select the appropriate cooking accessory (spits, round basket, flat basket, or skewers) and load your food.
- Carefully place the loaded accessory into the rotisserie unit, ensuring it is securely engaged with the rotation mechanism.
- Close the lift-up cover.
- Connecteu la unitat a una presa de corrent.
- Set the timer knob to the desired cooking duration (up to 3 hours). The unit will begin to heat and rotate.
- Monitor cooking progress through the window.
- Once cooking is complete, the timer will sound and the unit will turn off. Unplug the unit and allow it to cool before removing food and cleaning.
Mètodes de cocció específics:
- Using Rotisserie Spits: Ideal for whole chickens, small turkeys (up to 10 lbs), or roasts. Securely truss poultry to prevent wings or legs from interfering with rotation or heating elements.
- Using Round Basket: Suitable for smaller, irregularly shaped items like vegetables (e.g., bell peppers, onions) or potatoes (fresh or frozen for 'dry-frying'). Ensure the basket is not overfilled to allow for even cooking.
- Using Flat Basket: Designed for flatter items such as fish fillets, steaks, or larger vegetable pieces. Adjust the basket to hold food securely in place as it rotates.
- Using Skewers: Perfect for kebabs with various meats and vegetables, or for cooking ribs. Distribute food evenly on skewers for balanced rotation.
Image: The rear panel of the rotisserie, featuring the timer dial (up to 180 minutes) and the power button.
Image: The interior of the rotisserie with the round mesh basket securely in place, demonstrating its position for cooking.
5. Manteniment i Neteja
Regular cleaning ensures optimal performance and extends the life of your rotisserie. Always unplug the unit and allow it to cool completely before cleaning.
- Elimina els accessoris: Carefully remove the spits, baskets, skewers, and drip tray from the unit.
- Rentar les peces desmuntables: Wash the drip tray, spits, baskets, and skewers in warm, soapy water. These parts are generally dishwasher safe, but hand washing is recommended for longevity. Rinse thoroughly and dry completely.
- Interior net: Wipe the interior surfaces of the rotisserie with a damp cloth and mild detergent. For stubborn grease, use a non-abrasive cleaner. Ensure all detergent residue is removed.
- Exterior net: Netegeu l'exterior del bloc amb l'anunciamp drap. No utilitzeu productes de neteja abrasius ni fregalls, ja que poden danyar l'acabat.
- Safata de degoteig: Empty and clean the drip tray after each use to prevent grease buildup and potential smoking during subsequent uses.
- Emmagatzematge: Store the rotisserie and its accessories in a clean, dry place when not in use.
6. Solució De Problemes
If you encounter issues with your rotisserie, refer to the following common problems and solutions:
- La unitat no s'encén:
- Assegureu-vos que el cable d'alimentació estigui ben connectat a una presa de corrent que funcioni.
- Check if the timer knob has been set. The unit will not operate if the timer is set to 'OFF'.
- Food not rotating:
- Verify that the cooking accessory (spit or basket) is correctly seated and engaged with the rotation mechanism.
- Ensure the food item is not too large or heavy, causing it to jam or prevent rotation.
- Check for any obstructions inside the unit.
- Excés de fum:
- This is often caused by grease buildup. Ensure the drip tray is clean and properly positioned.
- Retalleu l'excés de greix de les carns abans de cuinar-les.
- Ensure food items are not touching the heating elements.
- Els aliments no es cuinen uniformement:
- Ensure food is centered and balanced on the spits or within the baskets.
- Avoid overfilling baskets, which can hinder even heat distribution.
7. Especificacions
| Dimensions del producte | 18.5 x 13 x 13 polzades |
| Pes de l'article | 17 lliures |
| Número de model | GR82B |
| Fabricant | George Foreman |
| Data de primera disponibilitat | 16 de gener de 2007 |
8. Garantia i Suport
This George Foreman GR82B George Jr. Rotisserie carries a one-year warranty against defects from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal household use.
The warranty does not cover damage resulting from misuse, abuse, accident, alteration, lack of proper care, or commercial use. Any attempt to repair or modify the appliance by unauthorized personnel will void the warranty.
For warranty claims or technical support, please refer to the contact information provided in your product packaging or visit the official George Foreman weblloc.
