Manual d'usuari del centre de cinema a casa Monster Cable MP HT 200 PowerCenter

1. Introducció

The Monster Cable MP HT 200 Home Theater PowerCenter is designed to provide superior surge protection and clean power for your valuable audio/video components. It safeguards your equipment from damaging power surges and electrical spikes, while also filtering out AC power line contamination that can degrade performance. This manual provides essential information for the proper setup, operation, and maintenance of your PowerCenter.

2. Característiques clau

• Advanced SurgeGuard Protection: Provides 1100 Joules of surge protection for AC power lines and coaxial lines, safeguarding connected equipment from damaging electrical surges and spikes.
• Clean Power Stage 1 Circuitry: Filters out electrical noise and interference from your AC power, ensuring optimal performance for your audio and video components, resulting in improved sound and picture quality.
• Dual Mode Plus Alarm: An audible alarm and visual indicators notify you instantly if the PowerCenter has sacrificed its life to protect your equipment from a severe power surge.
• Coaxial Line Protection: Protects cable TV, satellite, and antenna coaxial connections from surges, preventing damage to connected devices like TVs and DSS equipment.
• Protection On and Ground OK Indicators: Visual indicators confirm that your PowerCenter is actively protecting your equipment and that the electrical outlet is properly grounded.
• Disseny compacte: Ideal for protecting secondary home theater components in various locations where a wall outlet is available.

3. Producte acabatview

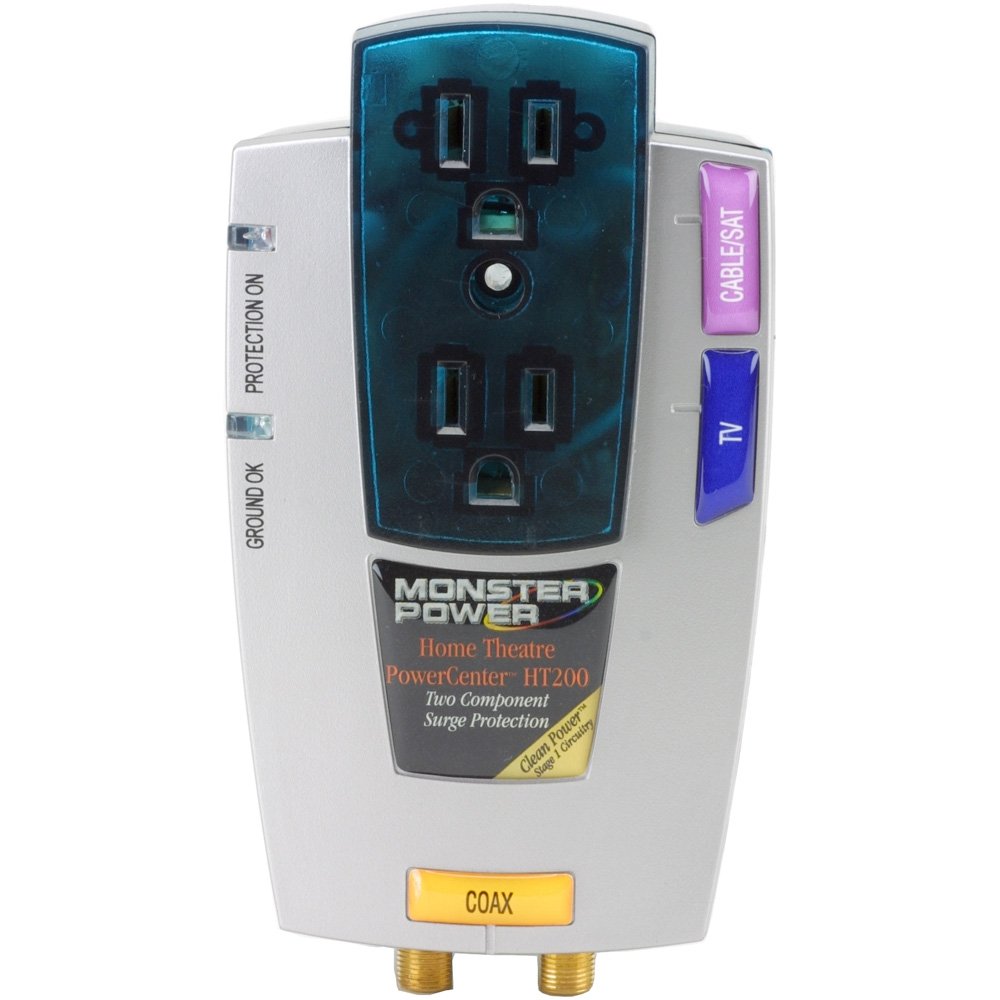

Image: Monster Cable MP HT 200 Home Theater PowerCenter. Aquesta imatge mostra la part frontal view of the Monster Cable MP HT 200. The device is light gray with a translucent blue section at the top containing two standard AC outlets. To the left of the outlets, two indicator lights are visible: 'GROUND OK' at the bottom and 'PROTECTION ON' above it. On the right side, there are two labeled buttons or ports: 'CABLE/SAT' (purple) and 'TV' (blue). At the bottom, a yellow 'COAX' button is present, with two coaxial connectors below it. The center of the device features the 'MONSTER POWER' logo and text indicating 'Home Theatre PowerCenter HT200 Two Component Surge Protection' and 'Clean Power Stage 1 Circuitry'.

4. Configuració i instal·lació

1. Col·locació: Plug the MP HT 200 directly into a standard, properly grounded 120V AC wall outlet. Do not use extension cords or other surge protectors in conjunction with this unit.
2. AC Component Connection: Plug your home theater components (e.g., TV, VCR, satellite receiver) into the AC outlets on the MP HT 200. Ensure that the total power draw of connected devices does not exceed the unit's maximum capacity.
3. Coaxial Line Connection: For protection of your coaxial lines, connect the incoming coaxial cable from your wall outlet (or antenna/satellite dish) to the 'IN' coaxial connector on the MP HT 200. Then, connect a coaxial cable from the 'OUT' coaxial connector on the MP HT 200 to your TV, VCR, or satellite receiver.
4. Indicadors de verificació: Once connected, check the indicator lights on the unit. The 'PROTECTION ON' light should illuminate, indicating active surge protection. The 'GROUND OK' light should also illuminate, confirming a proper ground connection. If either light is not illuminated, consult the Troubleshooting section.

5. Funcionament

The Monster Cable MP HT 200 operates automatically once plugged in and connected. It continuously monitors incoming power and coaxial lines for surges and filters out electrical noise.

• PROTECTION ON Indicator: This light indicates that the surge protection circuitry is active and functioning. As long as this light is on, your connected equipment is protected.
• GROUND OK Indicator: This light confirms that the wall outlet you are using is properly grounded. A proper ground is essential for effective surge protection.
• Dual Mode Plus Alarm: In the event of a severe power surge that overwhelms the unit's protection circuitry, the MP HT 200 will audibly beep and disconnect power to your equipment to prevent damage. This indicates that the unit has sacrificed itself to protect your devices and needs to be replaced.

6. Manteniment

The Monster Cable MP HT 200 requires minimal maintenance. Follow these guidelines to ensure its longevity and optimal performance:

• Neteja: Disconnect the unit from the wall outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or abrasive chemicals.
• Medi ambient: Keep the unit in a dry environment, away from excessive heat, moisture, and direct sunlight.
• Inspecció: Periodically inspect the power cord and the unit for any signs of damage. If damage is found, discontinue use.

7. Solució De Problemes

If you encounter issues with your Monster Cable MP HT 200, refer to the following common problems and solutions:

• No Power to Connected Devices:
  • Ensure the MP HT 200 is securely plugged into a functioning wall outlet.
  • Check if the 'PROTECTION ON' light is illuminated. If not, the unit may have absorbed a surge and needs replacement.
  • If the Dual Mode Plus alarm is sounding, the unit has protected your equipment and needs to be replaced.
• 'PROTECTION ON' Light Not Illuminated:
  • The unit may have absorbed a significant power surge and its protection circuitry is no longer active. The unit should be replaced to ensure continued protection.
  • Ensure the unit is properly plugged into a live wall outlet.
• 'GROUND OK' Light Not Illuminated:
  • This indicates an improper ground in your wall outlet. Consult a qualified electrician to inspect your home's wiring. The unit cannot provide full protection without a proper ground.
• Audible Alarm (Beeping):
  • The Dual Mode Plus alarm indicates that the PowerCenter has protected your equipment from a damaging surge and has reached the end of its protective life. The unit must be replaced.

8. Especificacions

9. Garantia i Suport

Please note that the Monster Cable MP HT 200 PowerCenter is a discontinued product. While direct manufacturer support for this specific model may be limited, Monster products are generally known for their quality and protection features.

Garantia de l'equip connectat: This product typically includes a connected equipment warranty (e.g., $50,000 coverage mentioned in product features). This warranty provides financial protection for equipment properly connected to the PowerCenter that is damaged by a power surge while the PowerCenter's protection circuitry is active. Refer to the original product packaging or Monster's official website for specific terms and conditions of any connected equipment warranty that may apply.

For general inquiries or information regarding Monster products, you may visit the official Monster website or contact their customer service channels, though support for discontinued models might be limited to general advice or replacement options for current products.
