1. Salvaguardes importants
Quan s'utilitzen aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat, incloses les següents:
- Llegiu totes les instruccions abans de fer servir la batedora.
- Per protegir-vos del risc de descàrrega elèctrica, no submergiu el cable, els endolls ni l'aparell en aigua ni en altres líquids.
- És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
- Desendolleu la presa de corrent quan no estigui en ús, abans de posar o treure peces i abans de netejar.
- Eviteu el contacte amb les peces mòbils.
- No feu servir cap aparell amb un cable o endoll danyats ni després que l'aparell funcioni malament, o es caigui o es faci malbé de qualsevol manera.
- L'ús d'accessoris no recomanats o venuts pel fabricant pot provocar incendis, descàrregues elèctriques o lesions.
- No utilitzar a l'aire lliure.
- No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
- No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
- No utilitzeu l'aparell per a un altre ús domèstic que el previst.
- Feu servir sempre la batedora amb la tapa al seu lloc.
- Les fulles són afilades. Manipular amb cura.
2. Producte acabatview
The Krups Power Xtreme VI Touchpad Blender is designed for efficient blending with its powerful motor and versatile functions. It features a heavy-duty metallic base for stability and a large capacity glass jar.
Figura 2.1: Frontal view of the Krups Power Xtreme VI Touchpad Blender, showing the white base, clear glass jar, and control panel.
Components clau:
- Heavy-duty Metallic Base: Provides maximum stability during operation.
- 50-oz. Graduated Glass Jar: Large capacity with an easy-pour spout and clear measurement markings.
- Watertight Locking Lid: Prevents spills and includes a convenient 3-oz. measuring cup.
- 6-Blade Assembly: Designed for maximum efficiency and optimal performance.
- Touchpad Control Panel: Features 8 functions for various blending needs.

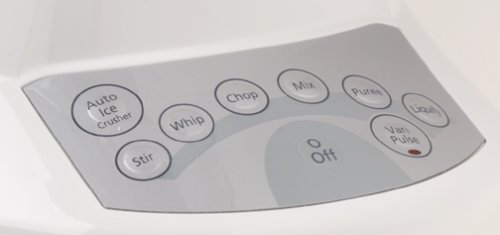

Figura 2.2: Primer pla view of the blender's touchpad control panel, displaying buttons for Auto Ice Crusher, Stir, Whip, Chop, Mix, Puree, Liquefy, Vari-Pulse, and Off.
Funcions del tauler de control:
- Auto Ice Crusher: Quickly crushes ice without adding water.
- Remeneu: For light mixing.
- Fut: For aerating ingredients.
- Picar: For coarse chopping.
- Barreja: For general blending.
- Puré: For smooth consistency.
- Liquefy: For very fine blending.
- Vari-Pulse: Allows for total control of blending, preventing over-processing.
- Apagat: Apaga la batedora.
3. Muntatge i muntatge
Before first use, wash all parts that will come into contact with food. Ensure the blender is unplugged from the power outlet during assembly.
- Place the heavy-duty metallic base on a stable, flat, and dry surface.
- Ensure the removable blade assembly is securely attached to the bottom of the glass jar.
- Carefully place the 50-oz. graduated glass jar onto the motor base. Ensure it is seated correctly and locked into position if applicable (refer to visual indicators on the base).
- Place the watertight locking lid securely onto the glass jar. Ensure the measuring cup insert is in place.
- The blender is now ready for use. Plug the power cord into a suitable electrical outlet.
4. Instruccions de funcionament
Always ensure the lid is securely in place before operating the blender. Do not overfill the jar.
- Afegir ingredients: Place desired ingredients into the glass jar. Do not exceed the maximum fill line indicated on the jar. For liquids, ensure the lid is on before adding through the measuring cup opening.
- Tapa segura: Place the watertight locking lid firmly onto the jar. Ensure the measuring cup is inserted into the lid opening.
- Seleccioneu la funció: Press the desired function button on the touchpad control panel (e.g., Stir, Whip, Chop, Mix, Puree, Liquefy). The blender will start operating.
- Using Auto Ice Crusher: For crushing ice, select the "Auto Ice Crusher" function. This feature is designed to quickly crush ice without the need for additional water.
- Using Vari-Pulse: For precise control over blending, press and hold the "Vari-Pulse" button. Release the button to stop blending. This allows for short bursts of power and prevents over-processing.
- Soft-Start Feature: The blender incorporates a soft-start feature to prevent splattering when beginning operation.
- Aturar l'operació: To stop the blender at any time, press the "Off" button.
- Afegir ingredients durant la barreja: For adding ingredients while blending, remove the measuring cup from the lid and slowly add ingredients through the opening. Replace the measuring cup immediately.
Nota: Do not operate the blender continuously for more than 3 minutes. Allow the motor to cool down for 10-15 minutes between heavy uses.
5. Neteja i Manteniment
Regular cleaning ensures optimal performance and extends the life of your blender. Always unplug the blender before cleaning.
- Desmuntar: Unplug the blender. Remove the glass jar from the motor base. Carefully detach the blade assembly from the bottom of the jar. Remove the lid and measuring cup.
- Cleaning the Jar, Lid, and Blade Assembly: The glass jar, watertight locking lid, and removable blade assembly are dishwasher-safe for convenient cleaning. Alternatively, wash them in warm, soapy water using a non-abrasive sponge. Rinse thoroughly and dry. Handle blades with extreme care as they are sharp.
- Neteja de la base del motor: Netegeu la base del motor amb un anunciamp drap. No submergiu la base del motor en aigua ni en cap altre líquid. No utilitzeu productes de neteja abrasius ni fregalls, ja que poden ratllar la superfície.
- Emmagatzematge: Store the blender in a clean, dry place. Ensure all parts are completely dry before reassembling for storage.
6. Solució De Problemes
Si teniu problemes amb la batedora, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La batedora no s'encén. | Not plugged in; power outlet not working; jar not correctly seated on base. | Ensure power cord is securely plugged into a working outlet. Check that the glass jar is properly aligned and locked onto the motor base. |
| Els ingredients no es barregen suaument. | Massa poc líquid; massa ingredients; els ingredients són massa grans. | Add more liquid if necessary. Reduce the amount of ingredients. Cut larger ingredients into smaller pieces before blending. Use the Vari-Pulse function for better control. |
| La batedora s'atura durant el funcionament. | Protecció de sobrecàrrega activada; sobreescalfament del motor. | Unplug the blender and allow it to cool down for 10-15 minutes. Reduce the load of ingredients. Ensure proper ventilation around the motor base. |
| Soroll o vibració forta. | Jar not seated correctly; blade assembly loose; foreign object in jar. | Ensure the jar is securely seated on the base. Check that the blade assembly is tightly secured to the jar. Remove any foreign objects before blending. |
Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
7. Especificacions
- Marca: KRUPS
- Número de model: GMA1-11
- Color: Negre
- Característica especial: Detachable Attachment
- Capacitat: 50 unces líquides (aprox. 1.47 litres)
- Font d'alimentació: Elèctric amb cable
- Potència del motor: 400 watts
- Nombre de velocitats: 6 (més Pols)
- Pes de l'article: 3 kg 560 g (approx. 7.85 lbs)
- Dimensions de l'article (LxWxH): 37.3 x 26.9 x 21.3 centímetres (aprox. 14.7 x 10.6 x 8.4 polzades)
- UPC: 010942200567
8. Garantia i Suport
This KRUPS product is covered by a Limited Warranty. For detailed information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official KRUPS weblloc.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact KRUPS customer support. Contact information can typically be found on the KRUPS official weblloc web o a l'embalatge del producte.
Recursos en línia:
- Per al registre i l'assistència del producte: www.krups.com
