KRUPS 890 Orchestro Premium Fully Automatic Espresso/Cappuccino/Latte Coffeemaker User Manual

Introducció

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your KRUPS 890 Orchestro Premium Fully Automatic Espresso/Cappuccino/Latte Coffeemaker. Please read this manual thoroughly before using the appliance and retain it for future reference.

Instruccions de seguretat

• Assegureu-vos sempre que l'aparell estigui connectat a una presa de corrent amb connexió a terra.
• No submergiu l'aparell, el cable d'alimentació o l'endoll en aigua o cap altre líquid.
• Keep hands and utensils away from hot surfaces and steam nozzles during operation.
• Unplug the coffeemaker from the power outlet before cleaning or when not in use.
• No feu servir l'aparell amb un cable o un endoll danyats, si no funciona mal o s'ha fet malbé d'alguna manera.
• Aquest aparell només és per a ús domèstic.

Producte acabatview

The KRUPS 890 Orchestro Premium is a fully automatic coffeemaker designed to prepare espresso, cappuccino, and latte beverages. It features an advanced ThermoBlock system for rapid heating and optimal brewing temperature, a 15-bar pump for authentic espresso extraction, and an integrated burr grinder with 6 settings for fresh coffee beans.

Figura 1: Davant view of the KRUPS 890 Orchestro Premium coffeemaker, showcasing its sleek design and primary controls.

Configuració

1. Desembalatge: Carefully remove all packaging materials and protective films from the appliance. Ensure all components are present: coffeemaker, drip tray, water tank, bean hopper lid, and filter.
2. Neteja inicial: Abans del primer ús, netegeu l'exterior de la màquina amb un anunciamp cloth. Wash the water tank, drip tray, and coffee grounds container with warm, soapy water, then rinse thoroughly and dry.
3. Ompliment del dipòsit d'aigua: Remove the water tank from the side of the machine. Fill it with fresh, cold drinking water up to the 'MAX' level indicator. Reinsert the tank securely.
4. Farciment de la tremuja de mongetes: Open the lid of the bean hopper located on top of the machine. Pour fresh, whole coffee beans into the hopper. Do not use ground coffee in the bean hopper.
5. Primer ús / Imprimació: Plug the coffeemaker into a grounded power outlet. Turn on the machine. The system will automatically perform a rinsing cycle. Place a container under the coffee spouts to collect the water.

Figura 2: lateral view of the KRUPS 890 Orchestro Premium, illustrating the removable water tank for easy refilling.

En funcionament

Making Espresso/Coffee

1. Ensure the water tank is filled and the bean hopper contains fresh coffee beans.
2. Col·loqueu una o dues tasses sota els brocs del cafè.
3. Select your desired coffee strength and volume using the control panel buttons and dial. The integrated burr grinder offers 6 grinding settings; adjust as needed for your preferred taste.
4. Press the appropriate button for a single or double espresso/coffee. The machine will grind the beans, brew, and dispense the coffee automatically.

Making Cappuccino/Latte

1. First, prepare an espresso shot as described above.
2. Fill a milk frothing pitcher with cold milk.
3. Position the steam wand into the milk. Turn the steam control knob to activate the steam function.
4. Froth the milk to your desired consistency. Turn the steam control knob off when finished.
5. Pour the frothed milk over your espresso to create a cappuccino or latte.

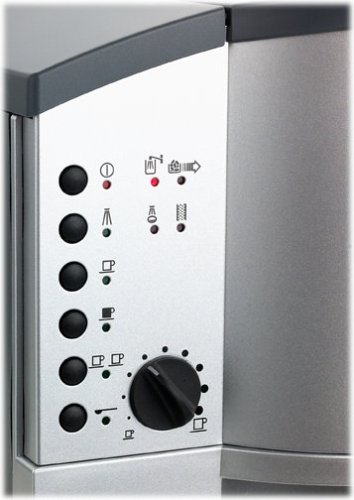

Figura 3: Detallada view of the control panel on the KRUPS 890 Orchestro Premium, showing buttons for coffee selection and the grinding adjustment dial.

Figura 4: Close-up of the coffee dispenser and the adjustable steam wand on the KRUPS 890 Orchestro Premium, used for frothing milk.

Manteniment

Neteja diària

• Safata de degoteig i contenidor de cafè mòlt: Empty and rinse daily. These components are typically dishwasher safe, but hand washing is recommended for longevity.
• Broquets de cafè: Esborra amb anunciamp cloth after each use to prevent coffee residue buildup.
• Vareta de vapor: After each use, purge the steam wand briefly and wipe it clean with a damp drap per eliminar qualsevol residu de llet.

Descalcificació

The machine will indicate when descaling is required. Use a descaling solution specifically designed for espresso machines. Follow the instructions provided with the descaling agent and the machine's display prompts for the descaling cycle.

Neteja de la unitat de preparació

Refer to the machine's display for prompts regarding brew unit cleaning. This typically involves using cleaning tablets and running a specific cleaning program.

Resolució de problemes

For issues not listed here, please consult the full troubleshooting guide in your product documentation or contact KRUPS customer support.

Especificacions

• Nom del model: 890
• Marca: KRUPS
• Mode de funcionament: Totalment automàtic
• Tipus de cafetera: Màquina de cafè exprés
• Característica especial: Molinet de cafè integrat
• Pressió: Bomba de 15 bars
• Configuració del molinet: 6
• Color: Negre
• Components inclosos: Filtre
• Dimensions de l'article (LxWxH): Approximately 46.7 x 39.9 x 39.4 Centimeters
• Pes de l'article: Approximately 10 g (Note: This weight may refer to packaging or a specific component; actual machine weight will be significantly higher.)
• UPC: 010942118459

Garantia

The KRUPS 890 Orchestro Premium Coffeemaker typically comes with a Garantia limitada d'1 any. For specific terms, conditions, and to register your product, please refer to the warranty card included with your purchase or visit the official KRUPS weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

Suport

Should you require further assistance, have questions about your appliance, or need to arrange for service, please contact KRUPS customer support. Contact information can typically be found on the KRUPS official weblloc web o a la documentació que s'inclou amb el producte.
