Introducció
The MXR Phase 100 is a versatile guitar effects pedal designed to produce a wide range of classic phasing sounds. Building upon the legacy of its predecessors, this unit offers enhanced control over the phasing effect, allowing musicians to dial in precise and expressive tones. Its robust construction ensures reliability for both studio and live performance environments.
Davant view of the MXR Phase 100 pedal, showcasing its controls and iconic orange finish.
Configuració
Follow these steps to set up your MXR Phase 100 pedal:
- Connexió d'alimentació: The Phase 100 requires a 9-volt power source. This can be a 9V battery or an external power adapter (not included).
- To install a 9V battery, remove the bottom plate of the pedal. Connect the battery to the clip and place it inside the enclosure.
- For external power, connect a 9V DC adapter (center negative) to the power jack located on the side of the pedal.
posterior view of the pedal, highlighting the power input and output jack.
- Connexions d'àudio:
- Connecteu la vostra guitarra o un altre instrument a ENTRADA jack al costat dret del pedal mitjançant un cable d'instrument estàndard de 1/4 de polzada.
- Connecteu el SORTIDA presa al costat esquerre del pedal al vostre amplifier or the next pedal in your signal chain using another 1/4-inch instrument cable.

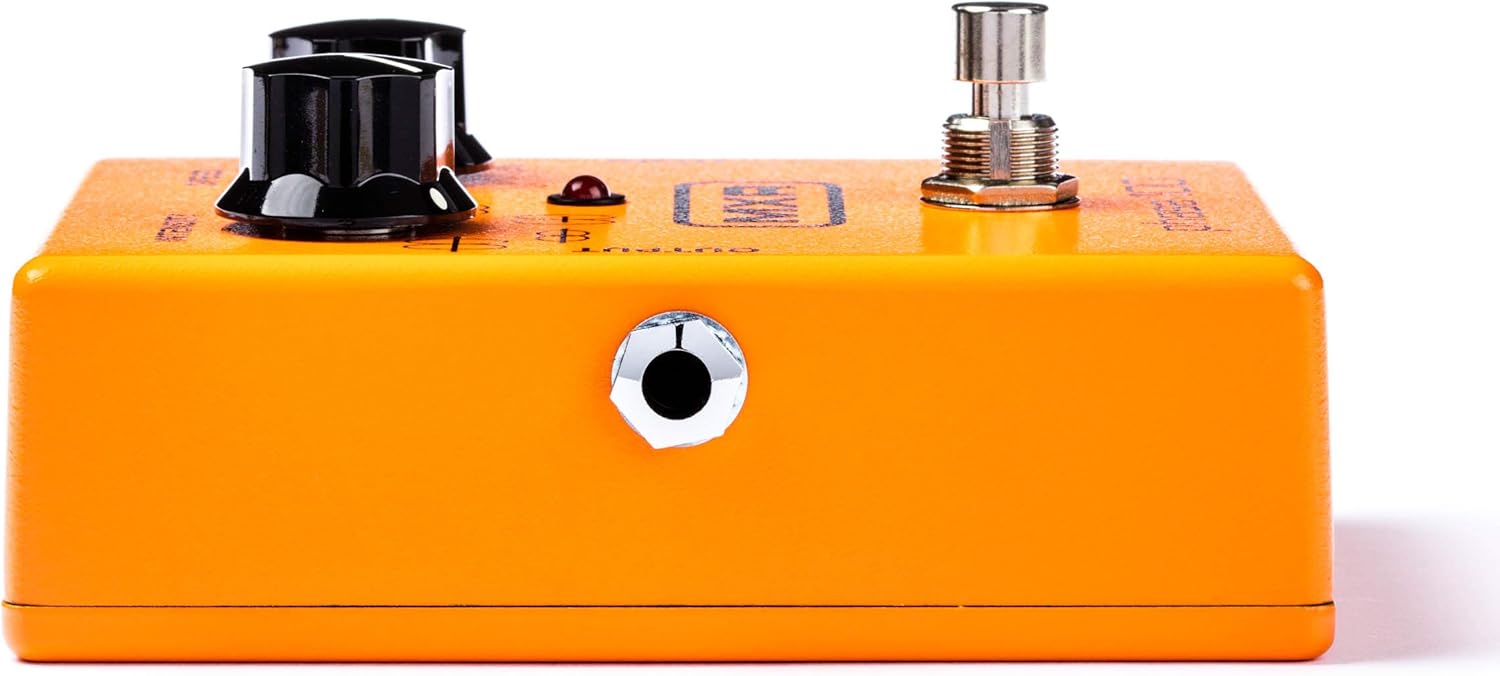

El costat esquerre i dret views of the pedal, showing the output and input jacks respectively.
- Activació: Press the footswitch to activate or bypass the effect. The LED indicator will illuminate when the effect is active.
Operating the MXR Phase 100
The MXR Phase 100 features two primary controls and a four-position rotary switch to shape your phasing effect:
- Controlador de VELOCITAT: This control adjusts the rate of the phase shifting effect. Turning it clockwise increases the speed, resulting in a faster, more rapid sweep. Turning it counter-clockwise slows down the sweep.
- Botó d'INTENSITAT: This knob controls the depth and character of the phase effect. It adjusts the sweep width and notch depth, allowing for subtle to very pronounced phasing.
- Four-Position Rotary Switch: This switch selects between four different intensity settings or preset waveform patterns, offering a broader range of sounds compared to simpler phasers. These positions also provide regeneration in the 2nd and 4th settings, adding to the effect's versatility.
A dalt view of the pedal, illustrating the Speed and Intensity knobs along with the four-position rotary switch.
Experiment with different combinations of the SPEED and INTENSITY knobs, along with the rotary switch settings, to discover the wide array of phasing sounds available from your MXR Phase 100.
Manteniment
To ensure the longevity and optimal performance of your MXR Phase 100 pedal, consider the following maintenance tips:
- Neteja: Use a soft, dry cloth to clean the pedal's exterior. Avoid abrasive cleaners or solvents, as they may damage the finish or internal components.
- Substitució de la bateria: If using a 9V battery, replace it when the LED indicator dims or the effect's performance degrades. Always disconnect input and output cables before opening the pedal to replace the battery.
- Emmagatzematge: Guardeu el pedal en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes. Si el guardeu durant un període prolongat, traieu la bateria per evitar fuites.
- Connexions de cable: Periodically check all 1/4-inch audio cables and power cables for wear and tear. Damaged cables can lead to signal loss or intermittent operation.
Resolució de problemes
If you encounter issues with your MXR Phase 100, try the following troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| No effect sound / No signal |
|
|
| Weak or inconsistent effect |
|
|
| Soroll o brunzit excessiu |
|
|
Especificacions
- Número de model: M107 (11107000001)
- Dimensions: 5.9 x 4.4 x 2.8 polzades
- Pes: 8 unces
- Potència: 9 Volts DC (single 9V battery or external power adapter, center negative)
- Interfície de maquinari: Entrada/sortida d'àudio de 1/4 de polzada
- Format del senyal: Analògic
- Color: Taronja
- Característiques: 10 stages of programmable phase shifting, adjustable intensity, four-position rotary switch for waveform patterns.
Garantia i Suport
The MXR Phase 100 is manufactured with high-quality components and undergoes rigorous testing to ensure reliability. For information regarding warranty coverage, technical support, or service, please refer to the official MXR weblloc web o poseu-vos en contacte amb el vostre distribuïdor autoritzat. Conserveu el comprovant de compra per a reclamacions de garantia.
Per obtenir recursos addicionals i informació sobre el producte, visiteu el lloc web oficial MXR Store.
