1. Introducció
The Camco RV Water Tank Filler with Shutoff Valve is designed to facilitate the efficient filling of your RV's fresh water tank. It features a large 5/8-inch fill tube to minimize line backflow and a quarter-turn pressure-sealed valve for precise water flow control. This device helps reduce filling time and prevents water from splashing back during the process.
Image 1.1: Camco RV Water Tank Filler with Shutoff Valve. This image shows the complete product, featuring a yellow connector with a black shutoff valve and a clear 5/8-inch tube.
2. Instruccions de configuració
- Connect to Water Hose: Attach the threaded end of the Camco Water Tank Filler to a standard garden hose or RV potable water hose. Ensure a secure connection to prevent leaks.
- Insert into RV Fill Port: Open the gravity fill port on your RV. Insert the clear 5/8-inch tube of the filler into the RV's fresh water tank fill opening. The extended tube helps guide water directly into the tank, reducing spills and air pockets.
- Position the Valve: Ensure the shutoff valve is easily accessible for quick control of water flow.
Image 2.1: A person connecting the Camco RV Water Tank Filler to an RV's fresh water inlet. The blue water hose is attached to the yellow connector, and the clear tube is inserted into the RV's fill port.
3. Instruccions de funcionament
- Iniciar el flux d'aigua: With the filler securely in place, slowly turn on the water supply from your hose.
- Control Flow with Valve: Use the quarter-turn shutoff valve on the filler to regulate the water flow into your RV tank. This allows you to fill the tank at an optimal rate, minimizing air entrapment and preventing 'bubble-back'.
- Monitoritzar el nivell del dipòsit: Continuously monitor your RV's fresh water tank level indicator.
- Tancar l'aigua: Once the desired tank level is reached, turn the quarter-turn valve to the closed position to stop water flow. Then, turn off the main water supply.
- Remove Filler: Carefully remove the filler from the RV's fill port and disconnect it from the water hose.

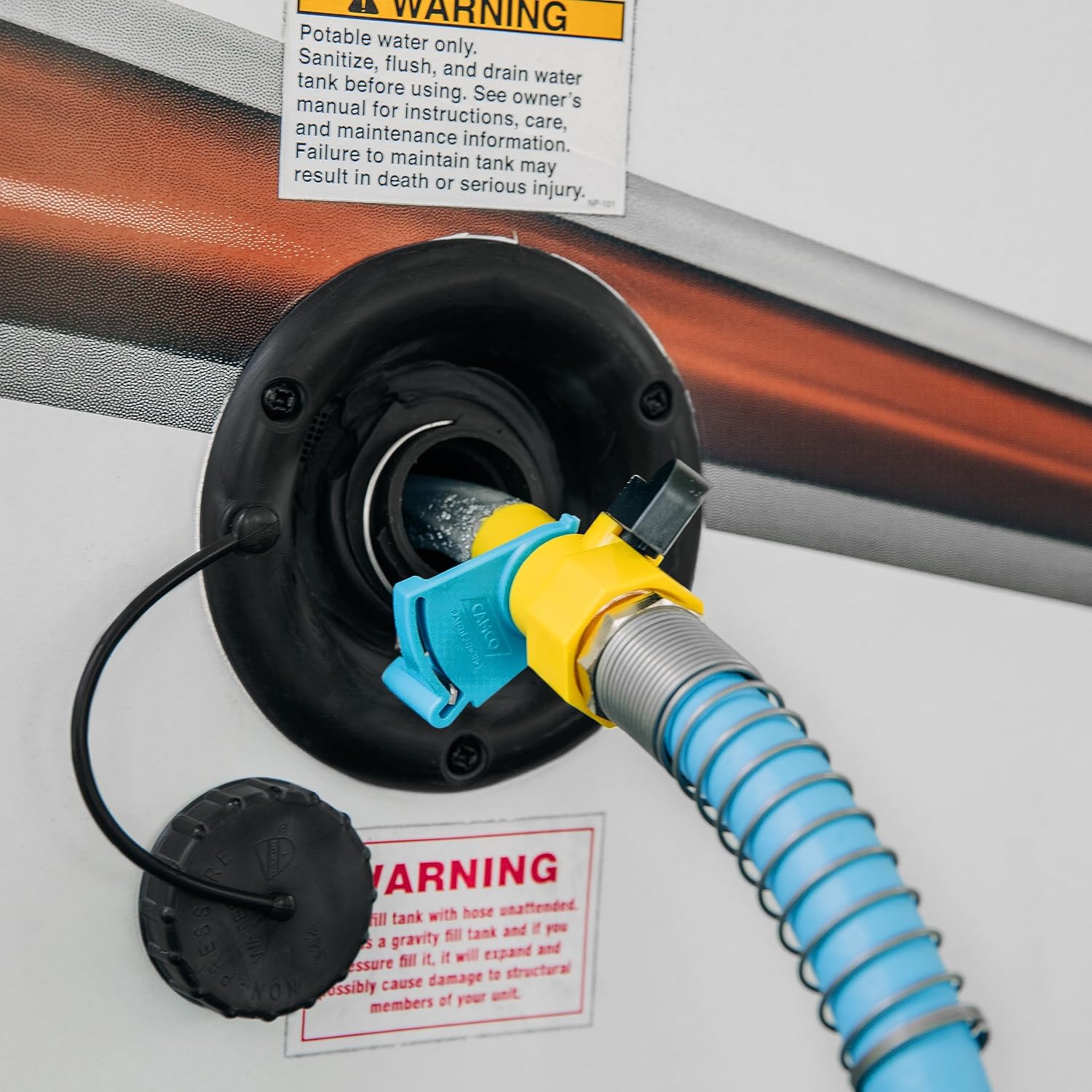

Imatge 3.1: Una imatge detallada view of the Camco RV Water Tank Filler connected to an RV's fresh water inlet. The blue hose is attached, and the yellow connector with the black shutoff valve is visible, demonstrating its position during operation.
4. Manteniment
- Neteja: After each use, rinse the water tank filler with clean water to remove any debris or residue.
- Emmagatzematge: Store the filler in a clean, dry place away from direct sunlight and extreme temperatures to prolong its lifespan.
- Inspecció: Periodically inspect the filler for any signs of wear, cracks, or damage to the tube or valve. Replace if necessary.
5. Solució De Problemes
- Slow Filling: Ensure the water supply hose is fully open and not kinked. Check that the filler's shutoff valve is completely open.
- Water Backflow/Splashing: Confirm the 5/8-inch tube is inserted adequately into the RV fill port. Reduce the water flow rate using the shutoff valve if splashing occurs.
- Fuites a les connexions: Tighten all hose connections. If leaks persist, inspect rubber washers in the hose and filler for damage and replace if needed.
6. Especificacions
| Número de model | 40003 |
| Fill Tube Diameter | 5/8 polzades |
| Tipus de vàlvula | Quarter-turn pressure-sealed |
| Material | Plàstic |
| Pes de l'article | 2.56 unces |
| Dimensions del producte | 1 x 1 x 1 polzades (aproximadament) |
| Compliment | CSA Low Lead Content Certified to NSF/ANSI 372 |
7. Informació de la garantia
For specific warranty details, please refer to the official Camco website or contact Camco customer service. Warranty terms and conditions may vary.
8. Suport
If you require further assistance or have questions regarding your Camco RV Water Tank Filler, please visit the official Camco weblloc a Camco Store o contactar directament amb el seu servei d'atenció al client.
UPC: 0014717400039
