Thermaltake CL-P0024 Combo Cool DIY Tower112 CPU Cooler Instruction Manual

Introducció

Welcome to the instruction manual for your new Thermaltake CL-P0024 Combo Cool DIY Tower112 CPU Cooler. This document provides essential information for the proper installation, operation, and maintenance of your cooling unit. Please read these instructions carefully before proceeding with installation to ensure optimal performance and longevity of your product.

The Thermaltake CL-P0024 is a high-performance CPU cooling solution designed with advanced Heatpipe Cooling Technology. It offers universal compatibility with various processor sockets, including Intel LGA775, P4, and AMD K7, K8 (including AMD Sempron Series), effectively addressing processor overheating issues.

Producte acabatview

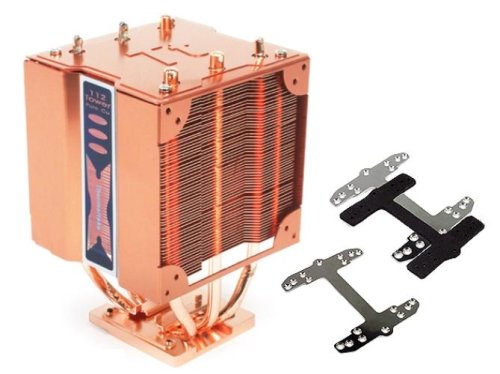

The CL-P0024 features a pure copper heatsink design for superior thermal conductivity and efficient heat dissipation. Its robust construction and versatile design allow for customization with 80mm or 90mm fans, supporting both single and dual fan configurations.

• Compatibilitat universal: Supports Intel LGA775, P4, and AMD K7, K8 (including Sempron Series).
• Heatpipe Technology: Advanced heatpipe design for efficient heat transfer away from the CPU.
• Pure Copper Heatsink: Maximizes cooling performance.
• Adjunt segur: Specially designed clip ensures stable mounting on the motherboard.
• Flexible Fan Setup: Accommodates 80mm or 90mm fans, with options for one or two fans.

Configuració i instal·lació

Proper installation is crucial for the effective operation of your CPU cooler. Please follow these general steps. Refer to your motherboard's manual for specific CPU socket and mounting instructions.

1. Prepareu la CPU: Ensure your CPU is clean and free of old thermal paste. Apply a thin, even layer of new thermal paste to the center of the CPU's integrated heat spreader (IHS).
2. Col·locació del refrigerador: Carefully align the base of the Thermaltake CL-P0024 cooler with the CPU on the motherboard. Ensure the mounting clips or screws are correctly positioned for your specific socket type (Intel LGA775, P4, AMD K7, K8).
3. Assegureu la nevera: Engage the specially designed attachment clip or mounting mechanism. Apply even pressure to secure the cooler firmly to the motherboard. Avoid excessive force.
4. Install Fans (Optional): If using 80mm or 90mm fans, attach them to the cooler's frame using the provided fan clips or screws. Ensure the fans are oriented to draw air through the heatsink for optimal cooling. The CL-P0024 supports both single and dual fan configurations.
5. Connectar l'alimentació: Connect the fan's 4-pin power connector to the appropriate CPU_FAN header on your motherboard.
6. Verifica la instal·lació: Double-check all connections and ensure the cooler is securely mounted and does not obstruct other components.

Note: Some motherboard layouts may require specific fan orientations. For example, if your motherboard's CPU slot is rotated, you may need to adjust fan placement or consider removing shrouds for proper case clearance, as noted by some users.

Instruccions de funcionament

Once properly installed, the Thermaltake CL-P0024 CPU cooler operates automatically, regulating CPU temperature based on system load. Modern motherboards and operating systems will manage fan speeds to maintain optimal thermal conditions.

• Monitor de temperatures: Utilize system monitoring software to periodically check your CPU temperature, especially during demanding tasks like gaming or video editing.
• Assegureu-vos el flux d'aire: Maintain good airflow within your PC case by ensuring other case fans are properly installed and oriented.
• Configuració de la BIOS: For advanced users, your motherboard's BIOS/UEFI settings may offer options to customize fan curves and temperature thresholds.

Manteniment

Un manteniment regular ajuda a garantir la longevitat i el rendiment òptim del refrigerador de la CPU.

• Eliminació de pols: Periodically (e.g., every 3-6 months), power down your computer and carefully remove any accumulated dust from the heatsink fins and fan blades using compressed air or a soft brush. Dust buildup can significantly reduce cooling efficiency.
• Inspecció del ventilador: Check fan blades for any obstructions or signs of wear. Ensure the fan spins freely without unusual noises.
• Pasta tèrmica: After several years, the thermal paste may dry out. Consider reapplying fresh thermal paste if you notice a significant increase in CPU temperatures.

Resolució de problemes

If you encounter issues with your Thermaltake CL-P0024 cooler, refer to the following common problems and solutions:

• Temperatures altes de la CPU:
  • Assegureu-vos que el refrigerador estigui ben muntat i que faci contacte complet amb la CPU.
  • Verifiqueu que la pasta tèrmica s'hagi aplicat correctament i que no s'hagi assecat.
  • Check if the fan(s) are spinning and connected to the CPU_FAN header.
  • Netegeu qualsevol acumulació de pols de les aletes del dissipador de calor i de les aspes del ventilador.
  • Confirm adequate airflow within your PC case.
• Soroll excessiu del ventilador:
  • Comproveu si hi ha cables o obstruccions que toquin les aspes del ventilador.
  • Ensure fan screws are tightened and the fan is securely attached.
  • Dust buildup can cause imbalance; clean the fan blades.
  • If the noise persists, the fan bearing may be worn. Consider replacing the fan.
• Cooler Not Fitting Properly:
  • Verify compatibility with your motherboard's CPU socket.
  • Ensure the mounting bracket or clip is correctly oriented for your specific socket.
  • Check for interference with RAM modules or VRM heatsinks. Adjust cooler orientation if possible.

Especificacions tècniques

Garantia i Suport

Thermaltake products are manufactured to high-quality standards. For specific warranty information regarding your CL-P0024 CPU cooler, please refer to the warranty card included with your purchase or visit the official Thermaltake weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact Thermaltake customer support. You can find contact information on the official Thermaltake weblloc.
