1. Introducció
The D-Link DGS-1016D is a 16-Port Gigabit Unmanaged Desktop or Rackmount Switch designed to provide an economical and high-performance networking solution for Small Office/Home Office (SOHO) and Small to Medium Businesses (SMB). This switch offers the increased bandwidth of Gigabit Ethernet ports, ensuring fast data transfer and efficient network operation. Its fanless design contributes to quiet operation and energy efficiency.
Figura 1.1: Frontal view of the D-Link DGS-1016D 16-Port Gigabit Unmanaged Switch.
2. Característiques del producte
The DGS-1016D switch incorporates several advanced features to enhance network performance and management:
- Gigabit Connectivity: Provides 16 Gigabit Ethernet ports for high-speed network connections, supporting Ethernet, Fast Ethernet, and Gigabit Ethernet devices.
- Improved Network Efficiency: Features such as Flow Control, Storm Control, and Port Isolation help reduce packet loss and protect the network from unexpected disruptions and malicious software.
- Disseny innovador: Built with a durable, compact metal case and a fanless design for silent operation and improved heat dissipation. It is suitable for desktop placement or rack mounting.
- Tecnologia verda: Automatically conserves energy by powering down unused ports and dynamically reducing power consumption during low data activity through Energy-Efficient Ethernet (EEE).
- Plug-and-Play: Requires no configuration or software for installation, allowing for immediate use.
- Fiabilitat: Backed by Limited Lifetime Coverage, ensuring long-term reliability.
Figure 2.1: Gigabit Connectivity for high-speed networking.
Figure 2.2: Flow Control and Storm Control features for network stability.
Figure 2.3: Energy-saving features for reduced power consumption.
3. Contingut del paquet
Comproveu que el vostre paquet contingui els elements següents:
- Commutador no gestionat Gigabit de 1016 ports D-Link DGS-16D
- Cable d'alimentació CA
- 2 Rack Mount Ears
- 8 Screws for rack mounting
- Guia d'instal·lació ràpida (QIG)
- Retenedor del cable d'alimentació
- 4 Rubber Feet (for desktop placement)
4. Guia de configuració
4.1 Instal·lació física
The DGS-1016D switch can be installed on a desktop or mounted in a standard 19-inch equipment rack.
Ubicació d'escriptori:
- Attach the four rubber feet to the recessed areas on the bottom of the switch.
- Place the switch on a flat, stable surface in a well-ventilated area. Ensure there is adequate space around the switch for proper airflow.
Muntatge en bastidor:
- Attach the two rack mount ears to the sides of the switch using the provided screws.
- Fixeu el commutador a un rack d'equips estàndard de 19 polzades amb els cargols de rack adequats (no inclosos).
Figura 4.1: Frontal view mostrant ports i indicadors.
Figura 4.2: lateral view showing ventilation.

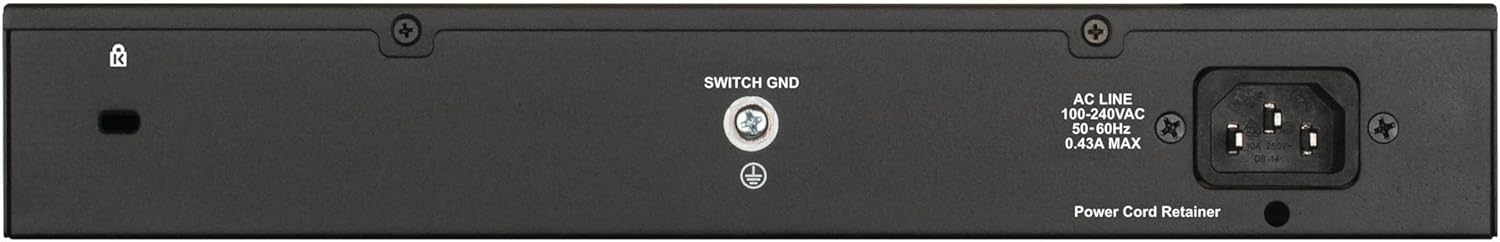

Figura 4.3: posterior view showing power input and grounding point.
4.2 Connexió de dispositius
- Connect your network devices (computers, servers, network printers, etc.) to any of the 16 Gigabit Ethernet ports on the front panel using standard RJ-45 Ethernet cables.
- Connect the supplied AC power cord to the power input on the rear panel of the switch and then to a power outlet. Use the power cord retainer to secure the connection.
- El LED d'alimentació del panell frontal s'il·luminarà, indicant que l'interruptor està rebent alimentació.
Figure 4.4: Connecting network devices to the switch.
5. Instruccions de funcionament
5.1 Indicadors LED
The front panel of the DGS-1016D features LED indicators that provide real-time status information:
- LED d'alimentació: S'il·lumina en verd quan l'interruptor està encès.
- LED d'enllaç/acció (per port):
- Solid Green: Indicates a valid network connection.
- Flashing Green: Indicates network activity (data transmission/reception).
- 1000M / 10/100M LED (per port):
- Solid Green: Indicates a 1000 Mbps (Gigabit) connection.
- Off: Indicates a 10/100 Mbps connection.
5.2 Funcions del commutador DIP
The DGS-1016D includes a DIP switch on the front panel to enable or disable advanced features:
- Control de flux: When enabled, this feature helps prevent packet loss in congested networks by temporarily pausing data transmission from devices that are sending data too quickly for the receiving device to process.
- Aïllament del port: When enabled, this feature isolates traffic between individual ports, preventing direct communication between them while still allowing communication with the uplink port. This can enhance security and mitigate broadcast storms.
- Control de tempestes: When enabled, this feature monitors incoming broadcast, multicast, and unknown unicast traffic and discards packets that exceed a predefined threshold, preventing network performance degradation due to excessive traffic.
Refer to the markings next to the DIP switch for the ON/OFF positions for each function.
6. Manteniment
To ensure optimal performance and longevity of your DGS-1016D switch, follow these maintenance guidelines:
- Neteja: Netegeu regularment l'exterior de l'interruptor amb un drap suau i sec. No utilitzeu netejadors líquids ni en aerosol. Assegureu-vos que les obertures de ventilació estiguin lliures de pols i obstruccions.
- Condicions ambientals: Operate the switch within the specified temperature and humidity ranges (refer to the Specifications section). Avoid placing the switch in direct sunlight, near heat sources, or in areas with high humidity.
- Font d'alimentació: Use only the power adapter supplied with the switch. Ensure the power outlet is properly grounded and protected from power surges.
- Gestió de cables: Keep network cables organized and free from kinks or excessive bends to prevent signal degradation.
7. Solució De Problemes
This section provides solutions to common issues you might encounter with the DGS-1016D switch.
| Problema | Causa possible | Solució |
|---|---|---|
| Sense indicació LED d'engegada | Power cord not connected or power outlet faulty. | Ensure the power cord is securely connected to the switch and a working power outlet. Test the outlet with another device. |
| No hi ha cap LED d'enllaç/acció per a un dispositiu connectat | Incorrect cable, faulty cable, or device not powered on/configured. | Verify the Ethernet cable is correctly connected at both ends. Try a different cable. Ensure the connected device is powered on and its network adapter is functioning. |
| Velocitat de xarxa lenta | Problema de cable, limitació del dispositiu o congestió de la xarxa. | Ensure you are using Gigabit-capable cables (Cat5e or higher). Check the 1000M LED to confirm Gigabit connection. Verify connected devices support Gigabit speeds. Consider enabling Flow Control via the DIP switch. |
| Network instability or frequent disconnections | Broadcast storms or network loops. | Ensure there are no network loops. Consider enabling Storm Control or Port Isolation via the DIP switch to mitigate excessive traffic. |
8. Especificacions
| Atribut | Valor |
|---|---|
| Número de model | DGS-1016D/B |
| Nombre de Ports | 16 Gigabit Ethernet (RJ45) |
| Velocitat de transferència de dades | 1 gigabits per segon |
| Dimensions del producte (LxWxH) | 10.95" x 4.95" x 1.73" (27.81 cm x 12.57 cm x 4.39 cm) |
| Pes de l'article | 2.4 lliures (1.09 kg) |
| Material de la caixa | Metall |
| Temperatura de funcionament | De 32 °F a 104 °F (de 0 °C a 40 °C) |
| Humitat de funcionament | 10% a 90% sense condensació |
| Entrada de potència | 100-240 VCA, 50-60 Hz, 0.43 A màx |
| Disseny sense ventiladors | Sí |
| Opcions de muntatge | Desktop, Rack Mountable |
9. Informació de la garantia
The D-Link DGS-1016D 16-Port Gigabit Unmanaged Switch is backed by Cobertura de per vida limitada. This warranty ensures that the product is free from defects in material and workmanship under normal use and service during its lifetime. For specific terms, conditions, and limitations of the warranty, please refer to the official D-Link warranty policy available on their support weblloc.
10. Informació de suport
For further assistance, technical support, or to access the latest drivers and firmware updates, please visit the official D-Link support weblloc:
D-Link Official Support Weblloc
