1. Introducció
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Wayne SPV500 Pedestal Sump Pump. Please read all instructions carefully before use and retain this manual for future reference.
The Wayne SPV500 is a 1/3 HP pedestal sump pump designed for residential dewatering applications. It features a cast iron pump housing, a coated steel column, and a 1-1/2 inch NPT discharge for reliable performance.
2. Informació de seguretat
WARNING: Risk of Electric Shock. This pump is supplied with a grounding conductor and grounding-type attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle.
WARNING: Risk of Injury. Always disconnect power to the pump before servicing or making any adjustments.
- Assegureu-vos que la font d'alimentació coincideixi amb el volum de la bombatage requisits (115V, 60Hz).
- No feu funcionar la bomba amb un cable o endoll danyats.
- Do not use the pump in applications involving flammable or corrosive liquids.
- Keep hands and feet clear of the pump's intake and discharge openings during operation.
- This pump is designed for clear water only. Do not use for sewage or other debris-laden water.
3. Configuració i instal·lació
The Wayne SPV500 is a pedestal-style sump pump designed for installation in a sump pit. Proper installation is crucial for optimal performance and longevity.
3.1 Desembalatge
Carefully remove the pump from its packaging. Inspect for any shipping damage. Report any damage to your supplier immediately.
3.2 Sump Pit Requirements
Ensure your sump pit is clean and free of debris. The pit should be large enough to accommodate the pump and allow for proper float switch operation without obstruction.
3.3 Discharge Piping
Connect a 1-1/2 inch NPT discharge pipe to the pump's outlet. It is recommended to install a check valve in the discharge line to prevent water from flowing back into the sump pit when the pump shuts off. Use appropriate plumbing hardware to ensure a secure, leak-free connection.

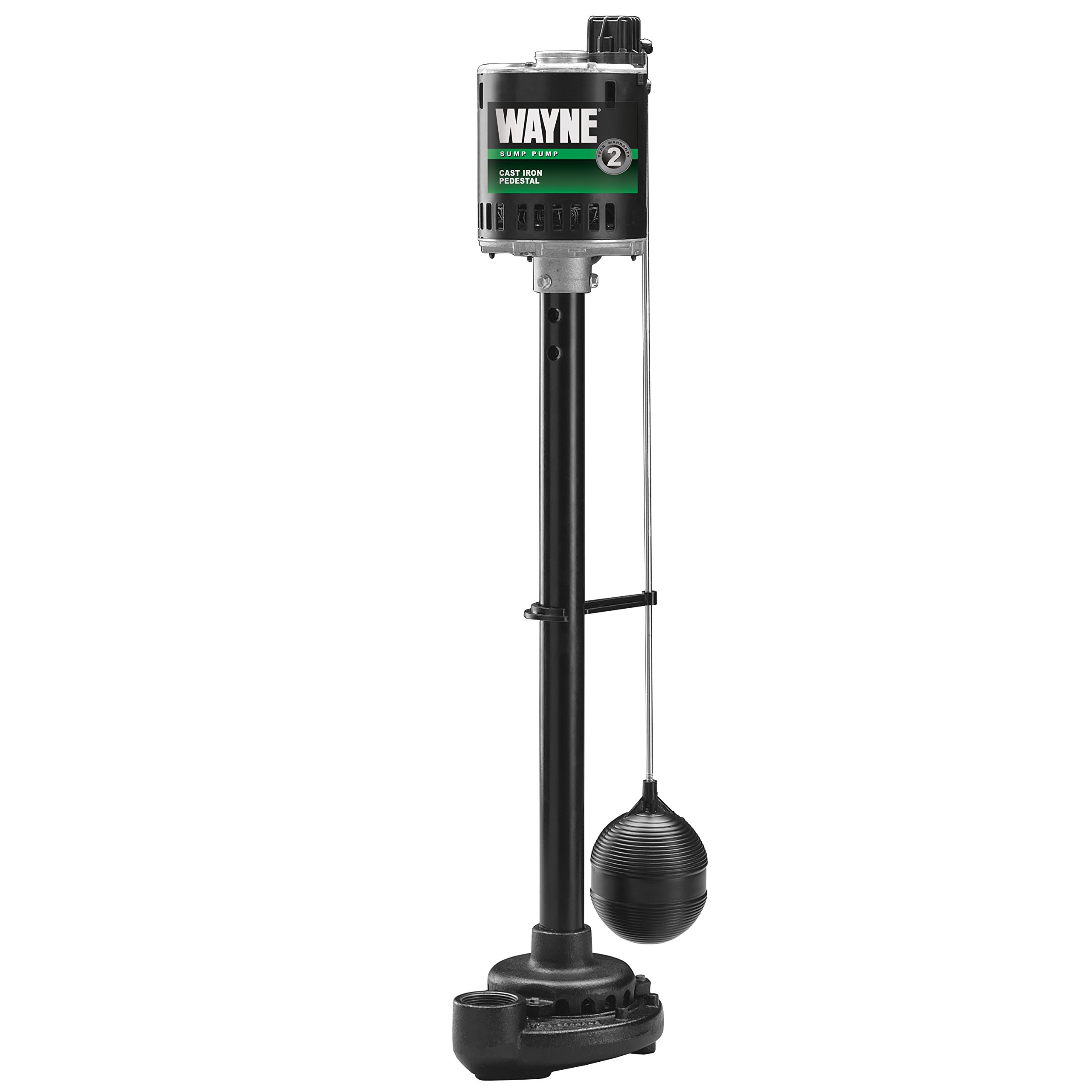

Imatge 1: Ex.ample installation of the Wayne SPV500 Pedestal Sump Pump. Note the discharge pipe and float switch.
3.4 Connexió elèctrica
Connect the pump to a dedicated 115V, 60Hz, grounded electrical outlet. Do not use extension cords. Ensure the circuit is protected by a ground fault circuit interrupter (GFCI) for added safety.
3.5 Ajust de l'interruptor de flotador
The pump is equipped with a 2-pole float switch for automatic operation. Adjust the float switch to ensure the pump turns on at the desired water level and turns off before the pump runs dry. Ensure the float can move freely without obstruction within the sump pit.
4. Instruccions de funcionament
Once properly installed and connected to power, the Wayne SPV500 operates automatically based on the water level in the sump pit.
- When the water level rises and lifts the float switch to its "ON" position, the pump will activate and begin discharging water.
- The pump will continue to operate until the water level drops, allowing the float switch to return to its "OFF" position.
- The top suction design helps prevent air locks and clogging from debris that may settle at the bottom of the sump pit.
4.1 Posada en marxa inicial
After installation, fill the sump pit with water to test the pump's operation. Observe that the pump turns on, discharges water, and turns off correctly. Check for any leaks in the discharge piping.
5. Manteniment
Un manteniment regular garanteix la longevitat i el funcionament fiable de la bomba de desguàs.
5.1 Comprovacions mensuals
- Inspect the Sump Pit: Remove any debris, dirt, or sediment that may have accumulated in the pit.
- Test the Float Switch: Manually lift the float switch to ensure the pump activates. Allow it to drop to confirm the pump shuts off. Ensure the float moves freely.
- Comproveu si hi ha obstruccions: Verify that the pump's intake screen is clear of any blockages.
- Examineu el cable d'alimentació: Inspect the power cord for any signs of damage, fraying, or wear.
5.2 Controls anuals
- Clean the Impeller: Disconnect power and carefully remove any debris that may be wrapped around the impeller.
- Check Check Valve: Ensure the check valve in the discharge line is functioning correctly and not allowing backflow.
PRECAUCIÓ: Desconnecteu sempre l'alimentació abans de realitzar qualsevol manteniment o inspecció.
6. Solució De Problemes
This section provides solutions to common issues you might encounter with your sump pump.
| Problema | Causa possible | Solució |
|---|---|---|
| La bomba no arrenca ni funciona. |
|
|
| Pump runs but does not discharge water. |
|
|
| La bomba funciona contínuament. |
|
|
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | SPV500 |
| Cavalls de força | 1 / 3 HP |
| Capacitat | 3,100 GPH @ 5' head |
| Voltage | 115 V |
| Ampedat | 3.7 A |
| Freqüència | 60 Hz |
| Mida de descàrrega | 1-1/2 polzada NPT |
| Alçada màxima d'elevació | 15 peus |
| Material | Cast Iron (pump housing), Coated Steel (column), Stainless Steel (fasteners) |
| Tipus d'impulsor | Termoplàstic |
| Pes de l'article | 21.8 lliures |
| Dimensions del producte | 8 x 8 x 34 polzades |
| Font d'alimentació | Elèctric amb cable |
| Temperatura màxima del líquid | 120 °C (49 °F) |
8. Garantia i Suport
8.1 Informació de la garantia
The Wayne SPV500 Pedestal Sump Pump comes with a Garantia limitada d'2 any from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.
The warranty does not cover damage resulting from improper installation, misuse, abuse, neglect, unauthorized repairs, or acts of nature.
8.2 Atenció al client
For technical assistance, warranty claims, or to inquire about replacement parts, please contact Wayne customer support. Refer to the contact information provided on the product packaging or the official Wayne weblloc.
