Moen 90530 Tub/Shower Assembly with Lift-N-Drain Instruction Manual

Introducció i mésview

This manual provides instructions for the installation, operation, and maintenance of your Moen 90530 Tub/Shower Assembly with Lift-N-Drain. This assembly is designed for bathtubs from 14-inch to 16-inch deep and features a 1-1/2-inch threaded shoe and PVC plastic T. The chrome finish offers a highly reflective, mirror-like appearance, complementing various bathroom styles.

Les característiques principals d'aquest producte inclouen:

• Chrome finish for a reflective look.
• Fits bathtubs from 14-inch to 16-inch deep.
• 1-1/2-inch threaded shoe.
• White PVC plastic T.
• Pull up and twist mechanism for draining.
• All metal trim.

Configuració

The Moen 90530 Tub/Shower Assembly is designed for standard bathtub installations. Due to the nature of plumbing work, professional installation is recommended to ensure proper function and prevent leaks. Ensure all necessary plumbing connections are correctly sealed and tightened according to local plumbing codes and manufacturer guidelines.

Key components for installation include the 1-1/2-inch threaded shoe and the PVC plastic T, which connect to your existing drain system. Verify that all parts are present and undamaged before beginning installation.

Instruccions de funcionament

The Lift-N-Drain mechanism allows for easy control of water drainage in your bathtub. To drain the bathtub, simply pull up on the drain stopper and twist it to secure it in the open position. This will allow water to flow freely out of the tub.

To close the drain and retain water in the tub, push down on the stopper and twist it into the closed position. Ensure the stopper is fully seated to prevent water from leaking out.

Manteniment

To maintain the chrome finish of your Moen 90530 Tub/Shower Assembly, clean regularly with a soft cloth and mild, non-abrasive soap. Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the finish. For the PVC components, a gentle cleaning solution is sufficient.

Regular cleaning helps prevent mineral buildup and maintains the product's appearance and functionality. Periodically check the drain stopper for any hair or debris accumulation and clean as necessary to ensure optimal drainage.

Resolució de problemes

• Drenatge lent: If you experience slow drainage, remove the drain stopper and check for any hair, soap scum, or debris accumulation. Clear any obstructions.
• Fuites: If you notice leaks around the drain assembly, inspect the plumbing connections for proper sealing. Ensure all threaded connections are tight and that gaskets are correctly seated.
• Stuck Stopper: If the Lift-N-Drain stopper becomes difficult to operate, clean around its base to remove any mineral deposits or debris that might be impeding its movement.

For persistent issues or complex plumbing problems, it is recommended to consult a qualified plumber.

Especificacions

Garantia i Suport

This Moen product is backed by a limited lifetime warranty. For detailed terms and conditions, please refer to the official Moen warranty documentation or visit the Moen weblloc.

For warranty claims, technical assistance, or any product-related inquiries, please contact Moen customer support. Retain your proof of purchase for warranty validation and to expedite service requests.

Producte multimèdia

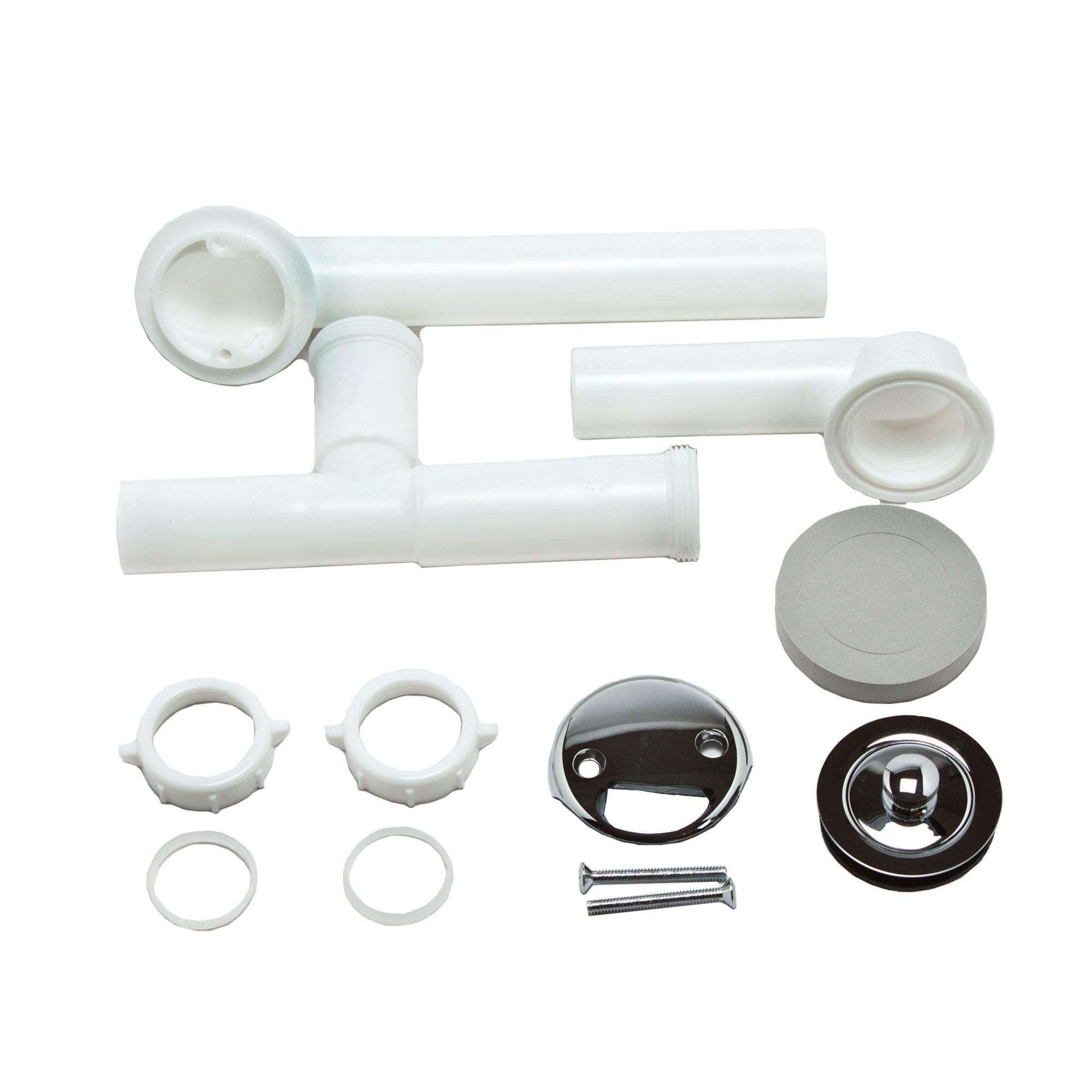

An image showing the Moen 90530 Tub/Shower Assembly, highlighting the chrome finish and the Lift-N-Drain stopper mechanism.

Un detallat view of the Moen 90530 Tub/Shower Assembly, showcasing the threaded shoe, PVC components, and the chrome trim.
