Informació important de seguretat
Read and understand all safety warnings and instructions before operating this pump. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.
- Seguretat elèctrica: Desconnecteu sempre l'alimentació abans de fer el manteniment de la bomba. Assegureu-vos que la bomba estigui connectada a una presa de corrent amb connexió a terra. No feu funcionar la bomba amb un cable o endoll danyats.
- Seguretat de l'aigua: This pump is designed for water removal only. Do not use with flammable liquids, chemicals, or sewage. Ensure the pump is fully submerged when operating to prevent overheating.
- Seguretat personal: Keep hands, feet, and clothing away from moving parts. Do not allow children to operate the pump.
- Instal·lació: Ensure all connections are secure and leak-free. Do not lift the pump by its power cord.
Producte acabatview
The WAYNE TSC130 is a 1/6 HP reinforced thermoplastic submersible multi-use pump designed for efficient water removal. It is ideal for applications such as draining flooded basements, emptying stock tanks, or removing standing water from various areas. This pump is capable of pumping water down to 1/8 inch of surface and lifting water up to 25 feet.

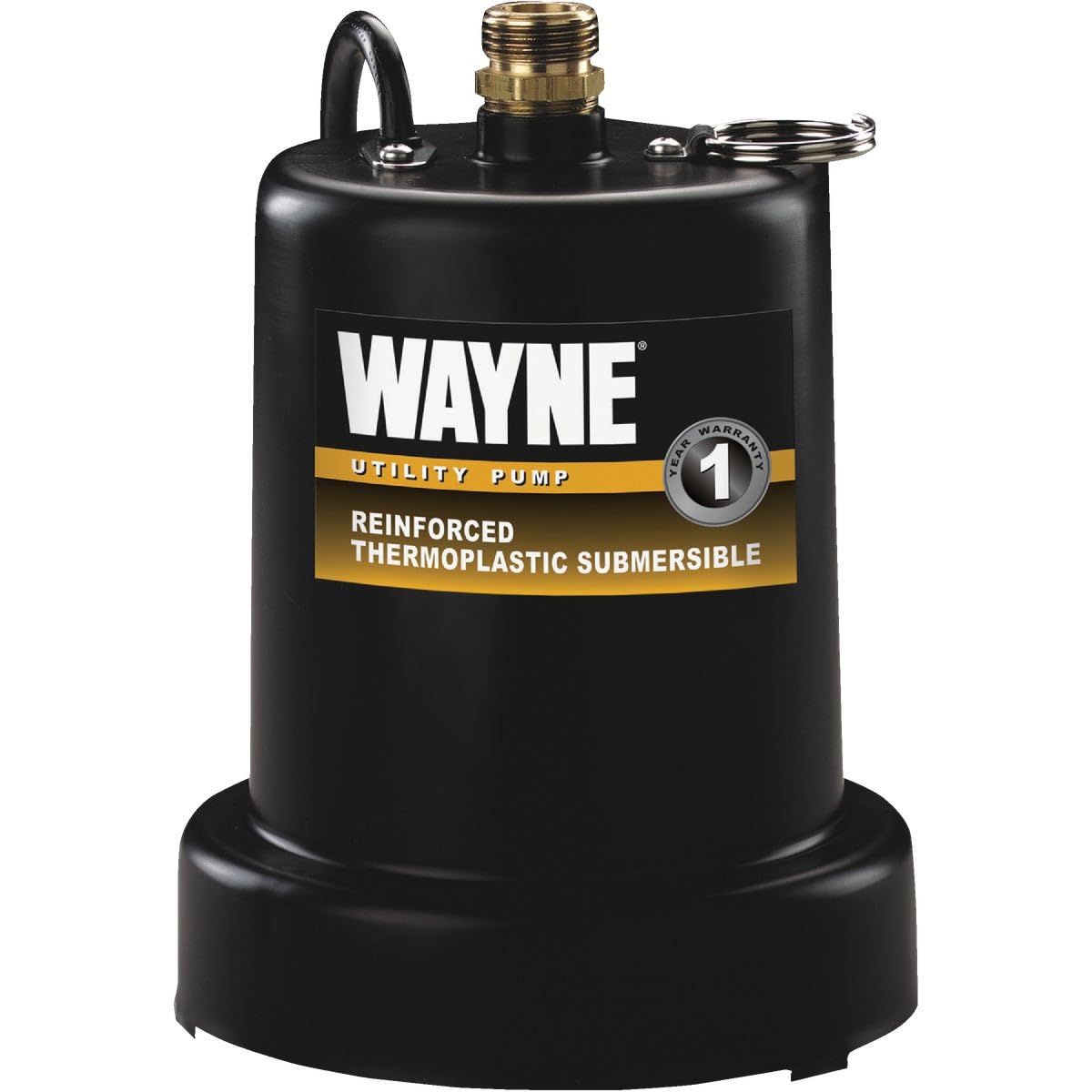

Image: The WAYNE TSC130 Submersible Multi-Use Pump, a compact black unit with a brass discharge adapter at the top and a handle for portability.
Característiques principals:
- Heavy-Duty Removal: Pumps water down to 1/8 inch and lifts water up to 25 ft.
- Construcció duradora: Corrosion-resistant, sealed thermoplastic housing for long life in various applications.
- Disseny eficient: Features a 1-1/4 inch discharge with a 3/4 inch garden hose adapter for versatile connections.
- Ús versàtil: Suitable for flooded basements, boats, stock tanks, and other areas requiring high lift water removal.
- Garantia de qualitat: Assembled in the USA with foreign and domestic parts, ensuring dependable performance.
- Alta capacitat: Pumps up to 1050 gallons per hour (GPH) at 0 feet lift.
- Manipulació de sòlids: Capable of passing 1/8 inch solids.
- Balanced Installation: Top center 3/4 inch discharge design provides stable setup.
Image: Packaging for the WAYNE TSC130 pump, highlighting its 1/6 HP motor, 1050 GPH capacity, reinforced thermoplastic construction, and ability to lift water over 25 ft.
Instruccions de configuració
Follow these steps for proper installation and setup of your WAYNE TSC130 pump:
- Col·locació: Position the pump on a solid, level surface in the area to be drained. Ensure the pump is fully submerged in water for optimal operation and cooling.
- Connexió de la mànega de descàrrega: Attach a standard 3/4 inch garden hose to the brass discharge adapter at the top of the pump. For higher flow rates, a 1-1/4 inch hose can be connected directly to the pump's discharge port. Secure the hose with a clamp si cal per evitar fuites.
- Discharge Route: Route the discharge hose to a suitable drainage area, ensuring the water will not return to the area being drained. Avoid kinks or sharp bends in the hose that could restrict flow.
- Connexió d'alimentació: Plug the pump's power cord into a grounded 100-volt electrical outlet. Ensure the outlet is protected by a Ground Fault Circuit Interrupter (GFCI) for added safety.
Image: Diagram showing the WAYNE TSC130 pump with callouts for its features, including the top discharge and handle, illustrating connection points.
Instruccions de funcionament
Once the pump is set up, follow these steps to operate it:
- Assegureu-vos de la submersió: Verify that the pump is fully submerged in the water you intend to remove. Operating the pump dry can cause damage.
- Activa l'alimentació: Plug the pump into the grounded electrical outlet. The pump will begin operating immediately.
- Monitor de funcionament: Observe the pump's operation to ensure water is being discharged effectively. The pump can remove water down to 1/8 inch of the surface.
- Deactivate Power: Once the desired water level is reached or the area is drained, unplug the pump from the electrical outlet to stop operation.
- Permetre la refrigeració: After use, allow the pump to cool down before handling or storing.
Image: A chart detailing the performance of the WAYNE TSC130 pump, showing gallons per hour at various discharge heights (e.g., 1250 GPH at 0' lift, 640 GPH at 20' lift).
Manteniment
Un manteniment regular garanteix la longevitat i el funcionament eficient de la bomba.
- Neteja: After each use, rinse the pump with clean water to remove any debris or sediment. Ensure the intake screen is clear of obstructions.
- Inspecció: Periodically inspect the power cord for any signs of damage, cuts, or fraying. Check the pump housing for cracks or leaks.
- Emmagatzematge: Store the pump in a dry, frost-free location when not in use. If storing for an extended period, ensure it is clean and dry.
- Hivernització: In freezing temperatures, ensure the pump is completely drained of water to prevent damage from ice expansion.
Resolució de problemes
Consulteu la taula següent per veure els problemes habituals i les seves solucions:
| Problema | Causa possible | Solució |
|---|---|---|
| La bomba no arrenca | No power to the pump; tripped GFCI; motor overload; clogged impeller | Check power connection and outlet; reset GFCI; allow motor to cool; clear impeller of debris. |
| La bomba funciona però no flueix aigua | Air lock; clogged intake screen or discharge hose; pump not fully submerged | Lift and lower pump to release air; clear obstructions; ensure pump is fully submerged. |
| Baix cabal | Partially clogged intake or hose; excessive discharge lift; worn impeller | Clear obstructions; reduce discharge lift if possible; contact customer support for impeller replacement. |
| Pump cycles on and off rapidly | Insufficient water level; air in system | Ensure adequate water level for continuous operation; check for air leaks in connections. |
Especificacions
- Model: TSC130
- Potència (HP): 1 / 6 HP
- Material: Reinforced Thermoplastic (housing, volute, impeller), Bronze (discharge adapter)
- Font d'alimentació: Elèctric amb cable
- Voltage: 100 Volts
- Cabal màxim: Up to 1250 Gallons Per Hour (GPH) at 0' lift
- Alçada màxima d'elevació: 25 peus
- Minimum Water Level for Operation: Drains down to 1/8 inch
- Manipulació de sòlids: Passes 1/8 inch solids
- Mida de descàrrega: 1-1/4 inch NPT with 3/4 inch Garden Hose Adapter
- Dimensions del producte: 7 cm de llargada x 7 cm d'amplada x 9 cm d'alçada
- Pes de l'article: 6 lliures
- Certificació: Certificat sense frustracions

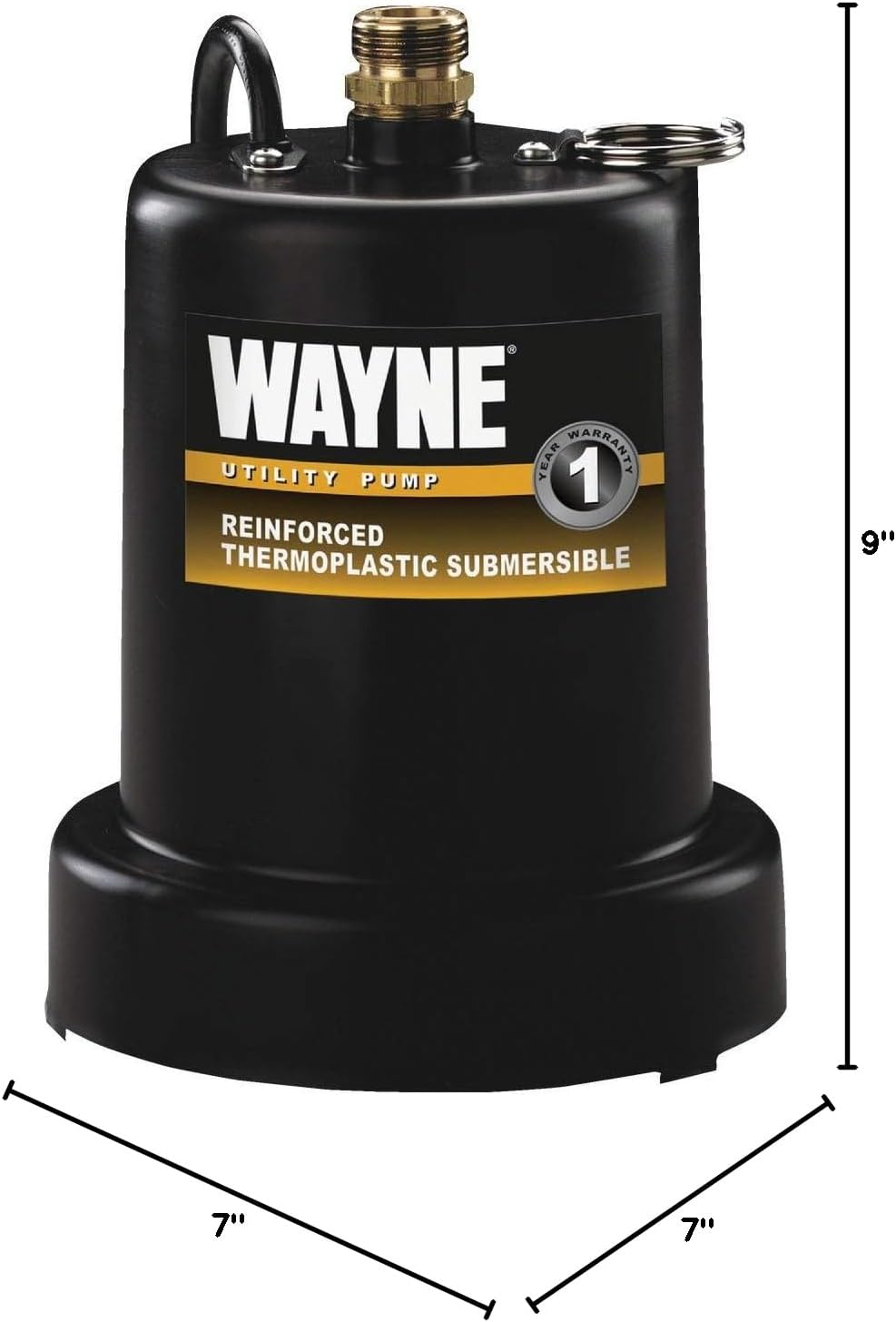

Image: Dimensional drawing of the WAYNE TSC130 pump, showing its length, width, and height measurements (7"L x 7"W x 9"H).
Informació de la garantia
The WAYNE TSC130 Submersible Multi-Use Pump is covered by a Garantia limitada de 1 anys from the date of purchase. This warranty covers defects in material and workmanship under normal use and service. For warranty claims or further details, please refer to the official warranty documentation included with your product or contact customer support.
Atenció al client
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact WAYNE customer support. Refer to the contact information provided in your product packaging or visit the official WAYNE weblloc web per obtenir les opcions d'assistència més actualitzades.
