Manual d'instruccions de la connexió ràpida en T de Watts PL-3034 de 3/8x3/8x1/4

1. Producte acabatview

The Watts PL-3034 is a 3/8" x 3/8" x 1/4" quick connect tee fitting designed for plumbing applications. This fitting allows for easy and secure connections in both hot and cold water systems without the need for specialized tools or tube inserts. Its corrosion-resistant design ensures durability and reliable performance.

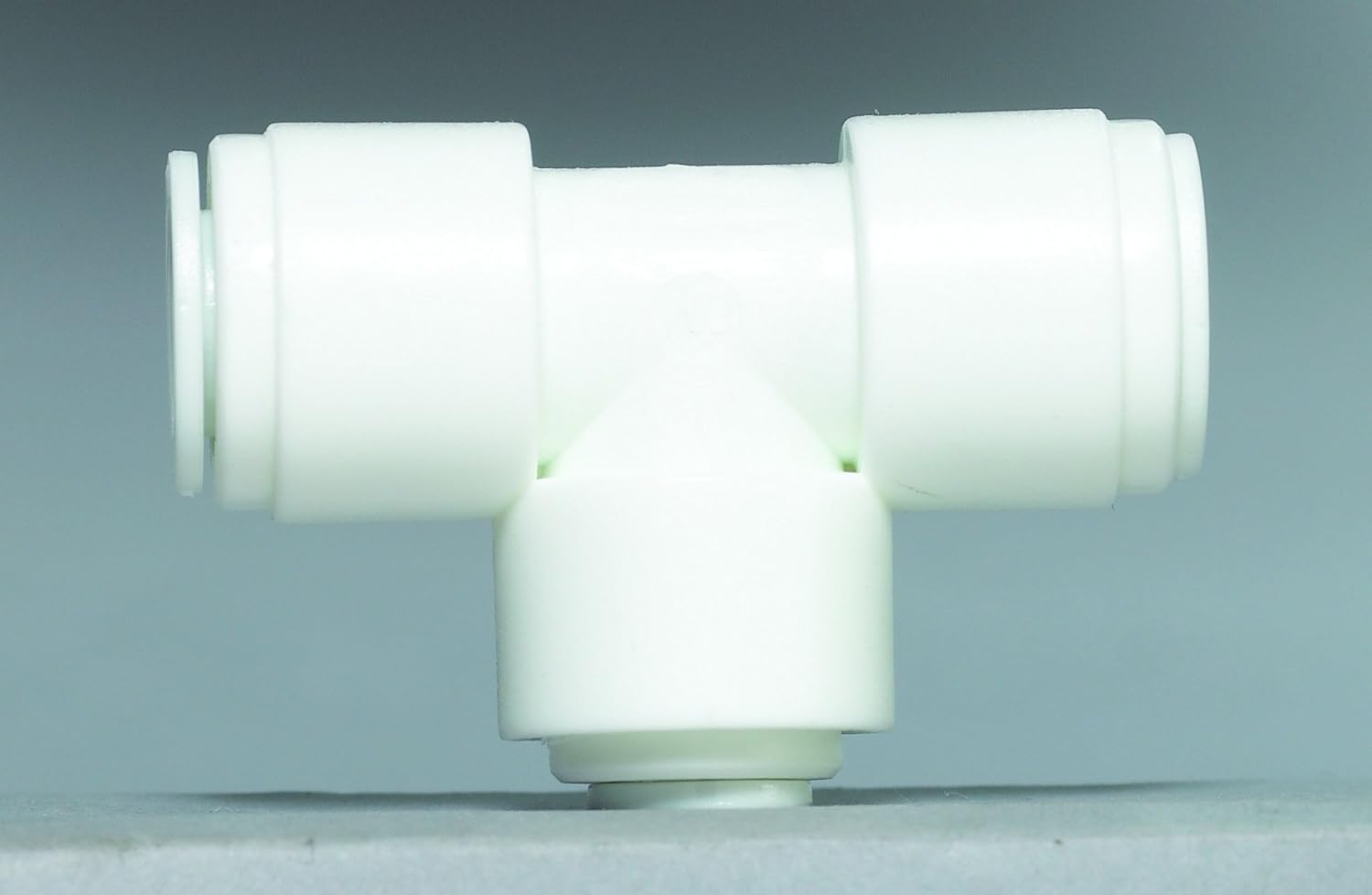

Image 1.1: The Watts PL-3034 Quick Connect Tee. This image displays the white plastic tee fitting with three connection points for tubing.

Característiques principals:

• Quick connect design for easy installation.
• Corrosion-resistant teeth for secure connections with various tubing materials.
• Suitable for both hot and cold water applications.

2. Informació de seguretat

• Always turn off the water supply before installing or performing maintenance on plumbing fittings.
• Assegureu-vos que totes les connexions estiguin ben fixades per evitar fuites.
• Do not use this fitting with fluids other than water unless specifically approved by the manufacturer.
• Utilitzeu l'equip de protecció individual (EPI) adequat, com ara guants i ulleres de protecció durant la instal·lació.
• Mantenir fora de l'abast dels nens.

3. Contingut del paquet

The Watts PL-3034 package typically includes:

• 1 x Watts PL-3034 3/8" x 3/8" x 1/4" Quick Connect Tee

4. Instruccions d'instal·lació

Follow these steps for proper installation of the Watts PL-3034 Quick Connect Tee:

1. Preparació de la canonada: Ensure the ends of the tubing to be connected are cut squarely and are free from burrs or scratches. The tubing should be clean and smooth.
2. Inserir tub: Firmly push the prepared tubing into the quick connect port of the tee fitting until it reaches the internal stop. You should feel a slight resistance as the tubing passes through the O-ring and then a firm stop as it engages with the gripping teeth.
3. Verifica la connexió: Gently pull back on the tubing to ensure it is securely seated. A properly installed connection will resist being pulled out.
4. Repeat for all Ports: Connect all necessary tubing to the remaining ports of the tee fitting using the same method.
5. Comproveu si hi ha fuites: Once all connections are made, slowly turn on the water supply and carefully inspect each connection point for any signs of leakage. If a leak is detected, turn off the water supply, disconnect the tubing, re-cut the end if necessary, and re-insert it firmly.

Nota: This fitting is designed for use with compatible tubing materials and sizes (3/8" and 1/4"). Using incompatible tubing may result in leaks or damage.

5. Instruccions de funcionament

Once installed, the Watts PL-3034 Quick Connect Tee operates passively to distribute water flow. Ensure the water supply is turned on and that there are no obstructions in the connected tubing lines. The fitting is designed for continuous use within its specified pressure and temperature limits.

6. Manteniment

The Watts PL-3034 Quick Connect Tee requires minimal maintenance. Regular inspection is recommended:

• Inspecció visual: Periodically check the fitting and surrounding tubing for any signs of wear, damage, or leaks.
• Neteja: If necessary, clean the exterior of the fitting with a soft, damp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
• Comprovació de fuites: Re-check connections for leaks during routine plumbing system checks.

If any damage or persistent leaks are observed, replace the fitting immediately.

7. Solució De Problemes

Issue: Leakage at Connection Point

• Possible causa 1: Tubing not fully inserted.
  Solució: Turn off water supply. Disconnect tubing by pushing in the collet and pulling the tubing out. Re-cut the tubing end squarely and re-insert firmly until it bottoms out.
• Possible causa 2: Damaged or improperly cut tubing end.
  Solució: Turn off water supply. Inspect the tubing end for burrs, scratches, or an uneven cut. Re-cut the tubing end cleanly and squarely.
• Possible causa 3: Incompatible tubing size or material.
  Solució: Ensure tubing matches the specified sizes (3/8" and 1/4") and is compatible with quick connect fittings.
• Possible causa 4: Damaged fitting.
  Solució: If the fitting itself appears cracked or damaged, it must be replaced.

8. Especificacions

9. Garantia i Suport

For specific warranty information regarding your Watts PL-3034 Quick Connect Tee, please refer to the documentation provided at the time of purchase or contact Watts customer support directly. General product support and technical assistance can be obtained through the official Watts weblloc o distribuïdors autoritzats.

Watts Oficial Weblloc: www.watts.com
