Salamander Synergy 323 A/V Cabinet Instruction Manual

1. Introducció

The Salamander Synergy 323 A/V Cabinet is designed to provide an optimal solution for organizing and housing larger audio/video systems. This cabinet features adjustable interior shelves, efficient wire management, and removable rear panels for easy access. Its robust construction with hardwood and anodized aluminum ensures durability and aesthetic appeal.

2. Característiques

• Perforated Steel Door Panels: These panels allow for the passage of speaker sound and remote control signals, while also providing ventilation for your components.
• Removable Rear Panels: Designed for easy access to cables and components, facilitating wire management and airflow.
• Infinite Shelf Adjustability: Interior shelves can be mounted anywhere along the aluminum posts, allowing custom fitting for various components and ensuring ample ventilation. Each shelf can support up to 100 lbs.
• Construcció d'alta qualitat: Made from genuine hardwood and anodized aluminum, ensuring a durable and elegant design.
• Capacitat: Accommodates 6 to 8 components with four fully adjustable interior shelves (19.5" W x 18" D).

3. Muntatge i muntatge

Assembly of the Salamander Synergy 323 A/V Cabinet is required. While straightforward, it may take a few hours to complete. It is recommended to have assistance due to the weight of the components (approximately 143 pounds total).

3.1 Desembalatge

Carefully unpack all components from the packaging. Inspect all parts for any signs of damage. If any parts are damaged, contact customer support immediately before proceeding with assembly.

3.2 Passos de muntatge

1. Review Instruccions: Familiarize yourself with the provided assembly diagrams and instructions.
2. Muntatge del marc base: Begin by assembling the base frame of the cabinet. Ensure all connections are secure.
3. Post instal·lació: Attach the extruded aluminum posts to the base.
4. Instal·lació de prestatgeries: Install the hardwood shelves. The shelves travel along the aluminum posts, allowing for infinite height adjustment. Position them according to your component sizes.
5. Instal·lació de la porta: Attach the perforated steel doors. Ensure they open and close smoothly.
6. Instal·lació del panell posterior: Secure the removable rear panels using the four thumbnuts. The 1.5-inch opening on the panel can be positioned at the top or bottom for cable entry/exit and airflow.

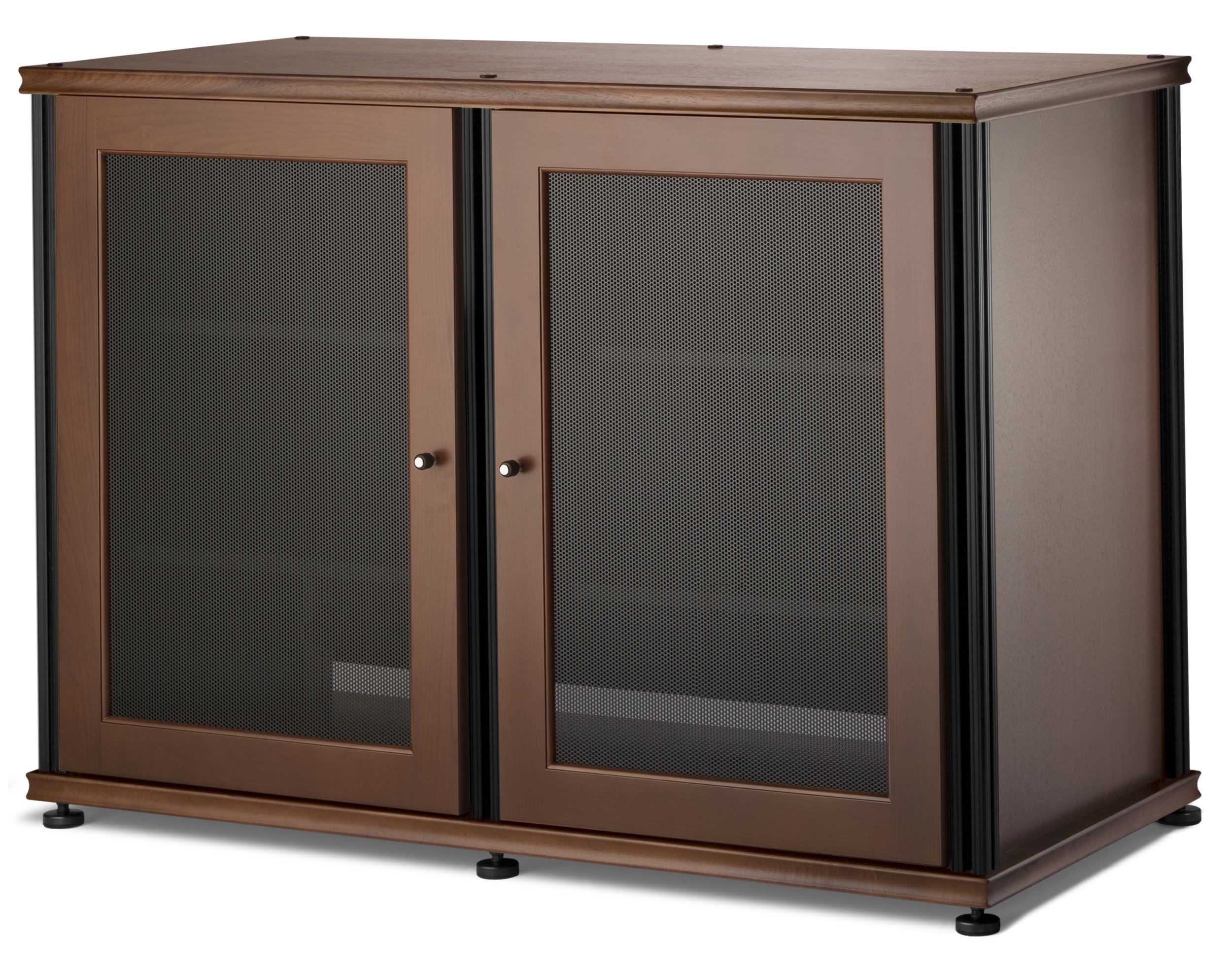

Figura 1: An assembled Salamander Synergy 323 A/V Cabinet, showcasing its design and capacity for audio/video components. This image illustrates the overall structure and appearance of the cabinet with its Walnut finish and Black accents.

3.3 accessoris opcionals

Enhance your cabinet with optional accessories (sold separately):

• Plasma Mounts: For flat-panel TVs (32-50 inches), easily attach to any Synergy Twin or Triple cabinet.
• Saturn Wheels: Strong aluminum casters for easy movement, with secure locking.
• Polished Aluminum Feet: Provide an additional three inches of height and a sleek, finished look.

4. Funcionament

The Synergy 323 cabinet is designed for intuitive use and optimal performance of your A/V equipment.

4.1 Col·locació de components

Utilize the infinite shelf adjustability to position your audio/video components. Ensure adequate space around each component for proper ventilation. Heavier components should ideally be placed on lower shelves for stability.

4.2 Gestió de cables

The removable rear panels simplify cable routing. Feed cables through the 1.5-inch opening in the rear panels. Organize cables using ties or wraps to maintain a tidy appearance and prevent interference.

4.3 Funcionalitat del control remot

The perforated steel doors are designed to allow infrared (IR) remote control signals to pass through. Ensure your remote control is pointed directly at the cabinet doors for optimal signal transmission to your components.

5. Manteniment

Proper maintenance will ensure the longevity and appearance of your Synergy 323 A/V Cabinet.

• Neteja: For hardwood surfaces, use a soft, damp cloth to wipe away dust and smudges. Avoid abrasive cleaners or harsh chemicals that could damage the finish. For aluminum parts, a mild cleaner and soft cloth are sufficient.
• Ventilació: Periodically check that the rear panel openings and perforated doors are not obstructed to ensure proper airflow for your components.
• Comprovació de maquinari: Occasionally inspect all screws and connections to ensure they remain tight and secure.
• Eviteu la llum solar directa: L'exposició prolongada a la llum solar directa pot causar decoloració o danys a l'acabat de la fusta.

6. Solució De Problemes

This section addresses common issues you might encounter with your A/V cabinet.

6.1 Remote Control Signals Not Passing Through Doors

• Comprova l'alineació: Ensure your remote control is pointed directly at the perforated doors where your components are located.
• Obstruccions: Verify that there are no objects directly in front of the component's IR receiver inside the cabinet.
• Component Sensitivity: Some components may have less sensitive IR receivers. Try moving the component closer to the door if possible.

6.2 Cabinet Instability

• Superfície de nivell: Assegureu-vos que l'armari estigui col·locat sobre una superfície plana i anivellada.
• Estrènyer les connexions: Re-check and tighten all assembly screws and connections, especially those for the aluminum posts and base.
• Distribució de pes: Distribute components evenly across shelves to maintain balance.

6.3 Difficulty with Cable Management

• Remove Rear Panels: Fully remove the rear panels to gain unrestricted access for routing cables.
• Utilize Openings: Ensure the 1.5-inch opening in the rear panel is positioned optimally for your cable entry/exit points.
• Brides de cable: Use cable ties or Velcro straps to bundle and organize cables, preventing tangles and improving airflow.

7. Especificacions

8. Garantia i Suport

Salamander Designs products are known for their quality and durability. While specific warranty details are not provided in this manual, Salamander Designs generally offers excellent product support.

For any questions regarding assembly, missing parts, or product issues, it is recommended to contact Salamander Designs customer support directly. They can provide detailed assistance and guidance for your specific product.

Si us plau, conserveu el comprovant de compra per a qualsevol reclamació de garantia o consulta d'assistència.
