1. Introducció
This manual provides essential instructions for the safe and effective use of your Oregon 21-000 Trimmer Line Cutter. Please read this manual thoroughly before initial use and retain it for future reference. This tool is designed to efficiently cut trimmer line for various string trimmer applications.

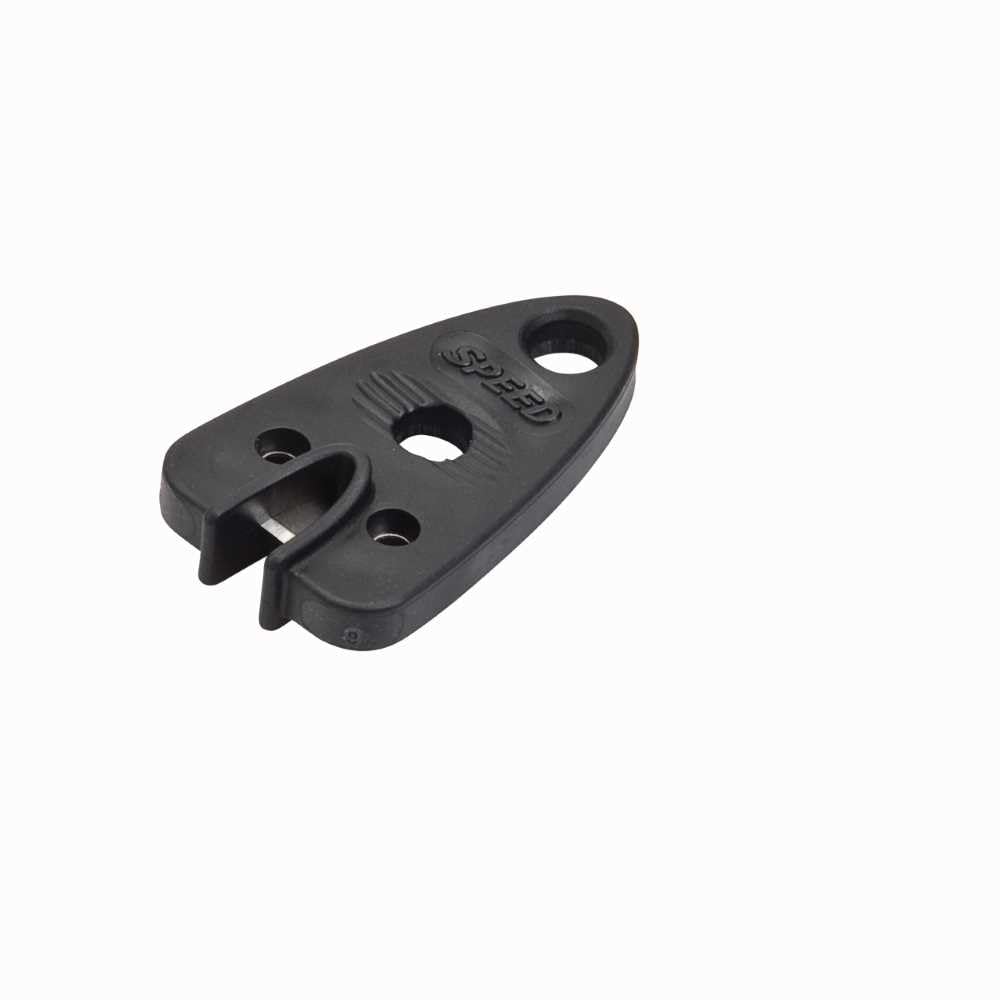

Figura 1: The Oregon 21-000 Trimmer Line Cutter. This image displays the compact, black plastic tool with a recessed blade for cutting trimmer line and multiple holes for potential attachment.
2. Informació de seguretat
Always observe the following safety precautions when using the trimmer line cutter:
- Mantingueu els dits allunyats: The cutter contains a sharp blade. Always keep fingers and other body parts away from the cutting edge.
- Use Eye Protection: Although not a power tool, small pieces of line can sometimes fly during cutting. Wearing safety glasses is recommended.
- Emmagatzema amb seguretat: Keep the cutter out of reach of children and pets.
- Inspeccionar abans d'utilitzar: Ensure the cutter is free from damage before each use. Do not use if the blade is dull or damaged, or if the housing is cracked.
- Ús previst: This tool is designed exclusively for cutting trimmer line. Do not attempt to cut other materials.
3. Configuració i connexió
The Oregon 21-000 Trimmer Line Cutter can be used as a standalone tool or attached to a string trimmer for convenience.
3.1 Standalone Use
No specific setup is required for standalone use. Simply hold the cutter firmly in one hand.
3.2 Attaching to a Trimmer (Optional)
The cutter features multiple holes, allowing it to be attached to various string trimmer models. Refer to your string trimmer's manual for suitable attachment points and methods. Common attachment methods include:
- Using a zip tie or small cable through one of the holes to secure it to the trimmer shaft.
- Mounting with a small screw or bolt if a compatible mounting point is available on the trimmer.
Ensure the cutter is securely fastened and does not interfere with the safe operation of the trimmer.
4. Instruccions de funcionament
Follow these steps to cut trimmer line effectively:
- Prepara la línia: Unroll the desired length of trimmer line from its spool.
- Posiciona la línia: Carefully insert the trimmer line into the cutting slot of the Oregon 21-000 cutter. Ensure the line rests against the blade.
- Aplicar pressió: While holding the cutter firmly, apply steady pressure to the trimmer line, pushing it against the blade.
- Cut the Line: Continue applying pressure until the line is cleanly severed. For thicker lines, a slight twisting motion may assist in the cut.
- Remove Cut Line: Retrieve the cut piece of trimmer line.
Nota: For optimal cutting performance, ensure the trimmer line is taut when cutting.
5. Manteniment
Proper maintenance ensures the longevity and performance of your trimmer line cutter.
- Neteja: After each use, wipe the cutter with a dry cloth to remove any debris or line residue. Do not use harsh chemicals or abrasive cleaners.
- Inspecció de la fulla: Periodically inspect the blade for sharpness and damage. A dull blade will make cutting difficult. The blade is not user-replaceable. If the blade becomes dull, the unit should be replaced.
- Emmagatzematge: Store the cutter in a dry place, away from direct sunlight and extreme temperatures. Keep it in a location inaccessible to children.
6. Solució De Problemes
If you encounter issues while using the Oregon 21-000 Trimmer Line Cutter, consider the following:
- Difficulty Cutting Line:
- Ensure the line is properly seated against the blade.
- Apply firm, steady pressure.
- The blade may be dull. If so, the unit needs replacement.
- The trimmer line may be too thick for the cutter's capacity. This cutter is designed for standard trimmer lines.
- Cutter Not Staying Attached:
- Re-secure the attachment using a stronger zip tie or a more appropriate mounting method.
- Ensure the attachment point on the trimmer is suitable and stable.
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | 21-000 |
| Fabricant | Oregon |
| Dimensions del producte | 4 x 3 x 0.3 polzades |
| Pes de l'article | 0.32 unces |
| ASIN | B000LC5NUY |
8. Garantia i Suport
Specific warranty information for the Oregon 21-000 Trimmer Line Cutter is not provided in the product details. For warranty inquiries or technical support, please contact Oregon customer service directly or refer to their official weblloc. La informació de contacte normalment es pot trobar a l'embalatge del producte o al fabricant. weblloc.
You can visit the official Oregon store for more products and information: Oregon Store on Amazon.
