1. Introducció

This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of the Suntec 2460GU Oil Burner Pump, model A2VA-7116. Please read this manual thoroughly before attempting any procedures to ensure proper function and to prevent potential hazards.

1.1 Informació de seguretat

• Always disconnect power to the oil burner system before performing any installation, maintenance, or troubleshooting.
• La instal·lació i el manteniment només els ha de dur a terme personal qualificat.
• Wear appropriate personal protective equipment (PPE) during all procedures.
• Ensure all connections are secure and leak-free to prevent fire hazards.
• Aquest producte conté substàncies químiques que l'estat de Califòrnia sap que causen càncer i defectes congènits o altres danys reproductius (advertència de la Proposició 65).

2. Producte acabatview

The Suntec 2460GU Oil Burner Pump, model A2VA-7116, is a single-stage pump designed for oil burner applications. It is engineered for reliable fuel delivery and pressure regulation within heating systems.

2.1 Característiques clau

• Single-stage design for consistent performance.
• Rated for 3 GPH (Gallons Per Hour) at 100 PSI.
• Adjustable pressure range from 100 to 150 PSI.
• Operates at 3450 RPM.
• Capable of lifting fuel up to 8 ft. in a 1-pipe system and up to 14 ft. in a 2-pipe system.
• Designed for RH-RH rotation and nozzle location (as viewed from the shaft end).
• Includes a bypass plug (not installed).

2.2 Il·lustració del producte

Figura 1: Davant view of the Suntec A2VA-7116 Oil Burner Pump, showing inlet, gauge, and return/bypass connections.

3. Configuració i instal·lació

Proper installation is crucial for the safe and efficient operation of the oil burner pump. It is highly recommended that installation be performed by a certified technician.

3.1 Comprovacions prèvies a la instal·lació

• Verify that the pump model A2VA-7116 is compatible with your existing oil burner system.
• Inspect the pump for any visible damage that may have occurred during shipping.
• Ensure all necessary tools and fittings are available.

3.2 Passos d'instal·lació

1. Desconnecteu l'alimentació: Turn off the main power supply to the oil burner system at the circuit breaker.
2. Drain Fuel Lines: If replacing an old pump, carefully drain any remaining fuel from the lines to prevent spills.
3. Muntar la bomba: Securely mount the new Suntec A2VA-7116 pump in the designated location. Ensure proper alignment with the motor shaft.
4. Connecteu les línies de combustible: Connect the inlet, return, and nozzle lines according to your system's configuration. The pump is designed for RH-RH rotation and nozzle location as viewdes de l'extrem de l'eix.
5. Install Bypass Plug: If operating in a 1-pipe system, ensure the bypass plug is installed. For a 2-pipe system, the bypass plug should be removed. The pump is shipped with the bypass plug not installed.
6. Connexions elèctriques: Connect the electrical wiring as per the oil burner manufacturer's instructions.
7. Comprovació de fuites: After all connections are made, perform a visual inspection for any potential leaks.

4. Instruccions de funcionament

Once installed, the Suntec A2VA-7116 pump requires proper priming and pressure adjustment for optimal performance.

4.1 Cebament de la bomba

1. Restaura l'alimentació: Turn on the main power supply to the oil burner system.
2. Purgar aire: Open the bleed valve on the pump. Start the oil burner motor. Allow the pump to run until a steady stream of air-free fuel flows from the bleed valve.
3. Close Bleed Valve: Once fuel flows without air bubbles, close the bleed valve securely.

4.2 Ajust de pressió

• The pump is factory set at 100 PSI.
• The pressure can be adjusted between 100 and 150 PSI using the pressure regulating screw.
• Use a pressure gauge connected to the designated port to monitor the pressure during adjustment.
• Turn the adjustment screw clockwise to increase pressure and counter-clockwise to decrease pressure.
• Always refer to your oil burner manufacturer's specifications for the recommended operating pressure.

5. Manteniment

Regular maintenance ensures the longevity and efficient operation of your Suntec oil burner pump.

• Qualitat del combustible: Ensure that clean fuel is consistently supplied to the pump. Contaminants can significantly reduce pump life and performance.
• Substitució del filtre: Regularly check and replace the fuel filter in your system as recommended by the oil burner manufacturer. A clogged filter can strain the pump.
• Inspecció de fuites: Periodically inspect all fuel lines and connections for any signs of leaks. Address any leaks immediately.
• Inspecció professional: It is recommended to have the entire oil burner system, including the pump, inspected annually by a qualified technician.

6. Solució De Problemes

Aquesta secció ofereix orientació per a problemes comuns. Per a problemes complexos, poseu-vos en contacte amb un tècnic de servei qualificat.

7. Especificacions

Technical specifications for the Suntec A2VA-7116 Oil Burner Pump.

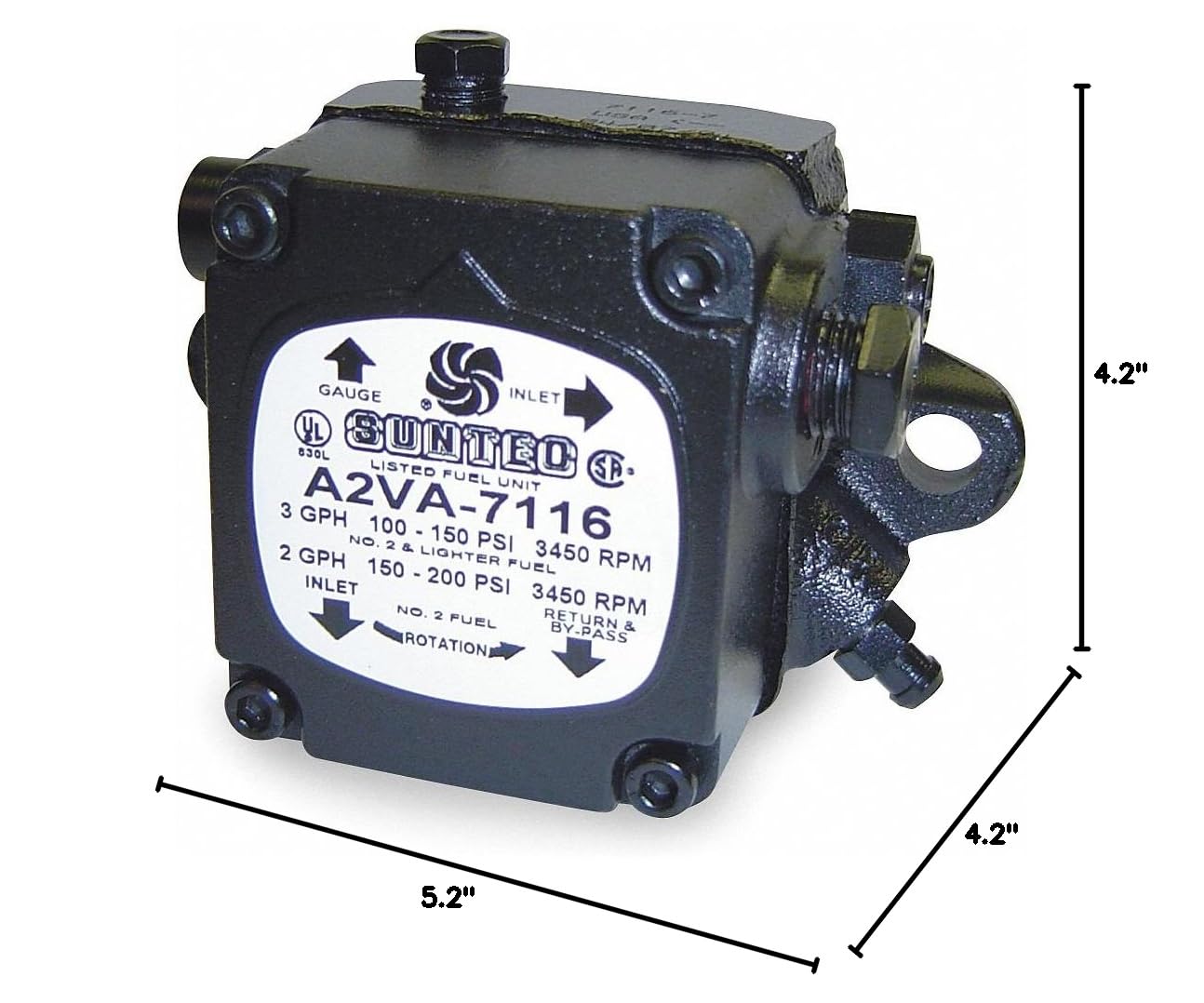

Figura 2: Dimensions of the Suntec A2VA-7116 Oil Burner Pump.

8. Garantia i Suport

For warranty information, technical support, or service inquiries regarding your Suntec A2VA-7116 Oil Burner Pump, please contact Suntec directly or your authorized dealer.

Es recomana conservar el comprovant de compra per a reclamacions de garantia.

Manufacturer: Suntec
