1. Introducció i finalview
The Waste King L-1001 is a 1/2 horsepower continuous feed garbage disposal designed for efficient kitchen sink food waste management. It features a pre-installed power cord and sound insulation for quieter operation. Its energy-efficient permanent magnet motor and stainless steel swivel impellers are engineered to reduce jamming, ensuring smooth performance. This compact and lightweight unit is rust and corrosion-proof, thanks to its glass-filled nylon grind chamber and drain housing. It is also safe for use with properly-sized septic tanks.
Figure 1: Waste King L-1001 1/2 HP Continuous Feed Garbage Disposal.
Característiques principals:
- Motor d'alta velocitat: 1/2 HP, 2600 rpm permanent magnet motor designed to minimize jams.
- Fàcil instal·lació i neteja: EZ Mount for quick installation and a removable splashguard for easy cleaning.
- No Electrical Expertise Needed: Comes with a pre-installed power cord, eliminating the need for complex electrical work.
- Durabilitat: Compact and lightweight design with stainless-steel grind components.
- Alimentació contínua: Activated by a wall switch, it grinds food waste continuously as it runs.
- Front-Mounted Reset Button: Conveniently located for easy access.
Figura 2: Detallada view of Waste King L-1001 features including EZ Mount, continuous feed, compact design, high-speed motor, removable power cord, and front-mounted reset button.
2. Configuració i instal·lació
The Waste King L-1001 is designed for quick and easy installation using its EZ Mount system. A detailed installation manual is available for download (see Manual d'instal·lació (PDF)). The pre-installed power cord simplifies the electrical connection, making it suitable for DIY installation without requiring specialized electrical expertise.
Passos d'instal·lació acabatsview:
- Ensure power is disconnected at the circuit breaker before beginning.
- Remove any existing disposal or sink flange.
- Install the new EZ Mount system to the sink opening.
- Connect the disposal unit to the EZ Mount system.
- Connect the drain line from the disposal to your household plumbing.
- If connecting to a dishwasher, ensure the dishwasher inlet is properly punched out.
- Plug the pre-installed power cord into a grounded outlet.
- Restore power and test for leaks and proper operation.
Figure 3: Key dimensions and connection points for installation, including EZ Mount, Dishwasher Inlet, and Drain Connection Outlet.

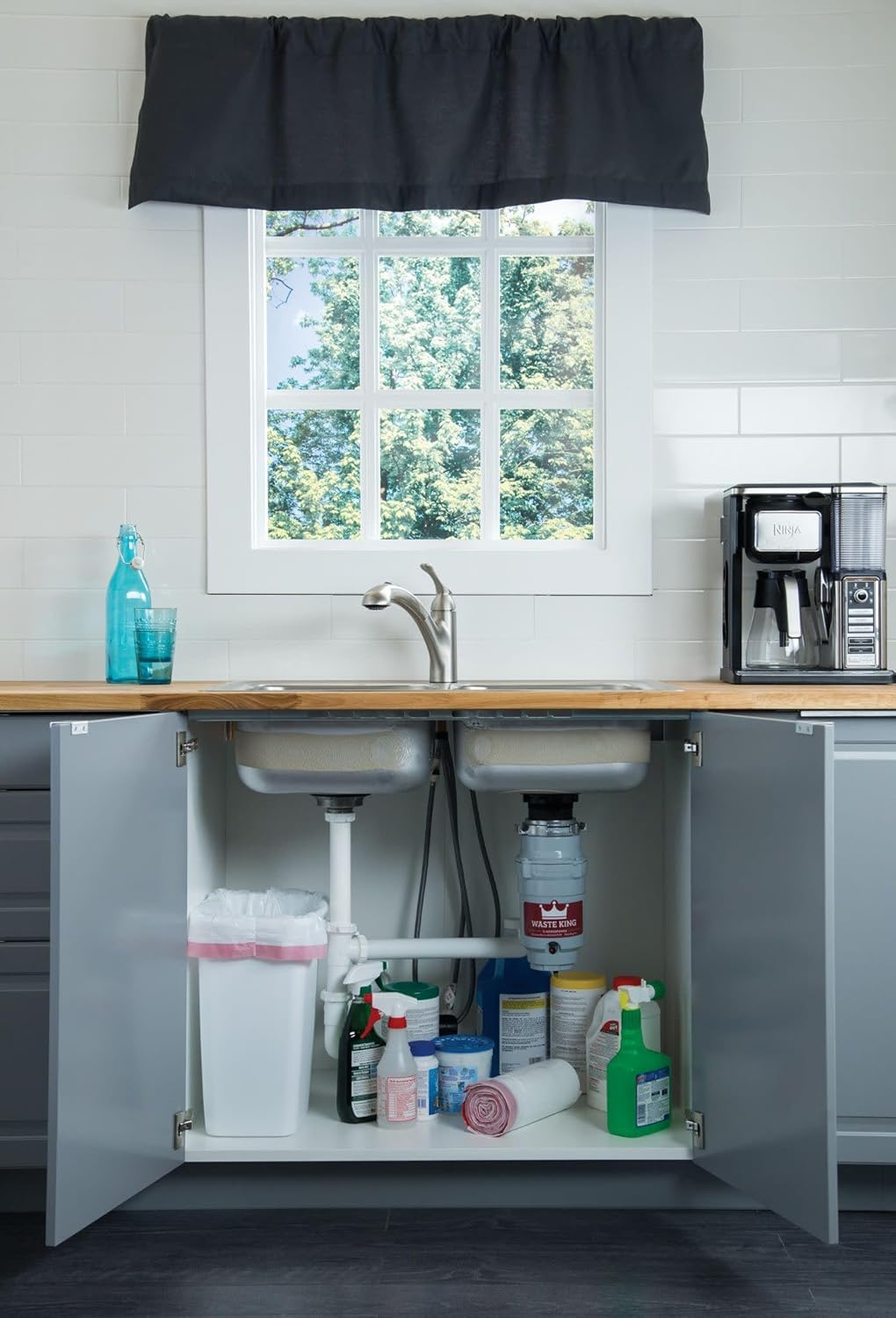

Figura 4: Example of the Waste King L-1001 installed compactly under a kitchen sink, demonstrating space efficiency.
3. Instruccions de funcionament
The Waste King L-1001 operates on a continuous feed system, meaning it grinds food waste as long as the unit is running. It is activated by a wall switch, providing convenient control over its operation.
Com utilitzar:
- Obriu un raig mitjà d'aigua freda.
- Activate the disposal using the wall switch.
- Scrape food waste into the disposal opening. Avoid large bones, fibrous materials like corn husks, and non-food items.
- Allow the disposal to run until all food waste is ground and only the sound of water and motor is heard.
- Turn off the disposal, then turn off the water after a few seconds to flush the drain line.
Figure 5: Proper water flow during disposal operation.
4. Manteniment
Regular maintenance ensures the longevity and efficient performance of your Waste King L-1001 garbage disposal.
Neteja i cura:
- The removable splashguard allows for easy cleaning of the disposal opening and surrounding areas. Periodically remove and clean it to prevent odor buildup.
- To clean the interior, grind small amounts of citrus peels (lemon, orange) with cold water. This helps to freshen the disposal and clean the grind chamber.
- Avoid pouring grease or oil down the drain, as this can solidify and cause clogs in your plumbing system.
- Always use cold water when operating the disposal, as hot water can melt grease and cause it to accumulate in the drain.
5. Solució De Problemes
If your Waste King L-1001 garbage disposal encounters an issue, the front-mounted reset button is a convenient feature for quick resolution.
Problemes comuns i solucions:
- L'eliminació no comença: Check if the unit is plugged in. If it is, press the red reset button located on the front of the disposal. If the button trips repeatedly, there might be an internal jam or electrical issue.
- Humming Sound but No Grinding: This indicates a jam. Turn off the disposal and water. Use an Allen wrench (often provided with the unit) to insert into the center hole on the bottom of the disposal and turn it back and forth to free the impellers. Alternatively, use tongs or pliers to remove any foreign objects from the grind chamber. Never use your hand.
- Fuites: Check all plumbing connections for tightness. Ensure the sink flange is properly sealed. If leaks persist, consult the installation manual or a qualified plumber.
- Olors: Follow the cleaning instructions in the Maintenance section, using citrus peels or specialized disposal cleaners.
6. Especificacions tècniques
| Característica | Especificació |
|---|---|
| Cavalls de força | 1 / 2 HP |
| Velocitat del motor | 2600 RPM |
| Tipus d'alimentació | Alimentació contínua |
| Grind Components | Acer inoxidable |
| Grind Chamber/Drain Housing | Glass-filled Nylon |
| Cable d'alimentació | Preinstal·lat |
| Voltage | 115 Volts |
| Wattage | 4.5 watts |
| Pes de l'article | 7.5 lliures |
| Dimensions del producte | 5.25 x 5.25 x 12.75 polzades |
| Número de model | L-1001 |
7. Garantia i Suport
The Waste King L-1001 Garbage Disposal comes with a 5-year Limited In-Home Warranty, providing peace of mind regarding its durability and performance. For any support needs or inquiries, please refer to the official Waste King resources.
Recursos addicionals:
- Manual d'usuari (PDF): For detailed usage instructions, refer to the Manual d'usuari (PDF).
- Instruccions d'ús (IFU) (PDF): Additional instructions can be found in the Instruccions d'ús (IFU) (PDF).
