Manual d'instruccions

1. Introducció

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Eltako R12-100-24VDC 24V DC Relay. Please read this manual thoroughly before using the product and retain it for future reference.

2. Informació de seguretat

Observeu sempre les següents precaucions de seguretat per evitar lesions o danys al producte:

• Assegureu-vos que l'alimentació estigui desconnectada abans de la instal·lació o el manteniment.
• La instal·lació només l'ha de fer personal qualificat.
• No excedeixi el vol especificattage and current ratings (24V DC coil, 10A/250V AC switching).
• Protegiu el dispositiu de la humitat, la pols i les temperatures extremes.
• Comproveu que totes les connexions estiguin segures abans d'aplicar energia.

3. Producte acabatview

3.1 Descripció

The Eltako R12-100-24VDC is a compact, automatic 24V DC relay designed for DIN rail mounting. It features a normally open (NO) contact configuration, capable of switching up to 10 Amperes at 250 Volts AC. This relay is suitable for various control applications in electrical systems.

3.2 Característiques

• 24V DC Coil Voltage
• 10A Switching Capacity (250V AC)
• Normally Open (NO) Contact
• Muntatge en carril DIN
• Mode de funcionament automàtic
• Disseny compacte

3.3 Components

The relay consists of a coil, a movable armature, and electrical contacts. The coil, when energized by 24V DC, creates a magnetic field that pulls the armature, closing the normally open contact.

Figura 1: Frontal view of the Eltako R12-100-24VDC relay. This image displays the main body of the relay, including the Eltako branding, model number R12-100, 16A 250V~ rating, and 24V=== coil voltage. The terminals for connection are visible at the top and bottom.

4. Instal·lació

Seguiu aquests passos per a una instal·lació correcta:

1. Desconnecteu l'alimentació: Ensure all power to the circuit is turned off at the main breaker before beginning installation.
2. Muntatge: Snap the relay onto a standard 35mm DIN rail. Ensure it is securely seated.
3. Wiring the Coil (Control Circuit): Connecteu el control de volum de 24 V CCtage to the A1 (+) and A2 (-) terminals of the relay. Observe polarity.
4. Wiring the Contacts (Load Circuit): Connect the load circuit to the normally open contacts (typically labeled 1 and 2 or similar, as indicated on the relay diagram). Ensure the load current does not exceed 10A and the voltage does not exceed 250V AC.
5. Verifica les connexions: Comproveu dues vegades que tot el cablejat sigui correcte i que les connexions siguin segures.
6. Restaura l'alimentació: Un cop finalitzada i verificada la instal·lació, restableix l'alimentació del circuit.

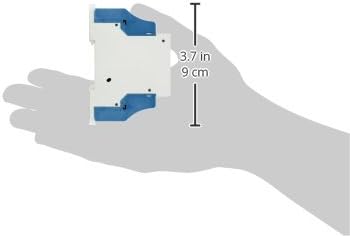

Figura 2: lateral view of the Eltako R12-100-24VDC relay demonstrating its compact size. The image shows the relay held in a hand, with an overlay indicating its height as 3.7 inches (9 cm), illustrating its suitability for space-constrained DIN rail installations.

5. Funcionament

The Eltako R12-100-24VDC relay operates automatically based on the presence or absence of the 24V DC control voltage applied to its coil terminals (A1 and A2).

• Energitzant la bobina: When 24V DC is applied to the coil, the relay will energize, causing the normally open (NO) contacts to close. This completes the load circuit, allowing current to flow to the connected device.
• Desactivació de l'alimentació de la bobina: When the 24V DC control voltage is removed from the coil, the relay will de-energize, and the normally open (NO) contacts will return to their open state. This breaks the load circuit, turning off the connected device.

The relay acts as a switch, controlled by a low-power DC signal to manage a higher-power AC load.

6. Manteniment

The Eltako R12-100-24VDC relay is designed for long-term, maintenance-free operation under normal conditions. However, periodic checks are recommended:

• Inspecció visual: Periodically inspect the relay and its connections for any signs of damage, discoloration, or loose wiring.
• Neteja: If necessary, gently clean the exterior of the relay with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Condicions ambientals: Ensure the operating environment remains within specified temperature and humidity ranges to prevent premature failure.

If any issues are observed, disconnect power immediately and consult a qualified electrician.

7. Solució De Problemes

If the relay is not functioning as expected, consider the following:

If troubleshooting steps do not resolve the issue, contact a qualified electrician or Eltako customer support.

8. Especificacions

9. Garantia i Suport

For warranty information or technical support regarding your Eltako R12-100-24VDC relay, please contact Eltako customer service or refer to the official Eltako weblloc. Conserveu el rebut de compra per a reclamacions de garantia.

Note: Unauthorized modifications or improper installation will void the product warranty.
