Marcy Smith MP3100 Machine Home Gym User Manual

1. Introducció

Welcome to the user manual for your new Marcy Smith MP3100 Machine Home Gym. This comprehensive system is designed to provide a full-body workout experience in a home setting, replicating many exercises found in commercial gyms.

The MP3100 features a robust 14-gauge thick steel construction, ensuring durability and safety during your workouts. It includes a smith press, an adjustable weight bench, and upper and lower cable stations, allowing for a wide range of exercises targeting various muscle groups.

2. Informació important de seguretat

Before operating the Marcy Smith MP3100 Machine Home Gym, please read and understand all instructions and warnings. Failure to do so may result in serious injury or damage to the equipment.

• Consulteu amb un metge abans de començar qualsevol programa d'exercici.
• Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
• Ensure all nuts and bolts are securely tightened before each use.
• Do not exceed the maximum weight capacities: 135 kg (300 lbs) for the smith press and bench, and 90 kg (200 lbs) for the high and low pulley systems.
• Use the safety press stops on the smith machine to prevent the bar from lowering too far.
• Porteu calçat i roba esportiva adequats.
• Inspect the equipment for worn or damaged parts before each use. Do not use if damaged.
• Perform exercises in a controlled manner. Avoid sudden or jerky movements.
• Maintain a clear area of at least 0.6 meters (2 feet) around the equipment during use.

3. Components i peces anteriorsview

The Marcy Smith MP3100 Machine Home Gym consists of several key components designed for a versatile workout. Familiarize yourself with these parts before assembly and operation.

Figura 3.1: Complet view of the Marcy Smith MP3100 Machine Home Gym with weight bench.

Figure 3.2: Detailed diagram highlighting key components and features of the MP3100. This includes the knurled bar, 14-gauge thick steel frame, ultra-glide bushings, two-height preacher arm curl pad, naturally aligned leg curl, removable bench, upright to decline weight bench, low pulley system, off-the-floor base design, powder-coated anti-chip paint finish, ISO-lateral pec dec system, 1" or 2" weight plate compatibility, 1" chromed guide rods, plate-loaded pulley system, and wrap-around safety stops.

• Smith Press Bar: Features ultra-glide bushings for smooth movement and safety press stops for secure lifting.
• Banc de peses ajustable: A standalone bench with five positions (decline, flat, multiple incline, and upright) for varied exercises. Includes arm and leg curl adjunts.
• High and Low Pulley Systems: Equipped with lat bar, straight bar, handle, and strap attachments for a wide range of cable exercises.
• Pec Dec System: Integrated for chest development.
• Predicador Curl Pad & Leg Developer: Attachments for isolating biceps and leg muscles.
• Marc: Constructed from 14-gauge thick steel with a slanted design for natural bio-mechanics.
• Adapter Sleeves: Allows use of both 2-inch Olympic or 1-inch standard weight plates.

4. Muntatge i muntatge

Assembly of the Marcy Smith MP3100 Machine Home Gym typically takes 5-7 hours. It is recommended to have at least two people for assembly. Ensure you have adequate space before beginning.

Figure 4.1: Assembled dimensions of the MP3100, showing a height of 210 cm, width of 200 cm (including smith press), and depth of 230 cm (including bench). Ensure your space accommodates these dimensions.

4.1. Pre-Assembly Checklist

• Unpack all components and verify against the parts list (refer to your assembly manual for the complete list).
• Ensure all tools required for assembly are available (e.g., wrenches, screwdrivers).
• Choose a flat, stable surface for assembly and placement of the gym.

4.2. Passos de muntatge (directrius generals)

1. Begin by assembling the main frame structure, ensuring all bolts are finger-tightened initially.
2. Attach the smith press guide rods and the smith press bar.
3. Install the high and low pulley systems, threading the cables through the designated pulleys.
4. Assemble the adjustable weight bench, including the arm curl and leg developer attachments.
5. Once all major components are in place, progressively tighten all nuts and bolts securely.
6. Perform a final inspection to ensure all parts are correctly assembled and stable.

Note: For detailed, step-by-step assembly instructions and diagrams, please refer to the dedicated assembly manual included with your product.

5. Instruccions de funcionament

The Marcy Smith MP3100 offers a wide array of exercises. Always warm up before your workout and cool down afterwards.

5.1. Using the Smith Press

• Load appropriate weight plates onto the smith press bar. The system accommodates both 1-inch standard and 2-inch Olympic plates using adapter sleeves.
• Adjust the safety press stops to a height that prevents the bar from descending too low during your exercise.
• Common exercises include:
  • Cofre: Incline, flat, and decline smith press (using the adjustable bench).
  • Espatlles: Shoulder press.
  • Cames: Squats, lunges, calf raises.

Figure 5.1: The Marcy MP3100 Smith Machine frame, demonstrating how weight plates are loaded onto the smith press bar and the integrated pulley systems. Note: Weight plates are not included with the gym.

Figura 5.2: Un primer pla view of the adjustable safety stops on the smith machine, which can be positioned to limit the range of motion for added safety during lifts.

5.2. Using the Adjustable Weight Bench

• The bench can be used independently or with the smith machine.
• Adjust the bench to decline, flat, incline, or upright positions using the adjustment pin/lever.
• Attach the preacher curl pad for bicep isolation exercises.
• Attach the leg developer for leg extensions and leg curls.

Figura 5.3: Detall view of the adjustable weight bench, showing its multi-position capability and the attachment points for the preacher curl pad and leg developer.

Figure 5.4: Close-up of the leg developer and preacher curl attachment, demonstrating the padded rollers for comfort during leg extensions, leg curls, and bicep curls.

5.3. Using the Pulley Systems and Pec Dec

• The high and low pulley systems allow for a variety of cable exercises.
• Attach the lat bar for lat pulldowns, the straight bar for tricep pushdowns, or handles/straps for other exercises.
• The pec dec system is designed for chest flyes.
• Common exercises include:
  • Enrere: Lat pulldown, straight-arm pulldown, seated row (using low pulley).
  • Espatlles: Rear flyes, side lateral raises, face pulls.
  • Abdominals: Cable crunches, cable woodchops.
  • Bíceps: Cable bicep curls, high cable curls.
  • Tríceps: Tricep pushdown, kickbacks, tricep extensions.
  • Cofre: Single-arm crossover, pullover (using cables), pec dec flyes.

Figura 5.5: Un primer pla view of the ISO-lateral pec dec system, designed for effective chest isolation exercises.

Figura 5.6: Un primer pla view of the low pulley system, which allows for exercises such as seated rows, bicep curls, and leg exercises.

6. Manteniment

Regular maintenance will ensure the longevity and safe operation of your Marcy Smith MP3100 Machine Home Gym.

• Neteja: Netegeu el marc i la tapisseria amb anuncisamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
• Lubricació: Periodically apply a silicone-based lubricant to the smith press guide rods and pulley axles to ensure smooth operation.
• Comprovació de fixació: Regularly inspect all nuts, bolts, and fasteners. Tighten any that have become loose.
• Inspecció del cable: Check cables for fraying, kinks, or wear. Replace damaged cables immediately. The cables have a 2000 lbs (900 kg) tensile strength, but wear can occur over time.
• Inspecció de politges: Ensure the 4-inch nylon pulleys with sealed ball bearings rotate freely and are not obstructed.

7. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar amb el vostre gimnàs a casa.

Si trobeu algun problema que no apareix aquí o si les solucions suggerides no resolen el problema, poseu-vos en contacte amb l'atenció al client.

8. Especificacions del producte

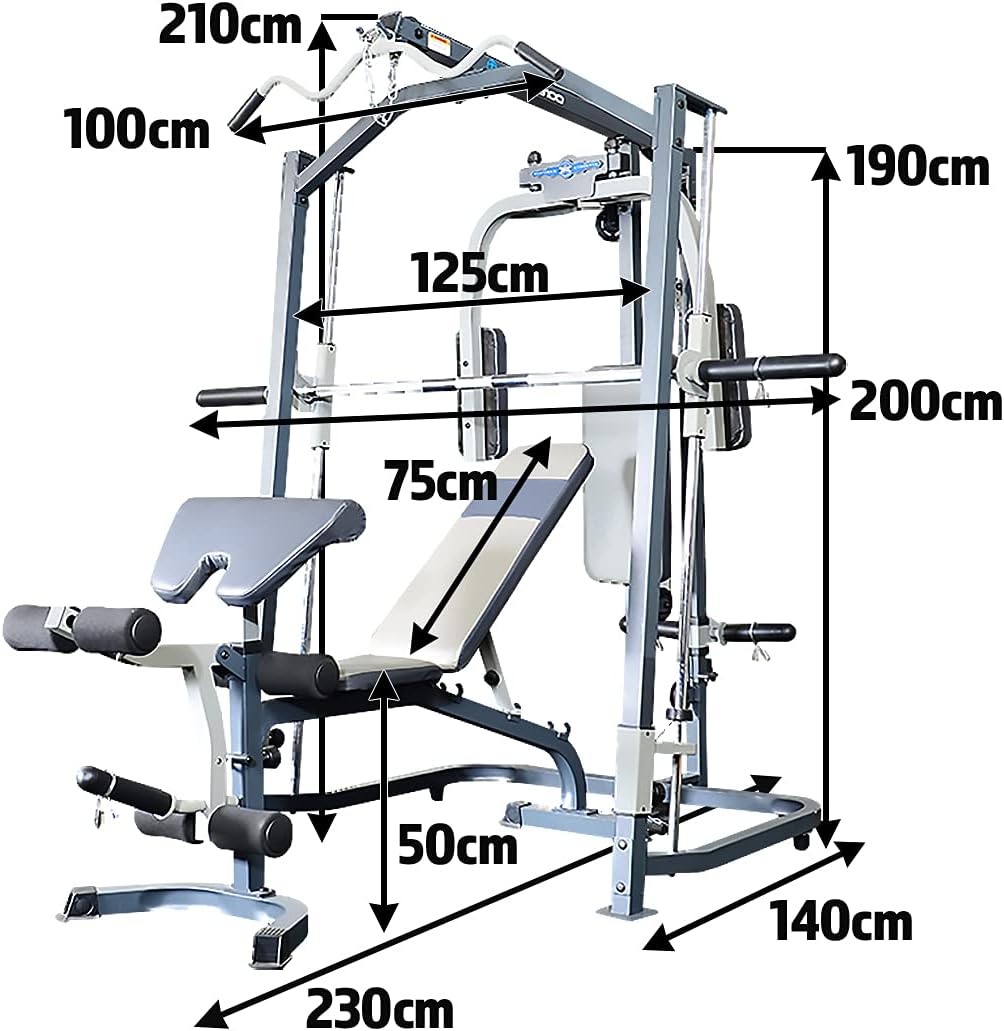

Figure 8.1: Detailed dimensional overview of the Marcy MP3100, providing specific measurements for various parts of the gym structure.

9. Informació de la garantia

MARCY provides the following warranty for the MP3100 Machine Home Gym:

• Marc: Garantia de per vida
• Parts, Pulleys, and Cables: 3 anys de garantia
• Tapisseria: 1 anys de garantia

Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and does not cover normal wear and tear, misuse, or damage caused by improper assembly or maintenance.

10. Atenció al client

If you have any questions regarding the assembly, operation, maintenance, or troubleshooting of your Marcy Smith MP3100 Machine Home Gym, please contact MARCY customer support.

For the most up-to-date contact information, please refer to the official MARCY weblloc web o les dades de contacte que figuren a l'embalatge del producte.
