Casio F-94WA-8DG Digital Watch Instruction Manual

Introducció

Thank you for choosing the Casio F-94WA-8DG Digital Watch. This manual provides detailed instructions on how to set up, operate, and maintain your watch. Please read this manual carefully to ensure proper use and to fully utilize all features of your new timepiece.

The Casio F-94WA-8DG is a reliable and practical digital watch designed for everyday use, featuring timekeeping, alarm, and stopwatch functions, along with water resistance suitable for daily activities.

Vigilarview

Familiarize yourself with the buttons and display of your Casio F-94WA-8DG watch.

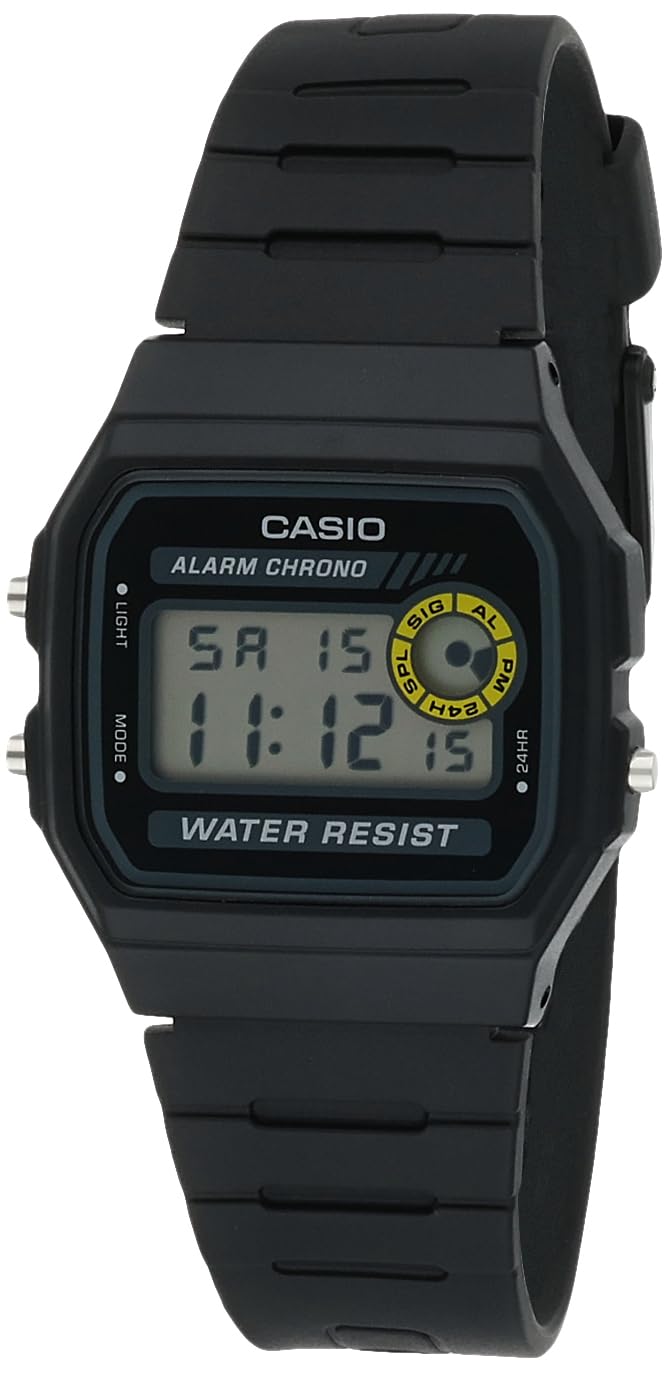

Imatge: Davant view of the Casio F-94WA-8DG digital watch. The display shows the time, day, and date. Buttons are visible on the left and right sides of the watch case.

• Botó de llum (a dalt a l'esquerra): Activa la retroiluminació.
• Botó de mode (a baix a l'esquerra): Cycles through different modes (Timekeeping, Alarm, Stopwatch).
• Adjust/24HR Button (Top Right): Used for setting adjustments and switching between 12/24-hour format.
• Start/Stop Button (Bottom Right): Used for starting/stopping stopwatch and confirming settings.

Configuració

Configuració de l'hora i la data

1. En el mode de mesura del temps, premeu la tecla Mode button until the seconds digits begin to flash. This indicates you are in setting mode.
2. Premeu el botó Adjust/24HR button to cycle through the settings: Seconds → Hour → Minutes → Month → Day → Day of the Week.
3. Mentre un paràmetre parpelleja, utilitzeu el botó Inici/Parada button to increase the value. Hold the button down to change the value rapidly.
4. Un cop tots els paràmetres siguin correctes, premeu el botó Mode botó per sortir del mode de configuració.

Format 12/24 hores

En el mode de mesura del temps, premeu la tecla Adjust/24HR button to toggle between 12-hour (indicated by 'PM' for afternoon hours) and 24-hour formats.

Instruccions de funcionament

Mode de cronometratge

This is the default mode, displaying the current time, day of the week, and date. Press the Llum botó per il·luminar la pantalla en condicions de poca llum.

Mode d'alarma

Des del mode de mesura del temps, premeu la tecla Mode Premeu el botó una vegada per entrar al mode d'alarma. Es mostrarà l'hora de l'alarma.

1. To set the alarm, press and hold the Adjust/24HR fins que els dígits de les hores parpellegin.
2. Utilitza el Inici/Parada per ajustar l’hora.
3. Premeu el botó Adjust/24HR button to select the minute digits, then use the Inici/Parada per ajustar els minuts.
4. Premeu el botó Mode botó per sortir de la configuració de l'alarma.
5. Per activar/desactivar l'alarma, premeu el botó Inici/Parada button in Alarm Mode. An alarm indicator will appear/disappear on the display.
6. Per activar/desactivar l'HourlSenyal horari (timbre), premeu el botó Adjust/24HR button in Alarm Mode. A chime indicator will appear/disappear.

Mode de cronòmetre

Des del mode de mesura del temps, premeu la tecla Mode dues vegades per entrar al mode de cronòmetre.

1. Premeu el botó Inici/Parada botó per iniciar el cronòmetre.
2. Premeu el botó Inici/Parada de nou per aturar el cronòmetre.
3. Per posar el cronòmetre a zero, premeu la tecla Adjust/24HR botó mentre el cronòmetre està aturat.

Manteniment

Resistència a l'aigua

Your Casio F-94WA-8DG watch is water resistant up to 100 meters. This means it is suitable for everyday use and can withstand splashes, rain, and brief immersion in water. However, it is no recommended for diving or prolonged underwater use. Do not operate buttons while the watch is wet or submerged.

Imatge: posterior view of the Casio F-94WA-8DG watch, highlighting the stainless steel back case with water resistance information.

Neteja

Wipe the watch with a soft, dry cloth to remove dirt and moisture. For resin bands, you can use a mild soap solution and rinse thoroughly, then dry completely. Avoid using harsh chemicals or abrasive cleaners.

Canvi de bateria

The watch is powered by a single C battery (included). When the display becomes dim or functions become erratic, it may be time to replace the battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.

Resolució de problemes

• La pantalla està en blanc o té poca llum: Pot ser que la bateria estigui baixa o esgotada. Substitueixi la bateria.
• L'hora és incorrecta: Re-set the time and date following the instructions in the "Setup" section. Ensure the 12/24-hour format is set as desired.
• L'alarma no sona: Check if the alarm is activated (alarm indicator on display). Ensure the alarm time is set correctly.
• Els botons no responen: Ensure the watch is not wet. If the issue persists, the watch may require servicing.

If you encounter issues not covered here, please contact Casio customer support.

Especificacions

Garantia i Suport

Informació de la garantia

Your Casio F-94WA-8DG watch comes with a manufacturer's limited warranty for two years from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accidents, unauthorized repairs, or normal wear and tear.

Atenció al client

For warranty claims, technical assistance, or any other inquiries regarding your watch, please contact Casio customer support. Refer to the official Casio weblloc web o la documentació de compra per obtenir dades de contacte específiques a la vostra regió.
