Introducció
Gràcies per la compraasing the Seiko RQ205B Radio Wave Analog Wall Clock. This clock combines traditional design with modern radio wave technology to provide accurate timekeeping. Please read this manual carefully to ensure proper setup and operation of your clock.
Producte acabatview
The Seiko RQ205B is an octagonal wall clock featuring a decorative pendulum, chime and strike functions, and automatic time correction via radio waves. It is designed for indoor use and operates on batteries.
Imatge: Frontal view of the Seiko RQ205B Radio Wave Analog Wall Clock, showcasing és octagonal wooden frame, white dial with black numbers, and visible pendulum. The clock is mounted on a wall above a decorative wooden mantelpiece.
Configuració
1. Instal·lació de la bateria
Locate the battery compartment on the back of the clock. Insert two C-size batteries, ensuring correct polarity (+/-). The clock requires 2 C batteries for operation.
2. Placement for Optimal Radio Wave Reception
For best performance, place the clock near a window where it can easily receive radio waves. Avoid locations near sources of radio interference such as:
- Inside buildings, basements, or areas with thick concrete walls.
- Close to high-voltage power lines, TV towers, or train tracks.
- Near electrical appliances and office equipment (TVs, refrigerators, air conditioners, computers, fax machines).
- In vehicles (cars, trains, airplanes).
- Over or near large metal furniture like steel desks.
Image: A geographical map illustrating the radio wave reception range for the clock, highlighting optimal areas and potential signal interference zones. This diagram helps in understanding ideal placement for radio wave synchronization.
3. Configuració inicial de l'hora
After battery installation, the clock will automatically attempt to receive radio waves and set the correct time. This process may take several minutes. If radio waves are not received, the clock will operate with standard quartz accuracy.
Instruccions de funcionament
1. Chime and Strike Settings
The clock offers various chime and strike options:
- Westminster Chime + Counting: Plays the Westminster melody on the quarter hour and strikes the hour count.
- 4 Locations of Westminster Chime: Plays the Westminster melody at specific intervals.
- Positive Time Count Only: Strikes the hour count without a preceding melody.
Refer to the controls on the back of the clock to select your preferred chime mode and adjust the volume. The clock also features a night mute function, which can silence the chimes during specific hours (e.g., when the room is dark).
2. Radio Wave Reception
The clock automatically attempts to receive time calibration signals (40 kHz/60 kHz) to maintain precise time. This function can be manually turned off if desired, in which case the clock will operate as a standard quartz clock.
3. Manual Time Adjustment
In areas where radio wave reception is consistently poor, or if you prefer manual control, you can adjust the time using the setting controls on the back of the clock. Consult the specific buttons and dials for hour and minute adjustments.
Manteniment
1. Substitució de la bateria
Replace batteries annually or when the clock's performance (e.g., chime volume, time accuracy) begins to degrade. Always replace all batteries at once with new, high-quality C-size batteries. Dispose of old batteries responsibly.
2. Neteja
Wipe the clock's wooden frame and glass with a soft, dry cloth. Avoid using abrasive cleaners or chemical sprays, which may damage the finish.
Resolució de problemes
- Clock not displaying correct time or losing time:
- Comproveu els nivells de la bateria i substituïu-la si cal.
- Ensure the clock is placed in an area with good radio wave reception, away from interference sources.
- Verify that the radio control function is enabled.
- If in an area with poor reception, manually set the time.
- Chimes not sounding or sounding incorrectly:
- Check chime settings on the back of the clock.
- Assegureu-vos que el volum no estigui al mínim ni silenciat.
- Verify that the night mute function is not active during the desired chiming hours.
- Low battery power can affect chime performance; replace batteries.
- Pendulum not swinging:
- Ensure the clock is level and securely mounted.
- Check for any obstructions preventing the pendulum's movement.
- Verifica l'energia de la bateria.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | RQ205B |
| Marca | SEIKO |
| Tipus de visualització | Analògic |
| Mode d'operació | Atomic (Radio Wave Controlled) |
| Radio Correction Frequencies | 40 kHz / 60 kHz |
| Font d'alimentació | Funciona amb bateria |
| Piles necessàries | 2 x C-size batteries (included) |
| Dimensions del producte | 19.3"W x 19.3"H (49.0 x 32.0 x 11.5 cm) |
| Pes de l'article | 7.94 lliures (3.6 kg) |
| Material | Wood (Dark Brown Frame) |
| Característiques especials | Chime & Strike, Decorative Pendulum, Radio Control On/Off, Silent Clock (Night Mute Function) |

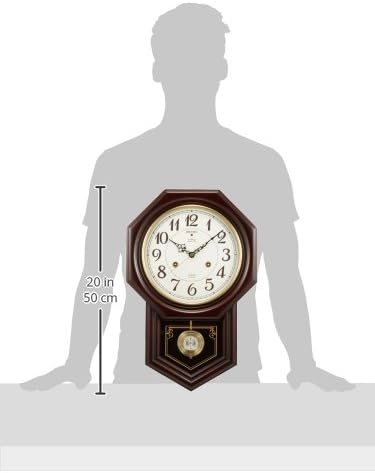

Image: A diagram illustrating the physical dimensions of the Seiko RQ205B clock, with measurements for height and width to assist with placement and installation.
Garantia i Suport
Information regarding product warranty and customer support was not available in the provided data. Please refer to the product packaging or the official SEIKO website for warranty details and contact information for support.
