1. Introducció
Welcome to the user manual for your H-TRONIC AL600plus Lead Acid Battery Charger. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. The AL600plus is designed for charging and maintaining 2V, 6V, and 12V lead-acid batteries, including gel and maintenance-free types.
Please read this manual thoroughly before using the charger to ensure proper function and to prevent damage to the unit or your battery.
2. Instruccions de seguretat
Always observe the following safety precautions when operating the H-TRONIC AL600plus battery charger:
- Assegureu-vos que hi hagi una ventilació adequada durant la càrrega per evitar l'acumulació de gasos explosius.
- Utilitzeu protecció ocular i roba protectora quan treballeu amb piles.
- Do not smoke or allow open flames or sparks near the battery or charger.
- Disconnect the charger from the mains power supply before making or breaking connections to the battery.
- Avoid short-circuiting the charging cables. The AL600plus features integrated short-circuit protection.
- Ensure correct polarity when connecting to the battery. The AL600plus includes reverse polarity protection.
- No intenteu carregar bateries no recarregables.
- Keep the charger away from moisture and extreme temperatures.
3. Contingut del paquet
En desembalar, comproveu que hi hagi tots els components:
- H-TRONIC AL600plus Lead Acid Battery Charger Unit
- Cocodril Clamps (Vermell per a positiu, Negre per a negatiu)
- Manual d'usuari (aquest document)
4. Producte acabatview
The H-TRONIC AL600plus is an advanced, intelligent battery charger designed for optimal charging and maintenance of various lead-acid battery types. It incorporates multi-stage I/U charging technology, including U1 and U2 phases, and an automatic battery care mode to ensure the longevity and performance of your batteries. The intelligent software continuously monitors battery conditions, controlling the charging process accordingly. It also features a battery test function and defect detection prior to charging.

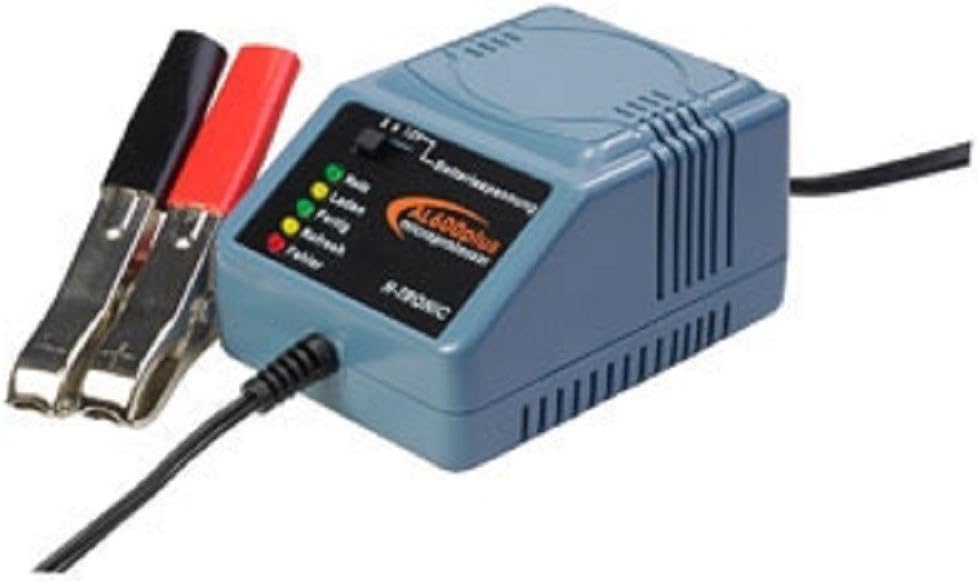

An image showing the H-TRONIC AL600plus lead acid battery charger. The charger unit is light blue-grey with a black front panel displaying the 'AL600plus' logo and LED indicators for status (Ready, Charge, Full, Refresh, Error). To the left, red and black crocodile clamps are connected, ready for battery attachment. A black power cable extends from the right side of the unit.
Característiques principals:
- Compatible with 2V, 6V, and 12V lead-acid batteries (including gel and maintenance-free).
- Multi-stage I/U charging characteristic (U1, U2 phase).
- Automatic battery care mode for long-term connection (hibernation).
- Trickle charging capability.
- Software-controlled battery diagnosis, test function, and defect detection.
- Automatic charge current adjustment.
- Integrated short-circuit protection.
- Protecció de polaritat inversa integrada.
- Five LED status indicators for operational feedback.
5. Configuració
Follow these steps to set up your H-TRONIC AL600plus battery charger:
- Prepareu la bateria: Ensure the battery terminals are clean and free of corrosion. If charging a wet cell battery, check the electrolyte level and top up with distilled water if necessary (refer to battery manufacturer's instructions).
- Connectar a la bateria:
- Connecteu el vermell crocodile clamp al positiu (+) terminal de la bateria.
- Connecteu el negre crocodile clamp al negatiu (-) terminal de la bateria.
- Assegureu-vos que les connexions siguin segures.
- Connecteu-vos a l'alimentació: Plug the charger's power cord into a standard 230V AC wall outlet.
- Volum automàtictage Detecció: The AL600plus automatically detects the battery voltage (2V, 6V, or 12V) and adjusts the charging parameters accordingly. There is no manual voltage interruptor de selecció.
6. Instruccions de funcionament
Once connected, the charger will automatically begin its diagnostic and charging process:
- Initial Diagnosis: The intelligent software first performs a battery diagnosis to check for defects and determine the battery's condition.
- Procés de càrrega: If the battery is healthy and requires charging, the charger will initiate the multi-stage I/U charging process. The LED indicators will provide status updates.
- Indicadors LED: The five LEDs on the front panel indicate the current operational status:
- A punt: Indicates the charger is connected and ready, or the battery is fully charged.
- Càrrec: Indicates the battery is currently being charged.
- Complet: Indicates the battery has reached full charge.
- Actualitzar: Indicates the charger is in a refresh or maintenance mode.
- Error: Indicates a fault condition (e.g., reverse polarity, short circuit, defective battery).
- Automatic Battery Care (Hibernation Mode): The AL600plus can remain connected to the battery for extended periods, such as during winter storage. It will automatically switch to a maintenance charge mode to prevent self-discharge and ensure the battery remains optimally charged without overcharging.
- Desconnexió: To disconnect the charger, first unplug it from the mains power outlet, then remove the black (-) clamp de la bateria, seguit del cl vermell (+)amp.
7. Manteniment
Proper care of your H-TRONIC AL600plus charger will ensure its longevity and reliable performance:
- Neteja: Disconnect the charger from all power sources before cleaning. Wipe the exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Emmagatzematge: Guardeu el carregador en un lloc fresc i sec quan no l'utilitzeu. Mantingueu-lo allunyat de la llum solar directa i de temperatures extremes.
- Inspecció del cable: Periodically inspect the power cord and charging cables for any signs of damage, such as cuts or fraying. Do not use the charger if cables are damaged.
- Terminals de bateria: Assegureu-vos que els terminals de la bateria estiguin nets abans de connectar el carregador per facilitar un bon contacte elèctric.
8. Solució De Problemes
If you encounter issues with your H-TRONIC AL600plus, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| No LEDs illuminate when connected to power. | No power supply, faulty outlet, or damaged charger. | Check the power outlet with another device. Ensure the charger is securely plugged in. If the problem persists, the charger may be faulty. |
| Error LED is illuminated. | Reverse polarity, short circuit, or defective battery. | Disconnect the charger. Verify that the red clamp is on the positive (+) terminal and the black clamp is on the negative (-) terminal. Check for any short circuits between the clamps or battery terminals. If connections are correct, the battery may be defective and unable to accept a charge. |
| Charger does not seem to charge the battery. | Battery deeply discharged, defective battery, or poor connection. | Ensure connections are clean and secure. Allow more time for deeply discharged batteries. If the battery is severely sulfated or internally damaged, it may not accept a charge. The charger's diagnostic function should detect this. |
| El carregador s'escalfa durant el funcionament. | Funcionament normal. | It is normal for the charger to generate some heat during the charging process. Ensure it is in a well-ventilated area. If it becomes excessively hot or emits smoke/unusual odors, disconnect immediately. |
9. Especificacions
| Característica | Especificació |
|---|---|
| Marca | H-Tronic |
| Model | AL600plus |
| Número de model de producte | 4260003173149 |
| Entrada Voltage | 230 V AC |
| Vol. De sortidatage (nominal) | 2 V, 6 V, 12 V DC (Automatic Detection) |
| Max Charge Current (12V) | 0.6 A |
| Max Charge Current (2V/6V) | 0.3 A |
| Recommended Battery Capacity (Min) | 1.2 Ah |
| Recommended Battery Capacity (Max) | 40 Ah |
| Tipus de bateries compatibles | Lead-acid, Lead-gel, Lead-fleece (AGM), Maintenance-free |
| Interval de temperatura de funcionament | -25 °C a +45 °C |
| Dimensions del producte (L x A x A) | 9.5 cm x 5.5 cm x 7 cm |
| Pes del producte | 9 g |
| Color | Gris/negre |
10. Garantia i Suport
For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. H-Tronic ensures spare parts availability in the EU for 1 year from the date of purchase. Please retain your proof of purchase for any warranty claims.
