Introducció
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Eagle 5.5HP Honda Air Compressor, Model TT55G. Please read this manual thoroughly before operating the compressor to ensure proper use and to prevent injury or damage.
The Eagle TT55G is a robust twin-tank wheelbarrow air compressor designed for demanding applications, featuring a reliable Honda GX160 engine and delivering 12.5 CFM at 100 PSI with a maximum pressure of 150 PSI.
Informació important de seguretat
Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions greus o la mort.
- Utilitzeu sempre l'equip de protecció individual (EPI) adequat, incloent-hi protecció ocular, protecció auditiva i guants.
- Operate the compressor in a well-ventilated area to prevent carbon monoxide poisoning from engine exhaust.
- Ensure the compressor is on a stable, level surface before starting.
- Do not operate the compressor near flammable liquids or gases.
- Before performing any maintenance or adjustments, ensure the engine is off, the spark plug wire is disconnected, and all air pressure is relieved from the tanks.
- Regularly inspect all hoses, fittings, and tanks for damage or leaks. Do not use a damaged compressor.
- Mantingueu els nens i els espectadors lluny del compressor en funcionament.
- No dirigiu mai aire comprimit cap a vosaltres mateixos ni cap a altres persones.
- Drain condensation from the air tanks daily to prevent corrosion and tank failure.
Muntatge i muntatge
- Desembalatge: Carefully remove the compressor from its packaging. Inspect for any shipping damage. Report any damage immediately to your supplier.
- Wheel and Handle Assembly: Attach the pneumatic wheels and handle assembly as per the included hardware. Ensure all bolts are securely tightened. The wheelbarrow design facilitates portability.
- Oli de motor: The Honda GX160 engine may be shipped without oil. Fill the engine crankcase with the recommended oil type (refer to the Honda engine manual for specifics, typically SAE 10W-30) to the proper level indicated on the dipstick. Do not overfill.
- Combustible: Fill the fuel tank with fresh, unleaded gasoline. Do not use E85 or other ethanol-heavy fuels. Ensure the fuel cap is securely fastened.
- Filtres d'aire: Ensure the metal air filters are securely in place on the compressor pump.
Figura 1: Eagle 5.5HP Honda Air Compressor, Model TT55G. This image shows the overall design of the compressor, including the Honda engine, twin tanks, and wheelbarrow frame.
Figura 2: Dimensions of the Eagle TT55G Air Compressor. The compressor measures approximately 48 inches in length, 18 inches in width, and 24.5 inches in height. This information is crucial for planning placement and transport.
Instruccions de funcionament
- Comprovacions prèvies a l'inici:
- Verificar el nivell d'oli del motor.
- Comproveu el nivell de combustible.
- Assegureu-vos que totes les connexions siguin segures.
- Confirm drain valves on tanks are closed.
- Arrencada del motor:
- Gireu l'interruptor del motor a la posició "ON".
- Obriu la vàlvula de combustible.
- If the engine is cold, apply choke.
- Pull the recoil starter handle firmly until the engine starts. Release the choke gradually as the engine warms up.
- The compressor features an automatic idle control, which will adjust engine speed based on air demand.
- Ajust de pressió:
The compressor is factory-set to operate between 95-125 PSI, with a maximum pressure of 150 PSI. The user-friendly regulator allows you to adjust the output air pressure to suit your specific tool requirements. Turn the regulator knob clockwise to increase pressure and counter-clockwise to decrease pressure.
- Connexió d'eines pneumàtiques:
Connect your air hose to one of the available air lines. Ensure the connection is secure to prevent air leaks. The compressor provides 3 lines for use.
- Apagant:
- Apagueu l'interruptor del motor.
- Tanqueu la vàlvula de combustible.
- Bleed all air pressure from the tanks by opening the drain valves or using an air tool until the pressure gauges read zero.
Figura 3: Key specifications and features of the Eagle TT55G Air Compressor. This image highlights the 5.5 HP Honda GX160 engine, 10-gallon twin tank, 12.5 CFM @ 100 PSI, V-twin cylinder cast iron pump, and other operational benefits like automatic idle control and a user-friendly regulator.
Manteniment
Regular maintenance is crucial for the longevity and optimal performance of your air compressor. Always ensure the compressor is off, cooled down, and depressurized before performing any maintenance.
- Diari:
- Drain condensation from both air tanks. This prevents rust and extends tank life.
- Comproveu el nivell d'oli del motor.
- Inspect air filters for excessive dirt or debris. Clean or replace if necessary.
- Every 25 Hours or Annually (whichever comes first):
- Change engine oil. Refer to the Honda engine manual for specific instructions and oil type.
- Inspect spark plug. Clean or replace as needed.
- Netegeu o substituïu els filtres d'aire.
- Comproveu que tots els elements de fixació estiguin estanquitats.
- Compressor Pump Maintenance:
The V-twin cylinder cast iron pump is designed for durability. Ensure the pump's oil level (if applicable, check the easy-view oil gauge) is maintained. Consult the pump's specific manual for detailed maintenance schedules.
- Protector de cinturó:
The sturdy metal belt guard protects moving parts. Periodically check for any damage or obstructions.

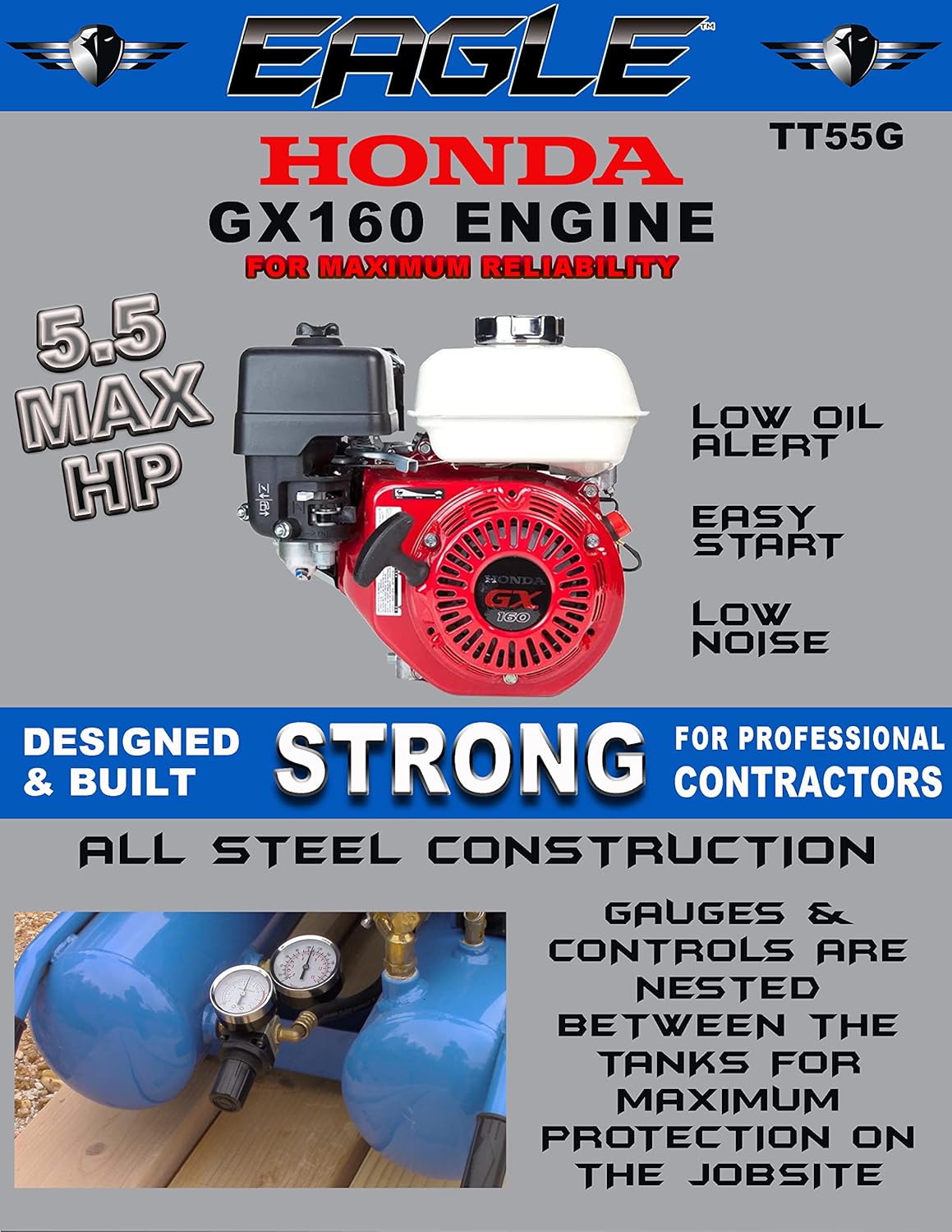

Figura 4: Close-up of the Honda GX160 engine, which powers the Eagle TT55G air compressor. This image highlights features like the low oil alert, easy start mechanism, and low noise operation, all contributing to maximum reliability and ease of maintenance.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrencarà | No fuel; Engine switch OFF; Choke not applied (cold engine); Low engine oil. | Add fuel; Turn engine switch ON; Apply choke; Check and add engine oil. |
| Compressor not building pressure | Tank drain valve open; Leaks in air lines/fittings; Faulty check valve; Worn pump components. | Close drain valve; Inspect and tighten connections or replace faulty parts; Contact service for pump issues. |
| Vibracions o sorolls excessius | Loose components; Compressor not on level surface; Worn bearings. | Check and tighten all fasteners; Move compressor to a level surface; Contact service for internal component issues. |
| Fugides d'aire | Loose fittings; Damaged hose; Faulty valve. | Tighten fittings; Replace damaged hose; Inspect and replace faulty valve. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Àguila |
| Nom del model | Eagle Twin Tank Wheelbarrow (TT55G) |
| Motor | 5.5 HP Honda GX160 |
| Font d'alimentació | Gasolina |
| Capacitat del dipòsit | 10 Gallons (Twin Tanks) |
| Capacitat de flux d'aire (CFM) | 12.5 CFM @ 100 PSI |
| Pressió màxima de funcionament | 150 PSI |
| Nivell de soroll | 69 dB |
| Pes de l'article | 190 lliures |
| Dimensions del producte (L x A x A) | 47 x 18 x 24.5 polzades |
| Característica especial | Twin tank, Steel rim pneumatic tire, Metal air filters, Sturdy metal belt guard, Automatic idle control, Easy view indicador d'oli |
| UPC | 777589000140 |
Figura 5: This image highlights the proven performance and assembly details of Eagle air compressors. It mentions over 45 years of manufacturing quality, proud assembly in the United States, and the combination of the GX160 engine and PV02A pump for extended life.
Garantia i Suport
Eagle products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Eagle weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
For technical assistance, parts, or service inquiries, please contact Eagle customer support. Contact information can typically be found on the product packaging or the manufacturer's weblloc.
