1. Introducció
Thank you for choosing Moen. This manual provides detailed instructions for the installation, operation, and maintenance of your Moen T2701BN Level Posi-Temp Valve Trim Kit. This trim kit is designed to complement the modern aesthetic of your bathroom while providing reliable temperature and flow control. Please read these instructions carefully before beginning installation to ensure proper function and to avoid damage.
2. Informació de seguretat
- Tanqueu sempre el subministrament principal d'aigua abans de començar qualsevol treball de fontaneria.
- Feu servir equips de protecció individual adequats, com ara ulleres de seguretat, durant la instal·lació.
- Si teniu dubtes sobre alguna part del procés d'instal·lació, consulteu un lampista qualificat.
- Assegureu-vos que totes les connexions estiguin ben fixades per evitar fuites.
- This trim kit requires a compatible Moen Posi-Temp pressure-balancing valve (no inclòs). Ensure you have the correct valve body installed (e.g., 2510, 2590, 2570, or 2520 series).
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de la instal·lació:
- Maneta de la palanca
- Escutcheon Plate (Wall Plate)
- Handle Adapter/Mechanism
- Mounting Hardware (screws, gaskets)
- Guia d'instal·lació (aquest document)
Nota: The Posi-Temp pressure-balancing valve body is sold separately and is not included with this trim kit.

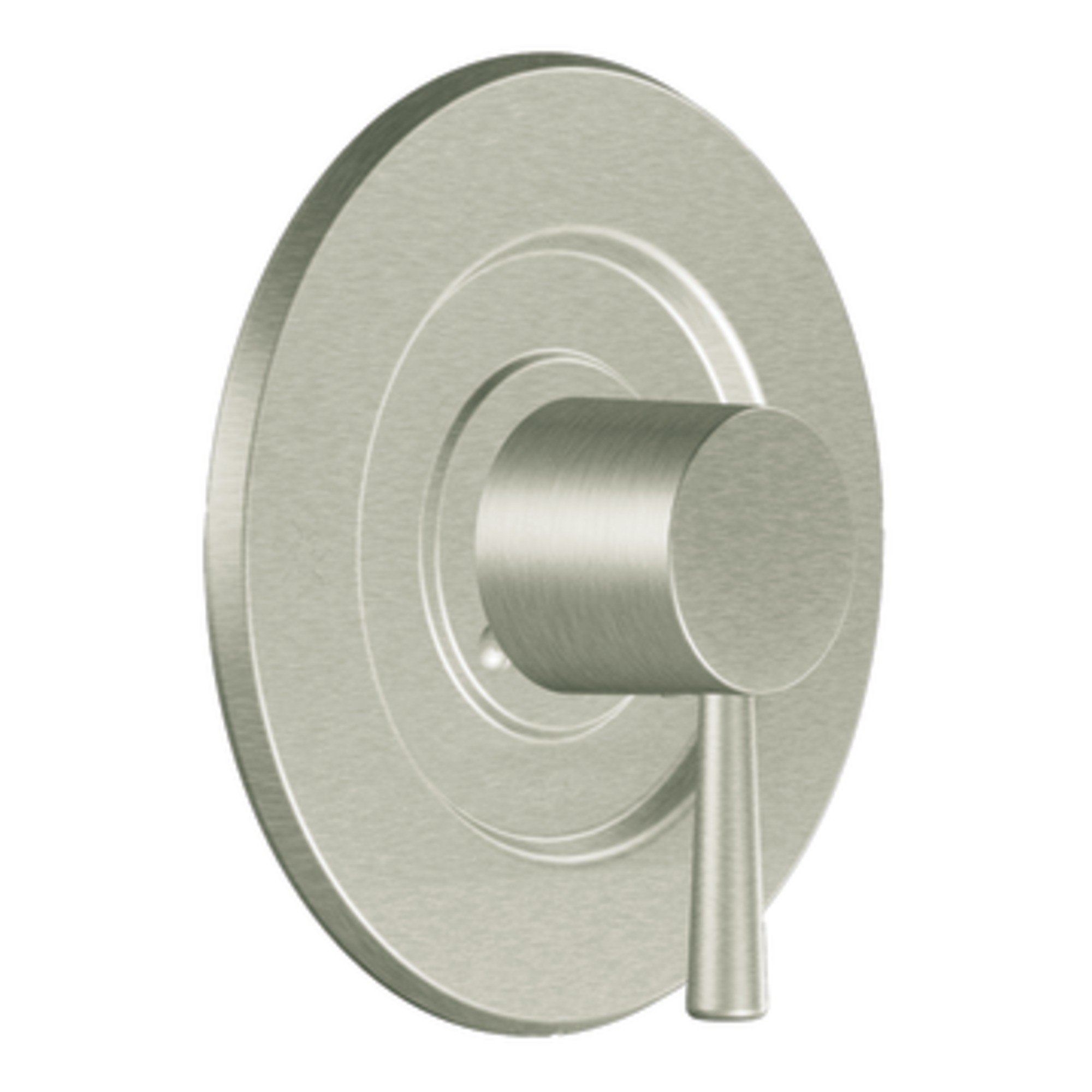

This image displays the Moen T2701BN Level Posi-Temp Valve Trim Kit, featuring its single lever handle and escutcheon plate in a brushed nickel finish. The design is modern and sleek, intended for shower or tub installations.
4. Eines necessàries
- Clau anglesa ajustable
- Tornavís Phillips
- Hex Wrench (size may vary, typically 7/64 inch or 3/32 inch, refer to specific valve instructions)
- Plumber's Putty or Silicone Sealant (optional, for escutcheon plate)
- Drap de neteja
5. Instruccions d'instal·lació
These instructions assume a compatible Moen Posi-Temp valve body is already installed in the wall. Refer to the valve body's specific installation manual for rough-in details.
- Prepareu la vàlvula: Ensure the water supply to the valve is turned off. Remove any existing trim components.
- Install the Escutcheon Plate: Position the escutcheon plate over the valve body opening. Ensure the plate is level. Secure it to the wall using the provided screws. Do not overtighten. For a watertight seal, a thin bead of silicone sealant can be applied around the perimeter of the plate before securing.
- Install the Handle Adapter: Slide the handle adapter onto the valve stem. Ensure it is properly seated.
- Enganxeu el mànec: Place the lever handle onto the handle adapter. Secure the handle to the adapter using the small set screw, typically located on the underside of the handle. Use the appropriate hex wrench.
- Test for Leaks and Functionality: Turn the main water supply back on. Slowly open the valve by moving the handle. Check for any leaks around the escutcheon plate and handle. Verify that the handle rotates smoothly to control temperature and flow.
6. Instruccions de funcionament
The Moen T2701BN Level Posi-Temp Valve Trim Kit features a single lever handle for controlling both water temperature and flow.
- Activar/Desactivar: Rotate the handle away from the wall to turn on the water. Rotate it back towards the wall to turn off the water.
- Ajustar la temperatura: Rotate the handle counter-clockwise for warmer water and clockwise for cooler water. The Posi-Temp valve maintains consistent water temperature even with pressure fluctuations in the water supply.
- Ajustar el flux: The flow rate is controlled by how far the handle is rotated away from the wall.
7. Manteniment
To maintain the beautiful finish of your Moen T2701BN trim kit, follow these cleaning guidelines:
- Netejar amb un suau, damp tela.
- Use only mild soap and water.
- Avoid abrasive cleaners, harsh chemicals, or polishes, as these can damage the brushed nickel finish and void the warranty.
- Regular cleaning will help prevent water spots and mineral buildup.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Water leaks from handle or escutcheon. | Loose connections, damaged O-rings/gaskets, improper installation. | Ensure all screws are tightened. Check for proper seating of gaskets. If leaks persist, the valve cartridge may need inspection or replacement (refer to valve body manual). |
| No water or low water flow. | Main water supply off, debris in valve, clogged aerator (if applicable to showerhead/spout). | Check main water supply. Consult valve body manual for cartridge inspection. |
| Temperature difficult to adjust or inconsistent. | Valve cartridge issue, temperature limit stop setting. | Refer to the Posi-Temp valve body manual for instructions on adjusting the temperature limit stop or inspecting the cartridge. |
9. Especificacions
- Número de model: T2701BN
- Marca: Moen
- Acabat: Níquel raspallat
- Material: Brass (handle), Nickel (finish)
- Nombre de nanses: 1
- Tipus de muntatge: Muntatge de paret
- Compatible Valve: Moen Posi-Temp Pressure-Balancing Valve (sold separately)
- Pes de l'article: Aproximadament 1.3 lliures
10. Informació de la garantia
Moen products are manufactured under the highest standards of quality and workmanship. Moen offers a limited lifetime warranty to the original consumer purchaser against leaks, drips, and finish defects for as long as the original consumer purchaser owns their home. Other components are warranted for a period of one year from the date of purchase. For complete warranty details, please visit the official Moen weblloc web o poseu-vos en contacte amb el servei d'atenció al client de Moen.
11. Suport i contacte
If you require further assistance or have questions regarding your Moen T2701BN Level Posi-Temp Valve Trim Kit, please contact Moen customer support:
- Weblloc: www.moen.com
- Telèfon: Consulteu el Moen weblloc per als números de contacte regionals.
Please have your model number (T2701BN) and date of purchase available when contacting support.
