Oxygenics 200-XLF25 SmartShower Fixed Shower Head

1. Introducció

The Oxygenics SmartShower Fixed Shower Head, model 200-XLF25, is designed to enhance your showering experience by utilizing innovative pressurizing technology. This system injects air into the water stream, creating a powerful spray even with lower water pressure, while also promoting water and energy conservation. Constructed with durable components, this shower head is resistant to corrosion and mineral buildup, ensuring long-term performance.

2. Informació de seguretat

• Always ensure the main water supply is turned off before attempting installation or maintenance to prevent water damage.
• Do not overtighten connections, especially plastic components, as this may cause damage and leaks. Hand-tighten where specified, then use a wrench for a final quarter turn if needed.
• Use appropriate tools and follow all local plumbing codes during installation.
• This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (California Proposition 65 warning).

3. Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

• Oxygenics 200-XLF25 SmartShower Fixed Shower Head
• Teflon tape (plumber's tape)

4. Configuració i instal·lació

Follow these steps to install your new Oxygenics SmartShower Fixed Shower Head:

1. Prepareu el braç de dutxa: Ensure the main water supply to your shower is turned off. Remove your old shower head by turning it counter-clockwise. Clean any old sealant or debris from the shower arm threads.
2. Aplicar cinta de tefló: Wrap the threads of the shower arm with the provided Teflon tape. Wrap 3-4 times clockwise to ensure a watertight seal.
3. Col·loqueu el capçal de dutxa: Carefully thread the Oxygenics SmartShower Fixed Shower Head onto the shower arm. Turn clockwise until hand-tight.
4. Ajustament final: Using a wrench, gently tighten the shower head an additional quarter turn. Avoid overtightening, especially if the connection point is plastic, to prevent cracking.
5. Prova de fuites: Turn on the main water supply and check for any leaks around the connection point. If leaks occur, tighten slightly more or reapply Teflon tape.

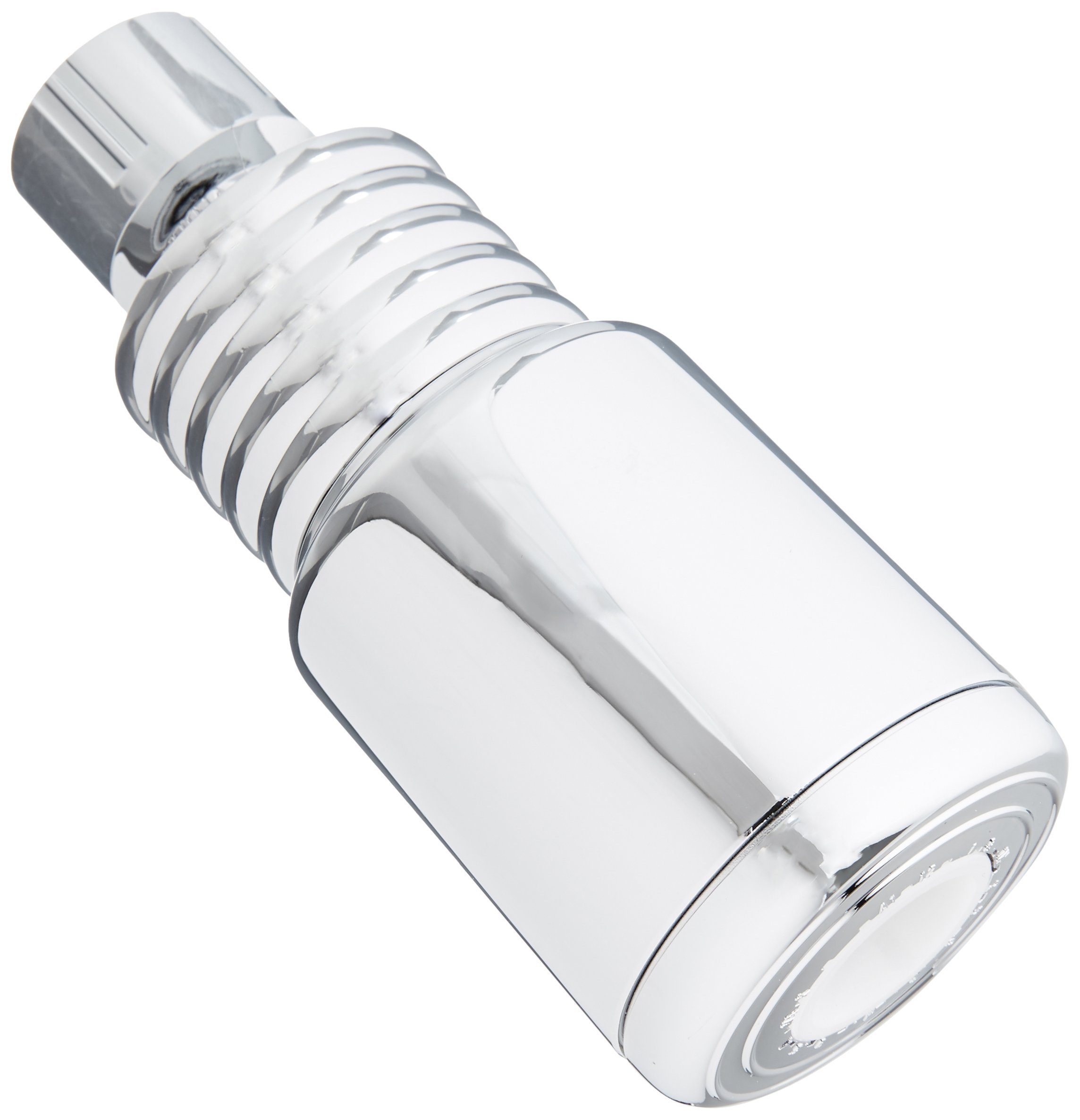

Image: Oxygenics 200-XLF25 SmartShower Fixed Shower Head. This image shows the main product, a chrome fixed shower head with a round shape, ready for installation onto a standard shower arm.

5. Instruccions de funcionament

Once installed, operating your Oxygenics SmartShower is straightforward:

• Simply turn on your shower's hot and cold water handles to your desired temperature.
• The SmartShower technology will automatically mix air into the water stream, providing a powerful, full-body spray.
• This model features a fixed spray pattern designed for consistent performance and water efficiency.

6. Manteniment

To ensure optimal performance and longevity of your Oxygenics SmartShower Fixed Shower Head:

• Neteja: Periodically clean the shower head nozzles to remove any mineral deposits. Most deposits can be wiped away with a soft cloth. For stubborn buildup, use a solution of equal parts white vinegar and water, or a non-abrasive bathroom cleaner. Avoid harsh chemicals or abrasive scrubbers, which can damage the finish.
• Mineral Buildup Resistance: The design of the Oxygenics shower head helps resist mineral buildup and clogging. Regular cleaning will maintain this resistance.
• Prevenció d'obstruccions: The limited lifetime performance warranty covers against clogging or failure, indicating the product's design for long-term, clog-free operation.

7. Solució De Problemes

Si teniu problemes amb el capçal de la dutxa, consulteu les solucions habituals següents:

• Baixa pressió d'aigua: If the water pressure feels lower than expected, first check if the main water supply valve is fully open. Ensure there are no kinks in the shower hose (if applicable, though this is a fixed head). Clean the shower head nozzles for any mineral buildup that might be obstructing flow.
• Leaks at Connection Point: If water is leaking where the shower head connects to the shower arm, turn off the water supply, remove the shower head, reapply Teflon tape to the shower arm threads, and reattach the shower head, ensuring it is tightened appropriately (hand-tight plus a quarter turn with a wrench).
• Cracked Connection: If the plastic connection point cracks during installation, it is likely due to overtightening. This component is designed to be durable but can be damaged by excessive force. Ensure careful tightening as described in the installation section.

8. Especificacions

9. Garantia

The Oxygenics 200-XLF25 SmartShower Fixed Shower Head comes with a Limited Lifetime Guarantee. This warranty covers against failure or clogging under normal use. For specific details regarding warranty claims and coverage, please refer to the official Oxygenics warranty documentation or contact customer support.

10. Suport

For further assistance, technical support, or to inquire about replacement parts, please visit the official Oxygenics website or contact their customer service department. Ensure you have your product model number (200-XLF25) available when seeking support.
