Instruccions importants de seguretat
Read all instructions thoroughly before operating the appliance. Retain this manual for future reference.
- Assegureu-vos que l'aparell estigui correctament connectat a terra abans d'utilitzar-lo.
- Do not operate the dishwasher if the power cord is damaged. Contact qualified service personnel for repairs.
- Keep children and pets away from the appliance during operation and when the door is open.
- Feu servir només detergents i abrillantadors dissenyats específicament per a rentaplats automàtics.
- Eviteu tocar l'element calefactor durant o immediatament després d'un cicle de rentat.
- Load sharp items, such as knives, with the handles up to prevent injury.
Producte acabatview
The Exquisit GSP7BSOE is a compact countertop dishwasher designed for efficient cleaning of daily tableware and glassware. It features a durable stainless steel interior and is ideal for smaller living spaces.

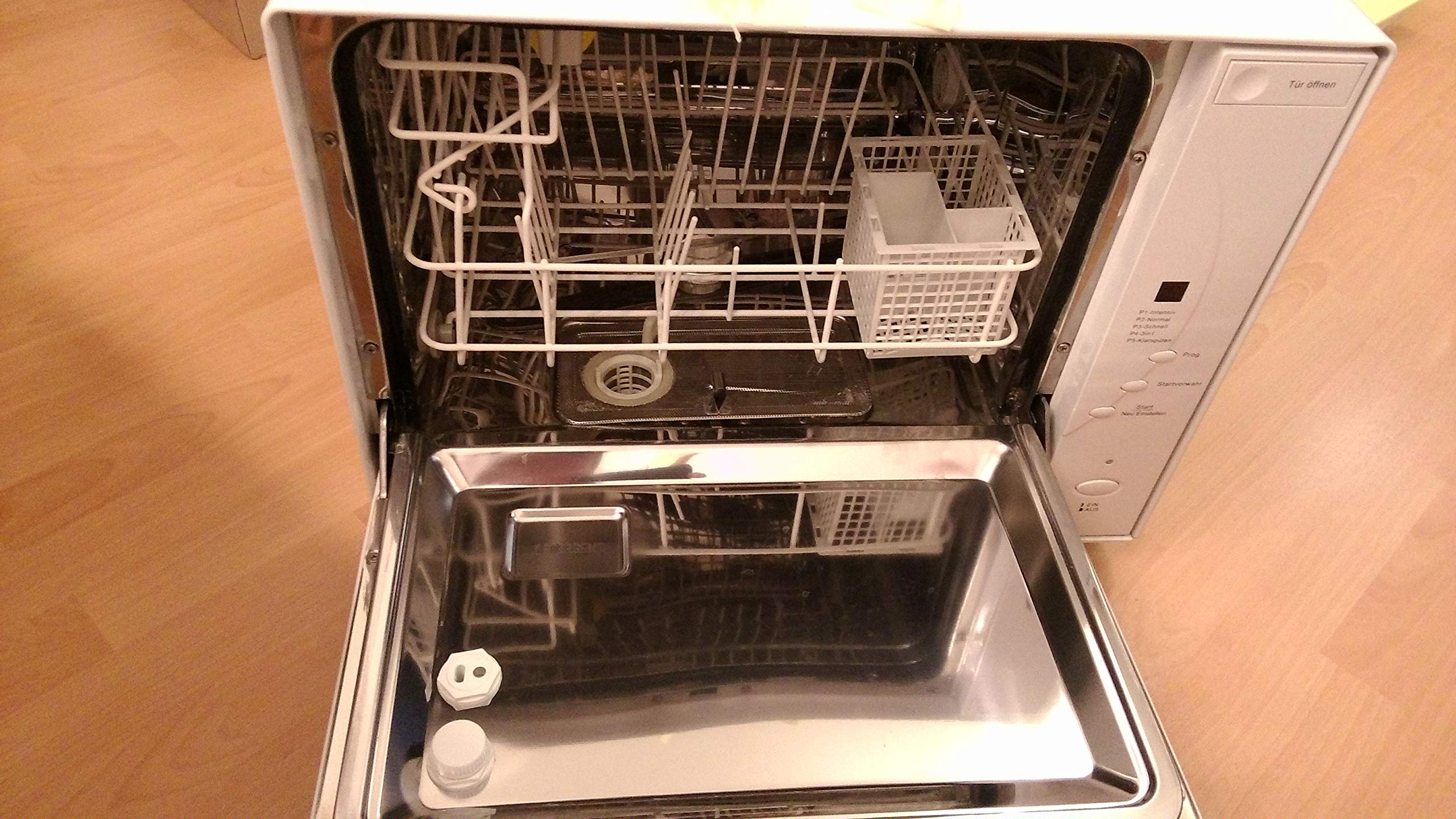

Figura 1: Davant view of the Exquisit GSP7BSOE compact dishwasher, illustrating its design and control panel.
Configuració i instal·lació
- Desembalatge: Carefully remove all packaging materials. Inspect the dishwasher for any signs of damage incurred during shipping.
- Posicionament: Place the dishwasher on a stable, level countertop. Ensure it is located near a water supply, a suitable drain, and a grounded electrical outlet. Allow adequate space around the unit for ventilation.
- Connexió d'aigua: Connect the water inlet hose to a cold water tap. Hand-tighten the connection, then use a wrench to secure it firmly, ensuring no leaks.
- Connexió de drenatge: Attach the drain hose securely to a dedicated drain pipe or position it over a sink. Verify that the hose is not kinked or obstructed to allow for proper water drainage.
- Connexió elèctrica: Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. No utilitzeu cables d'extensió ni adaptadors.
Instruccions de funcionament
1. Càrrega del rentavaixelles
Arrange dishes to ensure that water can reach all surfaces and that spray arms are not obstructed.
- Col·loqueu els articles més grans i molt bruts a la cistella inferior.
- Cups, glasses, and smaller items should be placed in the upper basket.
- Utilize the provided cutlery basket for forks, knives, and spoons.
2. Afegir detergent i abrillantador
Open the detergent dispenser and add the appropriate amount of dishwasher detergent according to the soil level and water hardness. Close the dispenser lid securely. Fill the rinse aid dispenser to the indicated level as needed.
3. Selecció d'un programa de rentat
The Exquisit GSP7BSOE offers the following wash programs:
- Ecoprogram: Suitable for normally soiled dishes, designed for optimal energy and water efficiency.
- Normal Program: For daily, normally soiled dishes requiring a standard wash cycle.
Seleccioneu el programa desitjat mitjançant els botons del tauler de control.
4. Inici del cicle de rentat
Ensure the dishwasher door is closed firmly until it latches. Press the Start button to initiate the selected wash cycle.
Manteniment
1. Neteja dels filtres
Regularly clean the filter system located at the base of the dishwasher tub to ensure optimal performance.
- Turn off and unplug the dishwasher from the power supply.
- Remove the coarse filter, fine filter, and main filter components.
- Rinse all filter parts under running water to remove any trapped food particles or debris.
- Reassemble the filters correctly and place them back into the dishwasher.
2. Neteja dels braços polvoritzadors
Periodically check the spray arm nozzles for blockages. If necessary, remove the spray arms and clear any clogged holes using a thin wire or toothpick.
3. Neteja exterior i interior
Netegeu les superfícies exteriors amb un damp cloth. Clean the interior of the dishwasher regularly with a specialized dishwasher cleaner or a solution of vinegar and water to prevent odors and limescale buildup.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El rentavaixelles no arrenca | Power cord not securely plugged in; Door not closed properly; Household fuse blown or circuit breaker tripped. | Verify power connection; Ensure door is fully latched; Check and reset household fuse/circuit breaker. |
| Els plats no són nets | Improper loading of dishes; Insufficient detergent used; Spray arms clogged; Filters are dirty. | Reload dishes to allow water circulation; Add correct amount of detergent; Clean spray arm nozzles; Clean the filter system. |
| L'aigua no drena | Drain hose is kinked or blocked; Filters are clogged; Drain pump malfunction. | Inspect and clear the drain hose; Clean the filters; If problem persists, contact customer service. |
| Soroll excessiu durant el funcionament | Dishes interfering with spray arms; Foreign object in the pump area; Dishwasher not level. | Rearrange dishes to clear spray arms; Inspect and remove any foreign objects; Ensure the dishwasher is installed on a level surface. |
Especificacions
- Model: GSP7BSOE
- Marca: Exquisit
- Tipus d'instal·lació: Taulell
- Capacitat: 4 Configuració del lloc
- Material: Acer inoxidable (interior)
- Nivell de soroll: 63 decibels
- Característiques especials: Disseny compacte
- Programes de rentat: Ecoprogram, Normal Program
- Components inclosos: Cutlery basket, Table basket
Garantia i Suport
For detailed warranty information and technical support, please refer to the warranty card provided with your Exquisit GSP7BSOE dishwasher or visit the official Exquisit website. It is recommended to keep your purchase receipt as proof of purchase for warranty claims.
Nota: Els termes i condicions específics de la garantia poden variar segons la regió i el distribuïdor.
