Introducció
This manual provides detailed instructions for the safe and effective use of your Rollei XS-8 Digital Camera. Please read this manual thoroughly before operating the camera and keep it for future reference. The Rollei XS-8 features an 8.0-megapixel sensor, 3x optical zoom, and a 3.0-inch TFT LCD display.
Configuració
1. Instal·lació i càrrega de la bateria
The Rollei XS-8 uses two lithium-ion batteries. Ensure the batteries are fully charged before first use. Insert the batteries into the charging cradle provided, then connect the charging cradle to the power adapter. The indicator light on the charger will show the charging status. Once fully charged, insert the batteries into the camera's battery compartment, ensuring correct polarity.
2. Inserció de la targeta de memòria
Locate the memory card slot, typically on the side or bottom of the camera. Insert a compatible SD card into the slot until it clicks into place. Ensure the card is inserted in the correct orientation. Do not force the card.
3. Fixació de la corretja de transport
Attach the provided carrying strap to the designated strap eyelet on the camera body. This helps prevent accidental drops.
Funcionament de la càmera
1. Encès / apagat
Press and hold the power button (usually located on the top or back of the camera) to turn the camera on or off. The 3.0-inch TFT LCD display will illuminate.

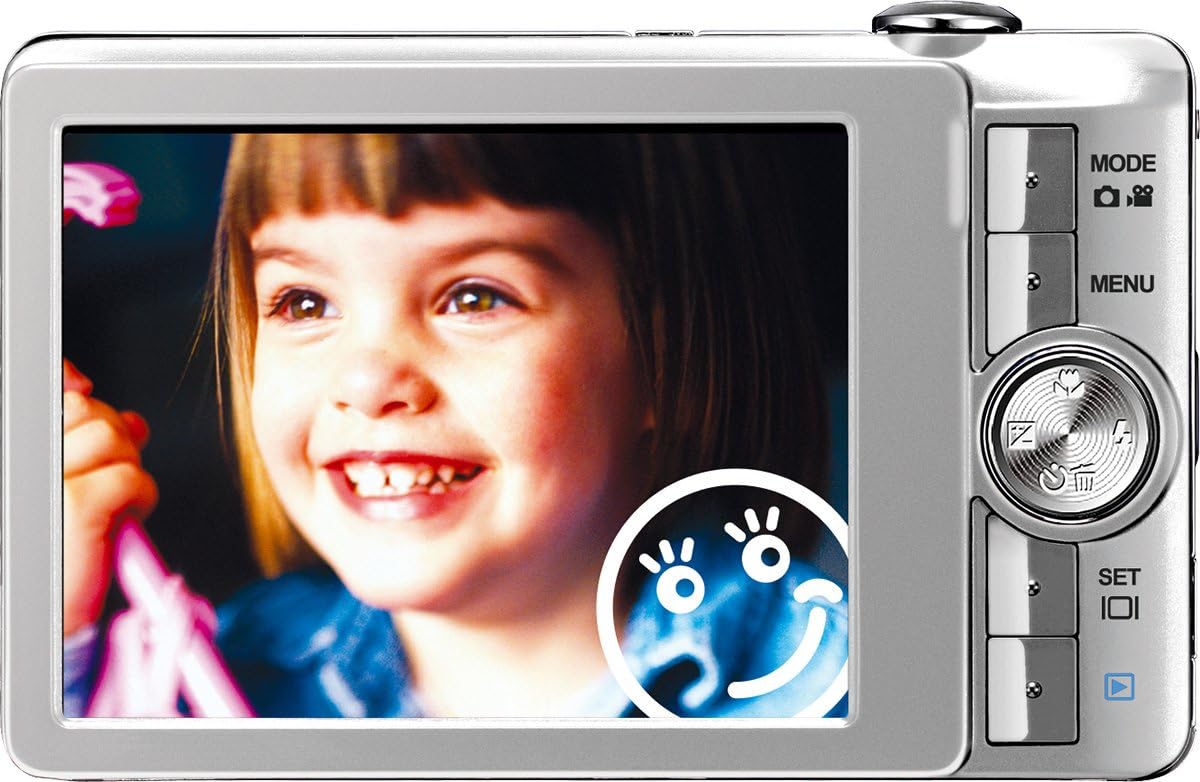

Imatge: Part posterior view of the Rollei XS-8 Digital Camera, showing the 3.0-inch TFT LCD display and control buttons on the right side. The screen displays a smiling child's face, with a face detection icon visible.
2. Controls bàsics
- Botó MODE: Press to switch between different shooting modes (e.g., still image, video).
- Botó MENÚ: Accesses the camera's settings menu. Use the navigation buttons to scroll and SET to confirm.
- Botons de navegació (amunt/avall/esquerra/dreta): Used for menu navigation, zoom control, and accessing quick settings.
- Botó SET: Confirma les seleccions als menús.
- Botó de l'obturador: Premeu fins a la meitat per enfocar, premeu-ho completament per fer una foto.
3. Fer fotos
Point the camera at your subject. Use the zoom controls to adjust the 3x optical zoom. The camera features Detecció de cares for optimizing focus and exposure on faces, and Estabilitzador d’imatge to reduce blur from camera shake. For group shots, Coupling Shot may assist in capturing multiple subjects effectively. Press the shutter button halfway to focus, then fully to capture the image.
4. Viewfotos
Switch to playback mode (usually via the MODE button or a dedicated playback button). Use the navigation buttons to scroll through your captured images and videos on the 3.0-inch TFT LCD.
5. Connexió a un ordinador
Connect the camera to your computer using the provided USB cable. The camera will appear as a removable disk. You can transfer photos and videos directly. The camera also includes "Zoner Photo-Studio 9 Express" software for image processing and management. Install this software on your computer for enhanced editing capabilities.
Image: Packaging and CD for Zoner PhotoStudio 9 Express software, included with the Rollei XS-8 camera for image processing.
Manteniment
1. Neteja de la càmera
- Feu servir un drap suau i sec per netejar el cos de la càmera.
- Per a la lent, feu servir un drap i una solució especials per a la neteja de lents. Eviteu tocar la lent amb els dits.
- No utilitzeu productes químics ni productes de neteja abrasius.
2. Cura de la bateria
- Guardeu les piles en un lloc fresc i sec quan no les utilitzeu.
- Eviteu descarregar completament les bateries amb freqüència per allargar-ne la vida útil.
- No exposeu les piles a temperatures extremes.
3. Emmagatzematge
When storing the camera for extended periods, remove the batteries. Store the camera in a dry, dust-free environment, preferably in a camera bag or case.
Resolució de problemes
| Problema | Solució |
|---|---|
| La càmera no s'encén. | Ensure batteries are fully charged and inserted correctly. Try using a different set of charged batteries. |
| Les fotos són borroses. | Check if the lens is clean. Ensure the camera is held steady or use the Image Stabilizer feature. Allow the camera to focus before fully pressing the shutter button. |
| Error de la targeta de memòria. | Torneu a inserir la targeta de memòria. Assegureu-vos que la targeta sigui compatible i que no estigui plena. Intenteu formatar la targeta (això esborrarà totes les dades). |
| No es pot connectar a l'ordinador. | Assegureu-vos que el cable USB estigui connectat correctament tant a la càmera com a l'ordinador. Proveu un port o cable USB diferent. Reinicieu tots dos dispositius. |
Especificacions
- Marca: Rollei
- Nom del model: Rollei XS 8
- Effective Resolution: 8.0 megapíxels
- Zoom òptic: 3x
- Distància focal màxima: 102 mil·límetres
- Mida de la pantalla: 3.0 Inches (TFT LCD)
- Tecnologia de connectivitat: USB
- Tipus d'habitatge: Càmera compacta
- Color: Plata
- Viewcercador Tipus: Cap
Garantia i Suport
Your Rollei XS-8 Digital Camera comes with a 24-month Rollei replacement service. For warranty claims or technical support, please refer to the contact information provided with your purchase documentation or visit the official Rollei weblloc web. Conserveu el comprovant de compra per validar la garantia.
