1. Introducció
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Duravit 0050311092 Pop-Up Basin Waste with Horizontal Lever. This chrome-finished sink drain is designed to control water flow in a basin using a horizontal lever mechanism, typically in conjunction with wall-mounted taps.
2. Components inclosos
The Duravit 0050311092 Pop-Up Basin Waste includes the following hardware:
- Pop-Up Drain Assembly (upper and lower sections)
- Horizontal Lever Mechanism
- Cordal
- Segells i juntes
- Maquinari de muntatge

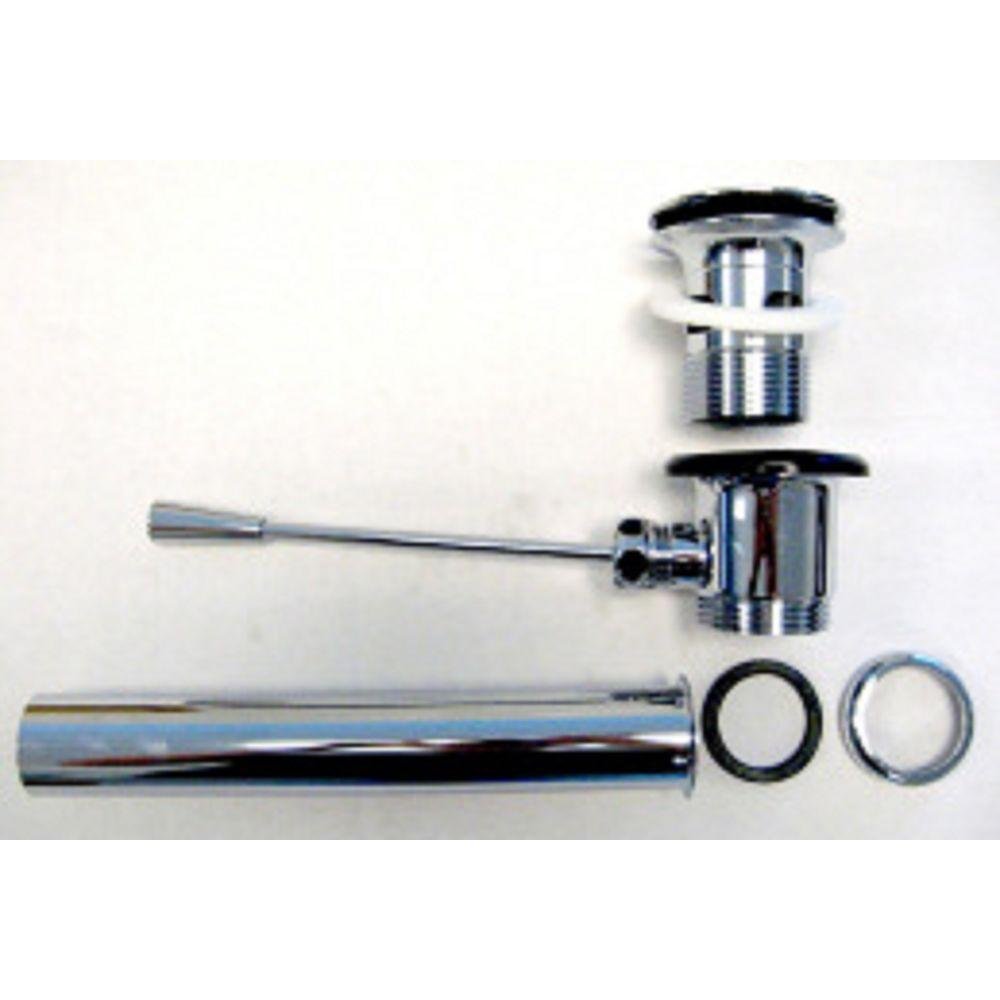

Figure 1: All components of the Duravit 0050311092 Pop-Up Basin Waste laid out. The image displays the chrome-finished pop-up drain assembly, the long horizontal lever, the tailpiece, and various seals and rings required for installation.
3. Configuració i instal·lació
This pop-up basin waste is designed for undermount installation and is intended for use with wall-mounted taps. Professional installation is recommended.
- Prepare the Basin: Assegureu-vos que la basin l'obertura del desguàs estigui neta i lliure de deixalles.
- Install Upper Drain Section: Apply a bead of plumber's putty or silicone sealant around the underside of the drain flange (the top part of the pop-up drain that sits inside the basin). Insert the drain flange into the basin's drain opening from above.
- Secure Lower Drain Section: Des de sota la basin, place a gasket and then the washer onto the threaded portion of the drain flange. Thread the lower drain body onto the drain flange, ensuring the horizontal lever opening is oriented correctly for connection to your wall-mounted tap system. Tighten securely by hand, then use a wrench for a final snug turn, being careful not to overtighten.
- Connect Horizontal Lever: Attach the horizontal lever rod to the mechanism on the lower drain body. Ensure the lever operates smoothly to open and close the drain stopper. The lever typically extends horizontally to connect to a wall-mounted control.
- Install Tailpiece: Connect the chrome tailpiece to the bottom of the drain body using the provided seals and nuts. Ensure all connections are watertight.
- Prova de fuites: Ompliu la basin with water and check all connections for any leaks. Operate the pop-up mechanism several times to ensure proper function.
Nota important de compatibilitat: This specific model may not be compatible with all Duravit basin models. For example, it has been noted to be incompatible with the Duravit double basin model #04541000261. Always verify compatibility with your specific basin model before installation.
4. Funcionament
The Duravit 0050311092 Pop-Up Basin Waste is operated via its horizontal lever. This lever, which typically connects to a control on your wall-mounted tap, allows you to open and close the basin drain. Moving the lever in one direction will close the drain, retaining water in the basin, while moving it in the opposite direction will open the drain, allowing water to flow out.
5. Manteniment i cura
To maintain the chrome finish and ensure proper function of your Duravit Pop-Up Basin Waste, follow these guidelines:
- Neteja: Clean the chrome finish regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals, abrasive pads, or acidic cleaners, as these can damage the finish.
- Comprovació del mecanisme: Periodically check the horizontal lever mechanism for smooth operation. If it becomes stiff, a small amount of silicone-based lubricant can be applied to moving parts, avoiding contact with the water flow path.
- Inspecció del segell: Inspect seals and gaskets for wear or damage over time. Replace any worn components to prevent leaks.
6. Solució De Problemes
- Drain Does Not Hold Water:
- Ensure the pop-up stopper is fully closing when the lever is engaged. Adjust the lever connection if necessary.
- Check the stopper for any debris preventing a complete seal.
- Inspect the drain body and seals for proper seating and damage.
- Drain Leaks:
- Tighten all connections, ensuring not to overtighten.
- Verify that plumber's putty or sealant was properly applied during installation.
- Check all gaskets and seals for proper placement and condition. Replace if damaged.
- Lever Mechanism Stiff or Not Operating:
- Ensure the lever rod is not bent or obstructed.
- Apply a small amount of silicone lubricant to the pivot points of the mechanism.
- Problemes d'incompatibilitat: As noted in the setup section, this drain may not be compatible with all Duravit basin models. If you experience significant functional issues immediately after installation, verify the drain's compatibility with your specific basin model.
7. Especificacions
- Fabricant: Duravit
- Número de peça: 50311092
- Número de model de l'article: 005031
- Pes de l'article: 11.2 unces
- Dimensions del producte: 1 x 1 x 1 polzades (aproximadament, tal com s'indica)
- Mida: Petit
- Color: Chrome
- Acabat: Chrome
- Material: Llautó
- Mètode d'instal·lació: Menys
- Col·locació del mànec/palanca: Wall-mount (intended for use with wall-mounted taps)
- Quantitat de paquet d'articles: 1
8. Informació de la garantia
This Duravit product comes with a 1 anys de garantia limitada. Please refer to the official Duravit warranty documentation for full terms and conditions, or contact Duravit customer support for details.
9. Atenció al client
For further assistance, technical questions, or to report issues not covered in this manual, please contact Duravit customer support. Contact information can typically be found on the official Duravit weblloc web o a l'embalatge del producte.
