Schneider Electric Square D Homeline HOM2040M100PQCVP 100 Amp Manual d'instruccions del centre de càrrega de l'interruptor principal interior de 20 espais i 40 circuits

1. Producte acabatview

The Square D Homeline HOM2040M100PQCVP is a 100 Amp, 20-Space, 40-Circuit indoor main breaker load center designed for residential and light commercial electrical distribution. This unit features the Qwik-Grip wiring system and Plug-on Neutral technology, facilitating efficient and secure electrical installations. It includes a main breaker and a cover, providing a complete solution for managing electrical circuits.

Característiques principals:

• Qwik-Grip Wiring System: Simplifies wire installation by eliminating the need for most knock-outs and connectors, allowing wires to slide easily into the load center.
• Plug-on Neutral: Enables quick and secure installation of Homeline Plug-on Neutral combination arc fault circuit breakers.
• Capacitat: 20 spaces for up to 40 circuits, accommodating various electrical needs.
• Construcció: Built with a plated, aluminum bus bar, tested and listed exclusively for Homeline circuit breakers.

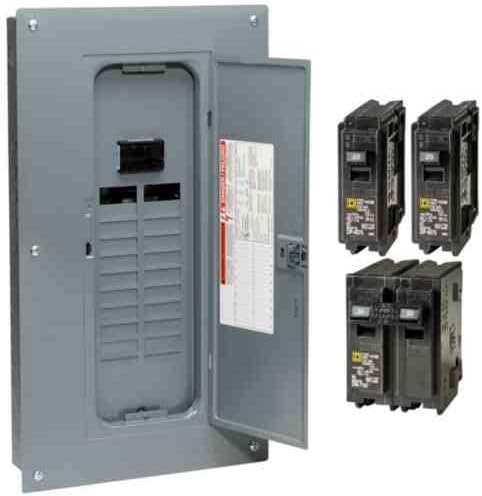

• Components inclosos: Comes with (2) HOM120 Homeline 20 amp single-pole circuit breakers, (1) HOM230 Homeline 30 amp double-pole circuit breaker, and a combination flush/surface cover.

2. Informació de seguretat

ADVERTIMENT: This product must be installed and serviced by qualified electrical personnel only. Improper installation or maintenance can result in serious injury, death, or property damage. Always disconnect power at the main service panel before working on electrical equipment.

• Always wear appropriate personal protective equipment (PPE), including safety glasses and insulated gloves.
• Verify that all circuits are de-energized before touching any wires or components.
• Follow all local and national electrical codes (e.g., NEC in the USA).
• Do not install this load center in wet or damp locations unless specifically rated for such environments. This model is designed for indoor use.
• Advertència de la proposta 65: Aquest producte pot contenir productes químics coneguts a l’Estat de Califòrnia per causar càncer i defectes congènits o altres danys reproductius.

3. Configuració i instal·lació

Installation of the Square D Homeline load center requires careful attention to detail and adherence to electrical safety standards. It is recommended that installation be performed by a licensed electrician.

3.1 Muntatge del centre de càrrega

1. Select a suitable indoor location for the load center, ensuring it is easily accessible and meets clearance requirements.
2. Securely mount the load center enclosure to a sturdy surface using appropriate fasteners. Ensure the enclosure is level and plumb.

3.2 Connexions de cablejat

The Qwik-Grip wiring system and Plug-on Neutral bar simplify the wiring process.

1. Connexió d'alimentació principal: Connect the main incoming power lines to the main breaker terminals. Ensure proper torque specifications are met.
2. Neutral Connections: Utilize the fully distributed neutral bar for connecting neutral wires. The Plug-on Neutral feature allows compatible circuit breakers to connect directly to the neutral bar without a pigtail.
3. Connexions a terra: Connect equipment ground wires to the designated ground bar. The ground and neutral bars accept up to three #10-14 equipment grounds.
4. Branch Circuit Wiring (Qwik-Grip): For branch circuits, slide the NM-B wires from the front into the Qwik-Grip system. This system eliminates the need for traditional knock-outs and connectors for many applications.
5. Instal·lació de l'interruptor de circuit: Install Homeline circuit breakers into the desired pole spaces. Each pole space accepts full-size, tandem, or quad breakers. Ensure breakers are securely seated.

4. Instruccions de funcionament

Once properly installed and energized, the load center operates by distributing electrical power to various circuits in your home or building, protected by circuit breakers.

4.1 Funció de l'interruptor de circuit

• Each circuit breaker protects a specific circuit from overcurrents (overloads or short circuits).
• When an overcurrent condition occurs, the circuit breaker will automatically trip, interrupting the flow of electricity to that circuit.

4.2 Resetting a Tripped Circuit Breaker

1. Locate the tripped breaker. It will typically be in an intermediate position between ON and OFF, or fully OFF.
2. Firmly push the breaker handle to the full OFF position.
3. Then, push the breaker handle to the full ON position.
4. If the breaker immediately trips again, there may be a persistent fault on the circuit. Do not attempt to reset it repeatedly. Consult a qualified electrician.

5. Manteniment

Regular inspection and maintenance can help ensure the safe and reliable operation of your load center. All maintenance should be performed by qualified personnel.

• Inspecció anual: Have a qualified electrician inspect the load center annually. This includes checking for loose connections, signs of overheating, corrosion, or damage to wiring and components.
• Mantenir clar: Ensure the area around the load center remains clear of obstructions, flammable materials, and moisture.
• Pols i deixalles: Periodically, and with power disconnected, carefully clean any dust or debris from inside the load center using a dry, non-conductive brush or vacuum.
• No sobrecarregueu: Avoid overloading circuits, which can lead to frequent breaker trips and potential damage.

6. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar amb el vostre centre de càrrega.

6.1 Frequent Circuit Breaker Tripping

• Causa: Circuit sobrecarregat, curtcircuit o fallada a terra.
• Solució: Disconnect some appliances or devices from the circuit. If the tripping continues, there may be a short circuit or ground fault. Do not attempt to repeatedly reset the breaker. Contact a qualified electrician for diagnosis and repair.

6.2 No Power to a Circuit

• Causa: Tripped circuit breaker, loose connection, or faulty wiring.
• Solució: Check if the corresponding circuit breaker is tripped and reset it as described in Section 4.2. If the issue persists, or if multiple circuits are affected, contact a qualified electrician.

6.3 Buzzing Sound from Load Center

• Causa: Loose connections, faulty breaker, or normal operation (some slight buzzing can be normal).
• Solució: If the buzzing is loud, persistent, or accompanied by heat or burning smells, immediately disconnect power at the main service disconnect (if safe to do so) and contact a qualified electrician.

7. Especificacions

8. Garantia i Suport

Schneider Electric products are manufactured to high-quality standards. For specific warranty information regarding your Square D Homeline load center, please refer to the documentation included with your purchase or visit the official Schneider Electric weblloc.

8.1 Atenció al client

If you require technical assistance, have questions about installation, or need to report a product issue, please contact Schneider Electric customer support. Contact information can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.
