Hayward Auto-Skim Series Automatic Pool Skimmer

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Hayward Auto-Skim Series Automatic Pool Skimmer, Model SP1084. Please read these instructions thoroughly before beginning installation or operation to ensure proper function and longevity of your product. This skimmer is designed for efficient surface debris removal in in-ground pools.

2. Producte acabatview i Característiques

The Hayward Auto-Skim SP1084 is a robust, non-corrosive automatic surface skimmer engineered for superior pool maintenance. Its design incorporates features that enhance performance and ease of use.

• Self-Adjusting Weir: A snap-in weir automatically adjusts to water level fluctuations up to 4.5 inches, ensuring consistent skimming.
• Large Capacity Basket: Equipped with a rigid, 163 cubic inch basket for efficient debris collection.
• Piping Versatility: Features 2-inch female iron pipe threads for flexible plumbing connections.
• Float/Bypass Valve (Optional): Provides a suction outlet through the skimmer system and an automatic pump bypass for low water conditions.
• Overflow Port: Includes a 3/4-inch auxiliary knockout overflow port to prevent pool overflow or assist with water refill.
• Construcció duradora: Manufactured without glue for maximum strength and longevity, suitable for in-ground, vinyl, fiberglass, residential, or commercial pools.

Figure 2.1: Hayward Auto-Skim SP1084 Pool Skimmer with dimensions: 12 inches long, 19.4 inches wide, and 20 inches tall.

Figure 2.2: Hayward Auto-Skim features: suitable for various pool types, snap-in weir, and stackable extension collar.

3. Instal·lació

Installation of the Hayward Auto-Skim SP1084 should be performed by a qualified pool professional or in accordance with local building and plumbing codes. Ensure the pool structure is prepared for skimmer integration.

3.1 Comprovacions prèvies a la instal·lació

• Comproveu que tots els components estiguin presents i sense danys.
• Ensure the skimmer model (SP1084) is appropriate for your in-ground pool type (vinyl, fiberglass, concrete).
• Confirm the intended location allows for proper water flow and access for maintenance.

3.2 Connexions de fontaneria

1. Connect the skimmer's 2-inch female iron pipe threads to the pool's filtration system plumbing. Use appropriate sealants and fittings to ensure a watertight connection.
2. If using the optional float/bypass valve, install it according to its specific instructions to enable suction outlet and low-water bypass functions.
3. Utilize the knockout overflow port if an auxiliary overflow or fill line is required.

3.3 Skimmer Body Placement

1. Position the skimmer body securely within the pool wall opening.
2. Ensure the skimmer is level and properly aligned with the pool's water line. The top of the skimmer opening should be at the desired water level.
3. For vinyl liner pools, install the faceplate and gaskets according to the pool manufacturer's instructions to create a secure seal.
4. Adjust the stackable notched extension collar for infinite vertical adjustment to match the deck or coping height.

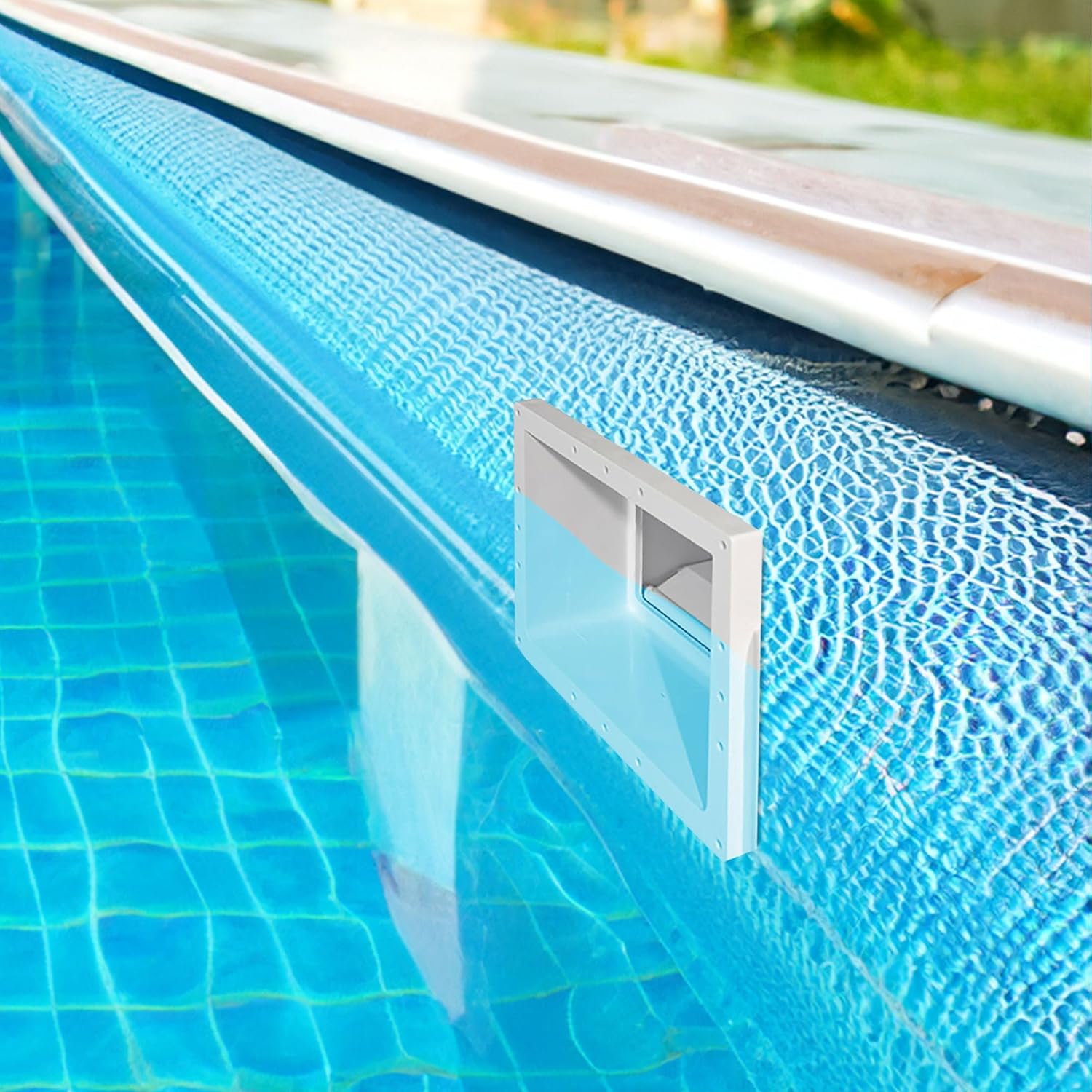

Figure 3.1: Close-up of the Hayward Auto-Skim installed in an in-ground pool, showing the water level and weir.

Figure 3.2: Hayward Auto-Skim operating in a pool, demonstrating water skimming action.

4. Funcionament

Once properly installed, the Hayward Auto-Skim SP1084 operates largely automatically to remove surface debris from your pool.

4.1 Automatic Weir Function

The snap-in weir is designed to float and adjust with minor changes in the pool's water level. This ensures that the skimmer continuously draws water from the surface, capturing leaves, insects, and other floating debris before they sink.

4.2 Basket Operation

Debris collected by the skimmer is directed into the large capacity basket. This basket acts as a primary filter, preventing larger items from entering your pump and filtration system.

4.3 Control de flux

The integral Flo-Control slide plate allows for adjustment of the water flow into the skimmer, optimizing skimming efficiency based on pool conditions and pump operation.

5. Manteniment

Regular maintenance of your Auto-Skim skimmer is crucial for optimal performance and to prevent damage to your pool's filtration system.

5.1 Cleaning the Skimmer Basket

1. Turn off the pool pump to prevent suction.
2. Traieu la coberta del skimmer.
3. Lift out the skimmer basket.
4. Empty any collected debris and rinse the basket thoroughly with water.
5. Replace the basket and secure the skimmer cover.

It is recommended to clean the skimmer basket daily or as needed, especially during periods of heavy debris accumulation.

5.2 Weir Inspection

Periodically check the self-adjusting weir to ensure it moves freely and is not obstructed by debris. Clean any blockages to maintain proper skimming action.

5.3 Inspecció general

Inspect the skimmer body, cover, and plumbing connections for any signs of cracks, leaks, or damage. Address any issues promptly to prevent further complications.

Figura 5.1: superior view of the Hayward Auto-Skim, showing the basket access area for cleaning.

Figura 5.2: Primer pla view of the Auto-Skim's self-adjusting weir mechanism, which should be kept clear of debris.

6. Solució De Problemes

This section addresses common issues you might encounter with your Hayward Auto-Skim skimmer.

7. Especificacions

8. Garantia i Suport

For specific warranty information regarding your Hayward Auto-Skim SP1084, please refer to the warranty card included with your product packaging or visit the official Hayward website. For technical support, replacement parts, or further assistance, please contact Hayward customer service directly.

Podeu trobar més informació i dades de contacte a Hayward Store on Amazon or the official Hayward weblloc.
