Westinghouse 0363600 25 Watt G16.5 Incandescent Light Bulb User Manual

Introducció

This manual provides essential information for the safe and effective use of your Westinghouse 0363600 Incandescent Light Bulb. Please read these instructions carefully before installation and retain them for future reference. This bulb is designed for general illumination purposes in indoor environments.

Image: A graphic displaying the Westinghouse logo and a statement about the brand's history and commitment to innovation since 1886.

Informació de seguretat

Always follow basic safety precautions when installing or replacing light bulbs to reduce the risk of fire, electric shock, or personal injury.

• Apagueu l'alimentació: Always disconnect power to the fixture before installing, removing, or inspecting the bulb.
• Manipular amb cura: Incandescent bulbs can become hot during operation. Allow the bulb to cool completely before handling.
• Proper wattage: No supereu la potència màximatage rating of your fixture. This bulb is 25 watts.
• Dry location use: This bulb is intended for indoor use in dry locations only. Do not use where directly exposed to water.
• Regulable: This bulb is dimmable. Ensure your dimmer switch is compatible with incandescent bulbs.
• Eliminació: Elimineu les bombetes usades d'acord amb la normativa local.

Configuració i instal·lació

Follow these steps to properly install your new light bulb:

1. Verifica la compatibilitat: Ensure the fixture's socket type is E12 (Candelabra Screw Base) and the voltage matches the bulb's 130V rating.
2. Apagueu l'alimentació: Before installation, ensure the power supply to the light fixture is turned off at the circuit breaker or wall switch.
3. Treure la bombeta antiga (si escau): If replacing an old bulb, allow it to cool completely before carefully unscrewing it counter-clockwise.
4. Instal·lar una bombeta nova: Gently screw the Westinghouse 0363600 bulb clockwise into the E12 socket until it is snug. Do not overtighten.
5. Restaurar l'energia: Torneu a connectar l'alimentació a l'interruptor de circuit o a l'interruptor de paret.

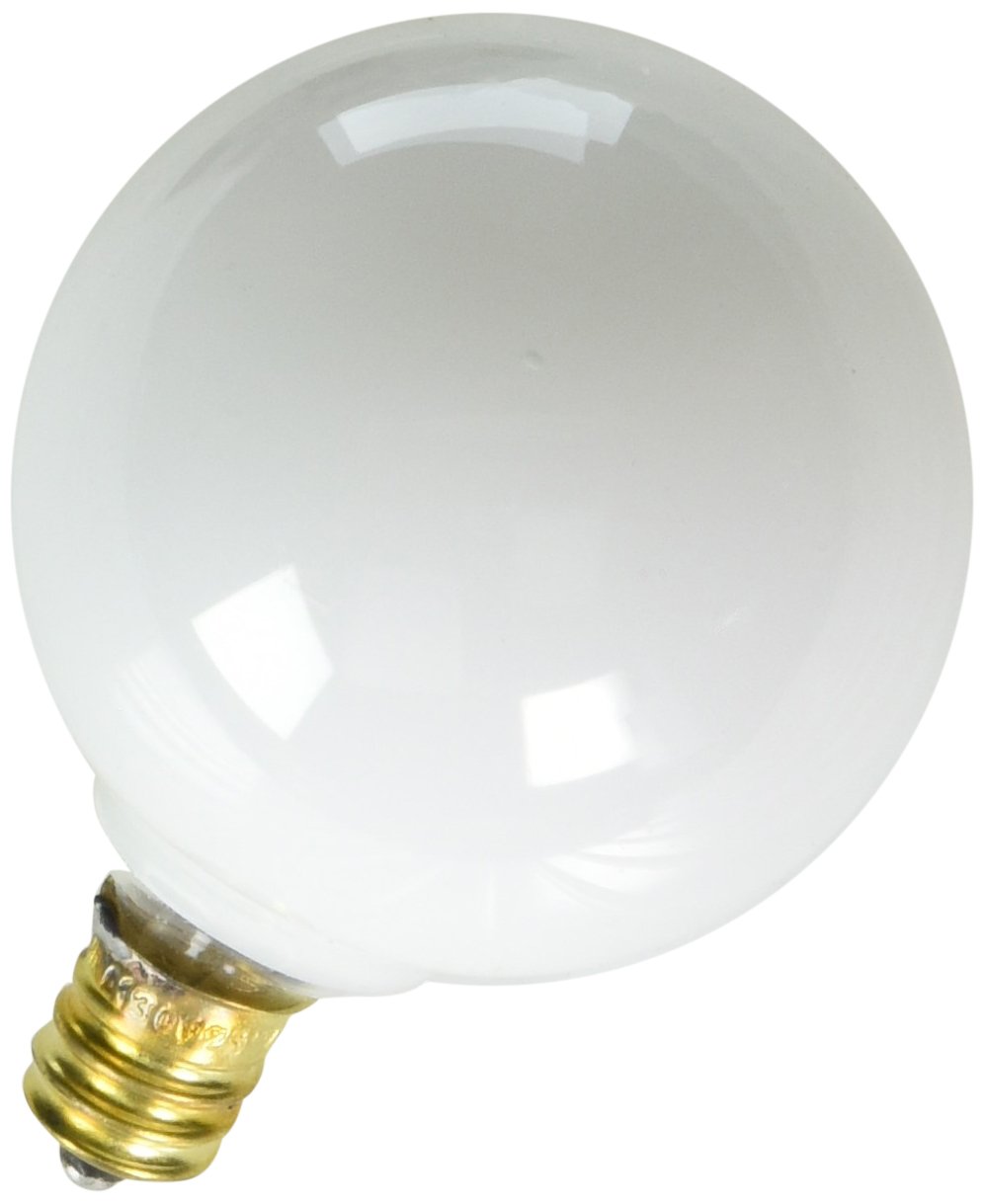

Imatge: Un primer pla view of the Westinghouse 25 Watt G16.5 Incandescent Light Bulb, showing its globe shape and E12 candelabra screw base.

Image: A hand holding the G16.5 light bulb, illustrating its compact size with a measurement of 2.5 inches (6 cm) in height.

Instruccions de funcionament

Once installed, operating the bulb is straightforward:

• Activació/desactivació: Feu servir l'interruptor de paret connectat al llum per encendre o apagar-lo.
• Dimecres: If connected to a compatible dimmer switch, adjust the dimmer control to achieve the desired brightness level.
• Funcionament normal: The bulb will provide 155 lumens of warm white light (2700K color temperature) when fully powered.

Manteniment

This incandescent light bulb requires minimal maintenance.

• Neteja: Ensure the power is off and the bulb is cool before cleaning. Wipe the bulb with a soft, dry cloth. Do not use liquid cleaners.
• Substitució: The average life of this bulb is 2500 hours. Replace the bulb when it burns out by following the "Setup and Installation" steps in reverse for removal, then install a new bulb.

Resolució de problemes

If your light bulb is not functioning as expected, consider the following:

• La bombeta no s'encén:
  • Comproveu si l’interruptor d’encesa està engegat.
  • Assegureu-vos que la bombeta estigui ben fixada.
  • Verifiqueu que l'interruptor automàtic no s'hagi disparat.
  • Test the bulb in another working fixture to confirm if the bulb or fixture is faulty.
  • The bulb may have reached the end of its lifespan and needs replacement.
• La bombeta parpelleja o s'atenua inesperadament:
  • Assegureu-vos que la bombeta estigui ben cargolada.
  • If using a dimmer, ensure it is compatible with incandescent bulbs and functioning correctly.
  • Comproveu si hi ha cablejat solt a la instal·lació (consulteu un electricista qualificat si no esteu segurs).

Especificacions

Garantia i Suport

For warranty information or technical support, please refer to the official Westinghouse weblloc web o poseu-vos en contacte amb el servei d'atenció al client. Conserveu el rebut de compra per a reclamacions de garantia.

Fabricant: Westinghouse

Weblloc: www.westinghouselighting.com (Exampl'enllaç, l'enllaç real pot variar)
