1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Canarm Calibre 48-inch Ceiling Fan with Light Kit. Please read this manual thoroughly before installation and retain it for future reference.
The Canarm Calibre ceiling fan features a 48-inch frame with three reversible blades, offering a choice between grey and white finishes. It includes an integrated flat opal glass light fixture and is designed for efficient air movement and quiet operation. The fan supports both downrod and flush mount installations and comes with a remote control for convenient operation of fan speeds and lighting.

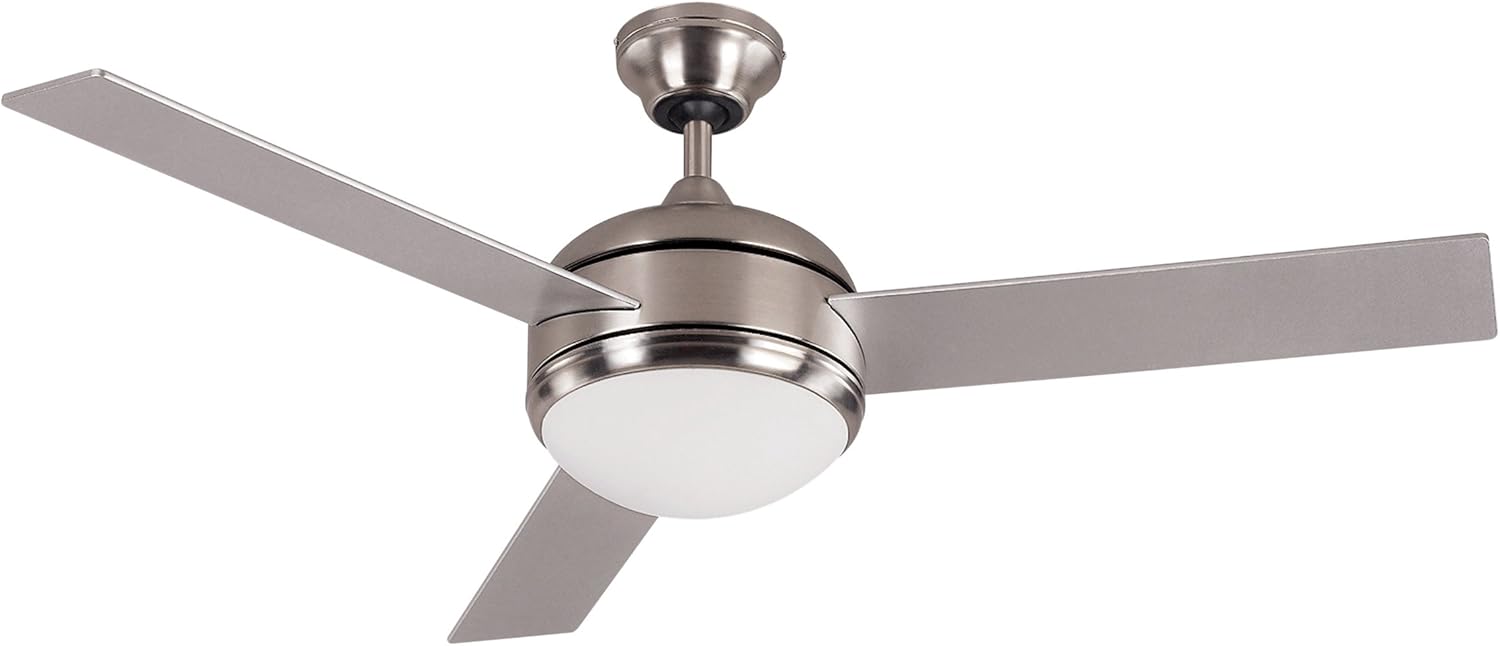

Image 1.1: The Canarm Calibre 48-inch Ceiling Fan in Brushed Pewter finish, showcasing its three blades and integrated light kit.
2. Informació important de seguretat
ADVERTÈNCIA: Per reduir el risc d'incendi, descàrrega elèctrica o lesions personals, seguiu sempre aquestes precaucions bàsiques:
- Llegiu atentament totes les instruccions abans de començar la instal·lació.
- Assegureu-vos que el subministrament elèctric estigui desconnectat a la caixa de fusibles principal o a l'interruptor automàtic abans de la instal·lació o el manteniment.
- All electrical connections must be in accordance with local codes, ordinances, or national electrical codes. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- El ventilador s'ha de muntar a una biga del sostre o a una estructura de suport capaç de suportar el pes del ventilador.
- No feu funcionar el ventilador amb el cablejat danyat o si el ventilador està visiblement danyat.
- Mantingueu les mans, la roba i altres objectes allunyats de les aspes del ventilador quan aquest estigui en funcionament.
- Aquest producte pot contenir productes químics coneguts per l'estat de Califòrnia per causar càncer i defectes de naixement o altres danys reproductius. Rentar-se les mans després de la manipulació.
3. Contingut del paquet
Verify that all components listed below are present and undamaged before proceeding with installation:
- Carcassa del motor del ventilador de sostre
- Pales de ventilador (3)
- Suports de fulla (3)
- Light Kit Assembly with Frosted Glass Shade
- Muntatge de la vareta i la capota
- Suport de muntatge
- Remote Control with Receiver
- Paquet de maquinari (cargols, volanderes, femelles de cable)
- Manual d'instruccions
Imatge 3.1: acabatview of the Canarm Calibre 48-inch Ceiling Fan's key features, including remote control, quiet motor, three speeds, and integrated light kit.
4. Configuració i instal·lació
The Calibre ceiling fan offers a dual mount hanging system, allowing for both downrod and flush mount installations to accommodate various ceiling heights. Professional installation is recommended for optimal safety and performance.
4.1 Muntatge del ventilador
- Secure the mounting bracket to the ceiling outlet box. Ensure the outlet box is securely fastened to a building structure.
- Assemble the downrod (for standard mount) or prepare for flush mount.
- Carefully lift the fan motor assembly and attach it to the mounting bracket.
4.2 Connexions elèctriques
- Before making any electrical connections, ensure the power is OFF at the circuit breaker.
- Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full instruction manual (not included here).
- Install the remote control receiver into the canopy. Note that the space for the receiver and wiring can be tight; carefully arrange wires to ensure a proper fit.
- Set the DIP switches on both the remote control and the receiver to the same configuration. It is recommended to set at least one DIP switch to the "1" position on both units to avoid interference with other fans.
4.3 Fixació de les pales i el kit de llums
- Attach the fan blades to the blade brackets using the provided screws.
- Fixeu els suports de les fulles a la carcassa del motor.
- Install the light kit assembly to the bottom of the fan motor housing.
- Insert the recommended 100W (A-type) bulb (not included) into the light kit.
- Attach the frosted glass shade.
5. Instruccions de funcionament
Your Canarm Calibre ceiling fan is operated by the included handheld remote control.
5.1 Funcions de control remot
- Control de velocitat del ventilador: The remote allows you to select between 3 fan speeds. Press the respective buttons to adjust the airflow.
- Control de la llum: The remote includes a light dimmer function. Press the light button to turn the light on/off, and hold it to dim or brighten the light.
5.2 Reversible Airflow
The fan features a reversible motor for year-round comfort. A slide switch on the fan's motor housing controls the direction of airflow.
- Mode d'estiu (sentit antihorari): Pushes air downward, creating a cooling breeze.
- Mode d'hivern (en sentit horari): Draws air upward, circulating warm air trapped near the ceiling.
Imatge 5.1: Un primer pla view of the slide switch located on the fan's motor housing, used to change the direction of the fan blades for reversible airflow.
To change the direction of airflow, ensure the fan is OFF and the blades have stopped completely before moving the slide switch.
6. Manteniment
Un manteniment regular ajudarà a allargar la vida útil i l'aspecte del teu ventilador de sostre.
- Neteja: Netegeu periòdicament el ventilador amb un drap suauamp drap. No utilitzeu netejadors abrasius ni dissolvents, ja que poden danyar l'acabat.
- Cura de la fulla: Check fan blades for dust accumulation. The design of this fan helps minimize dust, but occasional cleaning is recommended.
- Apretar els elements de fixació: Periodically check all screws and fasteners on the fan and light kit to ensure they are secure.
Always ensure the power is OFF at the circuit breaker before performing any cleaning or maintenance.
7. Solució De Problemes
If you experience issues with your Canarm Calibre ceiling fan, refer to the following troubleshooting guide:
| Problemes | Suggeriment |
|---|---|
| El ventilador no s'iniciarà |
|
| El ventilador fa soroll |
|
| El ventilador trontolla o tremola excessivament |
|
8. Especificacions
Detailed technical specifications for the Canarm Calibre 48-inch Ceiling Fan:
| Nom del model | Calibre 48 inch Ceiling Fan |
| Número de model | CF15148351S |
| Marca | Canarm |
| Color | Brushed Pewter |
| Dimensions del producte | 48 "P x 48" W x 15.5" H |
| Nombre de fulles | 3 |
| Font d'alimentació | AC |
| Voltage | 120 Volts |
| Wattage | 59 watts |
| Capacitat de cabal d'aire | 4632 peus cúbics per minut |
| Mètode de control | Remote (Voice control via Bond hub, sold separately) |
| Característica especial | Flux d'aire reversible |
| Components inclosos | Kit de llum |
| Tipus de bombeta | LED (100W A-type equivalent, bulb not included) |
| Ús interior/exterior | Interior |
| Pes de l'article | 16.27 lliures |
| UPC | 062345183268 |

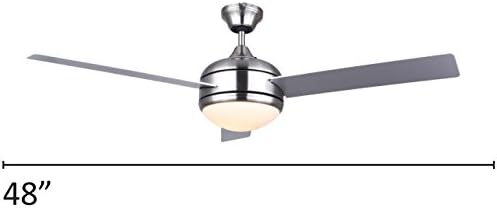

Image 8.1: The Canarm Calibre 48-inch Ceiling Fan, illustrating its 48-inch blade span.
9. Garantia i Suport
9.1 Informació de la garantia
This Canarm Calibre Ceiling Fan comes with a Garantia limitada de per vidaConsulteu la documentació de garantia inclosa amb el producte per conèixer els termes i condicions específics.
9.2 Atenció al client
For technical assistance, replacement parts, or warranty claims, please contact Canarm customer service. Contact information can typically be found on the product packaging or the official Canarm weblloc.
També podeu visitar el Botiga Canarm a Amazon per obtenir més informació sobre el producte.
