Manual d'usuari de la càmera digital Panasonic Lumix DMC-GF1

1. Producte acabatview

The Panasonic Lumix DMC-GF1 is a 12.1-megapixel Micro Four Thirds interchangeable lens digital camera. It features a compact and lightweight design, making it suitable for various photography and videography needs. The camera is equipped with a 4/3-type Live MOS sensor, capable of capturing high-quality still images and 1280 x 720 HD video. It supports AVCHD Lite and HD Motion JPEG formats for video recording.

Figura 1.1: Frontal view of the Panasonic Lumix DMC-GF1 camera with the 14-45mm lens attached.

Key features include a dedicated video record button, a 3-inch LCD with Full-time Live View, and various creative modes such as My Color mode and Scene modes. The camera also incorporates a Venus Engine HD for enhanced image processing and a Dust Reduction System to maintain sensor cleanliness.

Producte acabatview Vídeo

Introducing the Panasonic Lumix GF1

2. Guia de configuració

2.1 Desembalatge i inspecció inicial

En obrir el paquet, assegureu-vos que hi hagi tots els components:

• Cos de la càmera
• Lumix G Vario 14-45mm F3.5-F5.6 ASPH.Mega OIS Lens
• Parasol de l'objectiu
• Polarizing Lens
• Bateria
• Carregador de bateria
• Manuals d'instruccions

2.2 Instal·lació i càrrega de la bateria

1. Obriu la tapa del compartiment de la bateria que es troba a la part inferior de la càmera.
2. Insert the supplied battery, ensuring the correct orientation.
3. Tanqueu bé la tapa del compartiment de la bateria.
4. Connect the battery charger to a power outlet and insert the battery into the charger. The charging indicator will illuminate.
5. Once charging is complete, the indicator will change or turn off.

2.3 Fixació de l'objectiu

1. Traieu la tapa del cos de la càmera i la tapa posterior de l'objectiu.
2. Alineeu la marca d'índex blanca de l'objectiu amb la marca d'índex blanca del cos de la càmera.
3. Munteu la lent girant-la en sentit horari fins que encaixi al seu lloc.
4. Traieu la tapa frontal de la lent.

2.4 Inserció de la targeta de memòria

The DMC-GF1 uses SD/SDHC memory cards (not included).

1. Obriu la tapa de la ranura de la targeta de memòria.
2. Insert the SD/SDHC card with the label facing the front of the camera until it clicks.
3. Tanqueu la tapa de la ranura de la targeta de memòria.

2.5 Engegada/apagada

To power on the camera, slide the ON/OFF switch located on the top plate. To power off, slide the switch back to the OFF position.

Figura 2.1: superior view of the camera, highlighting the power switch and mode dial.

3. Instruccions de funcionament

3.1 Modes bàsics de fotografia

The DMC-GF1 offers various shooting modes to suit different situations. Use the mode dial on the top of the camera to select your desired mode.

• Intelligent Auto (iA) Mode: This mode automatically selects the optimal settings for your scene. It includes features like:
• Reconeixement facial: Recognizes registered faces and optimizes focus/brightness.
• AF Tracking: Keeps moving subjects in focus.
• Intelligent Exposure: Corrects brightness in dark or backlit areas.
• Intelligent Scene Selector: Automatically chooses from Portrait, Night Portrait, Scenery, Night Scenery, and Macro.
• Face Detection AF/AE: Adjusts focus and exposure for proper portraits.
• Intelligent ISO Control: Adjusts ISO and shutter speed to prevent blur.
• MEGA O.I.S. (Optical Image Stabilizer): Compensates for hand-shake (lens-based).
• My Color Mode: Allows manual adjustment of color, brightness, and saturation. Choose from seven preset effects (Expressive, Retro, Pure, Elegant, Monochrome, Dynamic Art, Silhouette) or create a Custom setting. Live View shows the effect before shooting.
• Scene Mode (Peripheral Defocus): Simplifies achieving a blurred background or foreground effect by allowing selection of objects to be in focus or blurred.
• Film Modes: Nine film modes are available, with adjustable contrast, sharpness, and saturation. Custom settings can be stored.

3.2 Enregistrament de vídeo

The DMC-GF1 can record HD video in AVCHD Lite (MPEG-4/H.264) and HD Motion JPEG (1280 x 720) formats.

1. To start recording, press the dedicated "movie record" button on the top of the camera.
2. Torneu a prémer el botó per aturar la gravació.
3. Movie Program Mode: Allows adjustment of depth-of-field during HD video recording for creative effects.
4. My Color mode and Scene modes can also be used for video recording.

3.3 Visualització i Viewcercador

The camera features a 3-inch LCD display with Full-time Live View, allowing you to see how exposure, white balance, aperture, and shutter speed settings will affect the final image in real-time.

• Mesurador d'exposició: An on-screen meter indicates the suitable exposure range for aperture and shutter speed. Out-of-range settings are shown in red.
• Optional Live View Finder (LVF): An optional 202,000-dot equivalent LVF can be mounted to the hot shoe. It displays the same information as the LCD and can be tilted vertically from 0 to 90 degrees for low-angle shots.

Figura 3.1: Esquena view de la càmera, mostrant la pantalla LCD i els botons de control.

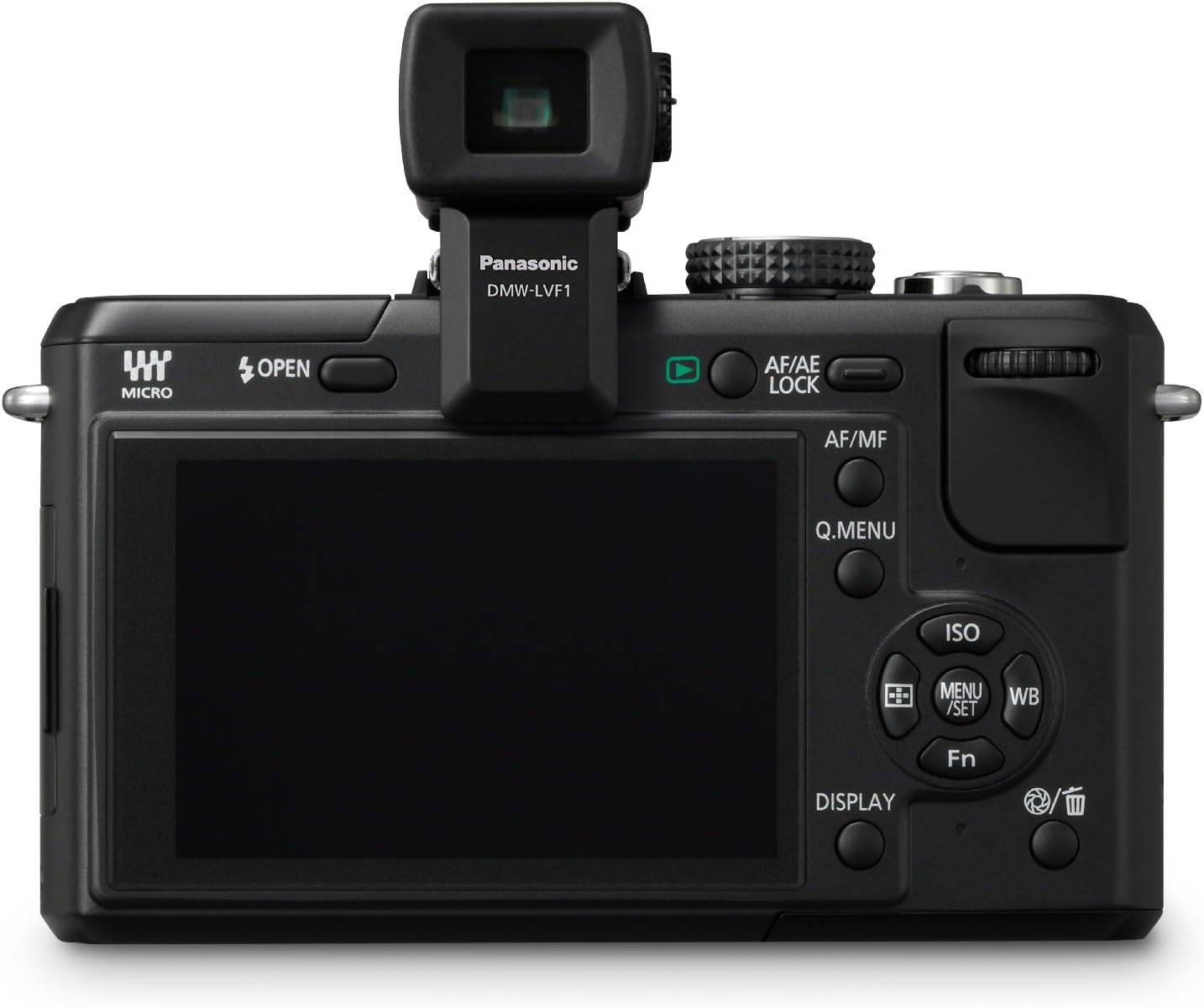

Figura 3.2: Esquena view of the camera with the optional Live View Finder (DMW-LVF1) attached.

4. Manteniment

4.1 Dust Reduction System

The DMC-GF1 is equipped with a Supersonic Wave Filter located in front of the Live MOS sensor. This filter vibrates approximately 50,000 times per second to repel dust and other particles, helping to keep the image sensor clean and prevent spots in photos, especially when changing lenses.

4.2 Neteja de la càmera i l'objectiu

• Cos de la càmera: Netegeu el cos de la càmera amb un drap suau i sec. Per a la brutícia persistent, utilitzeu un drap lleugerament humit.ampEsbandiu amb aigua o una solució netejadora suau i després eixugueu-ho.
• Lent: Use a lens blower brush to remove dust. For smudges, use a soft lens cleaning cloth with a small amount of lens cleaning fluid. Avoid touching the lens surface with your fingers.
• Pantalla LCD: Gently wipe the LCD screen with a soft, dry cloth. Avoid applying excessive pressure.

5. Solució De Problemes

5.1 Image Noise in Low Light

When shooting in low-light conditions, especially at ISO sensitivities above 800, you may observe increased image noise (grain). To minimize this:

• Use a lens with a wider aperture (lower f-number) to allow more light into the sensor.
• Increase available lighting in the scene.
• Utilize the built-in flash when appropriate, or external lighting accessories.

5.2 Video Stabilization

The DMC-GF1 does not feature in-body image stabilization. While the kit lens includes MEGA O.I.S. (Optical Image Stabilizer), for extremely smooth video footage, especially when moving, consider using external stabilization equipment such as a gimbal or glidecam.

5.3 Problemes de connectivitat

If you experience issues connecting the camera to a computer or TV:

• Ensure cables (HDMI, USB) are securely connected to both the camera and the external device.
• Verify that the external device (TV, computer) is set to the correct input source.
• For VIERA Link Networking, ensure your Panasonic VIERA TV is compatible and properly configured.

6. Especificacions

7. Garantia i assistència

For detailed warranty information, please refer to the warranty card included with your product or visit the official Panasonic support weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

7.1 Atenció al client

If you encounter any issues or have questions regarding your Panasonic Lumix DMC-GF1 camera, please contact Panasonic customer support. Contact details can typically be found on the Panasonic weblloc web o a la documentació inclosa.

7.2 Plans de protecció

Optional protection plans may be available for purchase separately to extend coverage beyond the standard manufacturer's warranty. Please check with your retailer or Panasonic for available options.
