hansgrohe Croma 100 Multi/Ecostat 1001 SL Shower System Instruction Manual

1. Producte acabatview

This manual provides instructions for the hansgrohe Brausenkombination Croma 100 Multi/Ecostat 1001 SL shower system, Model 27085000. This system combines a shower thermostat, a multi-function hand shower, and a shower bar to provide a versatile and comfortable showering experience.

Components clau:

• Ecostat 1001 SL Shower Thermostat: An exposed shower thermostat for precise temperature and flow control.
• Croma 100 Multi Hand Shower: Features multiple spray types for varied showering pleasure.
• Unica'C Shower Bar 0.90 m: A 90 cm shower bar for adjustable hand shower height.
• Isiflex Shower Hose: A strong, non-bending 1.60 m shower hose for ampel arribar.

Característiques:

• Varied Spray Types: The Croma 100 Multi hand shower offers Rain, Mono, and Massage spray types.
• Easy Spray Type Change: Spray types are easily changed by rotating the spray disc.
• Funció QuickClean: Simple limescale removal by rubbing the silicone nozzles.
• Adjustable Shower Bar: The hand shower holder on the Unica'C bar is 90° adjustable and can swivel left, right, up, and down.
• Anti-Twist Shower Hose: Features a swivel connection to prevent the shower hose from twisting.

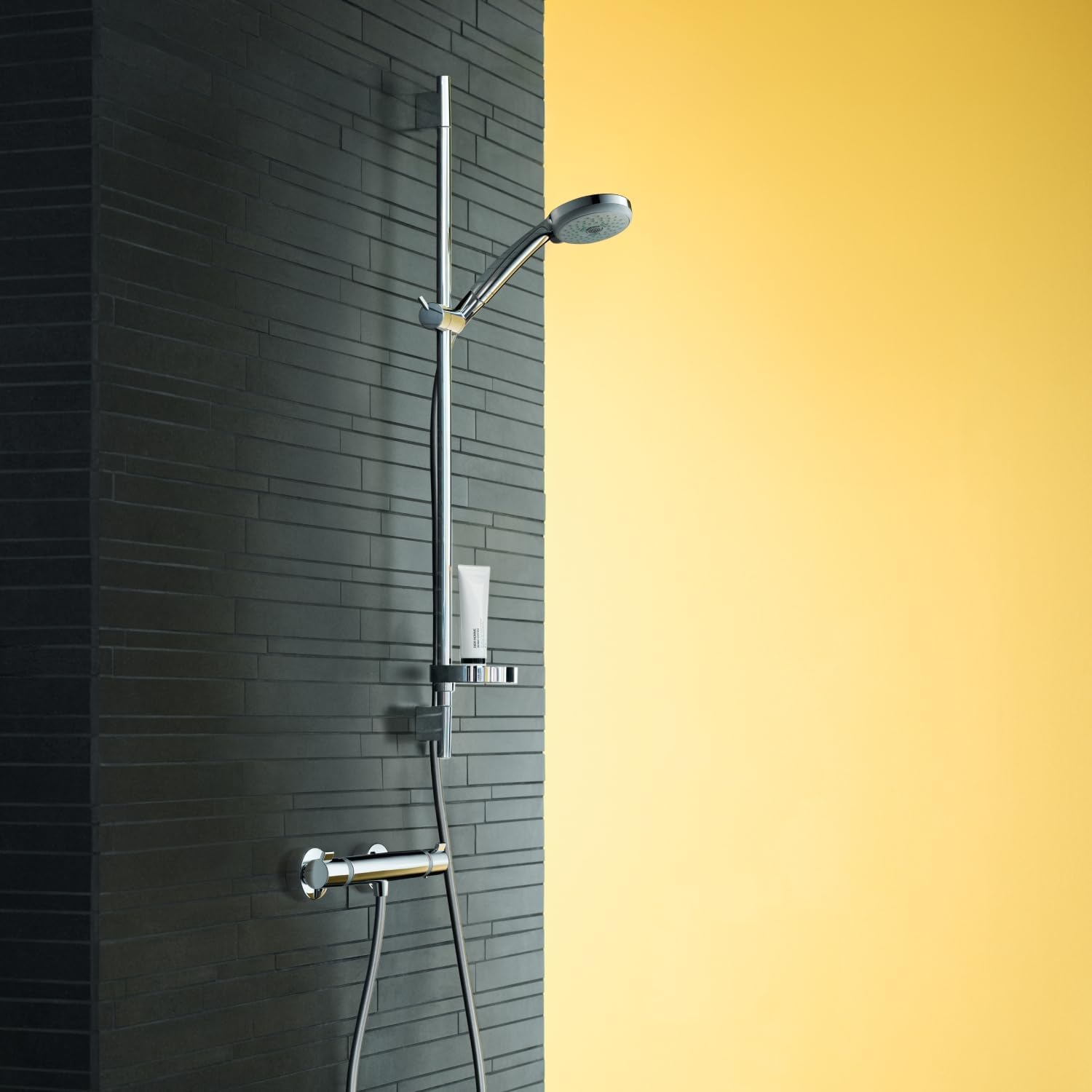

Figure 1: The hansgrohe Croma 100 Multi/Ecostat 1001 SL Shower System in a bathroom setting.

2. Informació de seguretat

Si us plau, llegiu atentament totes les instruccions abans de la instal·lació i l'ús. Si no seguiu aquestes instruccions, podeu patir danys materials o lesions personals.

• Installation should be performed by a qualified plumber or a competent person in accordance with local plumbing and building codes.
• Assegureu-vos que el subministrament d'aigua estigui tallat abans de començar qualsevol treball d'instal·lació o manteniment.
• Protegiu el producte de les gelades.
• Do not use abrasive cleaners or solvents on the product surfaces, as this may damage the finish.
• Comproveu totes les connexions per detectar fuites després de la instal·lació.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

• Termostat de dutxa Ecostat 1001 SL
• Croma 100 Multi Hand Shower
• Unica'C Shower Bar (0.90 m)
• Isiflex Shower Hose (1.60 m)
• Materials de muntatge (cargols, tacs de paret)
• Seals and gaskets

4. Configuració i instal·lació

This section provides general guidance for installing your hansgrohe shower system. For detailed, step-by-step instructions, please refer to the specific installation guide included with your product packaging or available on the hansgrohe weblloc.

1. Prepareu l'àrea d'instal·lació: Ensure the wall surface is clean, stable, and suitable for mounting. Turn off the main water supply.
2. Install the Ecostat 1001 SL Thermostat: Connect the thermostat to the hot and cold water lines according to the markings (typically red for hot, blue for cold). Ensure all connections are sealed properly.
3. Mount the Unica'C Shower Bar: Position the shower bar on the wall, mark the drilling points, and drill holes. Secure the bar using the provided mounting hardware. Ensure it is level and firmly attached.
4. Connecteu el tub de dutxa: Attach one end of the Isiflex shower hose to the thermostat outlet and the other end to the Croma 100 Multi hand shower. Hand-tighten connections, then use a wrench for a final snug fit, being careful not to overtighten.
5. Place Hand Shower: Insert the Croma 100 Multi hand shower into the adjustable holder on the Unica'C shower bar.
6. Prova de fuites: Obriu lentament el subministrament principal d'aigua i comproveu si hi ha fuites a totes les connexions.

Figure 2: Technical diagram showing dimensions and connections for the shower system components.

5. Instruccions de funcionament

Your hansgrohe shower system is designed for intuitive use.

• Water Flow Control (Ecostat 1001 SL): Use the left rotary control on the Ecostat 1001 SL thermostat to turn the water on/off and adjust the flow rate.
• Temperature Control (Ecostat 1001 SL): Use the right rotary control to set your desired water temperature. The thermostat maintains a constant temperature, even with pressure fluctuations. A safety stop is typically set at 38°C (100°F) to prevent accidental scalding; this can be overridden by pressing a button on the control.
• Changing Spray Types (Croma 100 Multi Hand Shower): Rotate the spray disc on the hand shower head to switch between Rain, Mono, and Massage spray types.
• Adjusting Hand Shower Height and Angle: The holder on the Unica'C shower bar allows you to slide the hand shower up or down to your preferred height. You can also tilt the hand shower by 90° and swivel it left or right to direct the water flow.

6. Manteniment

Regular cleaning and maintenance will ensure the longevity and optimal performance of your hansgrohe shower system.

• Cleaning the Surfaces: Clean the chrome surfaces with a soft cloth and a mild, non-abrasive cleaning agent. Avoid cleaners containing alcohol, hydrochloric acid, formic acid, chlorine bleach, or acetic acid, as these can damage the finish.
• QuickClean Limescale Removal: The Croma 100 Multi hand shower features QuickClean silicone nozzles. To remove limescale deposits, simply rub the silicone nozzles with your finger. This should be done regularly, especially in areas with hard water.
• Shower Hose: Periodically check the shower hose for any signs of wear or damage. The Isiflex hose is designed to be non-bending, but extreme kinks should be avoided.
• Thermostat Cartridge: If you experience consistent temperature fluctuations or difficulty adjusting the temperature, the thermostat cartridge may need cleaning or replacement. This typically requires professional service.

7. Solució De Problemes

If you encounter issues with your shower system, try the following common troubleshooting steps:

If these steps do not resolve the issue, please contact hansgrohe customer support or a qualified plumber.

8. Especificacions

9. Garantia i Suport

hansgrohe products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions applicable to your region, please refer to the documentation included with your product or visit the official hansgrohe weblloc.

For technical support, spare parts, or further assistance, please contact hansgrohe customer service. Contact information can typically be found on the hansgrohe weblloc web o a l'embalatge del producte.

Recursos en línia:

• Visita l'oficial Botiga Hansgrohe a Amazon per a informació del producte.
• For general product information and support, visit the main hansgrohe weblloc (URL not provided in source, search for 'hansgrohe official website').
