Introducció
This manual provides essential information for the proper installation, maintenance, and troubleshooting of the Briggs & Stratton 697355 Main Jet Replacement Part. The main jet is a critical component within the carburetor, responsible for regulating the fuel-to-air mixture delivered to the engine during operation. Using genuine Briggs & Stratton parts ensures compatibility and maintains the performance and emission standards of your engine.
For additional support or detailed engine-specific instructions, please refer to your engine's original service manual or visit the official Briggs & Stratton weblloc.
Informació de seguretat
Prioritzeu sempre la seguretat quan treballeu amb components del motor. Si no seguiu les precaucions de seguretat, podeu patir lesions greus o danys a l'equip.
- Desconnecteu el cable de la bugia: Before performing any service, disconnect the spark plug wire and secure it away from the spark plug to prevent accidental starting.
- Deixeu que el motor es refredi: Ensure the engine is cool to the touch before beginning work to avoid burns.
- Work in a well-ventilated area: Fuel fumes can be hazardous.
- Utilitzeu l'equip de protecció individual (EPI) adequat: Això inclou ulleres i guants de seguretat.
- Handle fuel carefully: Fuel is highly flammable. Store it in approved containers and away from ignition sources.
- Refer to engine manual: Always consult your specific engine's owner's manual for detailed safety warnings and procedures.
Compatibilitat
The Briggs & Stratton 697355 Main Jet is a genuine OEM (Original Equipment Manufacturer) replacement part. It is specifically designed for use in various Briggs & Stratton engines that require this particular main jet model. Always verify the part number against your engine's specifications or existing part to ensure correct fitment.
Configuració i instal·lació
Replacing the main jet typically involves working with the carburetor. If you are not comfortable performing this procedure, it is recommended to seek assistance from a qualified service technician.
Eines i materials necessaris:
- Joc de claus de tub o claus adequades
- Joc de tornavís
- Draps nets
- Fuel-safe container for draining fuel
- New Briggs & Stratton 697355 Main Jet
- Netejador de carburadors (opcional, per a la neteja)
Passos d'instal·lació:
- Preparació: Ensure the engine is off and cool. Disconnect the spark plug wire. Turn off the fuel supply valve, if equipped, and drain any fuel from the fuel tank into an approved container.
- Access the Carburetor: Depending on your engine model, you may need to remove air filter housing, shrouds, or other components to gain access to the carburetor.
- Remove Carburetor Bowl: Carefully remove the bolt or screws holding the carburetor float bowl in place. Be prepared for residual fuel to drain. Note the position of any gaskets or O-rings.
- Locate and Remove Old Main Jet: The main jet is typically located in the center of the carburetor bowl bolt or within the carburetor body itself, often accessible once the bowl is removed. Use the appropriate tool to carefully unscrew and remove the old main jet. Inspect it for clogs or damage.
- Install New Main Jet: Thread the new Briggs & Stratton 697355 Main Jet into its designated position. Tighten it securely but do not overtighten, as this can damage the jet or carburetor threads.
- Torneu a muntar el carburador: Ensure all gaskets and O-rings are correctly seated and in good condition. Replace the carburetor float bowl and tighten its retaining bolt/screws.
- Reassemble Engine Components: Reattach any shrouds, air filter housing, or other parts that were removed to access the carburetor.
- Reconnect Spark Plug and Refuel: Reconnect the spark plug wire. Refill the fuel tank with fresh, appropriate fuel. Turn on the fuel supply valve.

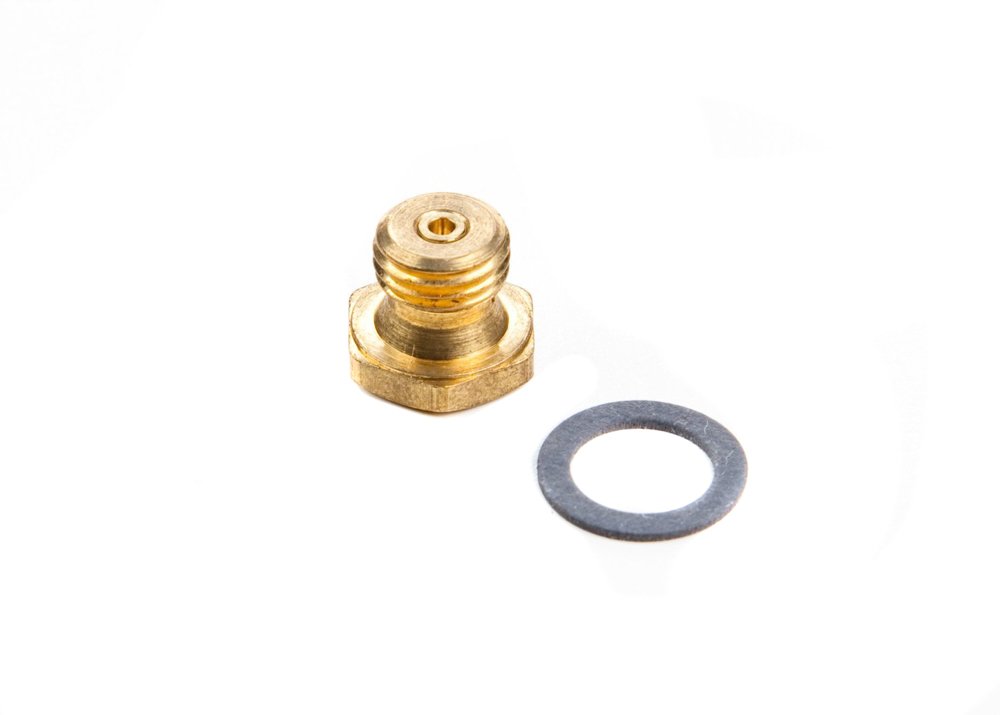

This image displays the Briggs & Stratton 697355 Main Jet, a small, precision-machined brass component designed to regulate fuel flow in a carburetor.
Post-Installation Engine Operation
After installing the new main jet and reassembling the engine, perform the following checks:
- Comproveu si hi ha fuites: Before starting, visually inspect all fuel lines and carburetor connections for any signs of fuel leaks.
- Engegueu el motor: Follow your engine's starting procedure. Allow the engine to warm up.
- Observe Engine Performance: Listen for smooth operation, proper idle, and responsiveness when accelerating. The engine should run without sputtering, surging, or excessive smoke.
- Monitor for Issues: If the engine runs poorly, refer to the troubleshooting section.
Manteniment
El manteniment adequat del sistema de combustible del motor, inclòs el jet principal, és crucial per a la longevitat i el rendiment.
- Qualitat del combustible: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of main jet clogging. Consider using a fuel stabilizer if the equipment will be stored for extended periods.
- Filtre de combustible: Regularly inspect and replace the fuel filter according to your engine's maintenance schedule to prevent debris from reaching the carburetor and main jet.
- Neteja del carburador: If performance issues arise, the carburetor (including the main jet) may require cleaning. This typically involves disassembling the carburetor and cleaning passages with carburetor cleaner and compressed air.
- Emmagatzematge estacional: Before long-term storage, either run the engine until it runs out of fuel or drain the fuel system completely to prevent fuel degradation and gumming in the carburetor.
Resolució de problemes
If your engine experiences issues after main jet replacement, consider the following:
| Símptoma | Causa possible | Solució |
|---|---|---|
| Engine will not start or starts with difficulty | Incorrect installation of main jet, clogged fuel line, no fuel, spark plug issue, air filter clogged. | Verify main jet is correctly seated. Check fuel level and flow. Inspect spark plug and air filter. |
| Engine runs rough, surges, or lacks power | Main jet still partially clogged (if not replaced), other carburetor issues, stale fuel, air leak. | Re-inspect main jet and carburetor for debris. Ensure all carburetor gaskets are sealed. Use fresh fuel. |
| Fuites de combustible del carburador | Improperly seated carburetor bowl, damaged gasket/O-ring, loose main jet. | Check carburetor bowl for proper seating and tightness. Inspect and replace gaskets/O-rings if damaged. Ensure main jet is snug. |
Especificacions
- Número de peça: 697355
- Tipus: Main Jet Replacement Part
- Fabricant: Briggs & Stratton
- Dimensions del producte: Aproximadament 1 x 7 x 8 polzades (dimensions de l'embalatge)
- Pes de l'article: Aproximadament 0.32 unces
Garantia i Suport
As a genuine Briggs & Stratton part, this main jet is manufactured to high-quality standards. For specific warranty information regarding genuine Briggs & Stratton replacement parts, please refer to the official Briggs & Stratton website or contact their customer support directly. Using genuine parts helps ensure your engine maintains its original warranty and performance specifications.
For technical assistance, parts inquiries, or to locate an authorized service dealer, visit the official Briggs & Stratton weblloc.
