Oregon Jet Fit 2-Line Trimmer Head User Manual

Introducció

The Oregon Jet-Fit 2-Line Trimmer Head is engineered for efficient and professional trimming tasks. Designed to fit most straight shaft brushcutters and trimmers with an engine displacement of 25cc or greater, this head simplifies line replacement and enhances cutting performance. It comes equipped with durable Flexiblade lines, making it suitable for intensive use.

Informació important de seguretat

Always prioritize safety when operating power tools. Read and understand all safety warnings before use.

• Precaució: Risk of flying debris. Always wear appropriate personal protective equipment, including safety glasses, to protect your eyes from ejected material.
• Keep bystanders, children, and pets away from the work area. Maintain a safe distance to prevent injury from flying objects or the cutting mechanism.
• Perill de tall: Keep hands and feet away from the cutting area and the rotating trimmer head at all times, especially when the engine is running.
• Ensure the trimmer head is securely attached and in good condition before each use.

Producte acabatview

The Oregon Jet Fit 2-Line Trimmer Head (Model 111110) is a robust accessory designed for demanding trimming applications. Key features include:

• Dual Trimmer Head: Compatible with most straight shaft trimmers and brushcutters with an engine displacement of 25cc and above.
• Grau professional: Specifically engineered for intensive and professional use, ensuring durability and consistent performance.
• Easy Reload Head: Features a design that allows for simple and quick loading of pre-cut trimmer lines, minimizing downtime.
• Flexiblade Technology: Utilizes advanced Flexiblade lines (3mm and 4mm included) which offer an aerodynamic, low-noise profile, contributing to reduced fuel consumption.
• Simple Loading: Designed for efficiency, allowing users to save time on line replacement without compromising cutting power.

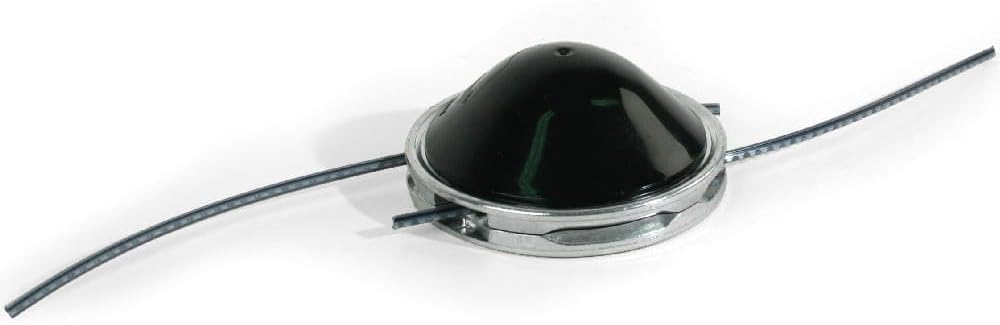

Figure 1: The Oregon Jet Fit 2-Line Trimmer Head with installed lines.

Contingut del paquet

En obrir el paquet, assegureu-vos que tots els components hi siguin presents i no estiguin danyats:

• 1 x Oregon Jet Fit 2-Line Flexiblade Cutting Head (Model 111110)
• Pre-cut Flexiblade lines (3mm and 4mm)
• Various adapter washers and nuts for compatibility with different brushcutters.

Figure 2: Packaging of the Oregon Jet Fit 2-Line Trimmer Head, showing included components.

Configuració i instal·lació

Proper installation is crucial for safe and effective operation. Refer to your brushcutter's manual for specific instructions on removing the existing head and attaching accessories.

1. La seguretat primer: Ensure your brushcutter's engine is off and the spark plug cap is disconnected before beginning installation.
2. Treure el cap vell: If applicable, remove the existing trimmer head according to your brushcutter's manufacturer instructions. This usually involves locking the shaft and unscrewing the head.
3. Selecciona l'adaptador: Choose the correct adapter washer and nut from the included set that matches your brushcutter's shaft thread.
4. Enganxar el cap: Place the Oregon Jet Fit trimmer head onto the brushcutter shaft, ensuring it sits flush. Secure it with the appropriate adapter nut, tightening it firmly.
5. Insert Trimmer Lines: The Jet Fit head is designed for easy line insertion. Simply push the pre-cut Flexiblade lines through the designated holes until they are centered. Ensure both lines are of equal length extending from the head.

Instruccions de funcionament

Once installed, the Oregon Jet Fit trimmer head is ready for use. Always follow your brushcutter's operating guidelines.

• Comprovació prèvia al funcionament: Before starting, inspect the trimmer head for any damage, ensure lines are properly inserted and of equal length, and verify all fasteners are tight.
• Starting the Brushcutter: Follow your brushcutter's manual for starting procedures.
• Tècnica de retallada: Use a sweeping motion to cut grass and weeds. Avoid hitting hard objects like rocks, fences, or concrete, as this can damage the lines or the head.
• Desgast de la línia: The Flexiblade lines are designed for durability, but will wear down with use. When lines become too short or ineffective, replace them as described in the "Setup and Installation" section.

Manteniment

Regular maintenance ensures the longevity and optimal performance of your Oregon Jet Fit trimmer head.

• Neteja: After each use, clean the trimmer head to remove grass clippings, dirt, and debris. A stiff brush or compressed air can be used.
• Inspecció: Periodically inspect the aluminum head for cracks, bends, or excessive wear. Check the line insertion points for any damage.
• Line Storage: Store unused Flexiblade lines in a cool, dry place away from direct sunlight to maintain their flexibility and strength.
• Elements de fixació: Ensure all nuts and bolts securing the head to the brushcutter are tight. Re-tighten if necessary.

Resolució de problemes

Especificacions

Garantia i Suport

For warranty information, technical support, or to purchase replacement parts, please visit the official Oregon weblloc web o poseu-vos en contacte amb el seu servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.

Podeu trobar més informació i dades de contacte a Oregon Brand Store.
